Güldner A 15 - AF 20

Manufacturer
Models
Güldner A 15, Güldner AF 15, Güldner AF 20
Years
1949-54
Info

In 1949, Güldner introduced a new generation of diesels designed to enable both water and air cooling. Initially, however, water cooling was maintained. Alongside the Fahr D 15, the 1.3-liter 2-cylinder engine was used in Güldner's own A 15. The engine was part of the load-bearing structure. The transmission was 4+1. Equipment included steering brakes, power take-off, a suspended front axle, and headlights. A year later, the transmission was changed to a ZF 5+1 gearbox, and the model designation became AF 15. These models introduced for the first time the "shark fin" front design, which was inherited by subsequent models.

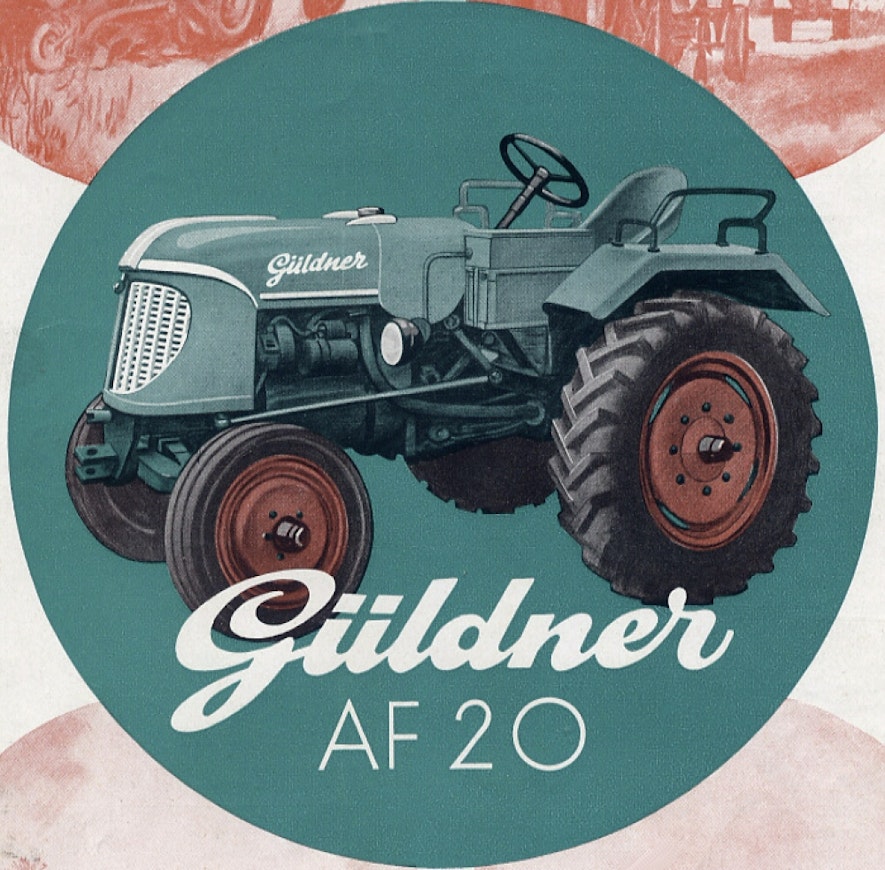

Between 1951 and 1952, the 1.6-liter AF 20 model was also produced.

These models contributed to Güldner's reputation as a quality brand, with over 10,000 units sold in total.

Technical data
ModelGüldner A 15Güldner AF 15Güldner AF 20
Options
Imported to FinlandNoNoYes
Years1949-501950-541951-52
First year sold194919501951
Last year sold195019541952
Engine model2D152D152DA
Cyl/Turbo/Intercooler222
Displacement1304 cm³1304 cm³1630 cm³
Bore x stroke85x115 mm85x115 mm95x115 mm
Rated power hp/rpm DIN15-16/180015-17/180020-22/1800
Rated power151520
Rated speed180018001800
Torque Nm/rpm DIN--89/1635
Gears4+15+15+1
Speeds in km/h3,8-16,12,9-19,63,0-20,0
Hydraulic pressure--(147) bar
Lift controlsmech.mech.mech.
Lift capacity--(350) kg
PTO speeds540540540
Brakesdrum brakesdrum brakesdrum brakes
Steeringmech.mech.mech.
Turning circle m 2WD6,26,26,2
Front tyres 2WD5.00-165.00-165.00-16
Rear tyres 2WD8.00-208.00-209-24
Weight 2WD(1225) kg(1225) kg(1375) kg
Height with cab(150) cm(150) cm(150) cm
Length (2WD/4WD)260 cm260 cm260 cm
Wheelbase (2WD/4WD)155 cm155 cm155 cm
Fuel tank20 l20 l36 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
