Siirry sivupalkkiinSiirry alaosaanJohn Deere 8130-8530

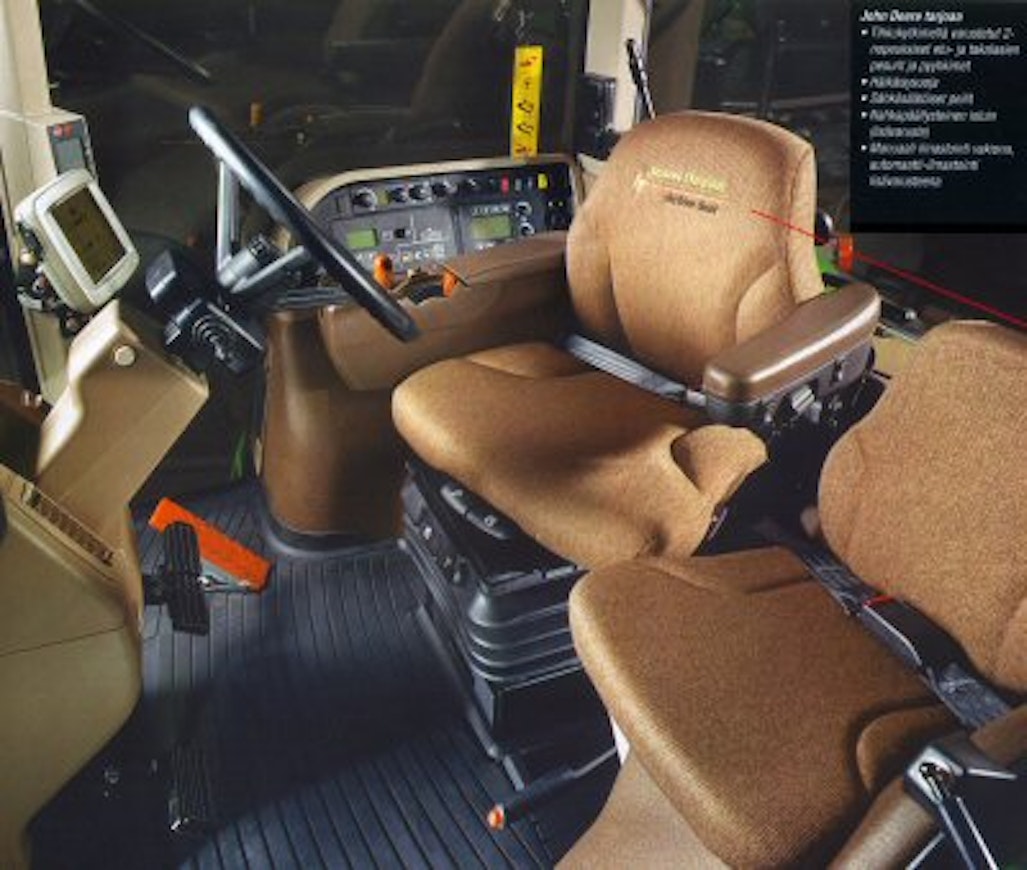

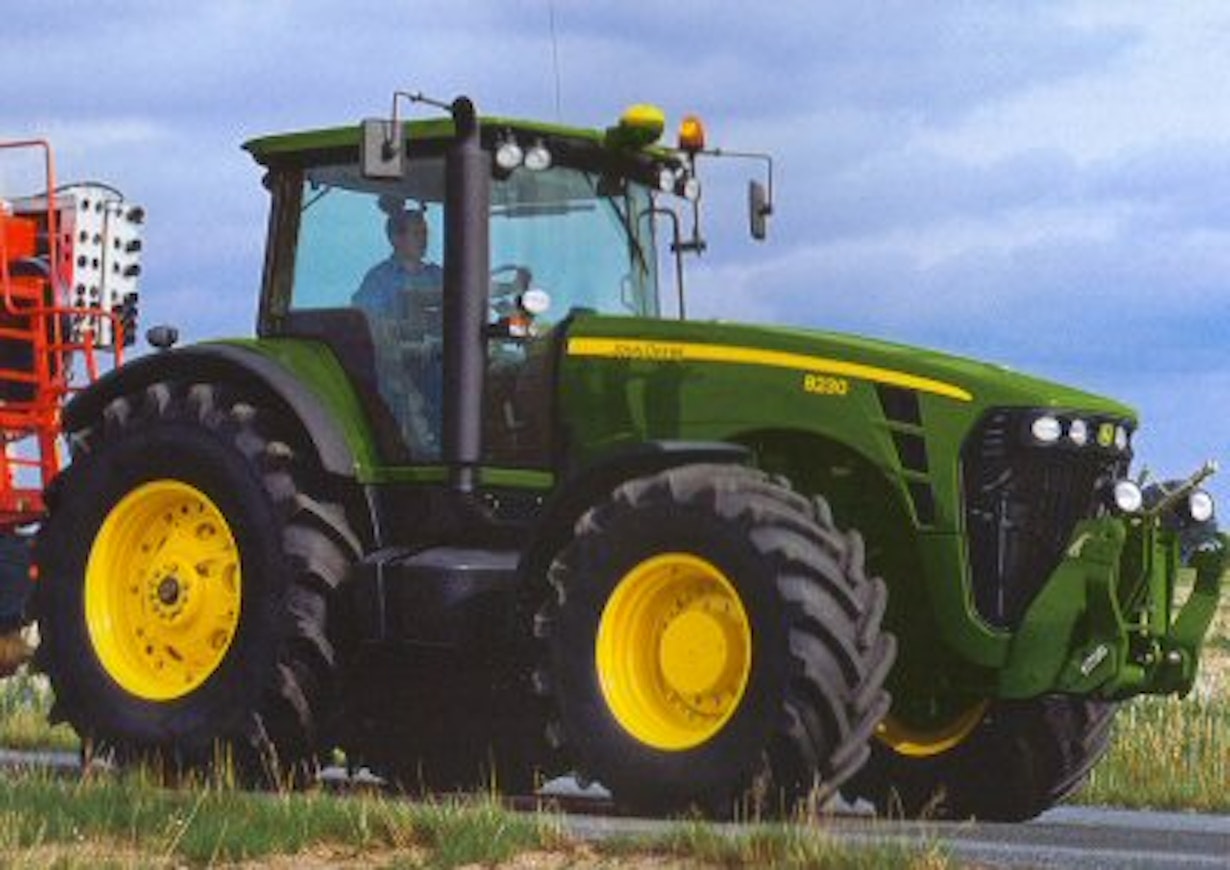

John Deere’s 8030 series featured new 9.0-liter PowerTech Plus engines. As with the smaller models, there were four valves per cylinder and adjustable turbo vanes. Torque was noticeably higher than before. As an alternative to the 16+5-speed full powershift transmission that had been used since 1994, there was a new stepless AutoPowr transmission, which could reach 50 km/h at just 1,750 rpm. With AutoPowr, you set the desired top speed using a dial, choose the engine speed you want, then push the gear lever forward and the tractor starts moving. A rubber-suspended cab version was available on the three mid-range models. The cab had been updated, but the noise level remained at 72 dB. A suspended front axle was standard on the two largest models. Optional extras included advanced positioning technology and automatic steering. You could also order a 227-l/min hydraulic pump as an option. The hydraulic valve settings were controlled via the display screen.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 8130 | John Deere 8230 | John Deere 8330 | John Deere 8430 | John Deere 8530 |
|---|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 2006-09 | 2006-09 | 2006-09 | 2006-09 | 2006-09 |
| Engine model | 6090 HF485 | 6090 HF485 | 6090 HF485 | 6090 HF485 | 6090 HF485 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 9000 cm³ | 9000 cm³ | 9000 cm³ | 9000 cm³ | 9000 cm³ |
| Bore x stroke | 118,4×136 mm | 118,4×136 mm | 118,4×136 mm | 118,4×136 mm | 118,4×136 mm |
| Rated power | - | - | - | - | - |
| Max power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | 16+5 (stepless) | 16+5 (stepless) | 16+5 (stepless) | 16+5 (stepless) | stepless |
| Synchronized gears | powershift | powershift | powershift | powershift | stepless |
| Powershift gears | powershift | powershift | powershift | powershift | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,0-42/0,05-42 | 2,0-42/0,05-42 | 2,0-42/0,05-42 | 2,0-42/0,05-42 | 0,05-42 |
| Max. speed | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h |
| Hydr. flow l/min | 167 (227) l/min | 167 (227) l/min | 167 (227) l/min | 167 (227) l/min | 167 (227) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 10788 kg | 10788 kg | 10788 kg | 10788 kg | 11762 kg |
| PTO speeds | 1000 | 1000 | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.4 | 10.4 | 10.4 | 10.4 | 10.4 |
| Front tyres 4WD | 600/65R28 | 600/65R28 | 600/65R30 | 600/65R30 | 600/65R30 |
| Rear tyres 4WD | 710/70R38 | 710/70R38 | 710/70R42 | 710/70R42 | 710/70R42 |
| Weight 4WD | 10346 kg | 10346 kg | 10346 kg | 10346 kg | 11298 kg |
| Height with cab | 331 cm | 331 cm | 336 cm | 336 cm | 336 cm |
| Length (2WD/4WD) | 559 cm | 559 cm | 564 cm | 564 cm | 564 cm |
| Wheelbase (2WD/4WD) | 295 cm | 295 cm | 295 cm | 295 cm | 295 cm |
| Fuel tank | 681 l | 681 l | 681 l | 681 l | 681 l |
| Cab noise level | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Trip computer | no radar | no radar | no radar | no radar | no radar |
| Creeper gear | - | - | - | - | x |
