Siirry sivupalkkiinSiirry alaosaanJohn Deere 3040-3640 SG2






In the autumn of 1981, the Sekura cabins were replaced with the American model SG2 cabins. Noise levels dropped below 80 decibels. The front axle of the four-wheel-drive models was replaced with a significantly more agile ZF axle, where the wheels tilted as much as 22 degrees. At the same time, a limited-slip differential became standard.
In 1983, a cheaper X-E model range was introduced alongside it, which was not brought to Finland. Instead, basic models were sold in Finland, featuring smaller-than-normal tires, an 8+4 transmission, and only 540 rpm PTO.

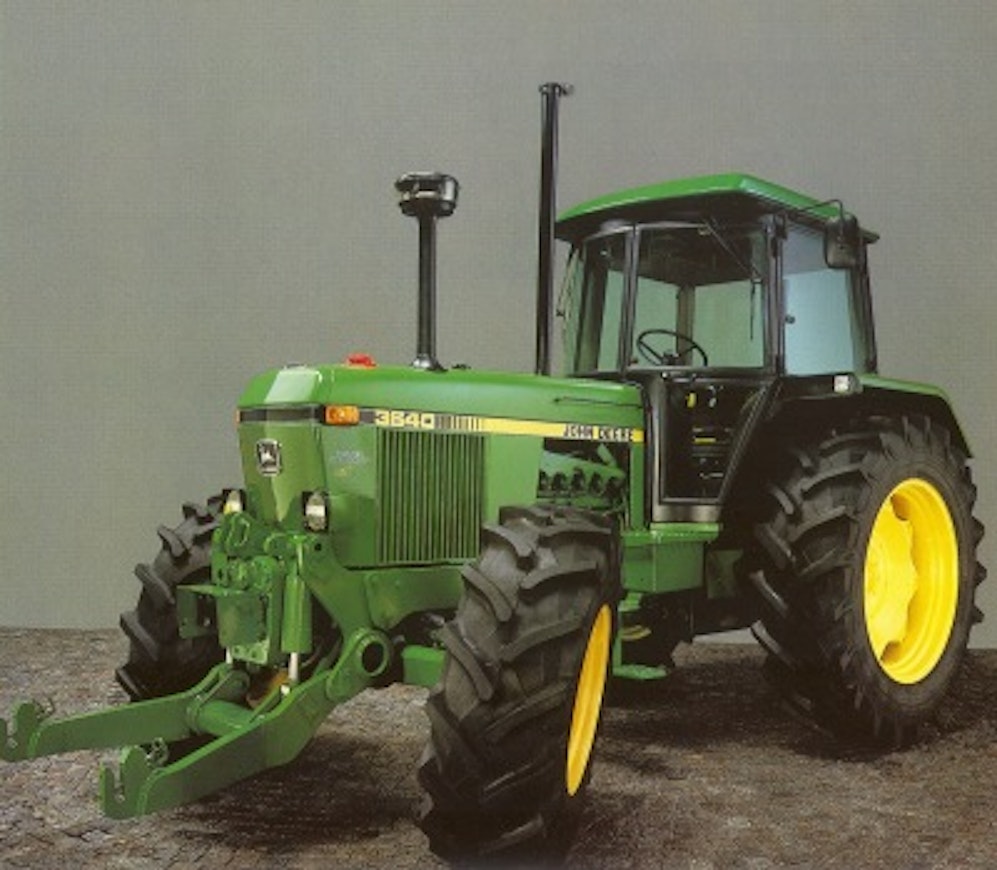

In 1984, a 112-horsepower 3640 was introduced at the top of the lineup. In many respects, it was more robust than other models. For example, the lifting capacity was increased to 5800 kg, using two auxiliary cylinders, as indicated by John Deere in the uppermost position. The 330 mm clutch disc was ceramic.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 3040 SG2 | John Deere 3140 SG2 | John Deere 3640 SG2 |
|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes |
| Years | 1981-87 | 1981-87 | 1984-87 |
| Engine model | 6359DL01 | 6359DL02 | 6359DL07 |
| Cyl/Turbo/Intercooler | 6 | 6 | 6 |
| Displacement | 5883 cm³ | 5883 cm³ | 5883 cm³ |
| Bore x stroke | 106,5×110 mm | 106,5×110 mm | 106,5×110 mm |
| Rated power | 92/2500 hp DIN/rpm | 100/2500 hp DIN/rpm | 112/2400 hp DIN/rpm |
| Torque | - | - | - |
| Gears | 8+4/16+8 | 16+8 | 16+8 |
| Synchronized gears | 8+4/16+8 | 16+8 | 16+8 |
| Powershift gears | opt. | hydr. | hydr. |
| Speeds in km/h | 3,1-28,7 | 2,5-30,0 | 2,7-30,6 |
| Hydr. flow l/min | 47 l/min | 47 l/min | 47 (84) l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 4020 kg | 4020 kg | 5800 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 9 | 9 | - |
| Turning circle m 4WD | 9.2 | 9.2 | 9.2 |
| Front tyres 2WD | 10,00-16 | 11,00-16 | - |
| Front tyres 4WD | 12.4-28 | 14.9-24 | 16.9-24 |
| Rear tyres 2WD | 16,9-38 | 18,4-38 | - |
| Rear tyres 4WD | 16.9-38 | 18.4-38 | 18.4-38 |
| Weight 2WD | 4220 kg | 4270 kg | - |
| Weight 4WD | 4540 kg | 4590 kg | 5400 kg |
| Height with cab | 280 cm | 282 cm | 282 cm |
| Length (2WD/4WD) | 425/439 cm | 425/439 cm | 479 cm |
| Wheelbase (2WD/4WD) | 255/258 cm | 255/258 cm | 258 cm |
| Fuel tank | 126 l | 126 l | 186 l |
| Cab noise level | 80 dB | 81 dB | 79 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. |
