John Deere 1010-2510

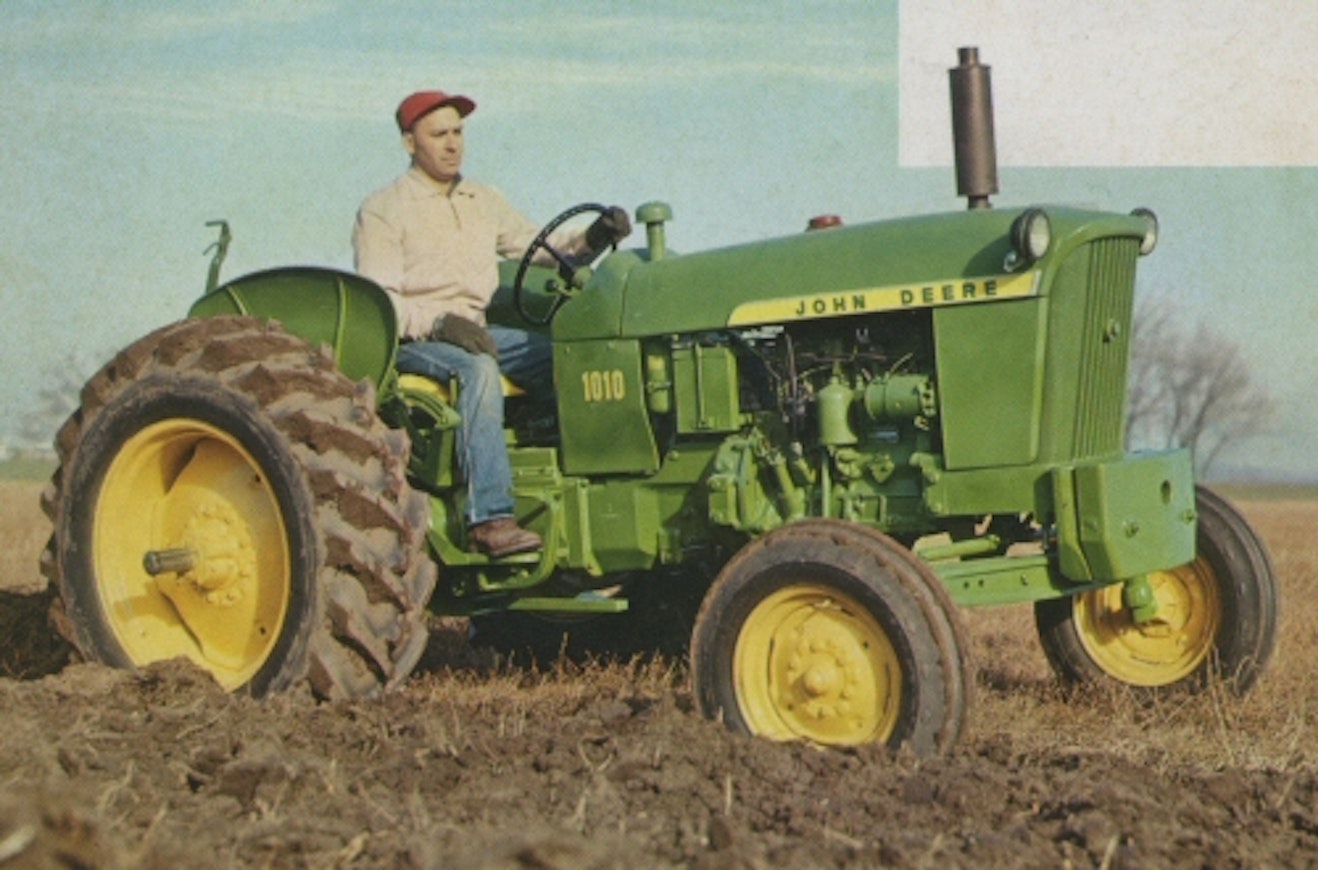

American 4-cylinder 10-series John Deeres were introduced to the market in 1960, and the smaller ones used the same prechamber diesels as the JD Lanzas. The 1010 had a 2.4-liter four-cylinder engine, and the 2010 had a 2.7-liter four-cylinder engine. Additionally, gasoline and propane versions were available in the USA. The 1010 had a 5+1 transmission, and the 2010 had a fully synchronized 8+3 gearbox. These models did not have a differential lock or oil-immersed brakes. In the basic version of the 1010, the power take-off depended on the drive clutch. Draft control was done through the push rod. The 1010 was also manufactured at the Lanz factory in Spain. With the other 10-series models being phased out, the 2510, equipped with the 2020’s engine, was introduced for the year 1966.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 1010 | John Deere 2010 | John Deere 2510 |
|---|---|---|---|
| Options | |||
| Manufacturer name | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | No |
| Years | 1960-66 | 1960-66 | 1965-68 |
| First year sold | 1960 | 1960 | 1965 |
| Last year sold | 1966 | 1966 | 1968 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 |
| Displacement | 2367 cm³ | 2704 cm³ | 3320 cm³ |
| Bore x stroke | 92,1×88,9 mm | 98,4×88,9 mm | 98×110 mm |
| Rated power hp/rpm DIN | 44SAE/2500 | 57SAE/2500 | 53SAE/2500 |
| Rated speed | 2500 | 2500 | 2500 |
| Torque Nm/rpm DIN | 136/1500 | 170/1500 | - |
| Gears | 5+1 | 8+3 | 8+2/8+4 |
| Synchronized gears | - | 8+3 | 8+2/8+4 |
| Powershift gears | - | - | -/hydr. |
| Speeds in km/h | 4,4-28,1 | 3,5-25,4 | 2,9-25,4/ 2,7-28,1 |
| Hydr. flow l/min | 45 l/min | 42 l/min | 42/53 l/min |
| Hydraulic pressure | - | - | 154 bar |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 1500 kg | 1500 kg | 1500 kg |
| PTO speeds | 540 | 540 | 540 |
| Brakes | dry disc | dry disc | wet disc |
| Steering | mech. | mech. | mech. |
| Front tyres 2WD | 7.50-16 | 7.50-16 | 6.00-16 |
| Rear tyres 2WD | 14.9-28 | 14.9-28 | 12.4-38 |
| Weight 2WD | (1680) kg | (2425) kg | (2767) kg |
| Height with cab | (142) cm | (152) cm | (187) cm |
| Length (2WD/4WD) | 309 cm | 354 cm | 352 cm |
| Wheelbase (2WD/4WD) | 197 cm | 208 cm | 236 cm |
| Fuel tank | 45 l | 60 l | 98 l |
| Creeper gear | opt. | - | - |
