Lanz Bulldog D 4806-D 6016

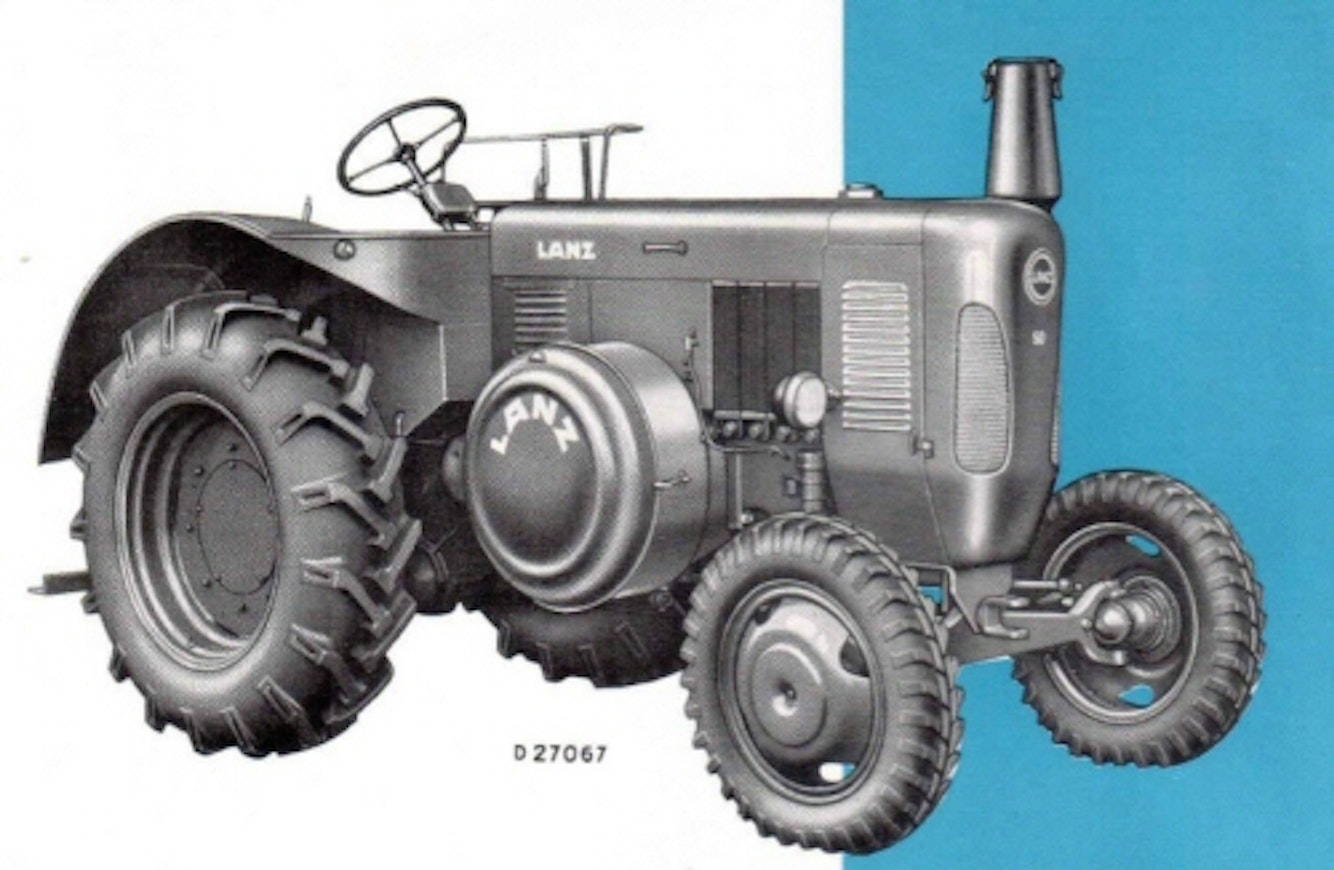

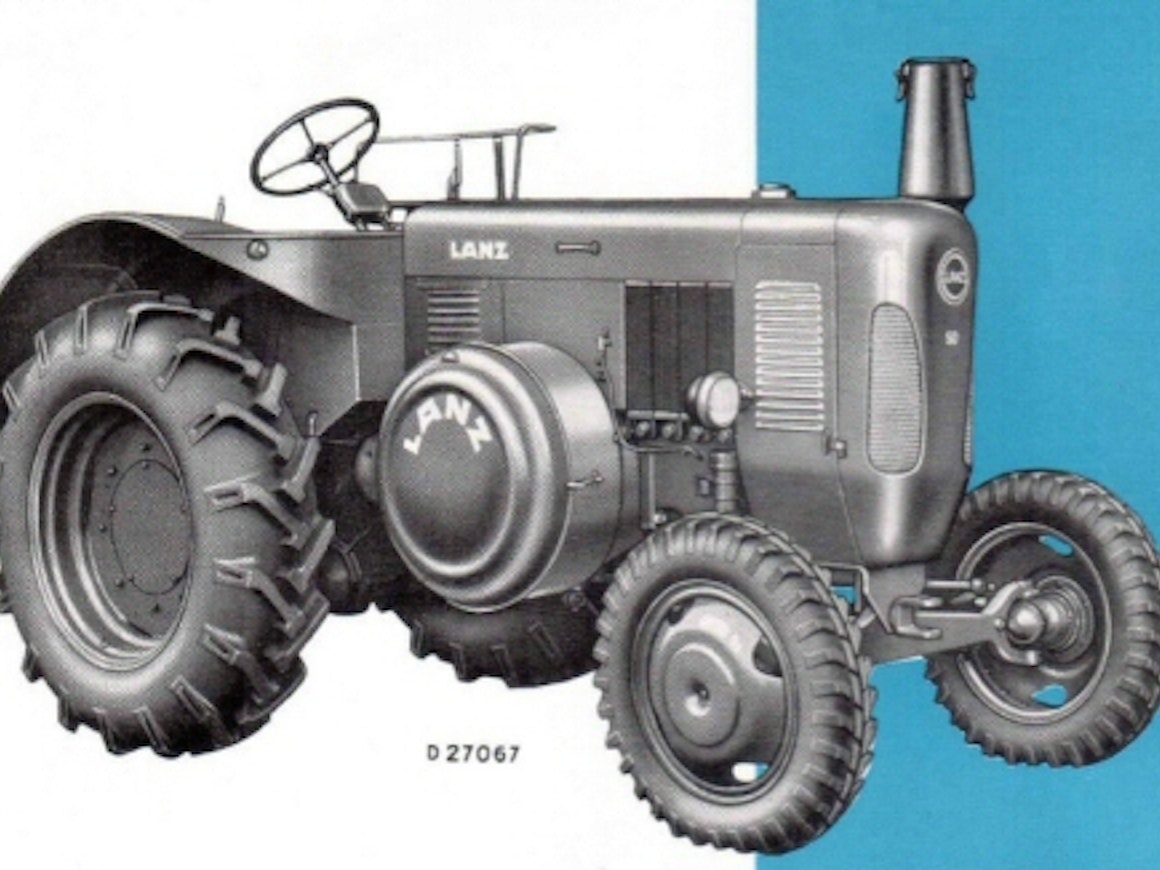

The large Lanz D 1506, introduced in 1937, received its successor only in 1954-55, when the new HR models were launched. These models also featured an engine that started on gasoline. First, 48- and 58-horsepower models were introduced, but these were replaced less than a year later by 50- and 60-horsepower versions. The engine was a single-cylinder 7.4-liter half-diesel. The idle speed was 300 rpm, and the maximum power was achieved at 650…800 rpm. There were 6+2 gears, and the drive clutch was a dry 2-plate clutch. The versions with model numbers in the 16 range, intended mainly for the German market, featured crawling gears and a power take-off independent of the drive clutch.

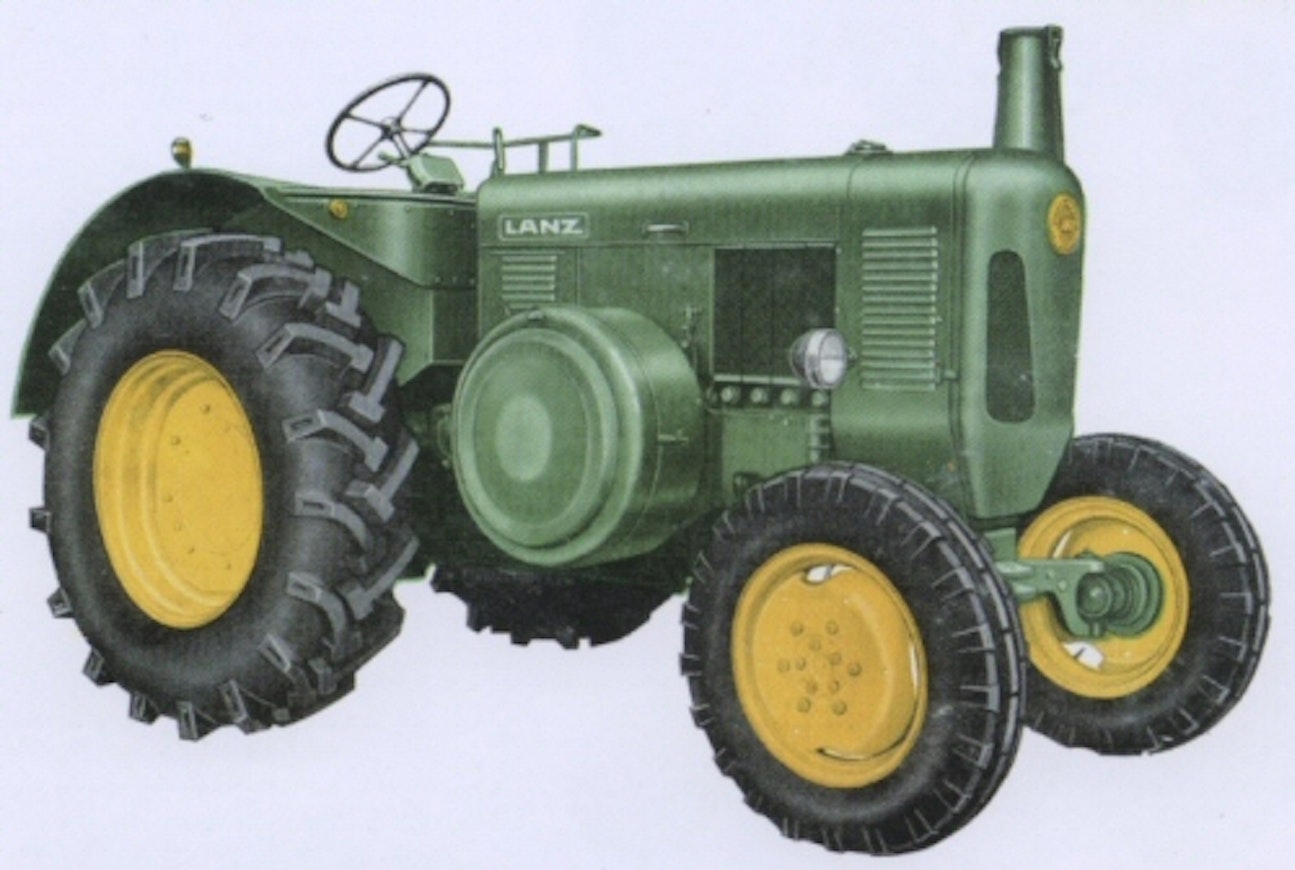

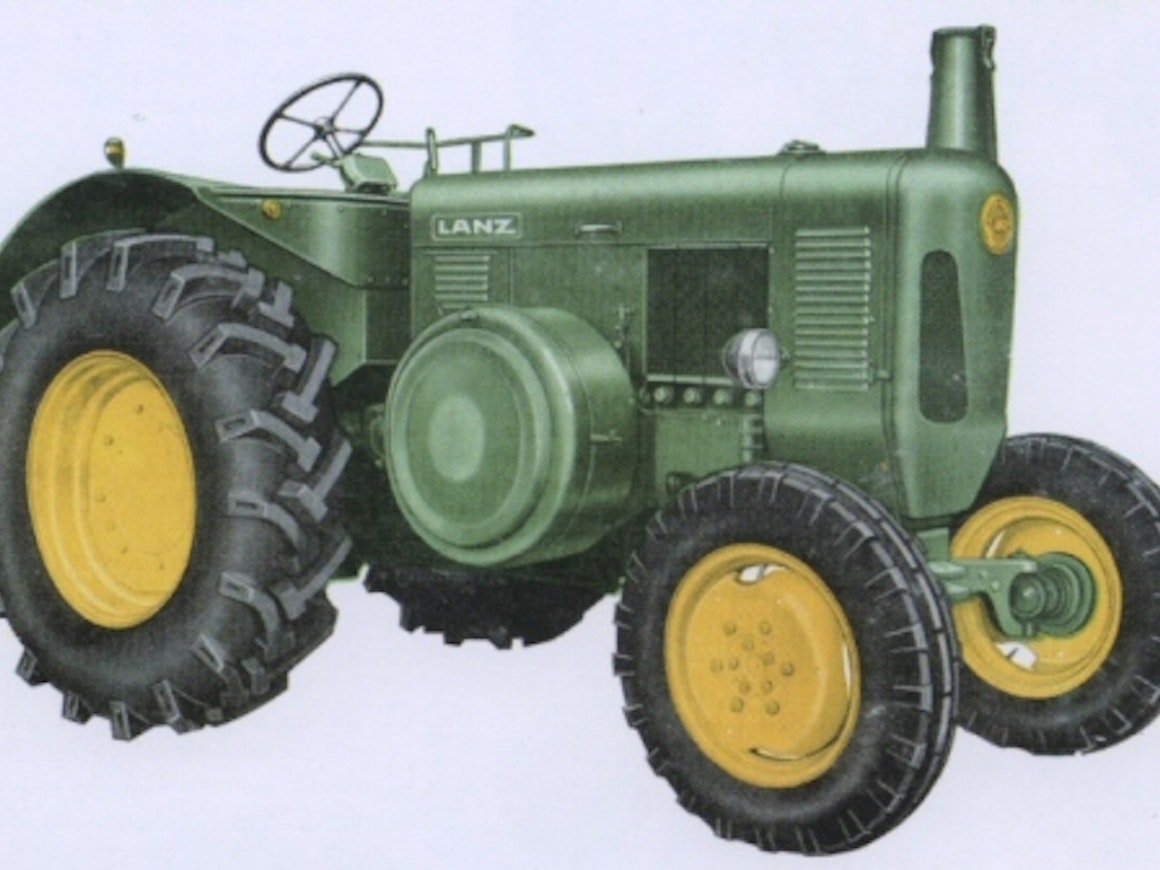

From the summer of 1958 onward, Lanz tractors were painted John Deere green. The models D 5016 and D 6016 were the last ones produced, with production ending in 1962 after 219,253 tractors had been manufactured.
This is an automated translation. Please report any issues in the translation.
| Model | Lanz Bulldog D 4806/ D 4816 | Lanz Bulldog D 5006/ D 5016 | Lanz Bulldog D 5806/ D 5816 | Lanz Bulldog D 6006/ D 6016 |
|---|---|---|---|---|
| Options | ||||
| Manufacturer name | Lanz Bulldog | Lanz Bulldog | Lanz Bulldog | Lanz Bulldog |
| Imported to Finland | No | No | No | No |
| Years | 1954-55 | 1955-62 | 1955-55 | 1955-62 |
| First year sold | 1954 | 1955 | 1955 | 1955 |
| Last year sold | 1955 | 1962 | 1955 | 1962 |
| Engine model | D 4806 | D 5006 | D 5806 | D 6006 |
| Cyl/Turbo/Intercooler | 1 | 1 | 1 | 1 |
| Displacement | 7372 cm³ | 7372 cm³ | 7372 cm³ | 7372 cm³ |
| Bore x stroke | 190×260 mm | 190×260 mm | 190×260 mm | 190×260 mm |
| Rated power hp/rpm DIN | 48/650 | 50/650 | 58/800 | 60/800 |
| Rated power | 48 | 50 | 58 | 60 |
| Rated speed | 650 | 650 | 800 | 800 |
| Torque Nm/rpm DIN | - | 555/655 | - | 571/800 |
| Gears | 6+2/9+3 | 6+2/9+3 | 6+2/9+3 | 6+2/9+3 |
| Speeds in km/h | 3,8-19,4 | 3,7-19,1 | 4,6-19,7 | 4,6-19,7 |
| Hydraulic pressure | 160 bar | 160 bar | 160 bar | 160 bar |
| Lift controls | (mech.) | (mech.) | (mech.) | (mech.) |
| PTO speeds | 560 | 560 | 560 | 560 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | mech. | mech. | mech. | mech. |
| Turning circle m 2WD | 6.6 | 8.5 | 8.5 | 9.5 |
| Front tyres 2WD | 6.50-20 | 6.50-20 | 7.50-20 | 7.50-20 |
| Rear tyres 2WD | 13-30 | 13-30 | 15-30 | 15-30 |
| Weight 2WD | (3230) kg | (3230) kg | - | (3840) kg |
| Height with cab | (198) cm | (198) cm | (200) cm | (200) cm |
| Length (2WD/4WD) | 360 cm | 369 cm | 360 cm | 364 cm |
| Wheelbase (2WD/4WD) | 182 cm | 225 cm | 225 cm | 225 cm |
| Fuel tank | 62 l | 62 l | 62 l | 70 l |
| Creeper gear | D 4816 | D 5016 | D 5816 | D 6016 |
