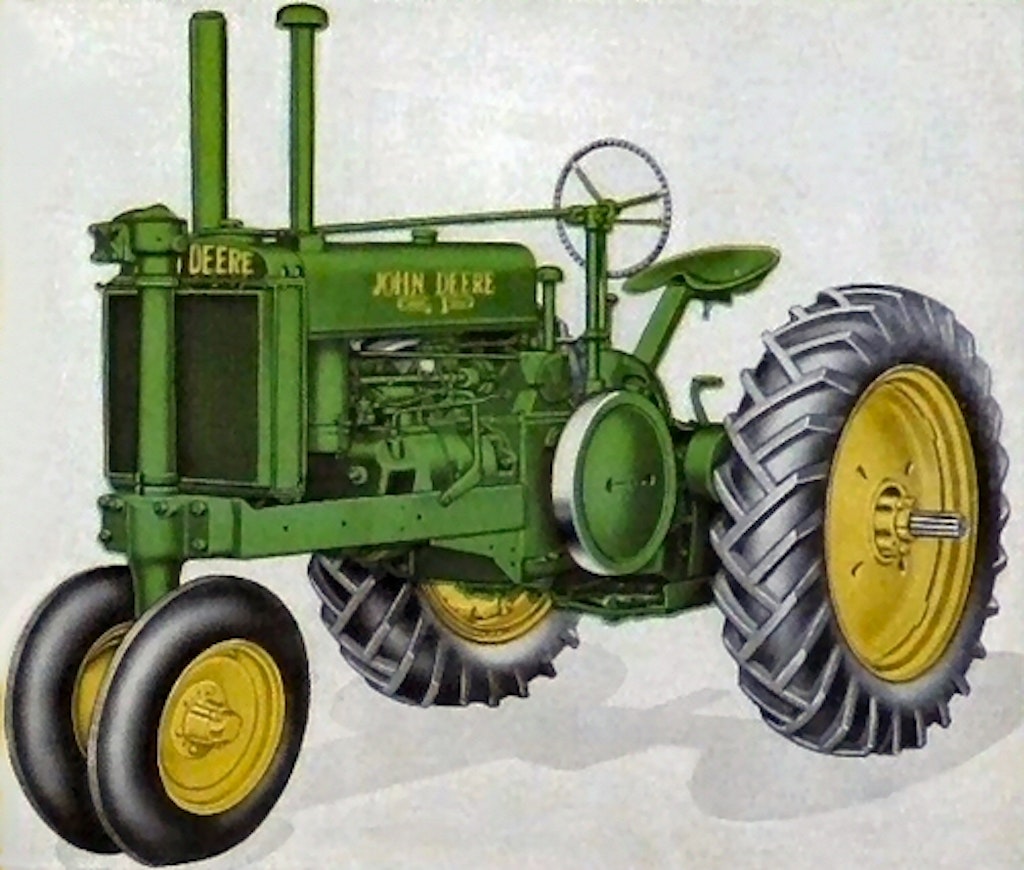

John Deere G

Manufacturer
Models
John Deere G, John Deere GM / G
Years
1937-53
Info

The John Deere G was introduced in 1937 above the model A. In fact, the power class was the same as the model D, but in its early years, the G was always a row-crop tractor equipped with wide front wheels. It was over 500 kg lighter than the model D. The engine was large in displacement (6.8 liters) and a slow-running two-cylinder; fuel options included, among others, gasoline. With its 34 horsepower, it was promised to pull a 3 x 14" plow. It had 4+1 gears, and unlike the smaller models, these were operated with a single gear lever.

The smaller models were redesigned already in the late 1940s, but the G had to wait until 1942 for a modern appearance. At that time, it also transitioned to a 6+1 transmission, and electric start and lights were added as optional equipment. At this stage, the G was known by the designation GM, because due to wartime price controls, the price could not be raised, but by changing the designation, the updated model became a different product, allowing a price increase. In 1947, a wide front axle was also offered. That same year, a padded seat with a separate backrest was introduced, and electric start became standard equipment.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere GJohn Deere GM / G
Manufacturer nameJohn DeereJohn Deere
Imported to FinlandYesYes
Years1937-421942-53
Cyl/Turbo/Intercooler22
Displacement6760 cm³6760 cm³
Bore x stroke155,6×177,8 mm155,6×177,8 mm
Rated power--
Gears4+16+1
Speeds in km/h3,6-9,74,0-20,1
Lift controls(mech.)(mech.)
PTO speeds532532
Brakesdrum brakesdrum brakes
Steeringmech.mech.
Turning circle m 2WD5.185.18
Front tyres 2WD6.00-166.00-16
Rear tyres 2WD10-3612-38
Weight 2WD(1996) kg(2551) kg
Height with cab(156) cm(167) cm
Length (2WD/4WD)343 cm349 cm
Wheelbase (2WD/4WD)229 cm229 cm
Fuel tank64+bens. 6 l64+bens. 6 l
