John Deere 9230-9630

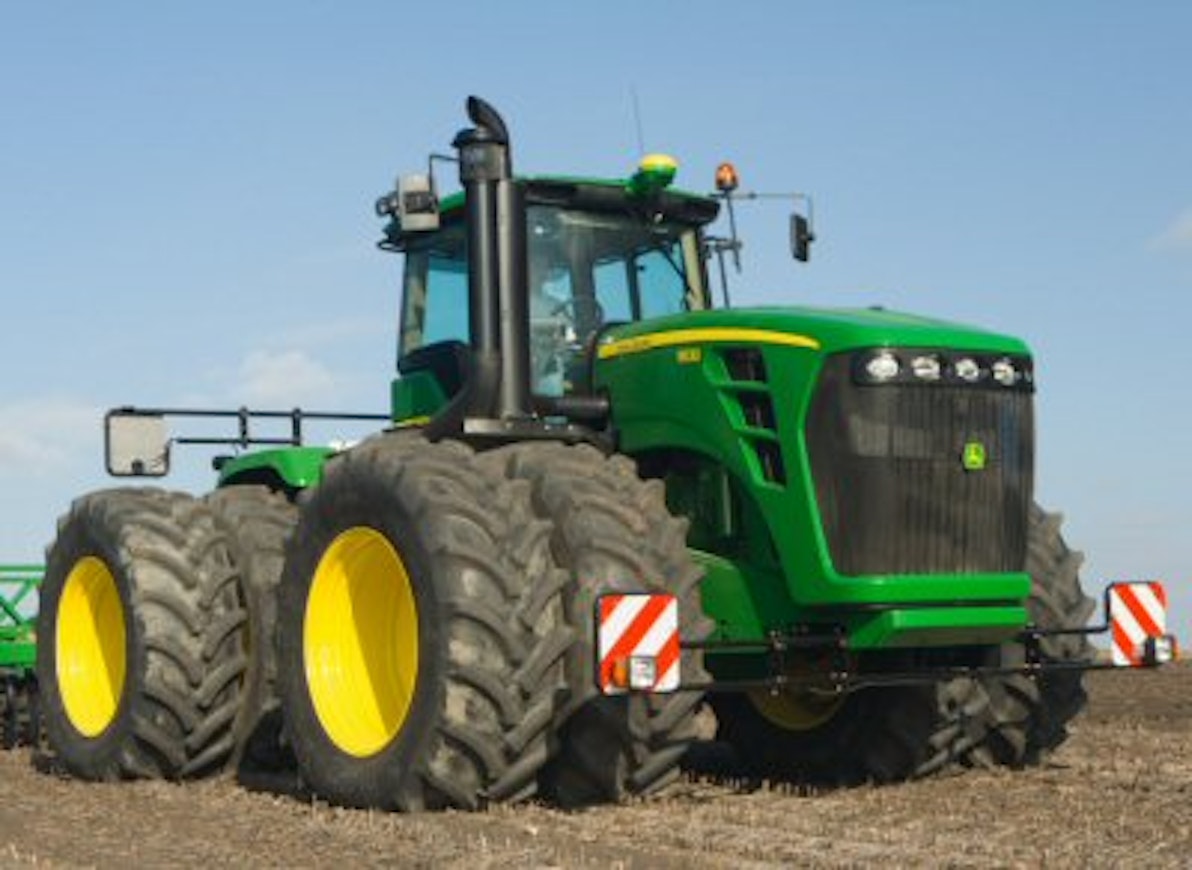

The frame-controlled John Deere lineup was modernized in appearance to match the rest of the series when the 9030 series was introduced in 2007. There were five power categories available, with the 9630 being a larger model than before. The engines were new 13.5-liter PowerTech Plus units equipped with 4-valve technology. There was no additional power feature. In Europe, the standard transmission was an 18+6-speed full powershift. The smallest model in the lineup, the 9230, had a 9.0-liter engine. This model was not brought to Europe. There were three tracked versions: 9430T, 9530T, and 9630T. These featured a new air suspension system between the track frame and the chassis.

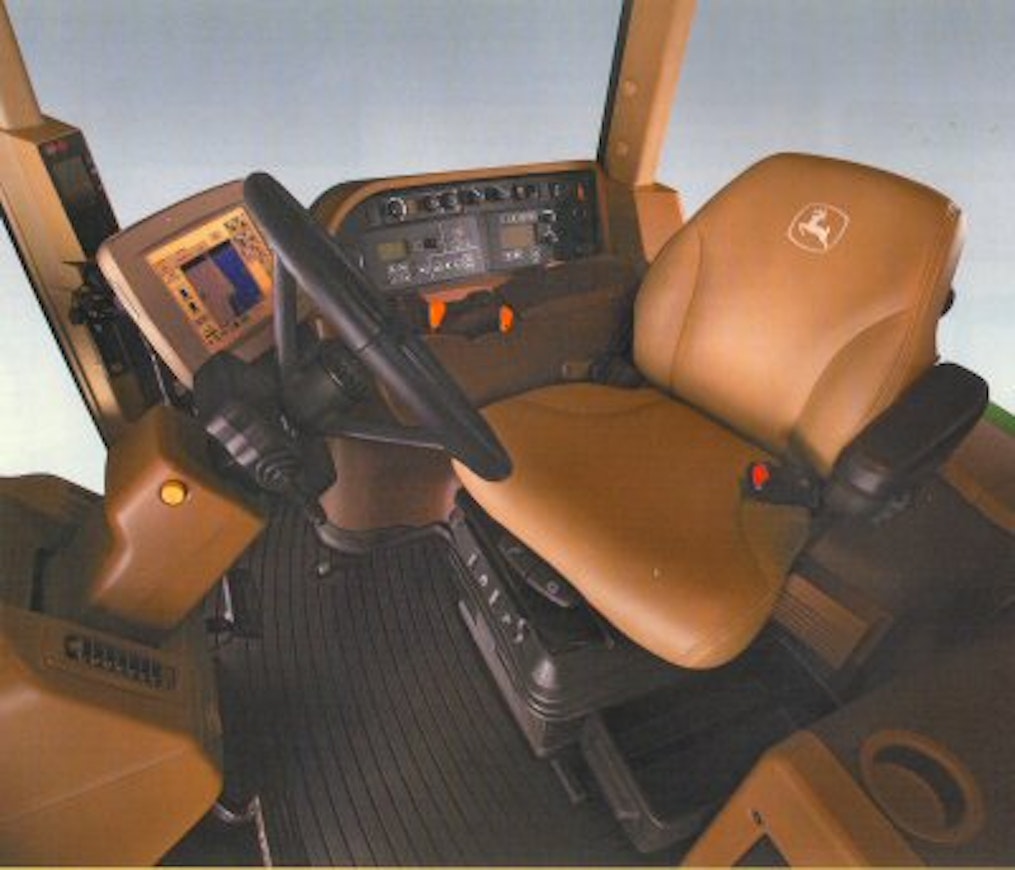

The cab remained largely unchanged. The noise level was reduced to 72 decibels. Headland automation was standard. The power take-off could now be engaged electro-hydraulically and was available only on models 9330 and 9430 as well as all tracked versions.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 9230 | John Deere 9330 | John Deere 9430 | John Deere 9530 | John Deere 9630 |
|---|---|---|---|---|---|
| Options | |||||
| Manufacturer name | John Deere | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | No | No | No | No | No |
| Years | 2007-11 | 2007-11 | 2007-11 | 2007-11 | 2007-11 |
| First year sold | 2007 | 2007 | 2007 | 2007 | 2007 |
| Last year sold | 2011 | 2011 | 2011 | 2011 | 2011 |
| Engine model | 4V-CR | 4V-CR | 4V-CR | 4V-CR | 4V-CR |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 9000 cm³ | 13500 cm³ | 13500 cm³ | 13500 cm³ | 13500 cm³ |
| Bore x stroke | 118,4×136 mm | 132×165 mm | 132×165 mm | 132×165 mm | 132×165 mm |
| Rated power hp/rpm ISO | 337/2100 | 388/2100 | 439/2100 | 491/2100 | 543/2100 |
| Rated power | - | - | - | - | - |
| Rated speed | - | - | - | - | - |
| Rated power hp/rpm ECE | - | 382/2100 | 430/2100 | 478/2100 | 525/2100 |
| Max power hp/rpm ECE | - | 420/1900 | 473/1900 | 526/1900 | 578/1900 |
| Torque Nm/rpm ECE | 1362/1350 | 1791/1350 | 2030/1350 | 2266/1350 | 2506/1350 |
| Gears | 24+8 | 18+6 | 18+6 | 18+6 | 18+6 |
| Synchronized gears | 24+8 | powershift | powershift | powershift | powershift |
| Powershift gears | hydr. | powershift | powershift | powershift | powershift |
| Speeds in km/h | 3,2-34,1 | 4,2-40,0 | 4,2-40,0 | 4,2-40,0 | 4,2-40,0 |
| Hydr. flow l/min | 181 l/min | 186 l/min | 186 l/min | 186 l/min | 186 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 6940 kg | 9030 kg | 9030 kg | 9030 kg | 9030 kg |
| PTO speeds | - | 1000 | 1000 | - | - |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8,9 sisä | 8,9 sisä | 8,9 sisä | 8,9 sisä | 8,9 sisä |
| Front tyres 4WD | 620/70R42 | 800/70R38 | 800/70R38 | 800/70R38 | 800/70R38 |
| Rear tyres 4WD | 620/70R42 | 800/70R38 | 800/70R38 | 800/70R38 | 800/70R38 |
| Weight 4WD | 14592 kg | 15482 kg | 16116 kg | 16361 kg | 16914 kg |
| Wheelbase (2WD/4WD) | 350 cm | 350 cm | 350 cm | 350 cm | 350 cm |
| Fuel tank | 1325 l | 1325 l | 1325 l | 1325 l | 1325 l |
| Cab noise level | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | opt. | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | - | x | x | x | x |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Trip computer | no radar | no radar | no radar | no radar | no radar |
