Siirry sivupalkkiinSiirry alaosaanJohn Deere 8560-8960

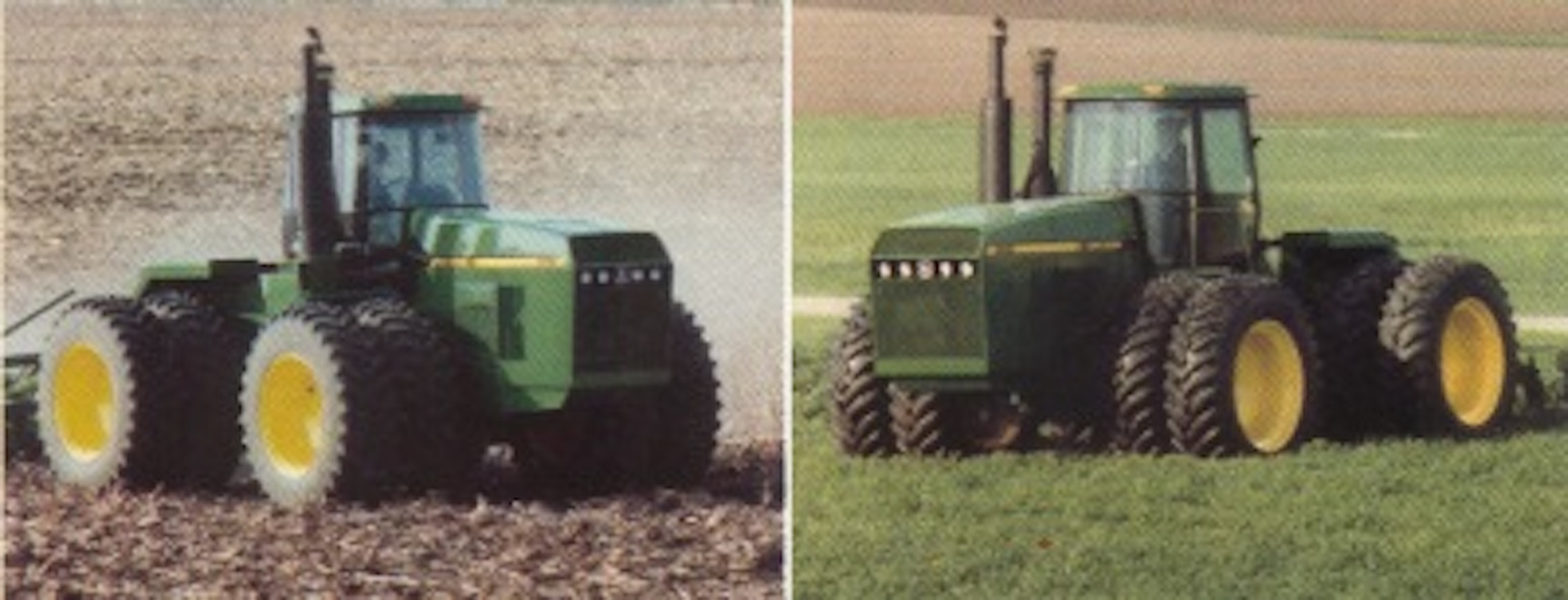

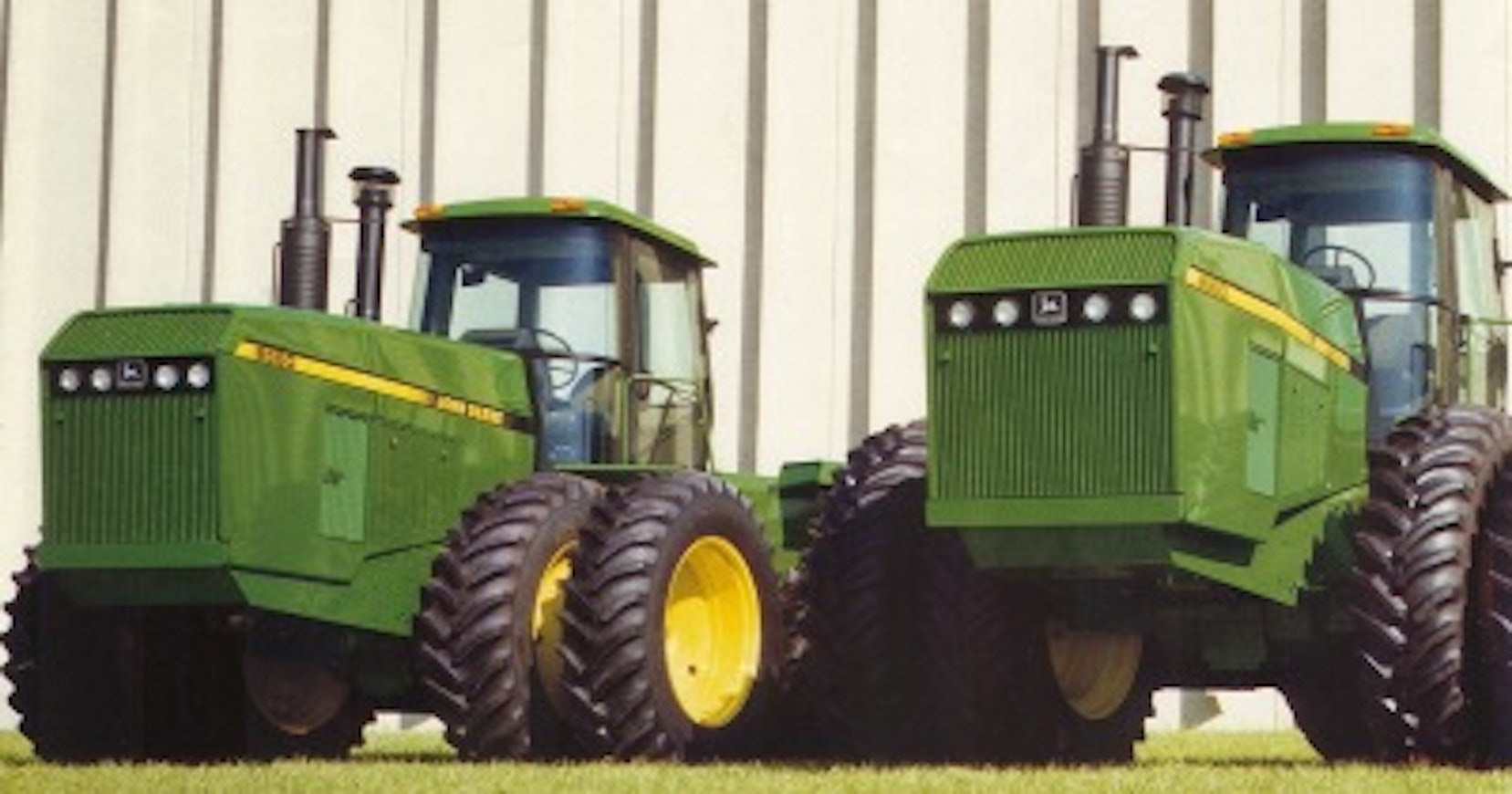

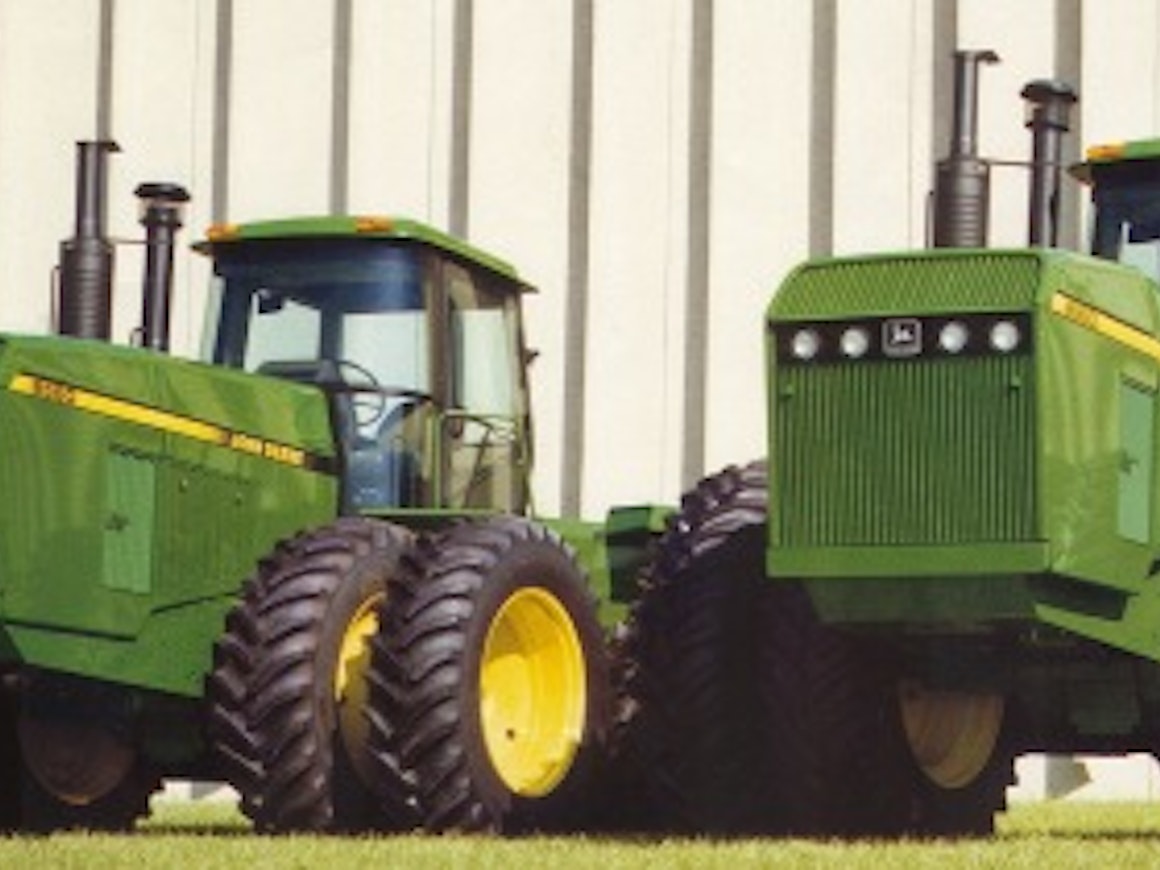

For the year 1989, the 60 series of chassis-controlled models was introduced: 8560/235 hp, 8760/300 hp, and 8960/370 hp. The 8960 switched to a Cummins 14-liter engine, which featured an air-to-water type intercooling. The smallest model's 7.6-liter engine had undergone updates, including improvements to the combustion chambers, pistons, camshaft, and fuel supply. The standard gearbox was a 12-speed Syncro. PowrSync was the same gearbox equipped with a 2-speed high/low range. The most advanced transmission was a new 12+2-speed full Powershift.
The frame structure of the 60 series was completely new. The two smaller models had grown to the same size as the largest model; length had increased by one meter. The longer wheelbase allowed for a 20-degree tighter turning angle. The lifting device was considerably more powerful than before. The cab was still called Sound-Gard, but the windshield was one piece, and the doors had been moved to the sides. The IntelliTrack monitoring system provided even more information about the tractor’s operations.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 8560 | John Deere 8760 | John Deere 8960 |
|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere |
| Imported to Finland | No | No | No |
| Years | 1989-93 | 1989-93 | 1989-93 |
| Engine model | 6076 | 6101 | Cummins N14 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI |
| Displacement | 7636 cm³ | 10144 cm³ | 14016 cm³ |
| Bore x stroke | 115,8×120,7 mm | 130×127 mm | 139,7×152,4 mm |
| Rated power | 235/2100 hp DIN/rpm | 300/2100 hp DIN/rpm | 370/1900 hp DIN/rpm |
| Gears | 24+8 | 24+8 | 24+8 |
| Synchronized gears | 24+8 | 24+8 | 24+8 |
| Powershift gears | 2-step | 2-step | 2-step |
| Speeds in km/h | 3,4-35,0 | 3,4-35,0 | 3,5-37,3 |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 6323 kg | 6323 kg | 6323 kg |
| PTO speeds | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.9 | 8.9 | 8.9 |
| Front tyres 4WD | 24.5-32 | 24.5-32 | - |
| Rear tyres 4WD | 24.5-32 | 24.5-32 | - |
| Weight 4WD | 14310 kg | 14590 kg | 15870 kg |
| Length (2WD/4WD) | 683 cm | 683 cm | 683 cm |
| Wheelbase (2WD/4WD) | 340 cm | 340 cm | 340 cm |
| Fuel tank | 835 l | 835 l | 835 l |
| Cab noise level | 76.5 dB | 76 dB | 74 dB |
| Solid cab | x | x | x |
| Air suspension seat | x | x | x |
| Air conditioning | x | x | x |
| Trip computer | partial | partial | partial |
