John Deere 8245R-8360R

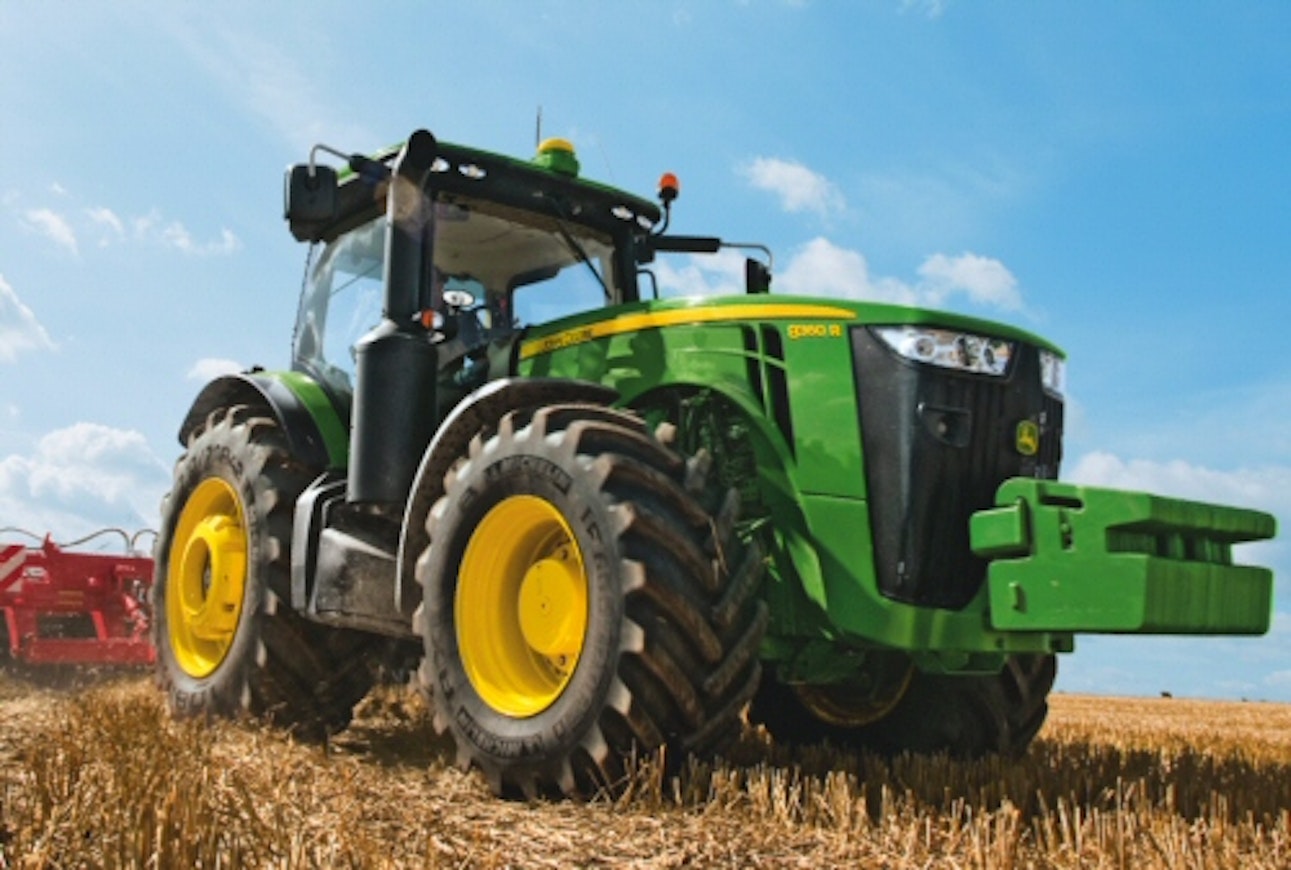

11JD8R

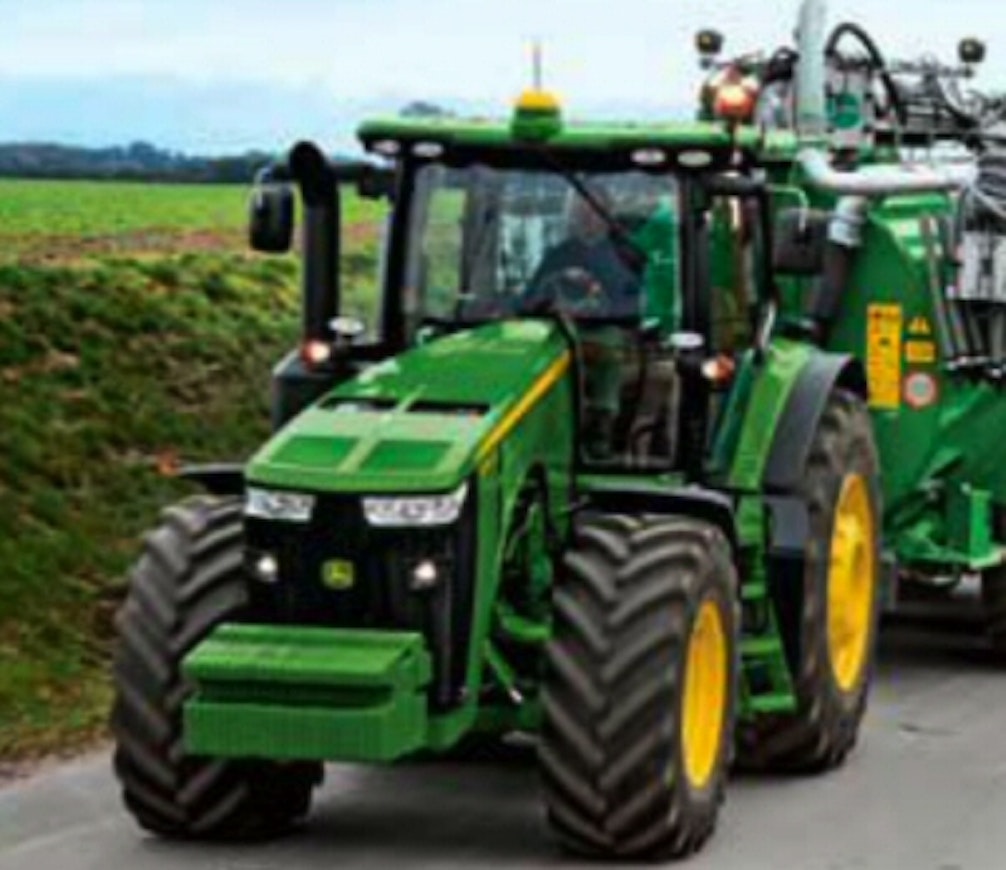

12JD8R

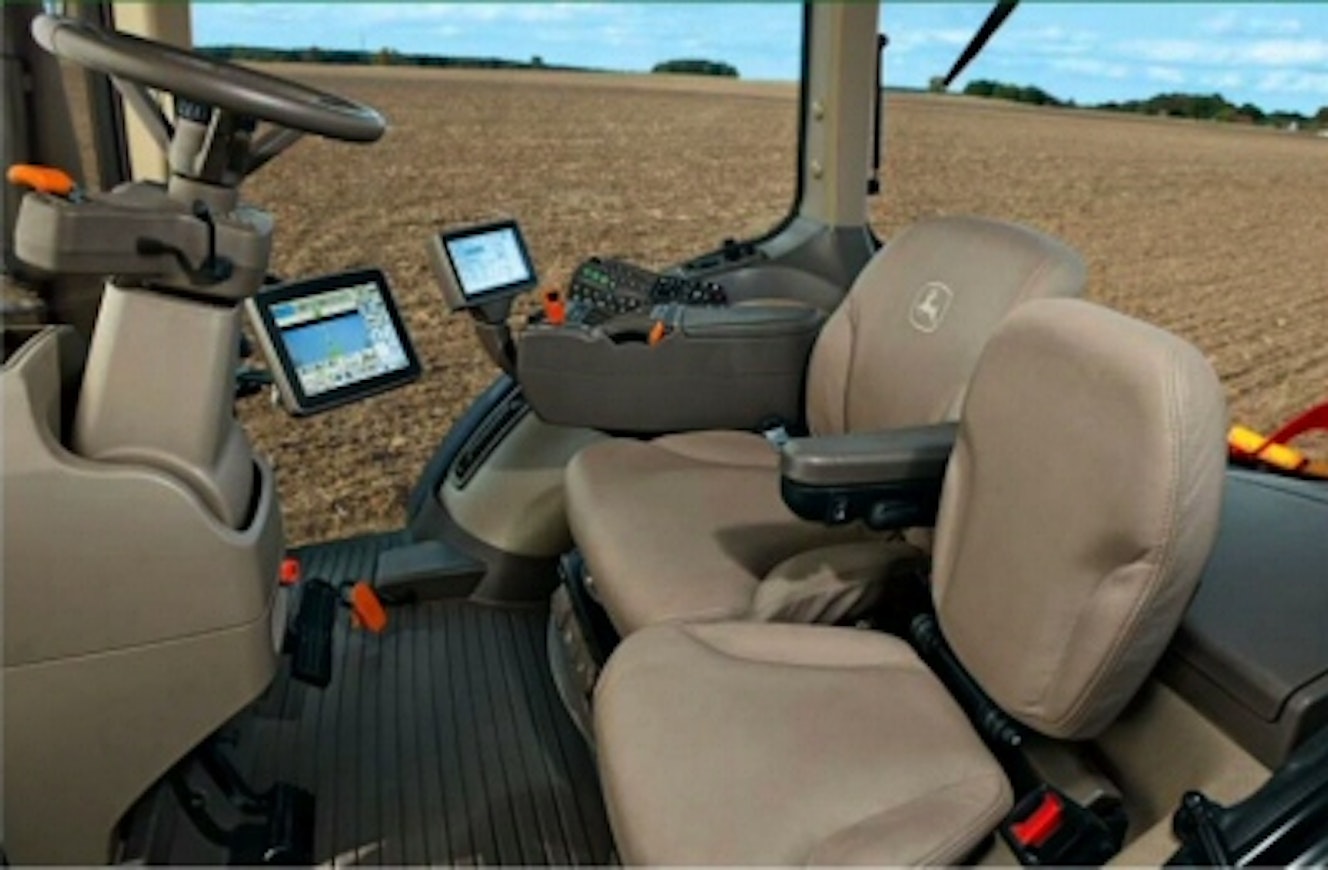

12JD8Rohjaamo
11JD8R
12JD8R
12JD8Rohjaamo
Manufacturer
Models
John Deere 8245R, John Deere 8270R, John Deere 8295R, John Deere 8320R, John Deere 8345R, John Deere 8260R, John Deere 8285R, John Deere 8310R, John Deere 8335R, John Deere 8360R
Years
2009-13
Info

The John Deere 8030 series was replaced by the 8R series in the fall of 2009. John Deere was the clear market leader in this category in the USA, holding over a 50% share. The 8R had a longer wheelbase and slightly more powerful engines. All models were equipped with a 9.0-liter engine that did not require urea. The standard transmission was a 16+5-speed PowrShift with full-range automation. As an option, Deere’s own continuously variable AutoPowr transmission was available.

The cab was 10% more spacious than before. Most controls were centralized on the armrest and connected to a new 7-inch display. There were no gauges behind the steering wheel; instead, most of them were located on the front pillar. The noise level in the cab had increased to 73 decibels. Automatic air conditioning was standard. Front axle suspension was standard equipment on the two largest models. Extra effort had been put into the work lights. Standard in Finland were 14 lights, and in the Premium version, up to 26, including 7 xenon lights. The 50 km/h version featured disc brakes on the front axle.

The rubber-tracked models were now known as the 8RT. A new feature was suspension, which enabled a speed of 42 km/h. The continuously variable transmission was now also available for the tracked version. The tracks were longer than before. The three most powerful models were available in the rubber-tracked version.

In 2011, Active Command steering was added as an option. Its variable steering ratio was lightest at slow speeds. The models introduced in spring 2011 had about 15 hp more power than before. The difference was more noticeable in torque figures.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere 8245RJohn Deere 8270RJohn Deere 8295RJohn Deere 8320RJohn Deere 8345RJohn Deere 8260RJohn Deere 8285RJohn Deere 8310RJohn Deere 8335RJohn Deere 8360R
Manufacturer nameJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn Deere
Imported to FinlandYesYesYesYesYesYesYesYesYesYes
Years2009-112009-112009-112009-112009-112011-132011-132011-132011-132011-13
Engine modelPSXPSXPSXPSXPSXPSXPSXPSXPSXPSX
Cyl/Turbo/Intercooler6TI6TI6TI6TI6TI6TI6TI6TI6TI6TI
Displacement9000 cm³9000 cm³9000 cm³9000 cm³9000 cm³9000 cm³9000 cm³9000 cm³9000 cm³9000 cm³
Bore x stroke118,4×136 mm118,4×136 mm118,4×136 mm118,4×136 mm118,4×136 mm118,4×136 mm118,4×136 mm118,4×136 mm118,4×136 mm118,4×136 mm
Rated power235/2100 hp DIN/rpm259/2100 hp DIN/rpm283/2100 hp DIN/rpm309/2100 hp DIN/rpm331/2100 hp DIN/rpm250/2100 hp DIN/rpm274/2100 hp DIN/rpm298/2100 hp DIN/rpm322/2100 hp DIN/rpm346/2100 hp DIN/rpm
Max power----------
Torque----------
Gears16+5 (stepless)16+5 (stepless)16+5 (stepless)16+5 (stepless)stepless16+5 (stepless)16+5 (stepless)16+5 (stepless)16+5 (stepless)stepless
Synchronized gearspowershiftpowershiftpowershiftpowershiftsteplesspowershiftpowershiftpowershiftpowershiftstepless
Powershift gearspowershiftpowershiftpowershiftpowershiftsteplesspowershiftpowershiftpowershiftpowershiftstepless
Reverserhydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h2,0-42/0,05-422,0-42/0,05-422,0-42/0,05-422,0-42/0,05-420,05-422,0-42/0,05-422,0-42/0,05-422,0-42/0,05-422,0-42/0,05-420,05-42
Max. speed 42 (50) km/h42 (50) km/h42 (50) km/h42 (50) km/h50 km/h42 (50) km/h42 (50) km/h42 (50) km/h42 (50) km/h50 km/h
Hydr. flow l/min167 (227) l/min167 (227) l/min167 (227) l/min167 (227) l/min167 (227) l/min167 (227) l/min167 (227) l/min167 (227) l/min167 (227) l/min167 (227) l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar200 bar200 bar200 bar200 bar200 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.elec.elec.elec.
Lift capacity10788 kg10788 kg10788 kg11762 kg11762 kg10788 kg10788 kg11762 kg11762 kg11762 kg
PTO speeds10001000100010001000540/1000540/1000540/1000540/10001000
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD12.1812.1812.1812.1812.1812.1812.1812.1812.1812.18
Front tyres 4WD600/65R28600/65R28600/65R30600/65R30600/65R30600/65R28600/65R28600/65R30600/65R30600/65R30
Rear tyres 4WD710/70R38710/70R38710/70R42710/70R42710/70R42710/70R38710/70R38710/70R42710/70R42710/70R42
Weight 4WD12000 kg12025 kg12050 kg12075 kg12100 kg12358 kg12358 kg12358 kg12358 kg12358 kg
Height with cab329 cm329 cm329 cm329 cm329 cm329 cm329 cm329 cm329 cm329 cm
Length (2WD/4WD)559 cm559 cm559 cm559 cm559 cm564 cm564 cm564 cm564 cm564 cm
Wheelbase (2WD/4WD)302 cm302 cm302 cm302 cm302 cm302 cm302 cm302 cm302 cm302 cm
Fuel tank681 l681 l681 l681 l681 l681 l681 l681 l681 l681 l
Cab noise level73 dB73 dB73 dB73 dB73 dB73 dB73 dB73 dB73 dB73 dB
Solid cabxxxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Autom. differential locksxxxxxxxxxx
Air suspension seatxxxxxxxxxx
Air conditioningxxxxxxxxxx
Trip computerno radarno radarno radarno radarno radarno radarno radarno radarno radarno radar
Creeper gear----x----x
