Siirry sivupalkkiinSiirry alaosaanJohn Deere 7210R-7310R

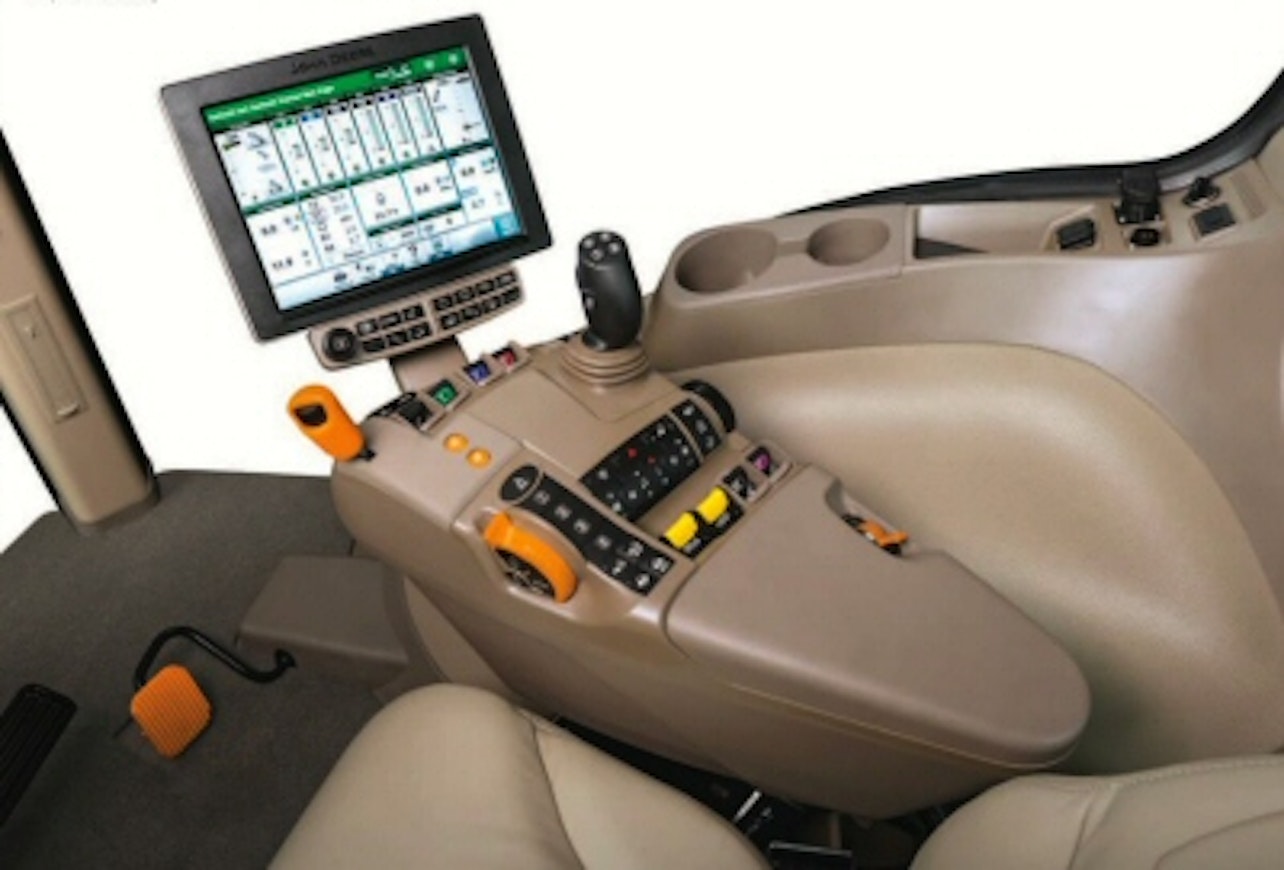

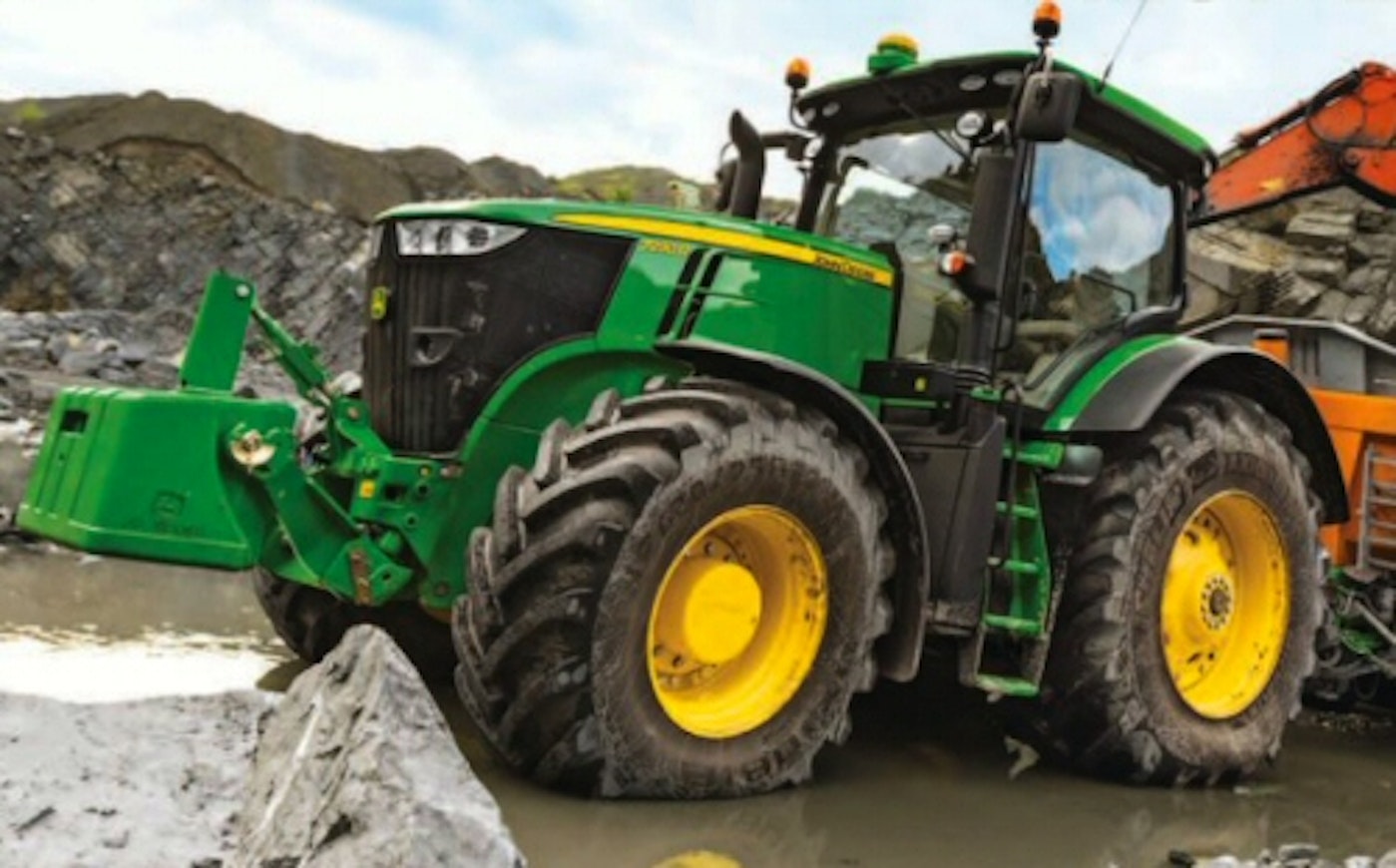

The American 7R series received more powerful engines for the year 2014 and a new flagship model, the 7310R. It was JD’s first tractor to use urea injection in addition to previous emission reduction methods. It met the upcoming Tier 4 emission standards. The engines in the two smallest models were 6.8 liters, while the others had 9.0-liter engines. A new transmission option introduced was the e23 PowerShift. It featured 23 forward gears and 11 reverse gears. Each gear was 15% faster than the previous one. The mechanical transmission was justified by better efficiency. Between 2.5 km/h and 16 km/h, 14 gears were available. The gear automation covered all gears and adjusted the gear selection according to the most economical engine speed range. The two smallest models could also be equipped with the previous CommandQuad transmission featuring a 4-speed powershift. All models now had an operator control armrest. The improved cab was known as CommandView III. Hydraulic output and lift capacity were greater than before.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 7210R | John Deere 7230R | John Deere 7250R | John Deere 7270R | John Deere 7290R | John Deere 7310R |
|---|---|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2014-19 | 2014-19 | 2014-19 | 2014-19 | 2014-19 | 2014-19 |
| Engine model | PSX | PSX | PVX | PVX | PVX | PVX |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6788 cm³ | 6788 cm³ | 9000 cm³ | 9000 cm³ | 9000 cm³ | 9000 cm³ |
| Bore x stroke | 106,5×127 mm | 106,5×127 mm | 118,4×136 mm | 118,4×136 mm | 118,4×136 mm | 118,4×136 mm |
| Rated power | 202/2100 hp DIN/rpm | 221/2100 hp DIN/rpm | 240/2100 hp DIN/rpm | 259/2100 hp DIN/rpm | 278/2100 hp DIN/rpm | 298/2100 hp DIN/rpm |
| Max power | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - |
| Gears | 20+20/23+11/stepless | 20+20/23+11/stepless | 23+11/stepless | 23+11/stepless | 23+11/stepless | 23+11/stepless |
| Synchronized gears | 20+20/23+11/stepless | 20+20/23+11/stepless | 23+11/stepless | 23+11/stepless | 23+11/stepless | 23+11/stepless |
| Powershift gears | 4-speed/powershift/stepless | 4-speed/powershift/stepless | powershift/CVT | powershift/CVT | powershift/CVT | powershift/CVT |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,4-42/0,05-42 | 2,4-42/0,05-42 | 2,5-42/0,05-42 | 2,5-42/0,05-42 | 2,5-42/0,05-42 | 2,5-42/0,05-42 |
| Max. speed | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h |
| Hydr. flow l/min | 162 (223) l/min | 162 (223) l/min | 162 (223) l/min | 162 (223) l/min | 162 (223) l/min | 162 (223) l/min |
| Hydraulic pressure | 204 bar | 204 bar | 204 bar | 204 bar | 204 bar | 204 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 9208 kg | 9208 kg | 9208 kg | 10206 kg | 10206 kg | 10206 kg |
| PTO speeds | 750/1000/1400 | 750/1000/1400 | 750/1000/1400 | 750/1000/1400 | 750/1000/1400 | 750/1000/1400 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Front tyres 4WD | 600/70R30 | 600/70R30 | 600/70R30 | 600/70R30 | 600/70R30 | 600/70R30 |
| Rear tyres 4WD | 650/85R38 | 650/85R38 | 650/85R38 | 650/85R38 | 650/85R38 | 650/85R38 |
| Weight 4WD | 10880 kg | 10880 kg | 11647 kg | 12005 kg | 12005 kg | 12005 kg |
| Height with cab | 331 cm | 331 cm | 331 cm | 331 cm | 331 cm | 331 cm |
| Length (2WD/4WD) | 528 cm | 528 cm | 528 cm | 528 cm | 528 cm | 528 cm |
| Wheelbase (2WD/4WD) | 293 cm | 293 cm | 293 cm | 293 cm | 293 cm | 293 cm |
| Fuel tank | 520-589+23AB l | 520-589+23AB l | 520-589+23AB l | 520-607+23AB l | 520-607+23AB l | 520-607+23AB l |
| Cab noise level | 70 dB | 70 dB | 74 dB | 74 dB | 74 dB | 74 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Trip computer | no radar | no radar | no radar | no radar | no radar | no radar |
| Creeper gear | -/x | -/x | -/x | -/x | -/x | -/x |
