John Deere 6530-6930 Premium

09JD6030PremiumTehot
09JD6930Premium
09JD6030PremiumOhjaamo2
09JD6030PremiumTehot
09JD6930Premium
09JD6030PremiumOhjaamo2
Manufacturer
Models
John Deere 6530 Premium, John Deere 6630 Premium, John Deere 6830 Premium, John Deere 6930 Premium, John Deere 6534 Premium, John Deere 6630 Premium, John Deere 6830 Premium, John Deere 6930 Premium
Years
2006-11
Info

In the autumn of 2006, the Premium models of the 6020 series were replaced with corresponding 6030 series models. The new PowerTechPlus engines were equipped with 4-valve technology, a variable vane turbocharger, and exhaust gas recirculation. The extra power began to engage in all models above 15 km/h and was fully available above 21 km/h or in PTO operation. The transmissions remained the same, meaning that the 6530 and 6630 had 24+24 gears, the larger models had 20+20, and all models were available with a parallel version of the stepless AutoPowr.

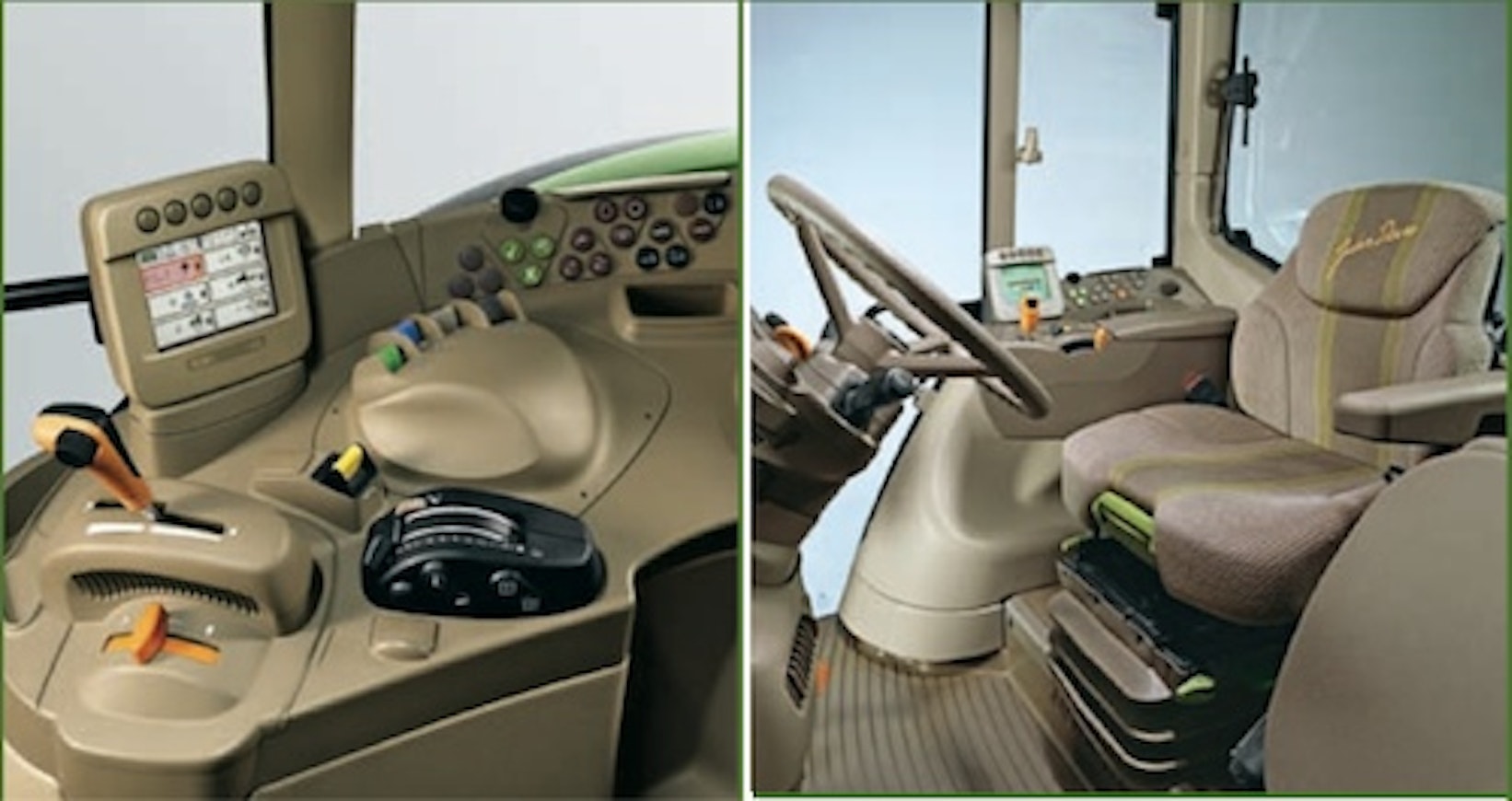

The cab was significantly modernized, especially in terms of controls. The noise level was 70.6 decibels. The new color display controlled, among other things, electrically operated hydraulic valves (optional), headland automation, and work lights. Overall, more equipment was standard than before. The optional front suspension had been developed and could be stiffened if needed.

In the autumn of 2009, there were minor changes to the engine performance figures. There was more extra power than before, and the range of rated power expanded. Torque values also increased slightly in the 6-cylinder models. At the same time, the listed weights increased. The 6530 was replaced by the 4-cylinder 6534, which in dimensions corresponded to the previous 6-cylinder model.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere 6530 PremiumJohn Deere 6630 PremiumJohn Deere 6830 PremiumJohn Deere 6930 PremiumJohn Deere 6534 PremiumJohn Deere 6630 PremiumJohn Deere 6830 PremiumJohn Deere 6930 Premium
Manufacturer nameJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn Deere
Imported to FinlandYesYesYesYesYesYesYesYes
Years2006-092006-092006-092006-092009-112009-112009-112009-11
Engine model6068 T 4V-CR6068 T 4V-CR6068 T 4V-CR6068 T 4V-CR4045 T 4V-CR6068 T 4V-CR6068 T 4V-CR6068 T 4V-CR
Cyl/Turbo/Intercooler6TI6TI6TI6TI4TI6TI6TI6TI
Displacement6788 cm³6788 cm³6788 cm³6788 cm³4530 cm³6788 cm³6788 cm³6788 cm³
Bore x stroke106,5×127 mm106,5×127 mm106,5×127 mm106,5×127 mm106,5×127 mm106,5×127 mm106,5×127 mm106,5×127 mm
Rated power--------
Max power--------
Torque--------
Gears24+24 (stepless)24+24 (stepless)20+20 (stepless)20+20 (stepless)24+24 (stepless)24+24 (stepless)20+20 (stepless)20+20 (stepless)
Synchronized gears24+24 (stepless)24+24 (stepless)20+20 (stepless)20+20 (stepless)24+24 (stepless)24+24 (stepless)20+20 (stepless)20+20 (stepless)
Powershift gears4-speed (step)4-speed (step)4-speed (step)4-speed (step)4-speed (step)4-speed (step)4-speed (step)4-speed (step)
Reverserhydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h1,6-40 (50)1,6-40 (50)2,5-40 (50)2,5-40 (50)1,6-40 (50)1,6-40 (50)2,5-40 (50)2,5-40 (50)
Hydr. flow l/min110 l/min110 l/min110 l/min110 l/min110 l/min110 l/min110 l/min110 l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar200 bar200 bar200 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.elec.
Lift capacity6620 kg7420 kg8400 kg8400 kg6460 kg7240 kg8430 kg8430 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD10.210.210.410.410.210.210.410.4
Front tyres 4WD14.9R2814.9R2816.9R2816.9R2814.9R2814.9R2816.9R2816.9R28
Rear tyres 4WD18.4R3818.4R3820.8R3820.8R3818.4R3818.4R3820.8R3820.8R38
Weight 4WD5080 kg5230 kg5580 kg5880 kg5200 kg5370 kg6000 kg6025 kg
Height with cab286 cm286 cm291 cm291 cm286 cm286 cm291 cm291 cm
Length (2WD/4WD)473 cm473 cm476 cm476 cm473 cm473 cm476 cm476 cm
Wheelbase (2WD/4WD)265 cm265 cm265 cm265 cm265 cm265 cm265 cm265 cm
Fuel tank207 (250) l207 (250) l250 (325) l250 (325) l207 (250) l207 (250) l250 (325) l250 (325) l
Cab noise level70.6 dB70.6 dB70.6 dB70.6 dB70.6 dB70.6 dB70.6 dB70.6 dB
Solid cabxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Air suspension seatxxxxxxxx
Air conditioningxxxxxxxx
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.
