Siirry sivupalkkiinSiirry alaosaanJohn Deere 6170R-6250R






Here is the English translation of the provided text:
The first models introduced in the 6R series were the large models that replaced the earlier 7030-series tractors manufactured in Germany. These models had a wheelbase of 280 cm. Compared to the 7030 series, they weighed about 600 kg more, and the overall dimensions were larger. The construction was still based on a full-length steel frame. The lineup also still included a model equipped with an electric generator, the 6210RE, which had outlets providing 230 and 400 volts of power for electrically powered tools or for controlling electrically powered work equipment. The engines were 6.7 liters in size and, unlike competitors, did not require urea; instead, they utilized an oxidation catalyst and particulate filter.

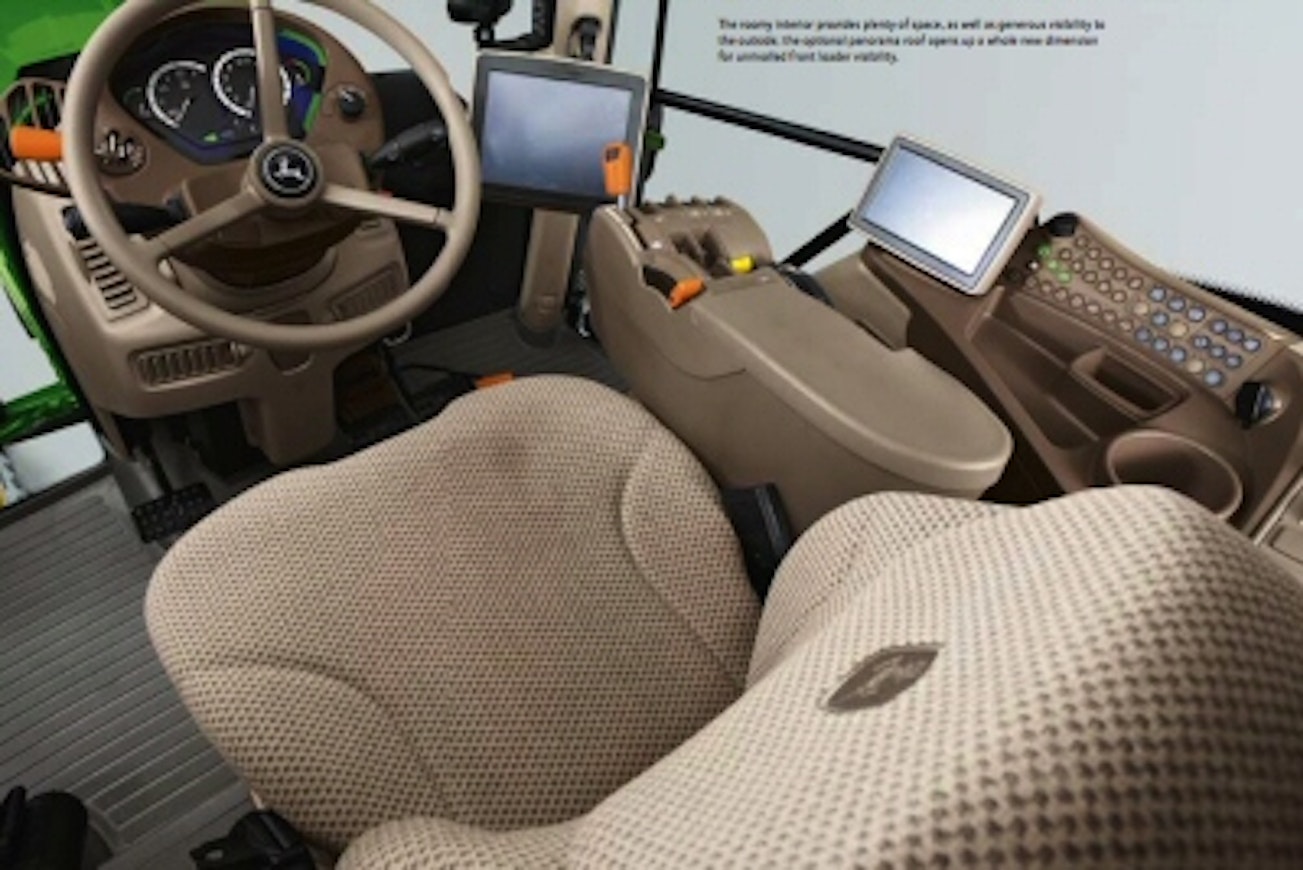

The transmission options offered were 20+20-speed PowrQuad Plus and AutoQuad Plus, the stepless AutoPowr, and a completely new DirectDrive dual-clutch transmission with an 8-speed quick shift, which promised to combine the best features of mechanical and stepless transmissions. The hydraulic system provided a flow rate of 114 liters per minute, or optionally 155 liters per minute for an additional cost. The cab was entirely new with four pillars. The noise level was reported as 72 dB, slightly higher than before. The cab’s display screen was larger than earlier models.
In the autumn of 2014, the engines were upgraded to Stage 4 compliant models, and the model numbers increased by 5 steps. A few extra horsepower was also added. Injection pressure was raised to as much as 2500 bar. In addition to the previous emission technology, a light urea injection system was introduced. With the stepless transmission, 50 km/h was now reached at 1630 rpm. The control armrest was updated to be the same as in the 7R models.
In the autumn of 2016, the top models of the range, the 6230R and 6250R, were introduced. These models were more robust than the others in almost every aspect. These models were always equipped with the stepless AutoPowr transmission and the new CommandPro multifunction joystick, which had 11 programmable buttons and allowed acceleration, deceleration, direction change, and cruise control activation by twisting the joystick. The much-desired joystick became available on all 6R models in 2020.
Let me know if you need any more help!
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 6170R | John Deere 6190R | John Deere 6210R | John Deere 6175R | John Deere 6195R | John Deere 6215R | John Deere 6230R | John Deere 6250R |
|---|---|---|---|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2011-14 | 2011-14 | 2011-14 | 2014-22 | 2014-22 | 2014-22 | 2016-22 | 2016-22 |
| Engine model | PVX | PVX | PVX | PVS | PVS | PVS | PSS | PSS |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6788 cm³ | 6788 cm³ | 6788 cm³ | 6788 cm³ | 6788 cm³ | 6788 cm³ | 6788 cm³ | 6788 cm³ |
| Bore x stroke | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm |
| Rated power | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 20+20 (stepless) | 20+20 (stepless) | 20+20 (stepless) | 20+20 (stepless) | 20+20 (stepless) | 20+20 (stepless) | stepless | stepless |
| Synchronized gears | 20+20 (stepless) | 20+20 (stepless) | 20+20 (stepless) | 20+20 (stepless) | 20+20 (stepless) | 20+20 (stepless) | stepless | stepless |
| Powershift gears | 4-speed (step) | 4-speed (step) | 4-speed (step) | 4-speed (step) | 4-speed (step) | 4-speed (step) | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,5-40 | 2,5-40 | 2,5-40 | 2,5-40 | 2,5-40 | 2,5-40 | 0,05-40 | 0,05-40 |
| Max. speed | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h |
| Hydr. flow l/min | 114 (155) l/min | 114 (155) l/min | 114 (155) l/min | 114 (155) l/min | 114 (155) l/min | 114 (155) l/min | 160 l/min | 160 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 8500 kg | 8500 kg | 8500 kg | 8500 kg | 8500 kg | 9550 kg | 10400 kg | 10400 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.4 | 11.4 | 11.4 | 11.4 | 11.4 | 11.4 | 11.4 | 11.4 |
| Front tyres 4WD | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 600/70R30 | 600/70R30 |
| Rear tyres 4WD | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 800/75R38 | 800/75R38 |
| Weight 4WD | 7350 kg | 7375 kg | 7400 kg | 8300 kg | 8400 kg | 8500 kg | 9300 kg | 9300 kg |
| Height with cab | 316 cm | 316 cm | 316 cm | 316 cm | 316 cm | 316 cm | 325 cm | 325 cm |
| Length (2WD/4WD) | 505 cm | 505 cm | 505 cm | 505 cm | 505 cm | 505 cm | 519 cm | 519 cm |
| Wheelbase (2WD/4WD) | 280 cm | 280 cm | 280 cm | 280 cm | 280 cm | 280 cm | 290 cm | 290 cm |
| Fuel tank | 455 l | 455 l | 455 l | 395+AB20 l | 395+AB20 l | 395+AB20 l | 470+AB l | 470+AB l |
| Cab noise level | 72 dB | 72 dB | 72 dB | 70.7 dB | 70.7 dB | 70.7 dB | 71 dB | 71 dB |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Air suspension seat | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
