Siirry sivupalkkiinSiirry alaosaanJohn Deere 6020 SE-6620 SE

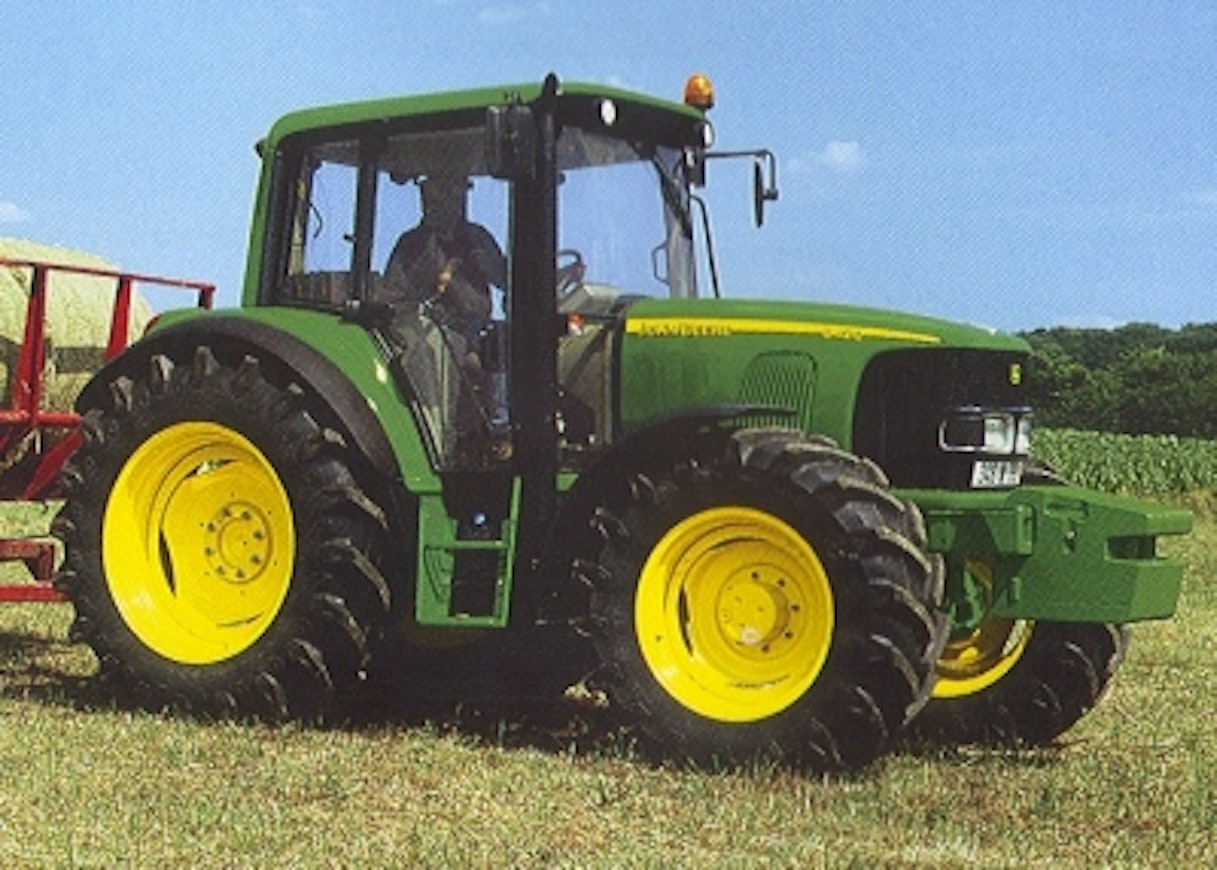

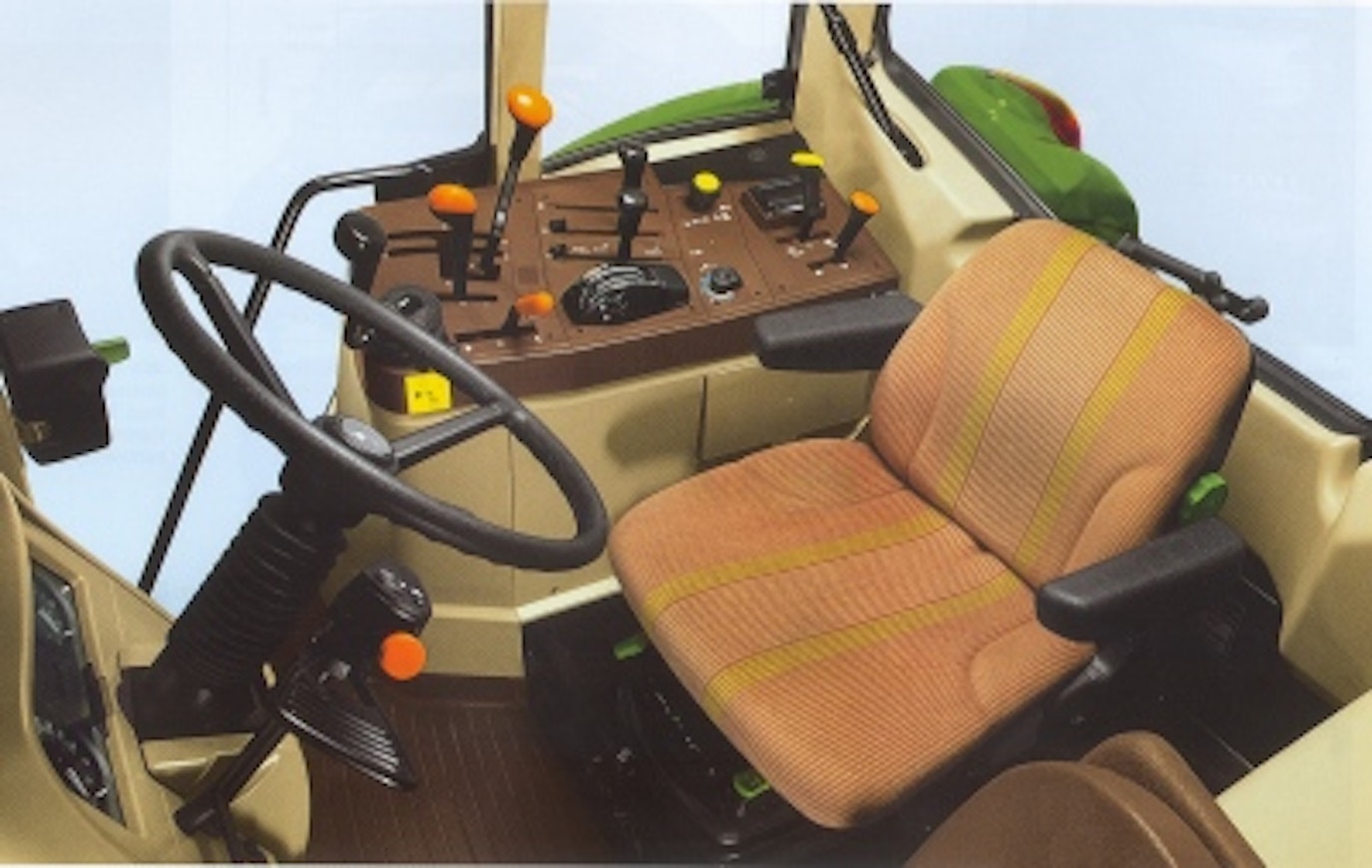

SE models were updated to the 6020 series one year later than the more expensive models. The differences to the Premium models were again smaller than before. The exterior looked the same as on the Premiums, and the entire hood tilted up as a single piece, although on the SE models the exhaust pipe was still mounted on the side of the hood. The cab was noticeably simpler, but the noise level had dropped to 75 decibels. A 2.5 m-high LowProfile version of the cab was also available. The SE lineup initially included five 4-cylinder models and the 6-cylinder 6520 SE. For 2004, the 6620 SE was added as well. During 2003, the engines received an electronic injection pump. The power and torque figures for these models are shown in parentheses. At this point, the Premium models received new common-rail engines whose performance figures were clearly ahead of those of the SE models.
The transmission was a 16+16 gearbox. An oil-immersed PermaClutch 2 clutch and a 4-speed PowrQuad quick-shift unit were standard on the models imported to Finland. A cable-operated reverser lever was always positioned on the left behind the steering wheel. The production program also included 12+4 and 16+16 transmissions without the quick-shift feature. For 2004, the 6-cylinder models received a 24+24 gearbox. The hydraulic system was based on a gear pump whose capacity had been increased to 63 liters per minute, and the hydraulic valves were load-sensing.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 6020 SE | John Deere 6120 SE | John Deere 6220 SE | John Deere 6320 SE | John Deere 6420 SE | John Deere 6520 SE | John Deere 6620 SE |
|---|---|---|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2002-07 | 2002-07 | 2002-07 | 2002-07 | 2002-07 | 2002-07 | 2003-07 |
| Engine model | 4045 | 4045 T | 4045 T | 4045 T | 4045 T | 6068 (T) | 6068 T |
| Cyl/Turbo/Intercooler | 4 | 4T | 4T | 4T (TI) | 4TI | 6 (TI) | 6TI |
| Displacement | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ | 6788 cm³ | 6788 cm³ |
| Bore x stroke | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm |
| Rated power | 75/2300 hp DIN/rpm | 80/2300 hp DIN/rpm | 90/2300 hp DIN/rpm | 100/2300 hp DIN/rpm | 110/2300 hp DIN/rpm | 110/2300 (115/2300) hp DIN/rpm | 125/2300 hp DIN/rpm |

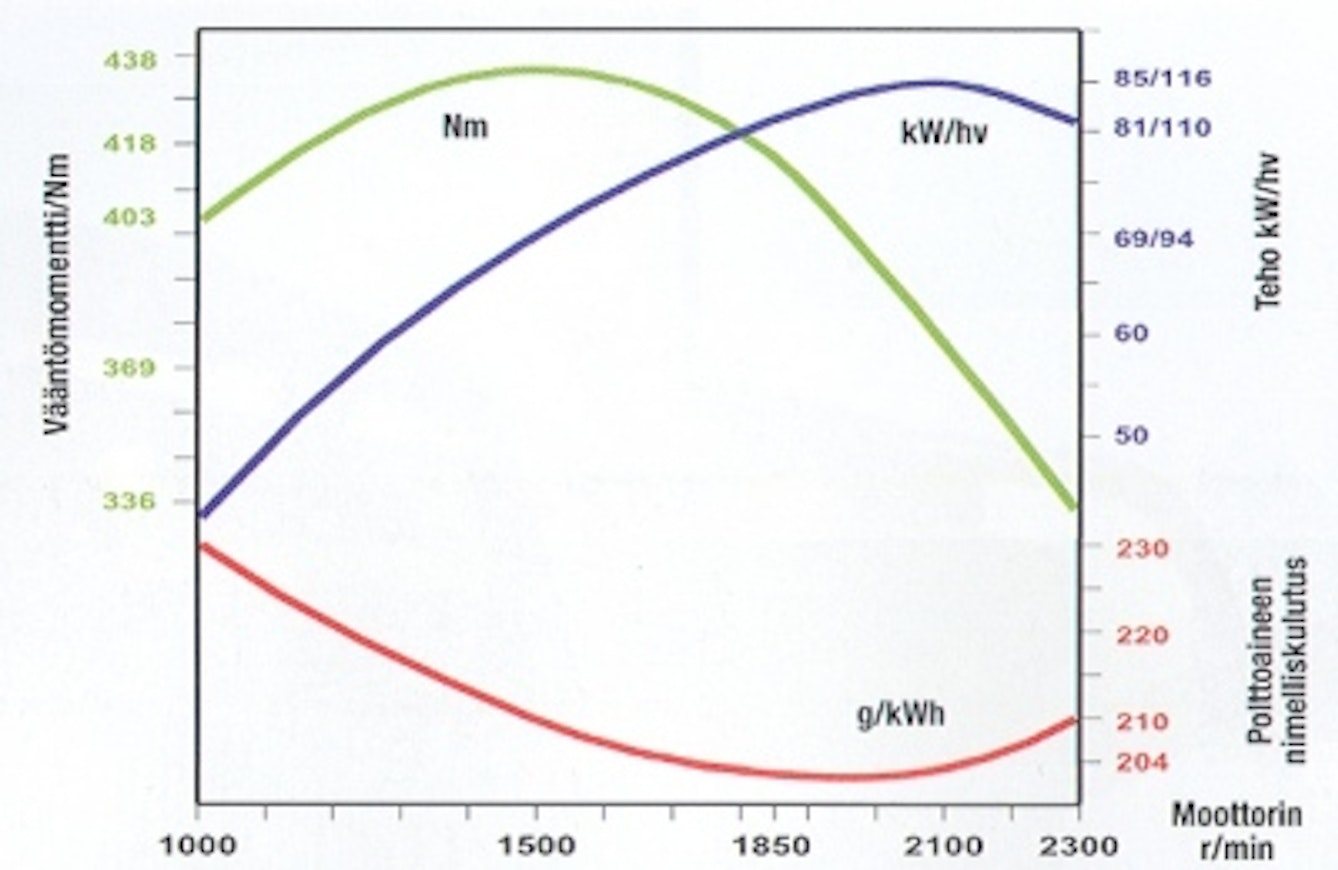

| Max power | 76/2100 (80/2100) hp DIN/rpm | 83/2100 (85/2100) hp DIN/rpm | 93/2100 (95/2100) hp DIN/rpm | 103/2100 (105/2100) hp DIN/rpm | 113/2100 (116/2100) hp DIN/rpm | 113/2100 (121/2100) hp DIN/rpm | 132/2100 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - |
| Gears | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 16+16/24+24 | 24+24 |
| Synchronized gears | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 16+16/24+24 | 24+24 |
| Powershift gears | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 3,1-40 | 3,1-40 | 3,1-40 | 3,1-40 | 3,1-40 | 3,1-40/1,6-40 | 1,6-40 |
| Hydr. flow l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 3990 kg | 3990 kg | 4590 kg | 4590 kg | 5260 kg | 5900 kg | 5900 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.82 | 8.82 | 8.82 | 8.82 | 8.82 | 9.9 | 9.9 |
| Front tyres 4WD | 13.6R24 | 13.6R24 | 420/70R24 | 420/70R24 | 16.9R24 | 14.9R28 | 14.9R28 |
| Rear tyres 4WD | 16.9R34 | 16.9R34 | 480/70R38 | 480/70R38 | 18.4R38 | 18.4R38 | 18.4R38 |
| Weight 4WD | 4140 kg | 4150 kg | 4190 kg | 4340 kg | 4550 kg | 4880 kg | 5020 kg |
| Height with cab | 264 cm | 264 cm | 269 cm | 269 cm | 272 cm | 281 cm | 281 cm |
| Length (2WD/4WD) | 414 cm | 414 cm | 417 cm | 417 cm | 417 cm | 417 cm | 417 cm |
| Wheelbase (2WD/4WD) | 240 cm | 240 cm | 240 cm | 240 cm | 240 cm | 265 cm | 265 cm |
| Fuel tank | 165 l | 165 l | 165 l | 165 l | 165 l | 207 l | 207 l |
| Cab noise level | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB |
| Solid cab | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Air suspension seat | 2004-> | 2004-> | 2004-> | 2004-> | 2004-> | 2004-> | 2004-> |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
