Siirry sivupalkkiinSiirry alaosaanJohn Deere 6010 SE-6610 SE

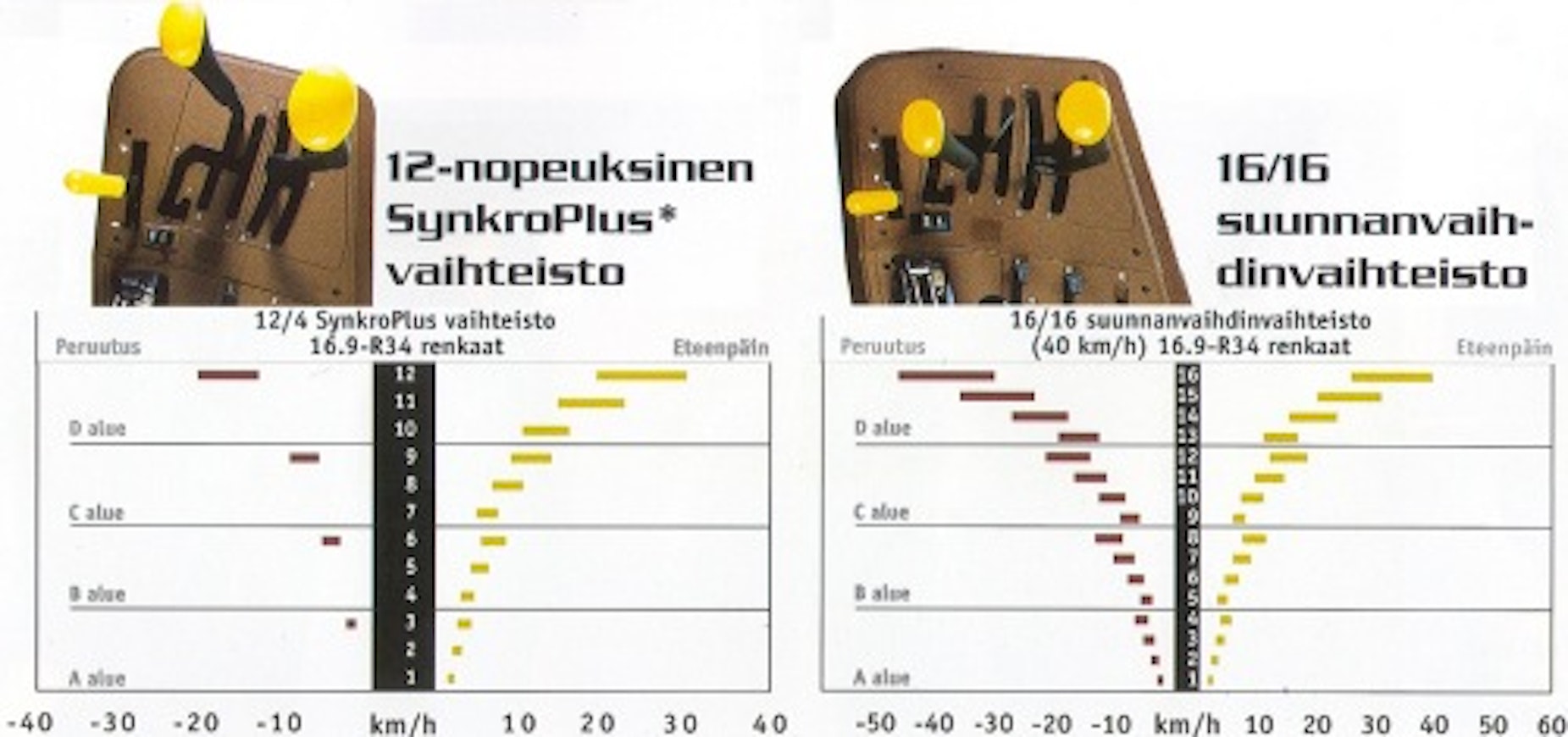

In the fall of 1998, the 6010-series SE models were introduced to the market. The differences compared to the PQ models were almost the same as in the 6000 series: there were 16+16 gears (the 12+4 version was not brought to Finland), the hydraulic system was not closed, and the power was 54 l/min. The instrument panel did not move with the steering wheel adjustment, and the heater was placed on the ceiling. The noise level was stated as 80 dB. The cab was also available as a LP model, which was 10.5 cm lower. The standard tires were smaller than those on the PQ models, although in Finland miller tires were partially standard on SE models. The exhaust pipe was on the side of the engine hood and not on the pillar, as in the PQ models.
A new model offered was the naturally aspirated 6010 SE, which had 75 hp. The displacement of all models was now 4.5 liters, and a viscous fan was standard. In 2000, 6-cylinder 6510 SE and 6610 SE models were introduced to the market. At this point, the SE models were marketed in Finland with the label PQ 16+16.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 6010 SE | John Deere 6110 SE | John Deere 6210 SE | John Deere 6310 SE | John Deere 6410 SE | John Deere 6510 SE | John Deere 6610 SE |
|---|---|---|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1998-2002 | 1998-2002 | 1998-2002 | 1998-2002 | 1998-2002 | 2000-2002 | 2000-2002 |
| Engine model | 4045 | 4045 TL | 4045 TL | 4045 TL 052 | 4045 TL 053 | 6068 | 6068 TLA |
| Cyl/Turbo/Intercooler | 4 | 4T | 4T | 4T | 4T | 6 | 6T |
| Displacement | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ | 6768 cm³ | 6768 cm³ |
| Bore x stroke | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm |
| Rated power | 75/2300 hp DIN/rpm | 80/2300 hp DIN/rpm | 90/2300 hp DIN/rpm | 100/2300 hp DIN/rpm | 105/2300 hp DIN/rpm | 105/2300 hp DIN/rpm | 115/2300 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - |
| Gears | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 |
| Synchronized gears | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 | 16+16 |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,4-40 | 2,4-40 | 2,4-40 | 2,4-40 | 2,4-40 | 2,4-40 | 2,4-40 |
| Hydr. flow l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 65 l/min | 65 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 3990 kg | 3990 kg | 3990 kg | 4590 kg | 5260 kg | 5260 kg | 5260 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.82 | 8.82 | 8.82 | 8.82 | 8.82 | 9.9 | 9.9 |
| Front tyres 4WD | 13.6R24 | 13.6R24 | 420/70R24 | 420/70R24 | 480/65R24 | 14.9R28 | 14.9R28 |
| Rear tyres 4WD | 16.9R34 | 16.9R34 | 480/70R38 | 480/70R38 | 540/65R38 | 18.4R38 | 18.4R38 |
| Weight 4WD | 3950 kg | 3950 kg | 4100 kg | 4150 kg | 4250 kg | 4550 kg | 4650 kg |
| Height with cab | 264 cm | 264 cm | 267 cm | 267 cm | 267 cm | 281 cm | 281 cm |
| Length (2WD/4WD) | 414 cm | 414 cm | 417 cm | 417 cm | 417 cm | 452 cm | 452 cm |
| Wheelbase (2WD/4WD) | 240 cm | 240 cm | 240 cm | 240 cm | 240 cm | 265 cm | 265 cm |
| Fuel tank | 165 l | 165 l | 165 l | 165 l | 165 l | 165 l | 165 l |
| Cab noise level | 80 dB | 80 dB | 80 dB | 80 dB | 80 dB | 75 dB | 73 dB |
| Solid cab | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
