Siirry sivupalkkiinSiirry alaosaanJohn Deere 5300-5500






The 5000 series compact tractors were introduced to the American market in 1992. However, they were not brought to Europe until the fall of 1996. The technology was mostly the same as the models manufactured in the USA, but production took place in Carrara, Italy. However, the powertrain differed from the American one, as it originated from Carraro.
In Europe, initially only the mid-range models of the series were sold: the 55 hp 5300 and the 70 hp 5400. A narrow fruit-growing tractor was also available with 80 horsepower (5500 N), and at the end of 1998, the 5500 was also introduced to the market. The creep gearbox was standard equipment in Europe, and with the overdrive gear, a speed of 40 km/h could be achieved. The transmission was only partially synchronized, but the reverser was synchronized, and the clutch friction surfaces were ceramic.
The 5000 series was not sold in Finland, but it was available in Sweden as well.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 5300 | John Deere 5400 | John Deere 5500 |
|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere |
| Imported to Finland | No | No | No |
| Years | 1996-2000 | 1996-2000 | 1998-2000 |
| Engine model | 3179 | 3179 | 4239 |
| Cyl/Turbo/Intercooler | 3 | 3T | 4T |
| Displacement | 2940 cm³ | 2940 cm³ | 3920 cm³ |
| Bore x stroke | 106,5×110 mm | 106,5×110 mm | 106,5×110 mm |
| Rated power | 55/2400 hp DIN/rpm | 70/2400 hp DIN/rpm | 80/2400 hp DIN/rpm |
| Torque | - | - | - |

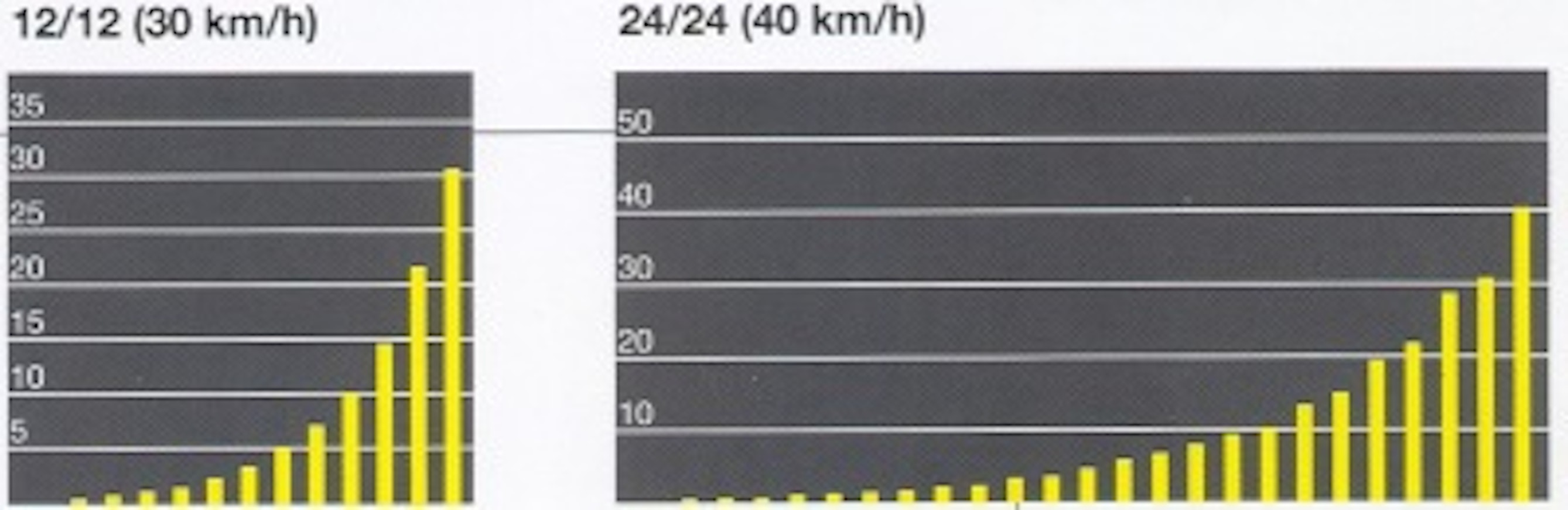

| Gears | 12+12 | 12+12 | 24+24 |
| Synchronized gears | partial | partial | partial |
| Powershift gears | opt. | opt. | mech. |
| Reverser | mech. | mech. | mech. |
| Speeds in km/h | 0,5-30,0 | 0,5-30,0 | 0,5-40,0 |
| Max. speed | 30/40 km/h | 30/40 km/h | 40 km/h |
| Hydr. flow l/min | 43 l/min | 43 l/min | 43 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 2400 kg | 2400 kg | 2400 kg |
| PTO speeds | 540 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7 | 7 | 7 |
| Turning circle m 4WD | 7.8 | 7.8 | 7.8 |
| Front tyres 2WD | 7,50-16 | 7,50-16 | 7,50-16 |
| Front tyres 4WD | 9.5R24 | 11.2R24 | 11.2R24 |
| Rear tyres 2WD | 14,9R30 | 16,9R30 | 16,9R30 |
| Rear tyres 4WD | 14.9R30 | 16.9R30 | 16.9R30 |
| Weight 2WD | 2410 kg | 2425 kg | 2725 kg |
| Weight 4WD | 2590 kg | 2605 kg | 2905 kg |
| Height with cab | 240 cm | 240 cm | 240 cm |
| Length (2WD/4WD) | 320/336 cm | 320/336 cm | - |
| Wheelbase (2WD/4WD) | 210 cm | 210 cm | 218 cm |
| Fuel tank | 80 l | 80 l | 80 l |
| Cab noise level | 83 dB | 83 dB | 83 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock |
| Creeper gear | x | x | x |
