Siirry sivupalkkiinSiirry alaosaanJohn Deere 530-630

Manufacturer
Models
John Deere 530, John Deere 630
Years
1958-60
Info

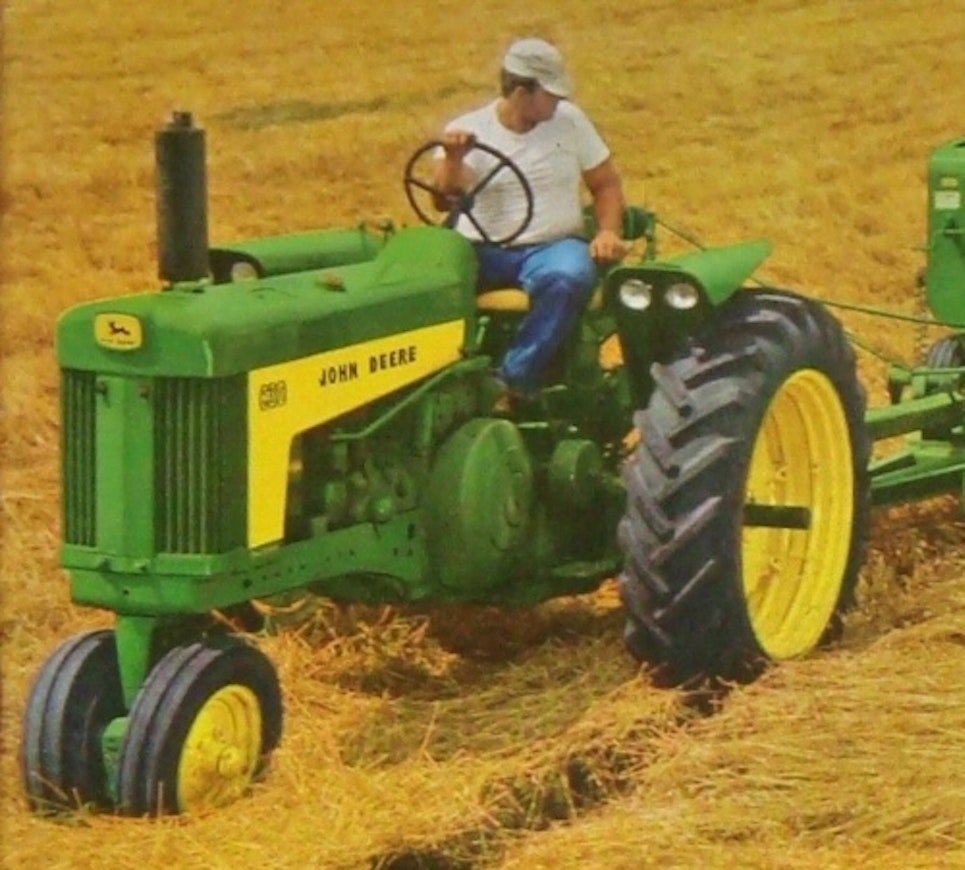

The John Deere 30 series was made to reassure buyers who had started to believe that the era of the 2-cylinder John Deere was over. The 530 and 630 were in production for just over a year. The changes compared to the previous models were minor. The steering wheel was now tilted in these models as well, and behind it was a new instrument panel. A 1000 rpm power take-off became an optional accessory in spring 1959. Also available as an option were squared rear fenders, which housed four headlights. The rear wheels had increased in size.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | John Deere 530 | John Deere 630 |
|---|---|---|
| Manufacturer name | John Deere | John Deere |
| Imported to Finland | No | No |
| Years | 1959-60 | 1958-60 |
| Cyl/Turbo/Intercooler | 2 | 2 |
| Displacement | 3111 cm³ | 4964 cm³ |
| Bore x stroke | 119,1×139,7 mm | 139,7×161,9 mm |
| Rated power | - | - |
| Gears | 6+1 | 6+1 |
| Speeds in km/h | 2,4-16,1 | 2,4-18,5 |
| Lift controls | (mech.) | (mech.) |
| PTO speeds | 540 | 540 |
| Brakes | drum brakes | drum brakes |
| Steering | mech. | mech. |
| Front tyres 2WD | 5.50-16 | 6.00-16 |
| Rear tyres 2WD | 12.4-36 | 12.4-38 |
| Weight 2WD | (2056) kg | (2676) kg |
| Height with cab | (152) cm | (168) cm |
| Length (2WD/4WD) | 337 cm | 343 cm |
| Wheelbase (2WD/4WD) | 229 cm | 229 cm |
| Fuel tank | 68 l | 84 l |
