Siirry sivupalkkiinSiirry alaosaanJohn Deere 5080R-5100R






The successor to the 5020 series came in the fall of 2008 with the 5R lineup. The tractor, built in Germany, had a more robust frame, and the most powerful model was now 100 horsepower. The engines were 4.5-liter units equipped with common-rail injection. Unlike the larger models, the intercooler was of the air-to-air type. The transmission was now standard PowrQuad Plus, which included a quick-shift feature when changing ranges, a button clutch, and an electric direction reverser. The Auto Quad Plus version had quick-shift automation. The continuous flow hydraulic output was 65 liters per minute in Finland (a 56-liter version was also available). The clutch was a wet multi-disc type, and the lift device was electrically operated. Headland automation could be added as an option.

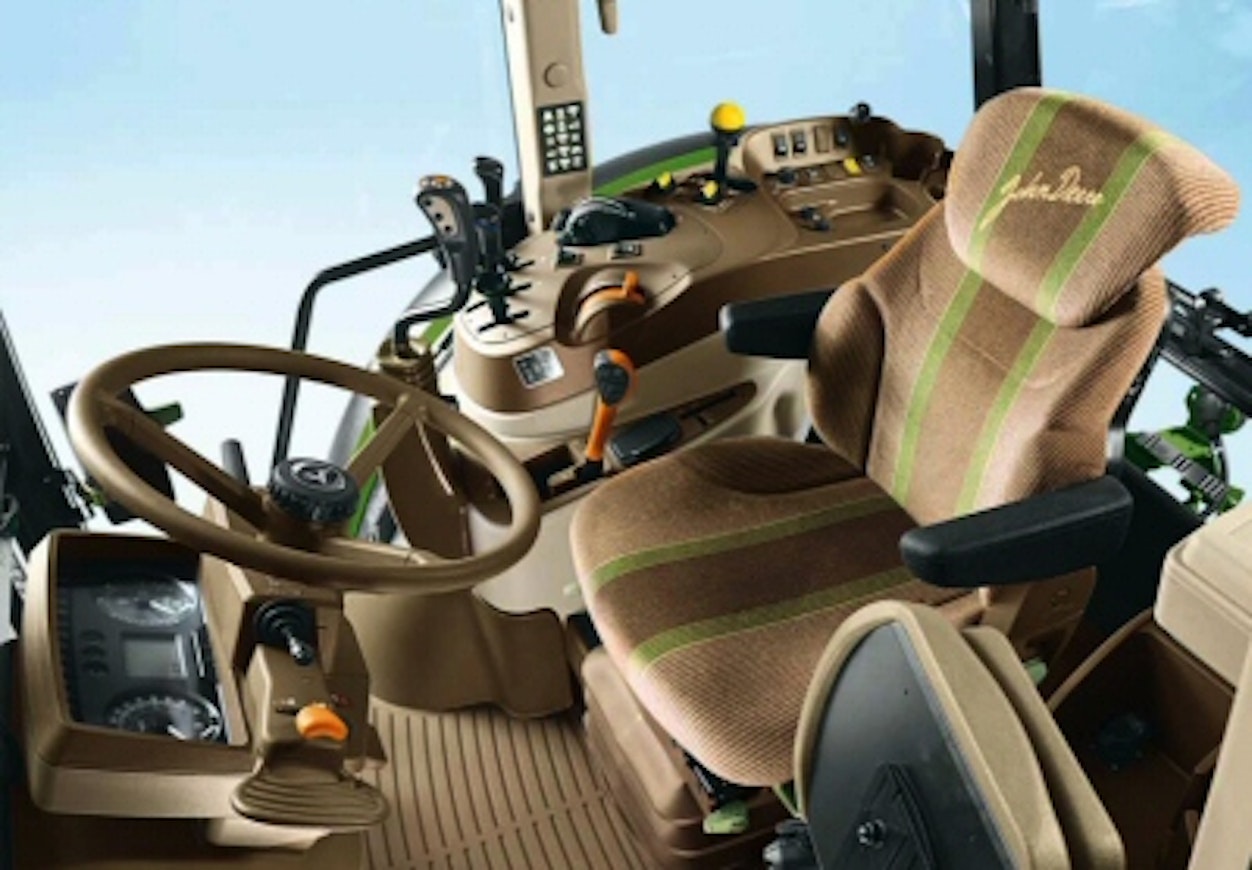

The cab noise level had dropped to 74 decibels. The basic structure of the somewhat small cab remained the same, but the interior was updated and the colors lightened. As a parallel model, the 5RN versions were available, where the total width of the tractor was reduced to 186 centimeters.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 5080R | John Deere 5090R | John Deere 5100R |
|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes |
| Years | 2008-13 | 2008-13 | 2008-13 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI |
| Displacement | 4530 cm³ | 4530 cm³ | 4530 cm³ |
| Bore x stroke | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm |
| Rated power | - | - | - |
| Max power | - | - | - |
| Torque | - | - | - |
| Gears | 16+16 | 16+16 | 16+16 |
| Synchronized gears | 16+16 | 16+16 | 16+16 |
| Powershift gears | 4-step | 4-step | 4-step |
| Reverser | hydr. | hydr. | hydr. |
| Speeds in km/h | 3,3-40 | 3,3-40 | 3,3-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 65 l/min | 65 l/min | 65 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 4200 kg | 4200 kg | 4200 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 7.6 | 7.6 | 7.6 |
| Front tyres 4WD | 13.6R24 | 13.6R24 | 13.6R24 |
| Rear tyres 4WD | 16.9R34 | 16.9R34 | 16.9R34 |
| Weight 4WD | 3775 kg | 3775 kg | 3775 kg |
| Height with cab | 255 (250) cm | 255 (250) cm | 255 (250) cm |
| Length (2WD/4WD) | 395 cm | 395 cm | 395 cm |
| Wheelbase (2WD/4WD) | 223 cm | 223 cm | 223 cm |
| Fuel tank | 130 (150) l | 130 (150) l | 130 (150) l |
| Cab noise level | 74 dB | 74 dB | 74 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. |
