Siirry sivupalkkiinSiirry alaosaanJohn Deere 4560-4960

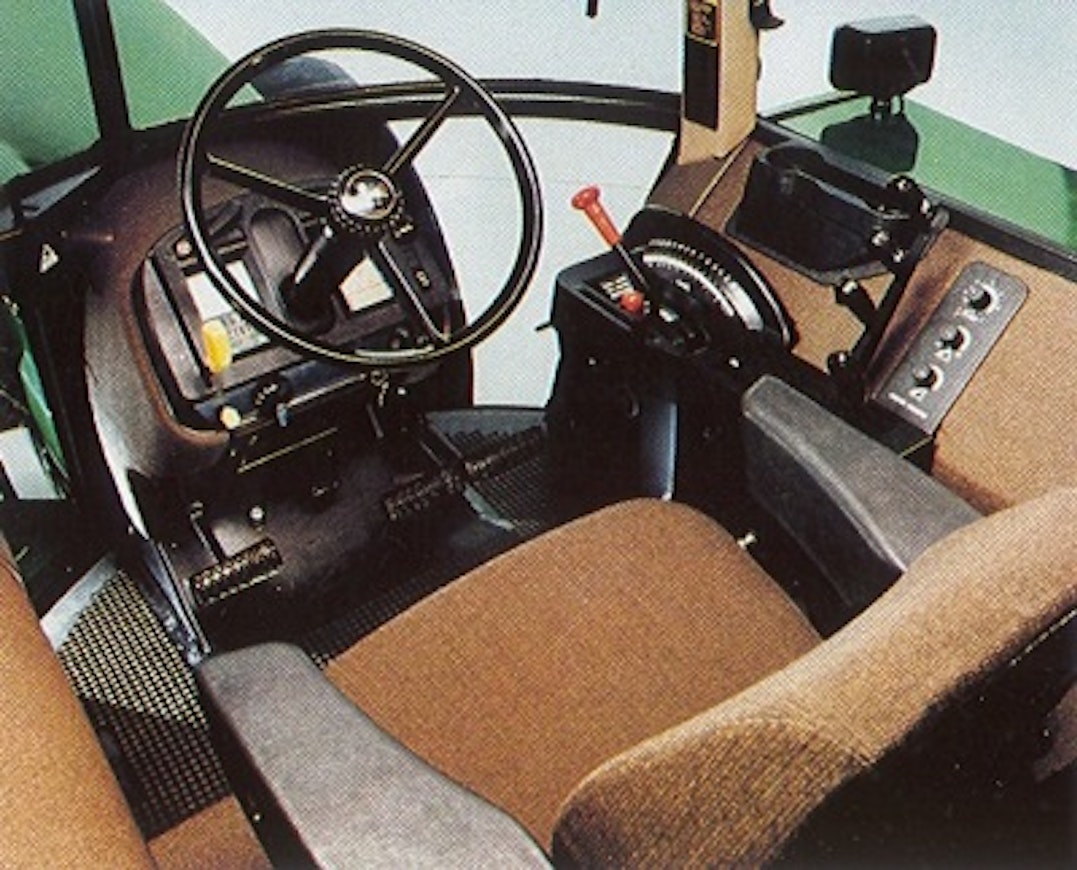

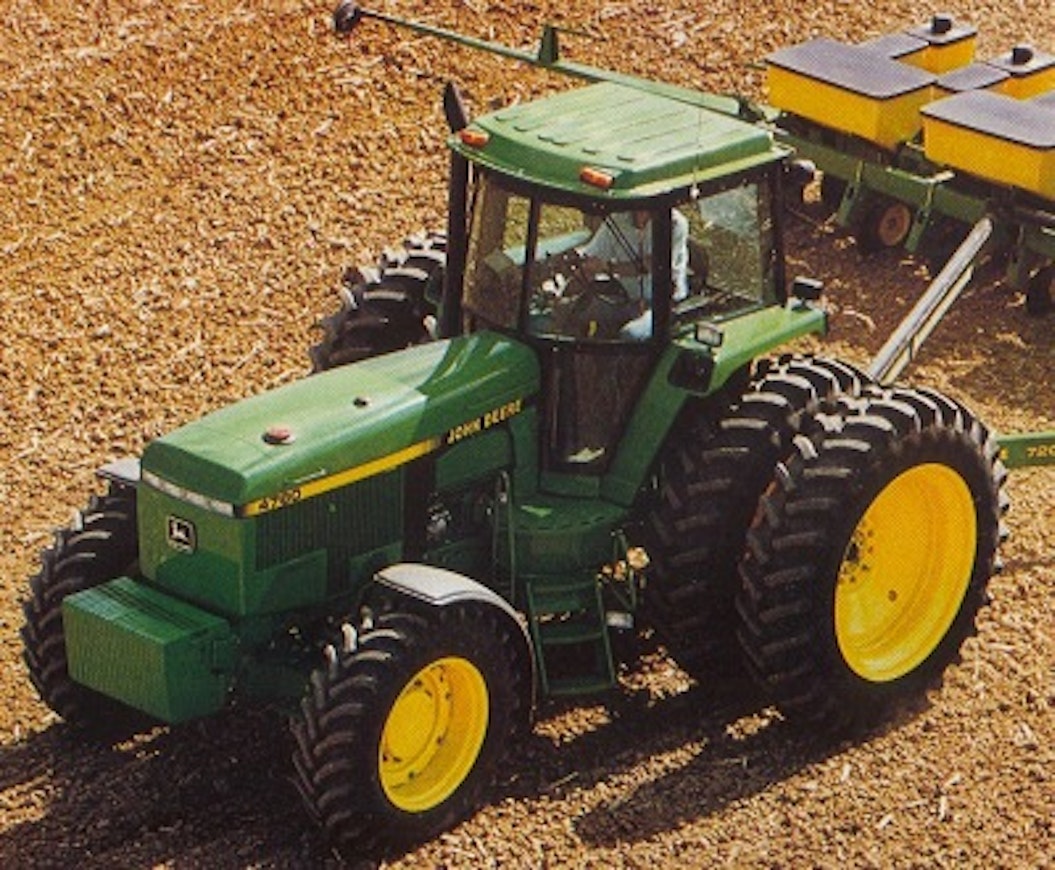

For the year 1992, the JD 55-series was replaced in America by the 60-series, but the changes were minimal. The brochure even referred to it as a fine-tuning. To improve visibility, the air intake was moved under the hood and the exhaust pipe to the pillar. The cab steps were wider, and for adjusting the rear axle track width, a stepless solution based on extended axle ends was again offered. The 60-series models were 4560, 4760, and 4960, as the smaller models were replaced by the 7000-series. The 60-series was not brought to Europe at all. In the USA, the 60-series was also available, as traditionally, in rear-wheel-drive versions, and instead of the Powershift transmission, the rear-wheel-drive models came standard with a 16-speed Quad-Range.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 4560 | John Deere 4760 | John Deere 4960 |
|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere |
| Imported to Finland | No | No | No |
| Years | 1991-94 | 1991-94 | 1991-94 |
| Engine model | 6076T | 6076A | 6076A |
| Cyl/Turbo/Intercooler | 6T | 6TI | 6TI |
| Displacement | 7640 cm³ | 7640 cm³ | 7640 cm³ |
| Bore x stroke | 115,8×120,6 mm | 115,8×120,6 mm | 115,8×120,6 mm |
| Rated power | 170/2200 hp DIN/rpm | 190/2200 hp DIN/rpm | 228/2000 hp DIN/rpm |
| Gears | 15+4 | 15+4 | 15+4 |
| Synchronized gears | powershift | powershift | powershift |
| Powershift gears | powershift | powershift | powershift |
| Speeds in km/h | 2,3-30,0 | 2,3-31,1 | 2,3-31,1 |
| Hydr. flow l/min | 126 l/min | 126 l/min | 126 l/min |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 3757 kg | 3757 kg | 4555 kg |
| PTO speeds | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.6 | 10.6 | 10.6 |
| Front tyres 4WD | 16.9-28 | 16.9-30 | 16.9-30 |
| Rear tyres 4WD | 20.8-38 | 20.8-42 | 20.8-42 |
| Weight 4WD | 8436 kg | 8482 kg | 8607 kg |
| Height with cab | 302 cm | 302 cm | 302 cm |
| Length (2WD/4WD) | 542 cm | 542 cm | 542 cm |
| Wheelbase (2WD/4WD) | 297 cm | 297 cm | 297 cm |
| Fuel tank | 386 l | 386 l | 386 l |
| Cab noise level | 76.5 dB | 76.5 dB | 76.5 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x |
| Air suspension seat | hydr. spring | hydr. spring | hydr. spring |
| Air conditioning | x | x | x |
| Trip computer | x | x | x |
