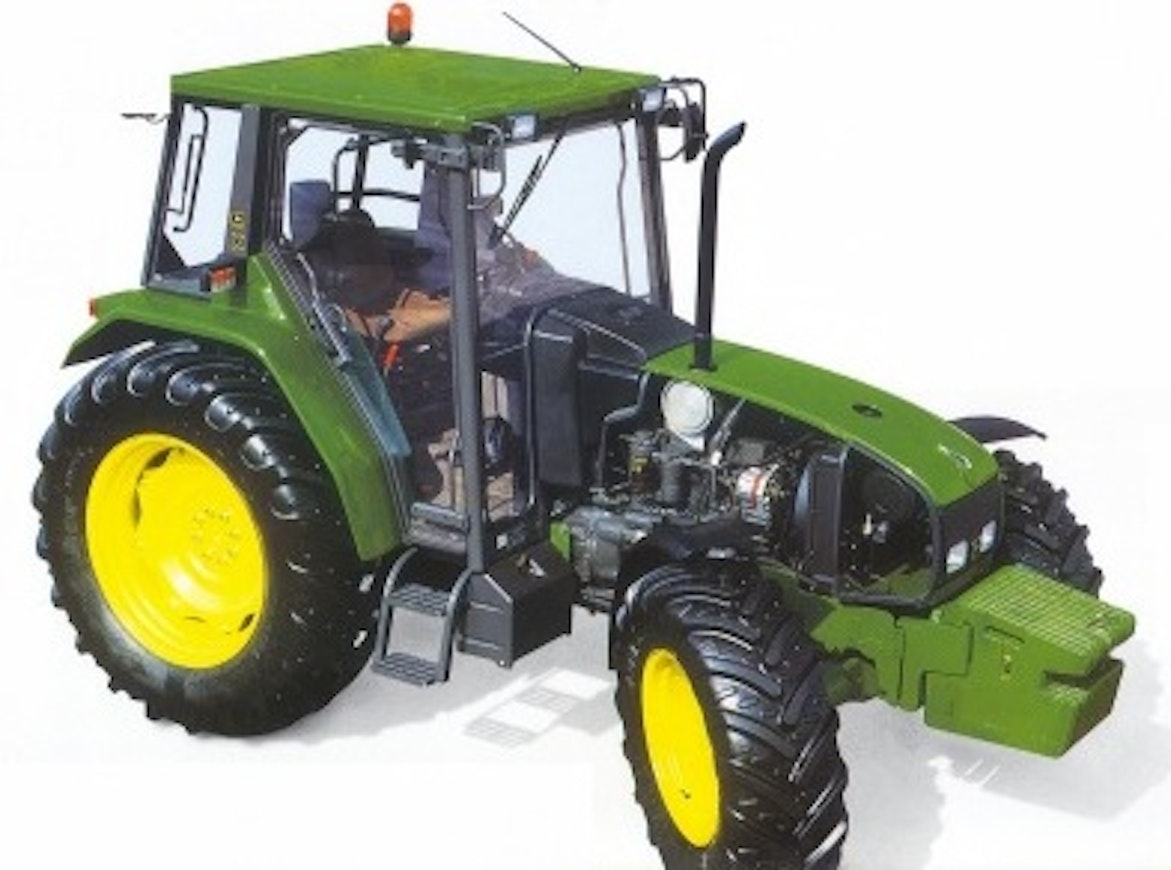

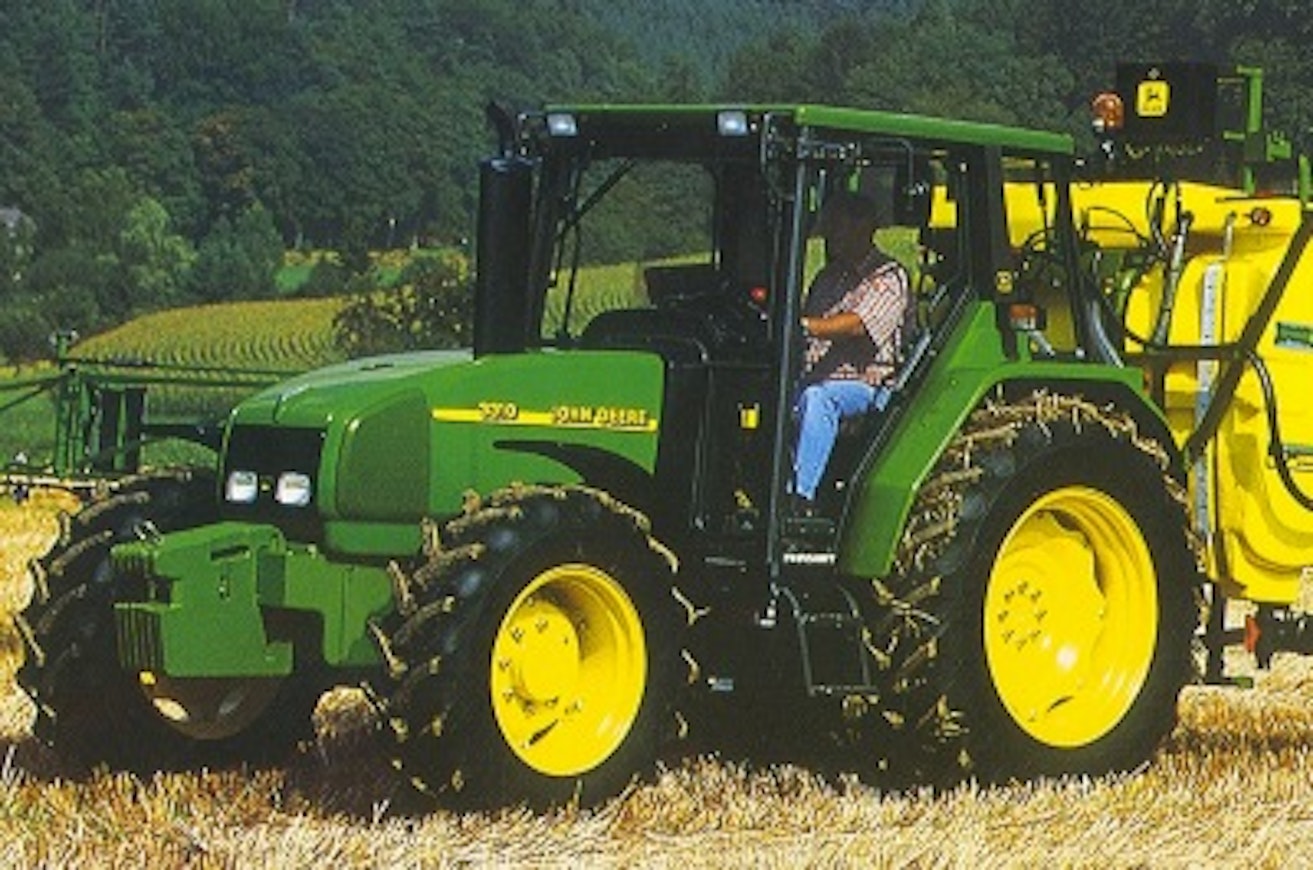

John Deere 3110-3410
In the autumn of 1998, the John Deere 3000 series based on the Renault Ceres was updated. In the 3010 series, the main improvements were made to the cab. The doors were now all-glass, the upholstery color had changed to gray, the seat was upgraded (air-suspended in Comfort X models), and the noise level in the Comfort X versions was reduced to 74 decibels. Lifting capacity was increased on the 3310 and 3410 models equipped with auxiliary lift cylinders. The standard transmission became a 20 + 20 gearbox with a mechanical shuttle (18 + 18 in the 30 km/h version). As an optional extra, there was the Twinshift hydraulic shuttle.
The cooperation between John Deere and Renault ended when Claas acquired Renault’s tractor business.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 3110 | John Deere 3210 | John Deere 3310 | John Deere 3410 |
|---|---|---|---|---|
| Options | ||||
| Manufacturer name | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | No | No | No | No |
| Years | 1998-01 | 1998-02 | 1998-02 | 1998-02 |
| First year sold | 1998 | 1998 | 1998 | 1998 |
| Last year sold | 2001 | 2002 | 2002 | 2002 |
| Engine model | 3179 | 4239 | - | - |
| Cyl/Turbo/Intercooler | 3 | 4 | 4 | 4T |
| Displacement | 2940 cm³ | 3920 cm³ | 4530 cm³ | 4530 cm³ |
| Bore x stroke | 106,5×110 mm | 106,5×110 mm | 106,5×127 mm | 106,5×127 mm |
| Rated power hp/rpm DIN | 55/2280 | 65/2150 | 75/2050 | 85/2100 |
| Rated power | 55 | 65 | 75 | 85 |
| Rated speed | 2280 | 2150 | 2050 | 2100 |

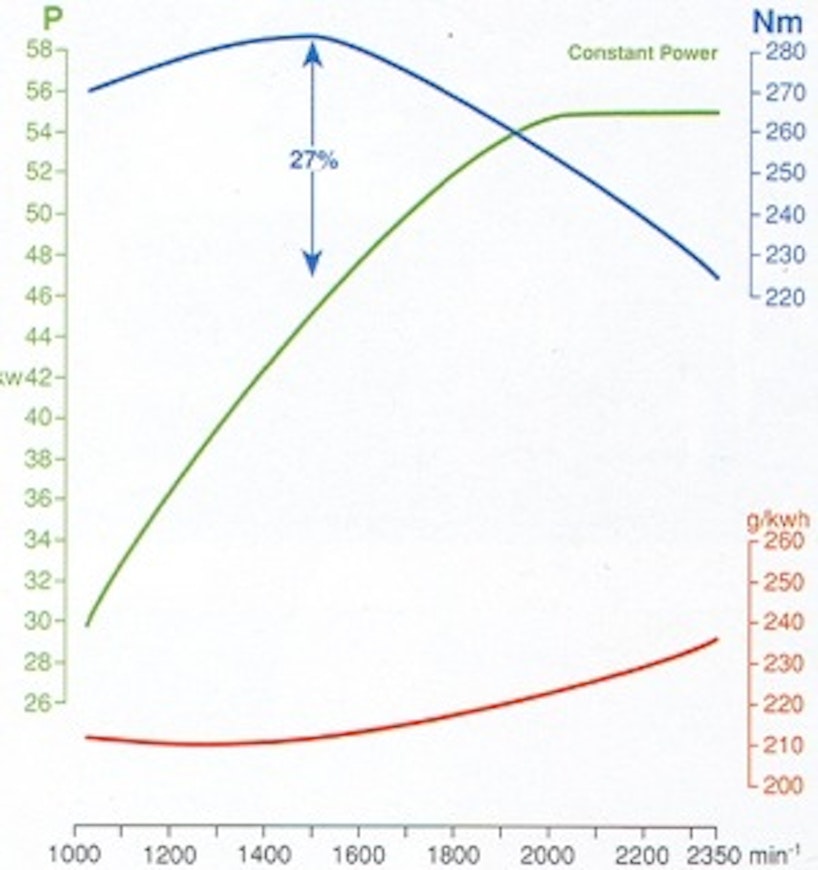

| Torque Nm/rpm DIN | 205/1500 | 242/1500 | 284/1500 | 310/1500 |
| Gears | 20+20 | 20+20 | 20+20 | 20+20 |
| Synchronized gears | 20+20 | 20+20 | 20+20 | 20+20 |
| Powershift gears | mech. | mech. | mech. | mech. |
| Reverser | mech. | mech. | mech. | mech. |

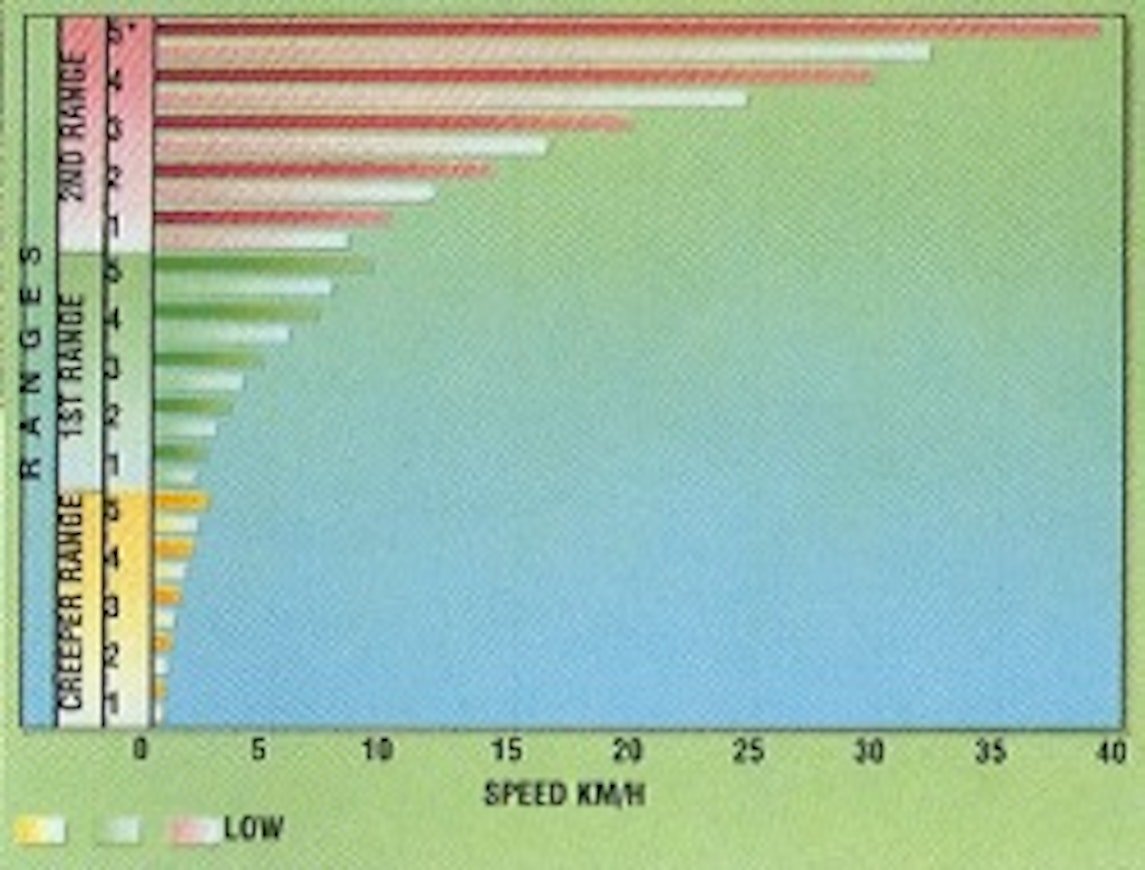

| Speeds in km/h | 1,7-40 | 1,7-40 | 1,7-40 | 1,7-40 |
| Hydr. flow l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 2810 kg | 2810/3750 kg | 4030/5110 kg | 5110 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.2 | 8.2 | 8.2 | 8.2 |
| Front tyres 4WD | 11.2R28 | 11.2R28 | 13.6R24 | 13.6R24 |
| Rear tyres 4WD | 13.6R36 | 13.6R36 | 16.9R34 | 16.9R34 |
| Weight 4WD | 3110 kg | 3330 kg | 3425/ kg | 3470/3630 kg |
| Height with cab | 245 cm | 245 cm | 254 cm | 254 cm |
| Length (2WD/4WD) | 373 cm | 389 cm | 406 cm | 406 cm |
| Wheelbase (2WD/4WD) | 224 cm | 240 cm | 240 cm | 240 cm |
| Fuel tank | 115 l | 115/145 l | 115/145 l | 115/145 l |
| Cab noise level | 83 dB | 83/74 dB | 83/74 dB | 83/74 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
| Air suspension seat | - | -/x | -/x | -/x |
| Creeper gear | opt. | opt. | opt. | opt. |
