John Deere 3100-3400

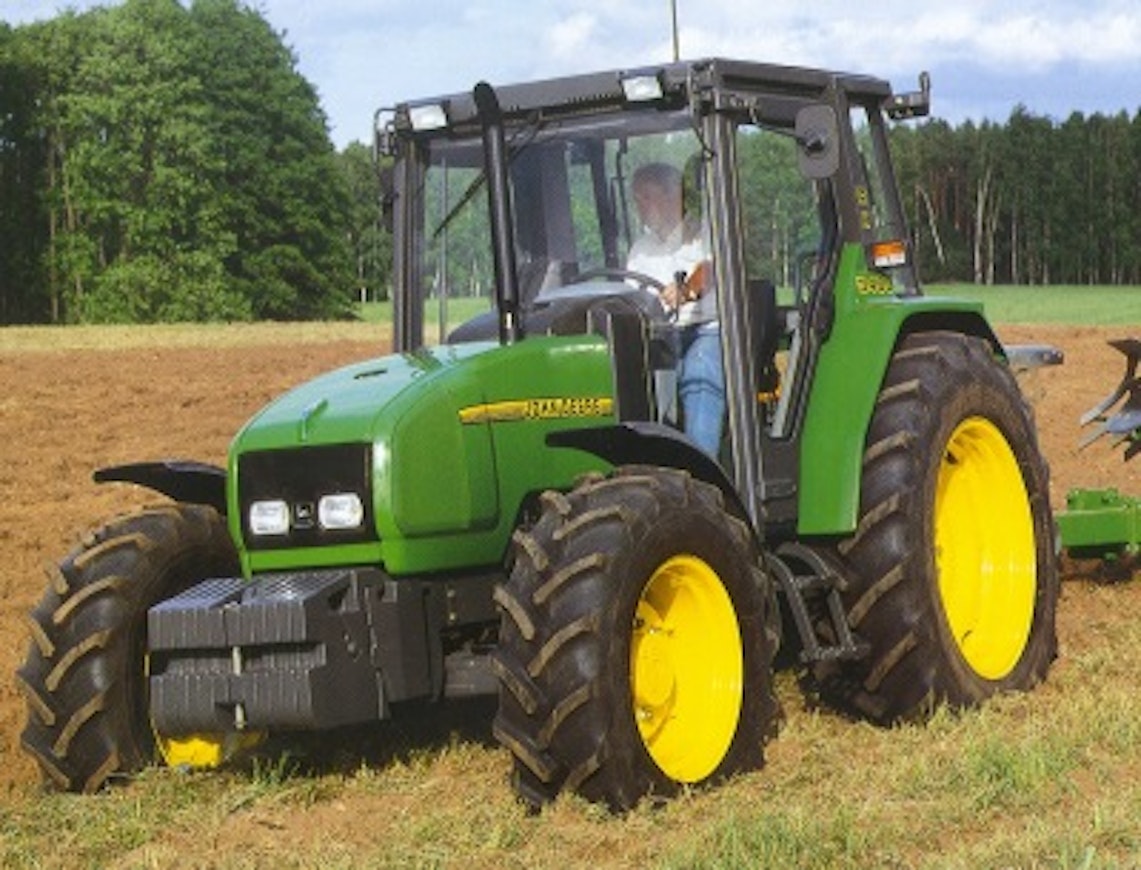

95JD3400
95JD3400ohjaamo
95JD3400
95JD3400ohjaamo
Manufacturer
Models
John Deere 3100, John Deere 3200, John Deere 3300, John Deere 3400
Years
1995-98
Info

John Deere’s production of the small 50-series models continued until the end of 1994, when the 3100 (55 hp), 3200 (65 hp), 3300 (75 hp) and 3400 (85 hp)—all based on the Renault Céres range—were introduced. The tractors carried John Deere paint and engines. However, aside from the colors, the styling under John Deere did not turn out to be particularly successful. On the German market, the John Deeres were better equipped than the equivalent Renaults.

On the tractors sold in Sweden there was, for example, a creeper gearbox and a two-way hydraulic valve block only on the X models, and the lifting capacity was lower than on the German versions. All 3000-series tractors featured draft sensing on the lower links and four-wheel drive that engaged when braking. The front wheels could swivel through an angle of 55 degrees.

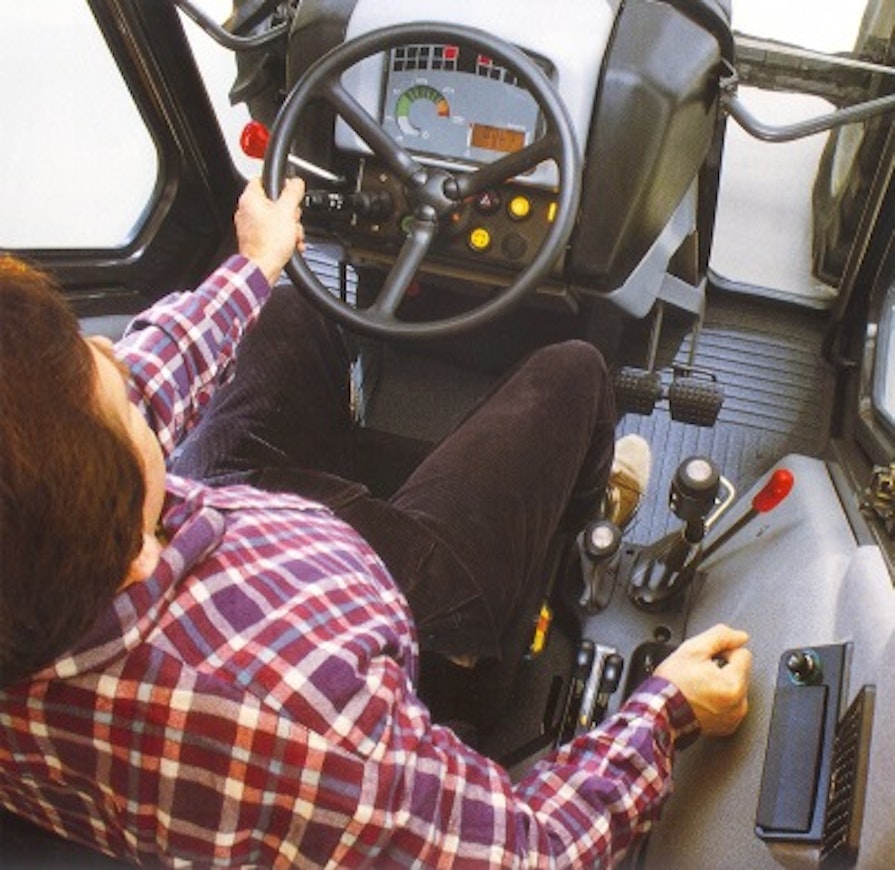

The cab looked quite basic, but John Deere quoted a noise level of 78 dB in the X models, whereas Renault promised as little as 73 dB. The 30 km/h version offered 9 forward and 9 reverse gears (18+18 with the creeper), and the 40 km/h version came with 10+10 or, with the creeper, 20+20. The X models also featured a digital dashboard and a hydraulic power take-off coupling.

From 1996 onwards, cost-saving versions designated SE and XSE were also offered on certain markets.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere 3100John Deere 3200John Deere 3300John Deere 3400
Manufacturer nameJohn DeereJohn DeereJohn DeereJohn Deere
Imported to FinlandNoNoNoNo
Years1995-981995-981995-981995-98
Engine model3029 D4039 D4045 D4039 T
Cyl/Turbo/Intercooler3444T
Displacement2940 cm³3920 cm³4530 cm³3920 cm³
Bore x stroke106,5×110 mm106,5×110 mm106,5×127 mm106,5×110 mm
Rated power55/2280 hp DIN/rpm65/2150 hp DIN/rpm75/2050 hp DIN/rpm85/2100 hp DIN/rpm
Torque----
Gears9+99+9/20+209+9/20+209+9/20+20
Synchronized gears9+99+9/20+209+9/20+209+9/20+20
Powershift gearsopt.opt., X standardopt., X standardopt., X standard
Reversermech.mech.mech.mech.
Speeds in km/h1,7-30,01,7-30,01,7-30,01,7-30,0
Max. speed 30/40 km/h30/40 km/h30/40 km/h30/40 km/h
Hydr. flow l/min52 l/min52 l/min52 l/min52 l/min
Hydraulic pressure180 bar180 bar180 bar180 bar
Lift controlsmech.mech.mech.mech.
Lift capacity2810/3750 kg2810/3750 kg3750/4480 kg4567 kg
PTO speeds750540/750540/750540/750
Brakeswet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.28.28.28.2
Front tyres 4WD11.2R2811.2R2813.6R2413.6R24
Rear tyres 4WD13.6R3613.6R3616.9R3416.9R34
Weight 4WD3110 kg3330 kg3425 kg3470 kg
Height with cab245 cm245 cm254 cm254 cm
Length (2WD/4WD)373 cm389 cm406 cm406 cm
Wheelbase (2WD/4WD)224 cm240 cm240 cm240 cm
Fuel tank115 l115/145 l115/145 l115/145 l
Cab noise level83 dB83/78 dB83/78 dB83/78 dB
Solid cabxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lock
Creeper gearopt.opt.opt.opt.
