Siirry sivupalkkiinSiirry alaosaanJohn Deere 1640-2140 SG2

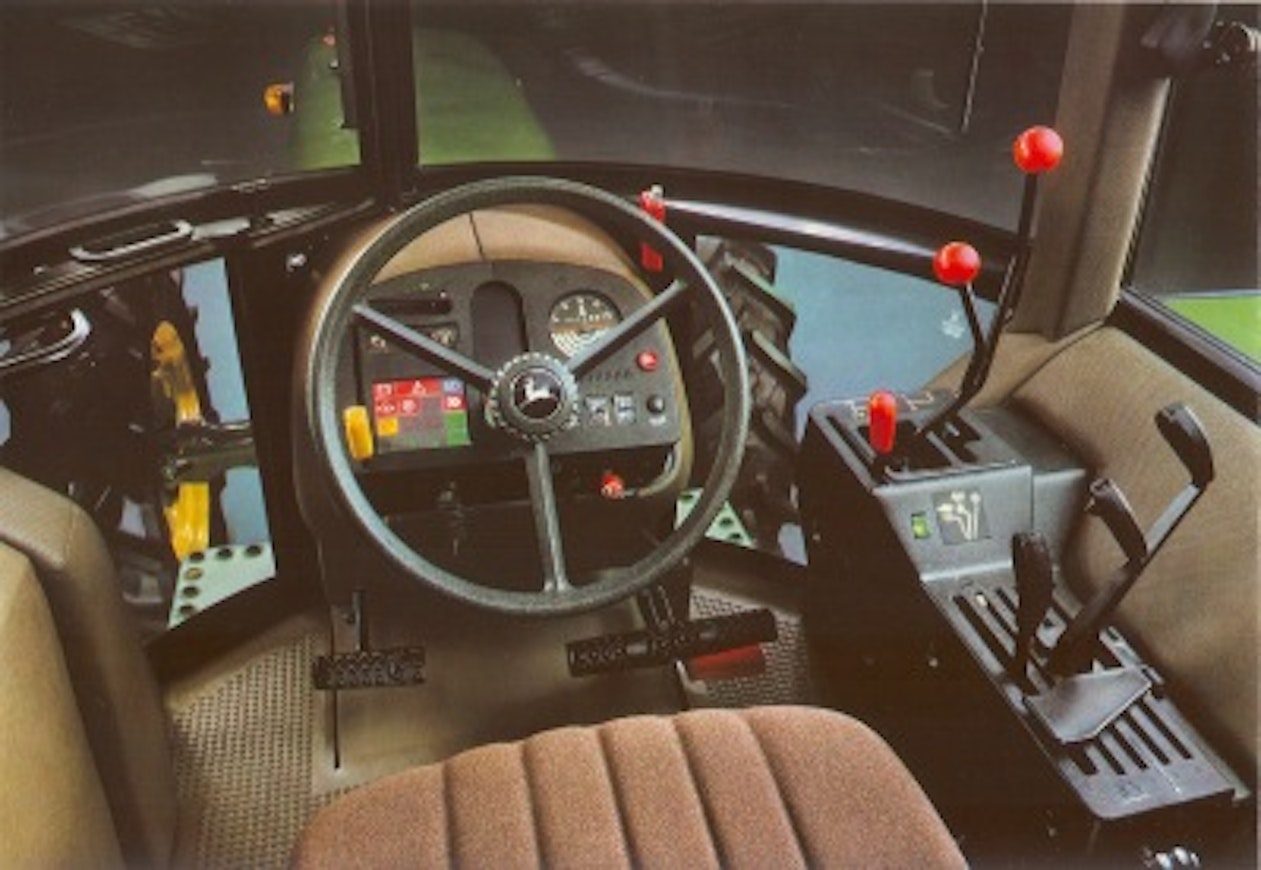

In the autumn of 1981, the Sekura cabs were replaced with the American-style SG2 cabs, which were manufactured in JD's new cab factory in Bruchsal. Noise levels dropped below 80 decibels. For Finland, the cab was customized with a door on the right side as well. Sealing the doors was problematic. Another issue was that the cab was located very far back, and the work machines easily hit the cab. The front axle of the four-wheel-drive models was replaced with a much more agile ZF axle, where the wheels tilted strongly and the driveshaft was in the center. At the same time, the friction lock became standard.
In 1983, a cheaper X-E model range was introduced alongside, which was not brought to Finland. Instead, basic models were sold in Finland, featuring smaller-than-normal tires, an 8+4 transmission, and only 540 rpm PTO.
This is an automated translation. Please report any issues in the translation.

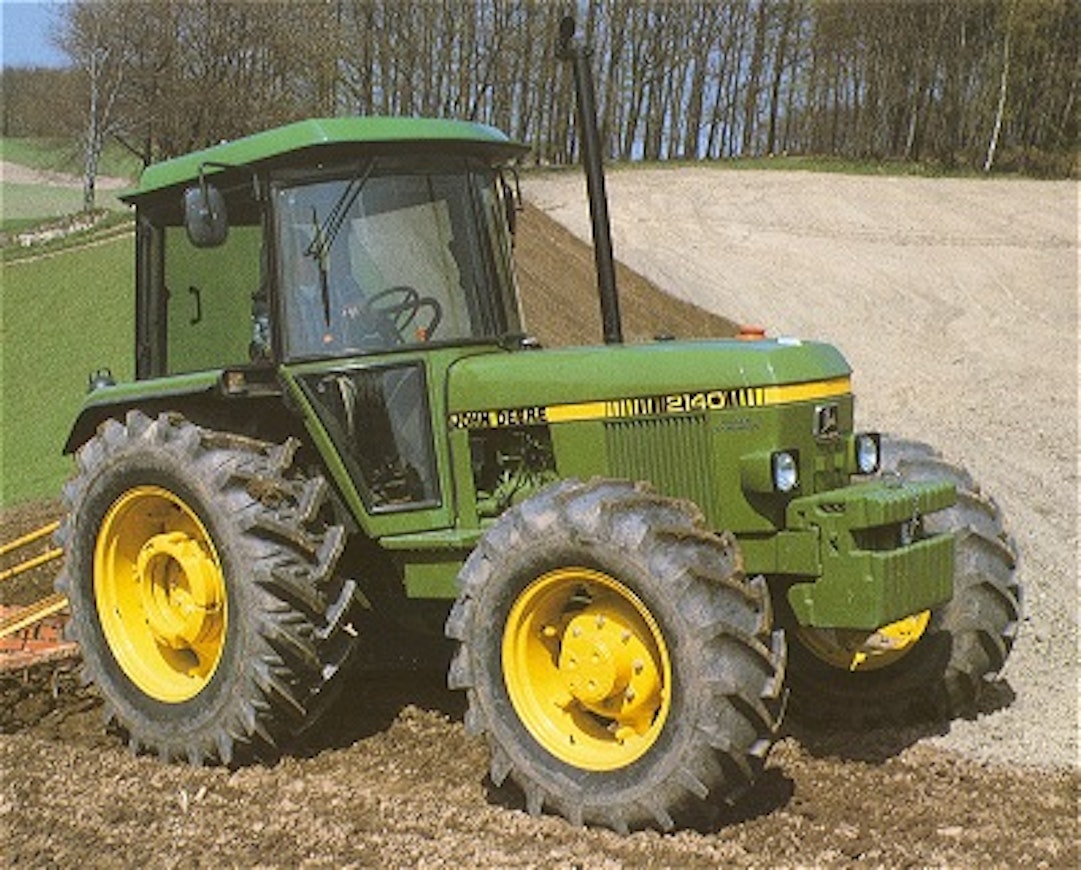

| Model | John Deere 1640 SG2 | John Deere 2040 SG2 | John Deere 2040 S SG2 | John Deere 2140 SG2 |
|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 1981-87 | 1981-87 | 1981-87 | 1981-87 |
| Engine model | 4239DL03 | 4239DL04 | 4239DL | 4239TL02 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4T |
| Displacement | 3920 cm³ | 3920 cm³ | 3920 cm³ | 3920 cm³ |
| Bore x stroke | 106,5×110 mm | 106,5×110 mm | 106,5×110 mm | 106,5×110 mm |
| Rated power | 62/2500 hp DIN/rpm | 70/2500 hp DIN/rpm | 75/2500 hp DIN/rpm | 82/2500 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 |
| Synchronized gears | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 |
| Powershift gears | opt. | opt. | opt. | opt. |
| Speeds in km/h | 3,2-30,4 | 3,3-30,4 | 3,2-29,3 | 3,2-29,3 |
| Hydr. flow l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 3070 kg | 3070 kg | 3560 kg | 3560 kg |
| PTO speeds | 540 | 540 (1000) | 540 (1000) | 540 (1000) |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.6 | 7.6 | 7.6 | 7.6 |
| Turning circle m 4WD | 8.2 | 8.2 | 8.2 | 8.4 |
| Front tyres 2WD | 10,00-16 | 10,00-16 | 10,00-16 | 10,00-16 |
| Front tyres 4WD | 11.2-28 | 11.2-28 | 13.6-24 | 13.6-24 |
| Rear tyres 2WD | 13,6-38 | 13,6-38 | 16,9-34 | 16,9-34 |
| Rear tyres 4WD | 13.6-38 | 13.6-38 | 16.9-34 | 16.9-34 |
| Weight 2WD | 3210 kg | 3240 kg | 3440 kg | 3460 kg |
| Weight 4WD | 3440 kg | 3440 kg | 3740 kg | 3790 kg |
| Height with cab | 260 cm | 260 cm | 265 cm | 265 cm |
| Length (2WD/4WD) | 374/393 cm | 374/393 cm | 374/393 cm | 374/393 cm |
| Wheelbase (2WD/4WD) | 228/229 cm | 228/229 cm | 228/229 cm | 228/229 cm |
| Fuel tank | 95 l | 95 l | 95 l | 102 l |
| Cab noise level | 78.5 dB | 79 dB | 79 dB | 80.5 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. |
