Siirry sivupalkkiinSiirry alaosaanJohn Deere 1630-2130

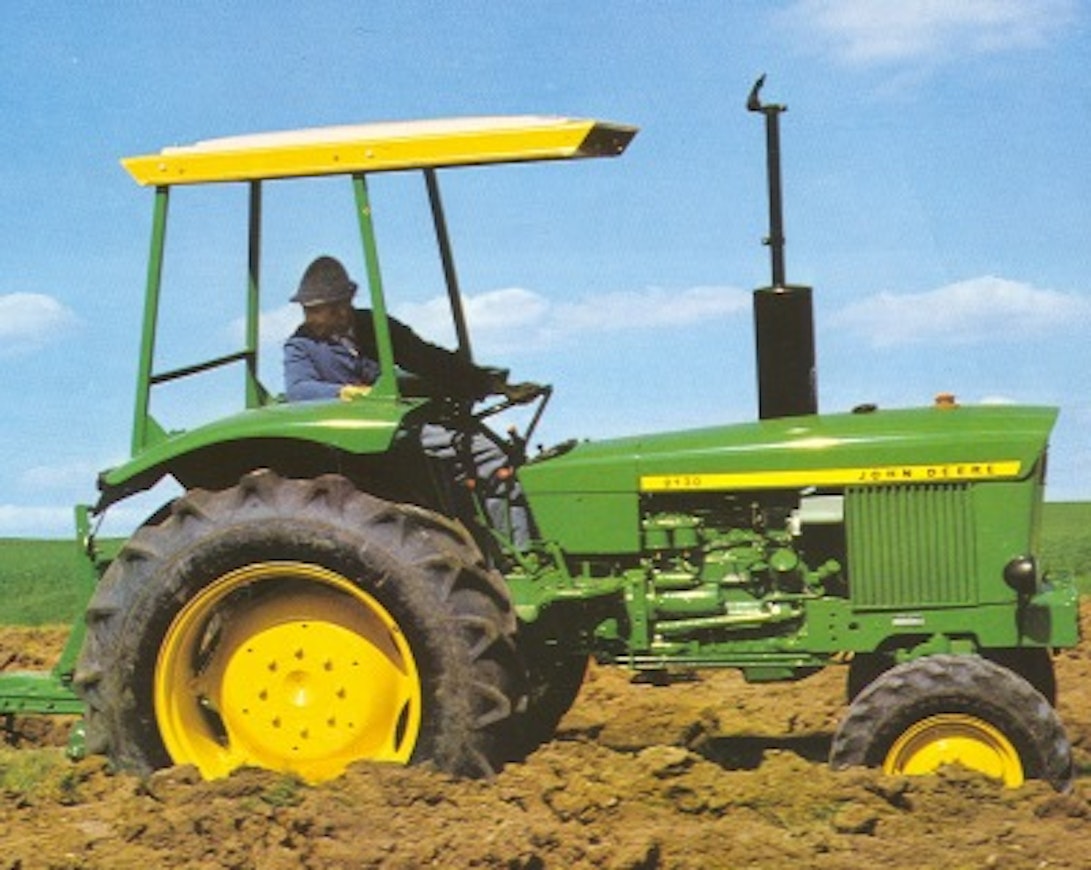

The 2020 and 2120 were replaced in 1972 by the updated 2030 and 2130. The 2030 was equipped with the same engine as the previous 2120. Therefore, in 1973, a three-cylinder 1630 was introduced below it. The most important technical improvement in the lineup was the power take-off independent of the clutch. The OPU cabin, manufactured by Sekura, was factory-installed.
In the autumn of 1975, the front design was changed to a rounder shape (lower picture). The American-origin hydrostatic four-wheel drive was an optional feature on the 2130 model. The hydraulic motors could be connected either in parallel or in series. When connected in parallel, greater traction was achieved and the front wheels attempted to rotate at the same speed. The parallel connection could only be used on the low range of the transmission, and if one front wheel slipped severely, the front-wheel drive switched to the series position. In the autumn of 1976, mechanical four-wheel drive became available for the smaller models (up to the 2030).
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 1630 | John Deere 1630 | John Deere 2030 | John Deere 2030 | John Deere 2130 | John Deere 2130 |
|---|---|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1973-75 | 1975-79 | 1972-75 | 1975-79 | 1972-74 | 1974-79 |
| Engine model | 3179DL01 | 3179DL01 | 4219DL01 | 4219DL01 | 4239DL01 | 4239DL01 |
| Cyl/Turbo/Intercooler | 3 | 3 | 4 | 4 | 4 | 4 |
| Displacement | 2940 cm³ | 2940 cm³ | 3590 cm³ | 3590 cm³ | 3920 cm³ | 3920 cm³ |
| Bore x stroke | 106,5×110 mm | 106,5×110 mm | 102×110 mm | 102×110 mm | 106,5×110 mm | 106,5×110 mm |
| Rated power | 56/2500 hp DIN/rpm | 56/2500 hp DIN/rpm | 68/2500 hp DIN/rpm | 68/2500 hp DIN/rpm | 75/2500 hp DIN/rpm | 75/2500 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 |
| Powershift gears | opt. | opt. | opt. | opt. | opt. | opt. |
| Speeds in km/h | 2,0-23,4 | 2,5-29,3 | 1,7-24,7 | 2,1-29,2 | - | 2,2-28,9 |
| Max. speed | 25 km/h | 30 km/h | 25 km/h | 30 km/h | 25 km/h | 30 km/h |
| Hydr. flow l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min |
| Hydraulic pressure | 144 bar | 144 bar | 144 bar | 144 bar | 144 bar | 144 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1860 kg | 1825 kg | 2360 kg | 2360/2470 kg | 2520 kg | 2520/2920 kg |
| PTO speeds | 540 | 540 | 540 | 540 | 540 | 540 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.6 | 6.6 | 7.4 | 7.4 | 7.4 | 7.4 |
| Front tyres 2WD | 7,50-16 | 7,50-16 | 7,50-16 | 7,50-18 | 7,50-16 | 10,50-18 |
| Rear tyres 2WD | 13,6-36 | 13,6-36 | 13,6-38 | 13,6-38 | 15,5-38 | 15,5-38 |
| Weight 2WD | 2595 kg | 2670 kg | 2750 kg | 2980 kg | 3225 kg | 3220 kg |
| Height with cab | 244 cm | 246 cm | 247 cm | 263 cm | 264 cm | 265 cm |
| Length (2WD/4WD) | 355 cm | 355 cm | 360 cm | 355 cm | 357 cm | 355 cm |
| Wheelbase (2WD/4WD) | 205 cm | 205 cm | 218 cm | 218 cm | 218 cm | 218 cm |
| Fuel tank | 62/74 l | 62/74 l | 75 l | 75 l | 90 l | 90 l |
| Solid cab | x | x | x | x | x | x |
| Front tyres 4WD | - | 9.50-24 | - | 9.50-24 | - | 9.50-24 |
| Rear tyres 4WD | - | 13.6-36 | - | 13.6-38 | - | 15.5-38 |
| Weight 4WD | - | 2960 kg | - | 3120 kg | - | 3640 kg |
| Cab noise level | - | 87 dB | - | 85.5 dB | - | 85.5 dB |
| Turning circle m 4WD | - | - | - | - | - | 8.8 |
