Siirry sivupalkkiinSiirry alaosaanFahr M 1000 – M 1600

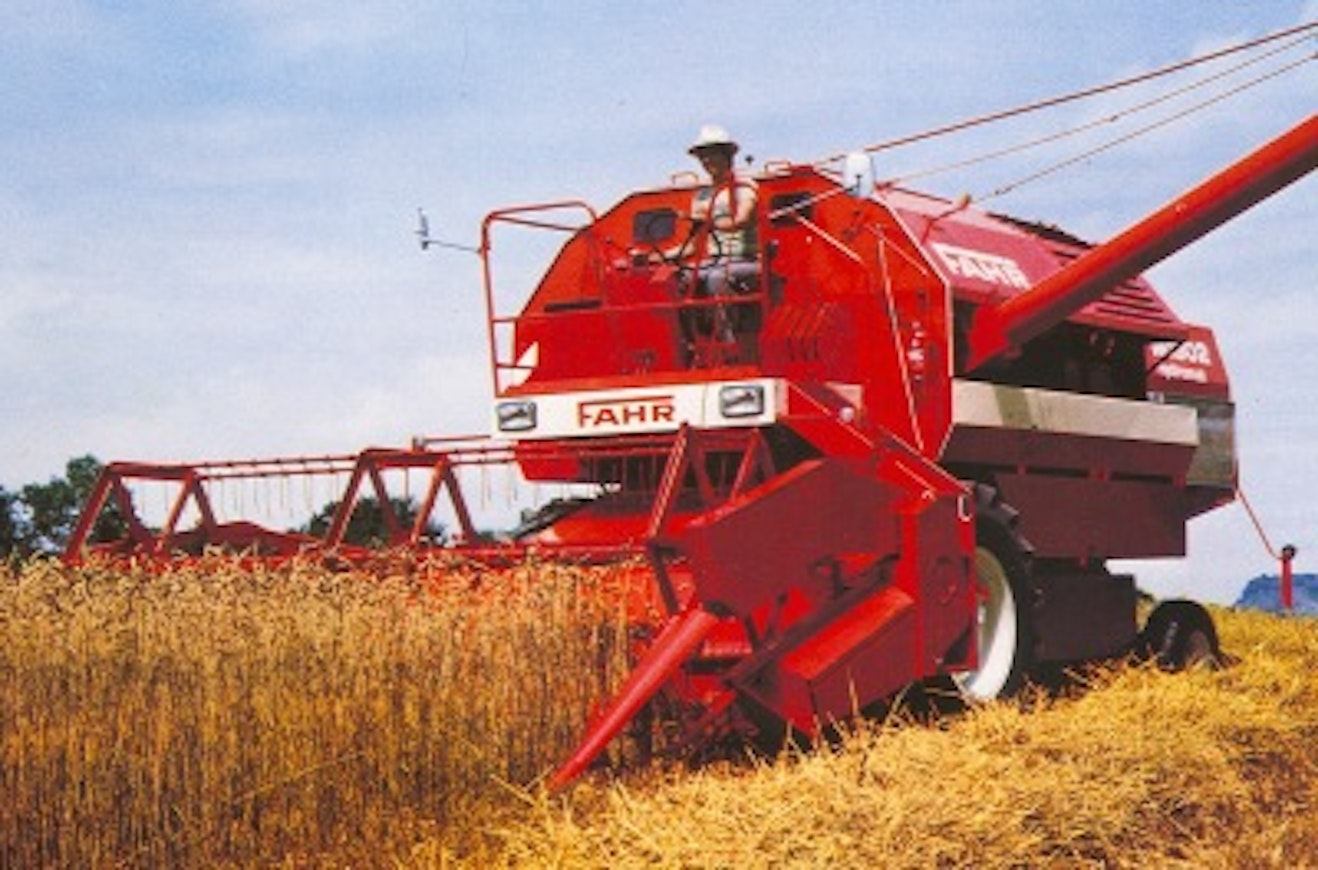

The first of the big Fahrs, the M 1000, came on the market in 1967, followed by the larger M 1200 the following year. The engine was a 6-cylinder diesel from KHD, who had at the same time become the owner of Fahr. KHD also bought the Köla combine factory, and as a result, in 1970 the M 1250 was introduced, which was manufactured at the Köla factory and equipped with a hydrostatic transmission developed there. It was soon replaced by the updated M 1300. At the top of the range was the M 1600, which had an over 200-horsepower 8-cylinder engine and usually a 5.7-meter cutting platform.
The updated 02 models were introduced in 1975. The 02 series models included a total of 1102, 1202, 1302, and 1322. From 1978 onwards, the M 1302 was also available with slope harvesting equipment. The big Fahrs were never brought to Finland because Kesko offered Clayson combines to buyers of larger harvesters.
This is an automated translation. Please report any issues in the translation.
| Model | Fahr M 1000 | Fahr M 1200 | Fahr M 1300 Hydromat | Fahr M 1600 Hydromat | Fahr M 1102 | Fahr M 1202 | Deutz-Fahr M 1202 | Fahr M 1302 Hydromat |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No |
| Years | 1967-75 | 1968-75 | 1972-75 | 1971-77 | 1975-80 | 1975-80 | 1980-89 | 1975-80 |
| Engine | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz |
| Engine type | F6L 912 | F6L 912 | BF6L 913 | F8L 413V | F6L 912 | F6L 912 | F6L 912 | BF6L 913 |
| Displacement | 5652 cm³ | 5652 cm³ | 6128 cm³ | 11309 cm³ | 5652 cm³ | 5652 cm³ | 5652 cm³ | 6128 cm³ |
| Cyl/turbo | 6 | 6 | 6 T | 8 | 6 | 6 | 6 | 6 T |
| Power | 90 hp DIN | 110 hp DIN | 140 hp DIN | 203 hp DIN | 100 hp DIN | 110 hp DIN | 110 hp DIN | 140 hp DIN |
| Fuel tank | 160 l | 160 l | 210 l | 300 l | 160 l | 160 l | 160/175 l | 210 l |
| Transmission | mech. | mech. | hydr. | hydr. | mech. | mech. | mech. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,5-18,4 km/h | 1,6-20,0 km/h | 0-20,0 km/h | 0-20,0 km/h | 1,5-18,4 km/h | 1,6-20,0 km/h | 1,6-20,0 km/h | 0-20,0 km/h |
| Cutting width | 360 cm | 420 cm | 420 cm | 540/570 cm | 420 cm | 420 cm | 420 cm | 420 cm |
| Cutting width, alternative | 300, 420 cm | 360, 540 cm | 480, 540 cm | 360-600 cm | 300, 360 cm | 300, 360 cm | 300-560 cm | 300-480 cm |
| Reel diameter | 110 cm | 110 cm | - | - | 110 cm | 110 cm | 110 cm | 110 cm |
| Threshing cyl. diameter | 56 cm | 56 cm | 60 cm | 60 cm | 56 cm | 56 cm | 56.5 cm | 60 cm |
| Threshing cyl. width | 116 cm | 116 cm | 127 cm | 152 cm | 116 cm | 116 cm | 116 cm | 127 cm |
| Number of straw walkers | 5 | 5 | 5 | 6 | 5 | 5 | 5 | 5 |
| Area of walkers | 420 dm² | 486 dm² | 525 dm² | 710 dm² | 420 dm² | 485 dm² | 485 dm² | 525 dm² |
| Lenght of walkers | 361 cm | 419 cm | 413 cm | 467 cm | 361 cm | 419 cm | 419 cm | 413 cm |
| Total screening area | 320 | 320 | 363 | 451 | 327 | 327 | 352 | 383 |
| Overall lenght | 877 cm | 927 cm | 940 cm | 1020 cm | 952 cm | 952 cm | 910 cm | 940 cm |
| Width without header | 260 cm | 294 cm | 294 cm | 300 cm | 294 cm | 294 cm | 294 cm | 295 cm |
| Height without cabin | 323 cm | 340 cm | 325 cm | 336/345 cm | 323 cm | 340 cm | 352 cm | 332 cm |
| Height with cabin | 395 cm | 411 cm | 385 cm | - | 395 cm | 400 cm | 400 cm | 367 cm |
| Weight without cabin | 6000 kg | 6200 kg | 6700 kg | 8100 kg | 6070 kg | 6270 kg | 6840 kg | 7100 kg |
| Grain tank | 26.5 hl | 30 hl | 36 hl | 46/50 hl | 26.5 hl | 30 hl | 30 hl | 36 hl |
| Unl. height | 320 cm | 324 cm | 328 cm | - | 320 cm | 324 cm | 324 cm | - |
| Tyres front (Finland) | 18.4-26 | 18.4-30 | 18.4-30 | 23.1-26 | 18.4-26 | 18.4-30 | 18.4-30 | 18.4-30 |
| Tyres front, alternative | 18.4-30 | - | - | - | 18.4-30 | - | 23.1-26 | 23.1-26 |
| Tyres rear (Finland) | 10.0-15 | 11.5/80-15 | 11.5/80-15 | 12.5-18 | 10.0-15 | 11.5/80-15 | 11.5/80-15 | 11.5/80-15 |
| Tyres rear, alternative | 11.5/80-15 | - | - | - | 11.5/80-15 | - | 12.5/80-18 | - |
| Reel forward/backw. adjustment | mech. | mech. | hydr. | hydr. | mech. | mech. | mech. | hydr. |
| Reel speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Threshing cyl. speed adjustment | chain wheels | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | convertible | convertible | adj. | adj. | convertible | convertible | convertible | adj. |
| Brakes | mech. disc | mech. disc | wet disc | wet disc | mech. disc | mech. disc | mech. disc | wet disc |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Alternative hp | - | - | BF6L 912 hp | F6L 413 hp | - | - | - | - |
| Straw shieve | - | - | - | 245 dm² | - | - | - | - |
| Bottom shieve | - | - | - | 207 dm² | - | - | - | - |
| Weight with cabin | - | - | - | - | - | - | 7110 kg | - |
