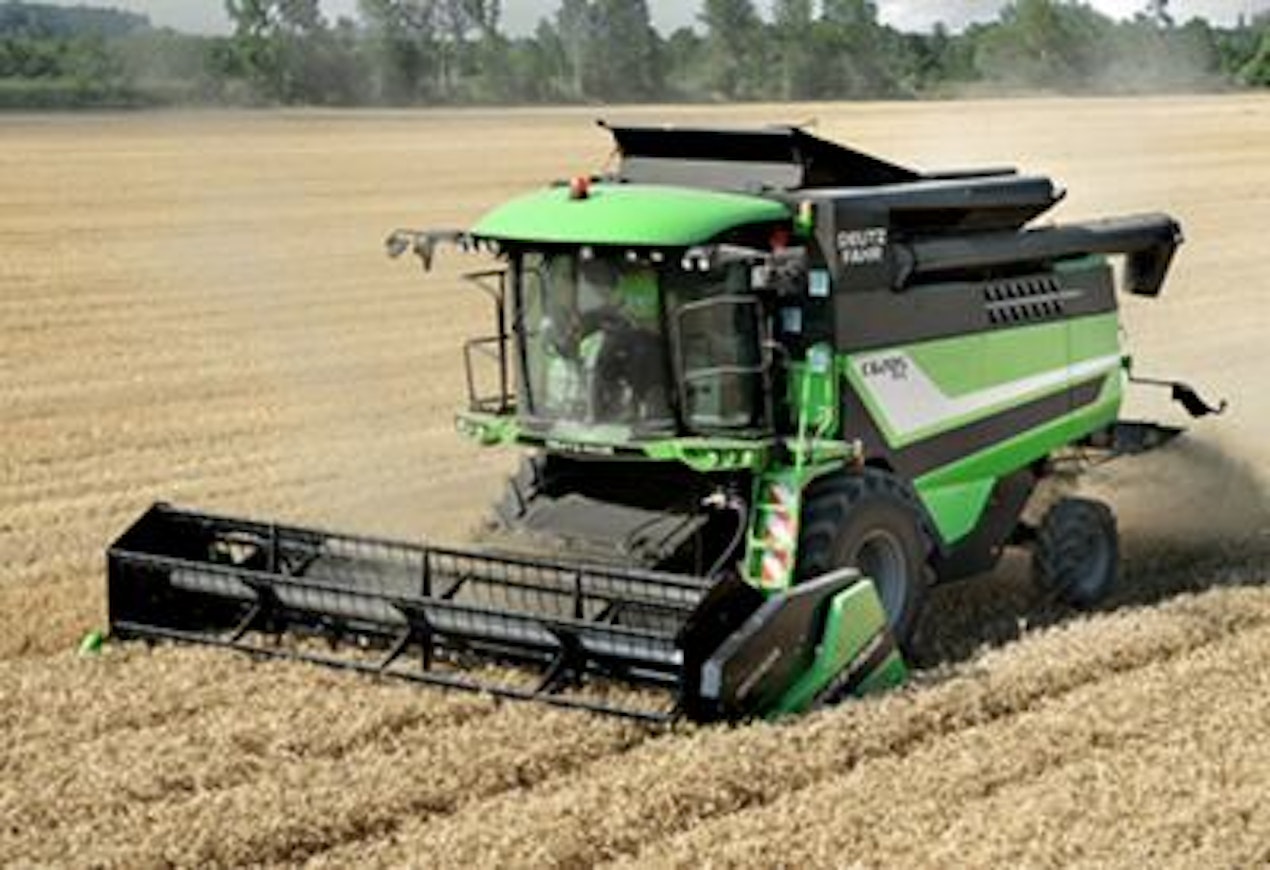

Deutz-Fahr C6205

16DFC6205
16DFC6205ohjaamo
16DFC6205
16DFC6205ohjaamo
Manufacturer
Models
Deutz-Fahr C6205, Deutz-Fahr C6205 TS
Years
2015-
Info

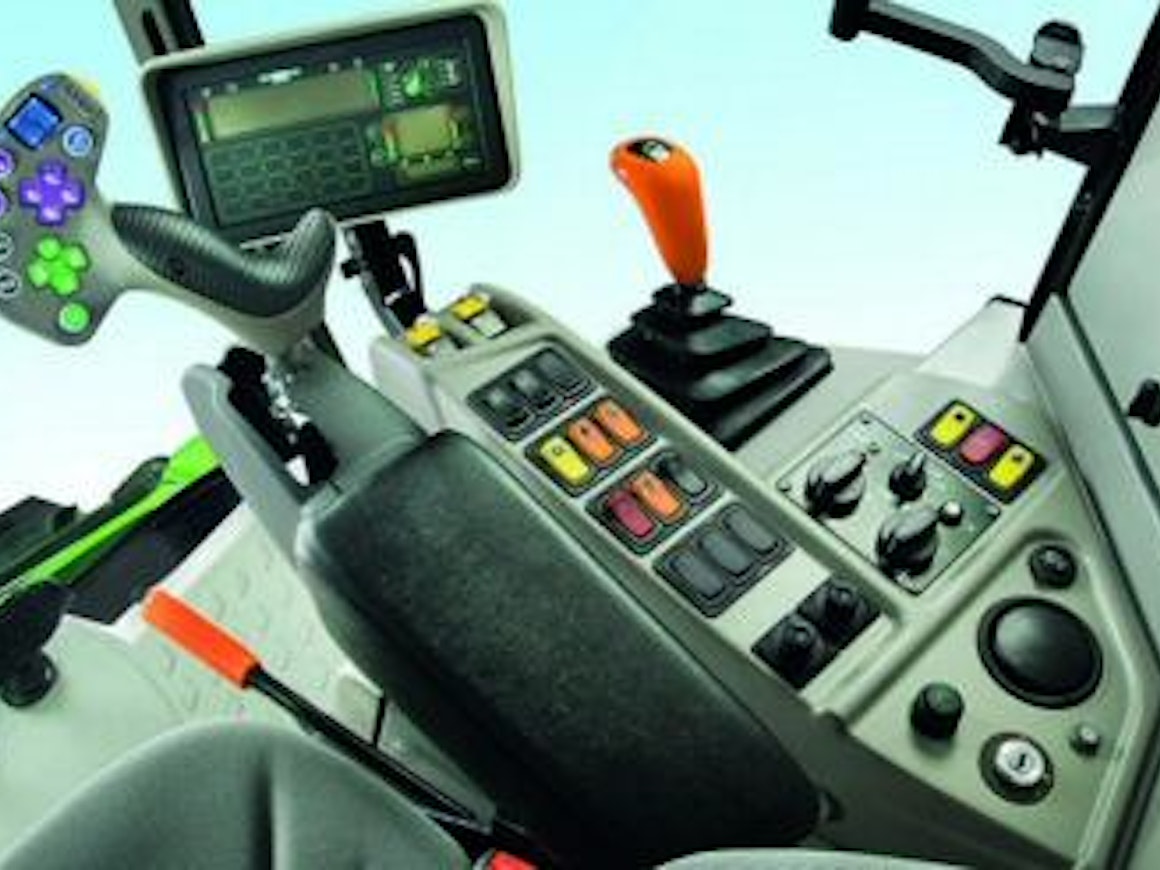

In the autumn of 2015 Deutz-Fahr introduced the C6000 series combines, positioned below the C9000 series launched in 2013 and the C7000 series from 2014. R&D for D-F’s combines was quite intensive, even though annual production numbers were only a few hundred units. As with the larger models, the styling came from Giugiaro. The engine was a Deutz unit producing up to 250 horsepower, featuring urea injection and an oxidation catalyst. The threshing mechanism was the same as on the older 6040 model. The grain tank held 70 hectolitres, 5 hl more than before. For the header, adjustable-length Variocrop models were also available. The cab was the Commander Cab Evo II (74 dB). The most important controls were consolidated into a new multifunction joystick. The standard equipment level was basic, but for extra cost one could order features such as side tilt for the header, a high-capacity chopper, and threshing–drum monitoring.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelDeutz-Fahr C6205Deutz-Fahr C6205 TS
Imported to FinlandYesYes
Years2015-2015-
EngineDeutzDeutz
Engine typeTCD L6 6.1TCD L6 6.1
Displacement6057 cm³6057 cm³
Cyl/turbo6 TI6 TI
Power--
Fuel tank450+AB53 l450+AB53 l
Transmissionhydr.hydr.
Gears33
Speed min-max.0-26 km/h0-26 km/h
Cutting width480 cm540 cm
Cutting width, alternative420-650 cm480-650 cm
Reel diameter110 cm110 cm
Header length48 cm48 cm
Threshing cyl. diameter60 cm60 cm
Threshing cyl. width127 cm127 cm
Number of straw walkers55
Area of walkers528 dm²460 dm²
Lenght of walkers416 cm362 cm
Total screening area422422
Overall lenght1062 cm1062 cm
Overall width512 cm512 cm
Height with cabin394 cm394 cm
Weight with cabin13920 kg14280 kg
Grain tank70 hl70 hl
Unl. height456 cm456 cm
Tyres front (Finland)650/75R32800/65R32
Tyres front, alternative800/65R32900/60R32
Tyres rear (Finland)405/70R20405/70R20
Tyres rear, alternative320/80R18500/60R22.5
Reel forward/backw. adjustmenthydr.hydr.
Reel speed adjustmentelec.elec.
Threshing cyl. speed adjustmentelec.elec.
Bottom sieveadj.adj.
Brakeswet discwet disc
Reverserxx
Air conditioningxx
Heatingxx
Grain loss indicatorxx
Autom. control of cutting heightxx
Type of cutting platform floatinggas dampergas damper
2. cyl. diameter-59 cm
