Siirry sivupalkkiinSiirry alaosaanDeutz-Fahr M 660 – M 1080




The first Deutz-Fahr branded combine harvesters were introduced for the year 1979. Updates to the smaller models included hydraulic disc brakes (also on the M 922), a new clutch, a larger grain tank, a longer unloading auger, a new grain elevator, and a hatch for cleaning the sieves. At the beginning of 1982, the M 922 was replaced by the M 980 and the M 1002 was replaced by the M 1080; the most significant changes were a new front axle, a wider rear track, and a larger clutch. The M 1002 and M 1080 had 5-cylinder engines. The M 980 and M 1002 models were not imported to Finland. In 1987, the smaller models were replaced by new M33 models, and the M1080 was changed to green.
This is an automated translation. Please report any issues in the translation.

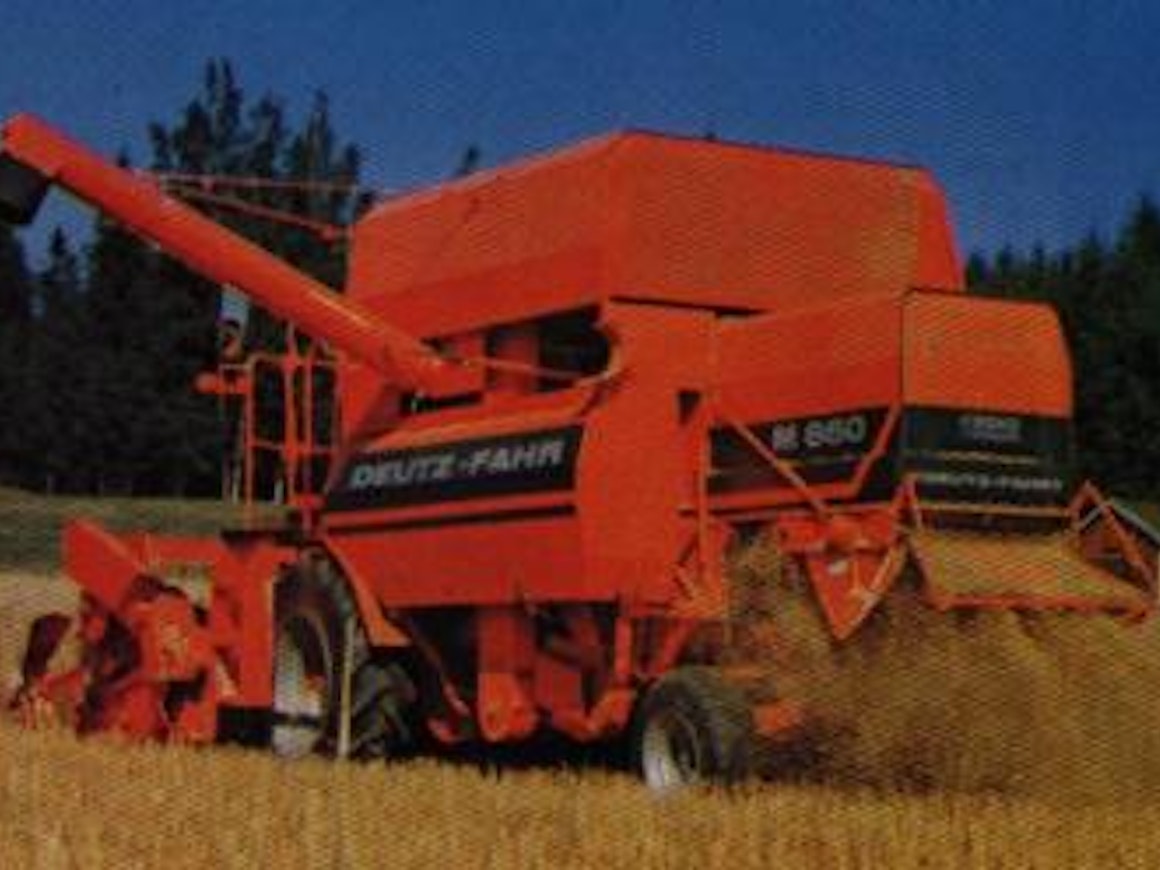

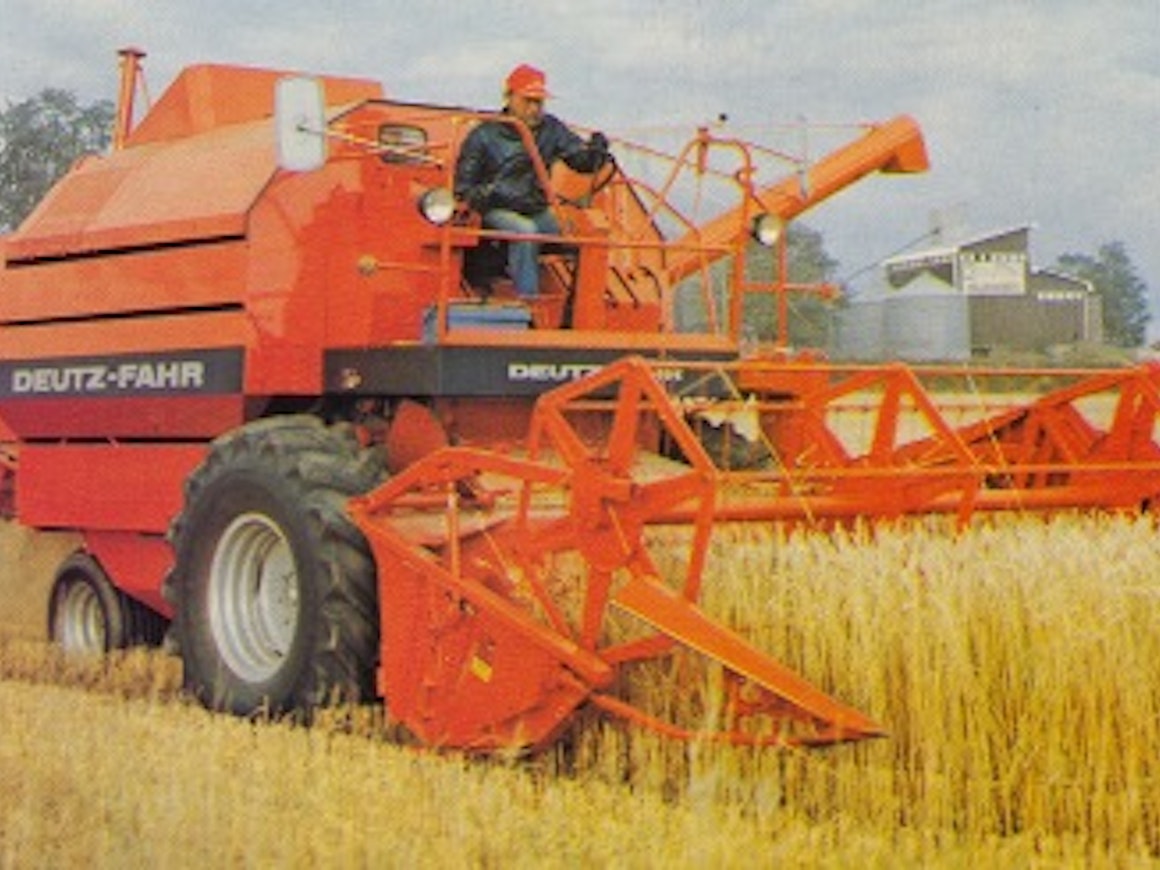

| Model | Deutz-Fahr M 660 | Deutz-Fahr M 770 | Deutz-Fahr M 922 | Deutz-Fahr M 1002 | Deutz-Fahr M 980 | Deutz-Fahr M 1080 |
|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | No | No | Yes |
| Years | 1979-87 | 1979-87 | 1978-81 | 1978-81 | 1981-88 | 1981-88 |
| Engine | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz |
| Engine type | F3L 912 | F4L 912 | F4L 912 | F5L 912 | F4L 912 | F5L 912 |
| Displacement | 2826 cm³ | 3768 cm³ | 3768 cm³ | 4710 cm³ | 3768 cm³ | 4710 cm³ |
| Cyl/turbo | 3 | 4 | 4 | 5 | 4 | 5 |
| Power | 56 hp DIN | 67 hp DIN | 77 hp DIN | 90 hp DIN | 74 hp DIN | 82 hp DIN |
| Fuel tank | 100 l | 100 l | 180 (140) l | 180 (140) l | 140 l | 180 l |
| Transmission | mech. | mech. | mech. | mech. | mech. | mech. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,4-20 km/h | 1,6-20 km/h | 1,1-19,0 km/h | 1,1-19,0 km/h | 1,3-20 km/h | 1,1-19,0 km/h |
| Cutting width | 251 cm | 267 cm | 297 cm | 297 cm | 297 cm | 297 cm |
| Cutting width, alternative | 225 cm | - | 270, 360 cm | 360 cm | - | 360 cm |
| Reel diameter | 89 cm | 89 cm | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 46.5 cm | 46.5 cm | 46.5 cm | 46.5 cm | 46.5 cm | 46.5 cm |
| Threshing cyl. diameter | 46 cm | 46 cm | 56.5 cm | 56.5 cm | 56.5 cm | 56.5 cm |
| Threshing cyl. width | 85 cm | 85 cm | 103 cm | 103 cm | 103 cm | 103 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 | 4 |
| Area of walkers | 248 dm² | 295 dm² | 357 dm² | 357 dm² | 357 dm² | 357 dm² |
| Lenght of walkers | 292 cm | 347 cm | 347 cm | 347 cm | 347 cm | 347 cm |
| Straw shieve | 75 dm² | 75 dm² | 100 dm² | 100 dm² | 100 dm² | 100 dm² |
| Bottom shieve | 85 dm² | 85 dm² | 100 dm² | 100 dm² | 100 dm² | 100 dm² |
| Total screening area | 217 | 217 | 266 | 266 | 266 | 266 |
| Overall lenght | 734 cm | 784 cm | 864 cm | 864 cm | 864 cm | 864 cm |
| Overall width | 295 cm | 317 cm | 340 cm | 340 cm | 340 cm | 340 cm |
| Height without cabin | 295 cm | 298 cm | 328 cm | 328 cm | 328 cm | 328 cm |
| Weight without cabin | 3520 kg | 3810 kg | 4790 kg | 4850 kg | - | 4790 kg |
| Grain tank | 20 hl | 20 hl | 23 hl | 23 hl | 23 hl | 23 hl |
| Tyres front (Finland) | 14.9-26 | 16.9-26 | 18.4-26 | 18.4-26 | 18.4-26 | 18.4-26 |
| Tyres rear (Finland) | 10.0-15 | 11.5-15 | 11.5-15 | 11.5-15 | 10.0-15 | 11.5-15 |
| Reel forward/backw. adjustment | mech. | mech. | mech. | mech. | mech. | mech. |
| Reel speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Threshing cyl. speed adjustment | chain wheels | chain wheels | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | convertible | convertible | convertible | convertible | convertible | convertible |
| Brakes | wet disc | wet disc | mech. disc | mech. disc | wet disc | wet disc |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Unl. height | - | 297 cm | 293 cm | 293 cm | 293 cm | 293 cm |
| Alternative hp | - | - | 74 hp | - | - | 87 hp |
| Width without header | - | - | 286 cm | 286 cm | 286 cm | 286 cm |
| Height with cabin | - | - | 350 cm | 350 cm | 350 cm | 350 cm |
| Tyres rear, alternative | - | - | 10.00-15 | 10.00-15 | - | - |
| Weight with cabin | - | - | - | - | 5400 kg | - |
