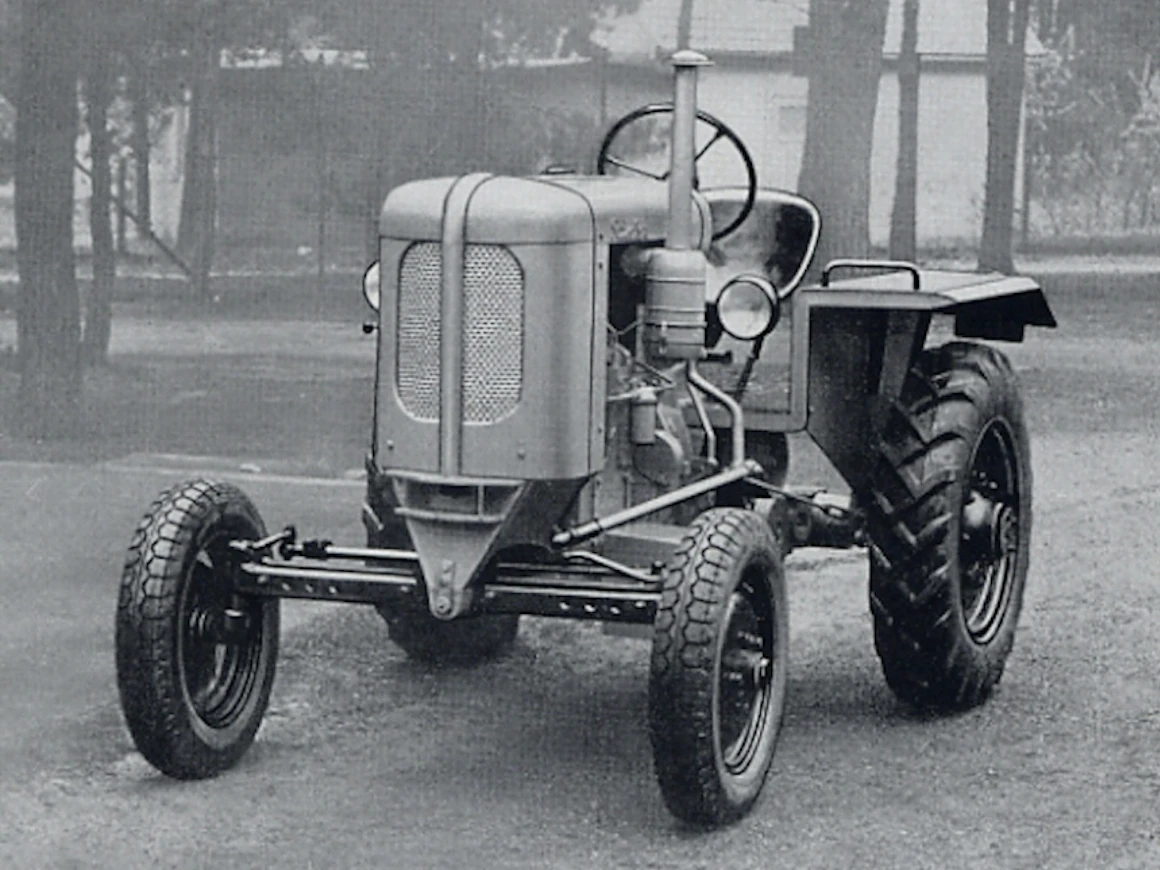

Ritscher 515-520 R

Manufacturer
Models
Ritscher 515, Ritscher 518, Ritscher 518, Ritscher 520, Ritscher 520 R (528/20)
Years
1950-55
Info

Karl Ritscher started tractor manufacturing in 1920. The first decade was dedicated to tracked tractors. In the following decade, 3-wheeled tractors were introduced. After the war ended, the factory's machinery was confiscated and sent to the Soviet Union. Operations could only resume in 1948. The three-wheeled models were followed by the first four-wheeled models 420 and 415 in 1949. They were only produced for one year.

In 1950, the 500 series was introduced, consisting of several models with a more rounded design than before, featuring a 5+1 gearbox unlike previous models. The smallest in the series was the 15-horsepower 515, equipped with a single-cylinder 1.2-liter MWM engine and Ritscher's own transmission.

The second single-cylinder model was the 518, whose engine was manufactured by Bauscher, with a displacement of 1.3 liters. The gearbox was from ZF. A year later, MWM was able to offer an 18-horsepower engine, and the 518's engine was replaced by a 1.5-liter MWM. The same base engine was used in the 520 R model introduced in 1953, which featured Ritscher's own transmission.

Technical data
ModelRitscher 515Ritscher 518Ritscher 518Ritscher 520Ritscher 520 R (528/20)
Options
Imported to FinlandNoNoNoNoNo
Years1950-511950-511951-521952-531953-55
First year sold19501950195119521953
Last year sold19511951195219531955
Engine modelMWM KDW 415 EBauscher TD 18MWM KDFW 415 EMWM KDW 615 EMWM KDW 615 E
Cyl/Turbo/Intercooler11111
Displacement1178 cm³1256 cm³1478 cm³1478 cm³1478 cm³
Bore x stroke100x150 mm105x145 mm105x145 mm112x150 mm112x150 mm
Rated power hp/rpm DIN15/150018/175018/160020/160020/1600
Rated power1518182020
Rated speed15001750160016001600
Gears5+15+15+15+15+1
Speeds in km/h3,8-17,82,7-20,02,7-20,02,7-20,04,4-20,0
Lift controls----(mek.)
PTO speeds540540540540540
Brakespaisuntaj.paisuntaj.paisuntaj.paisuntaj.paisuntaj.
Steeringmech.mech.mech.mech.mech.
Turning circle m 2WD6,06,06,06,06,0
Front tyres 2WD5.50-165.50-165.50-165.50-165.50-16
Rear tyres 2WD8-208-208-208-208-24
Weight 2WD(1350) kg(1345) kg(1345) kg(1345) kg(1350) kg
Height with cab(180) cm(160) cm(160) cm(160) cm(175) cm
Length (2WD/4WD)251 cm242 cm242 cm250 cm253 cm
Wheelbase (2WD/4WD)158 cm164 cm164 cm167 cm158 cm
Fuel tank30 l30 l30 l30 l30 l
Creeper gear----option
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
