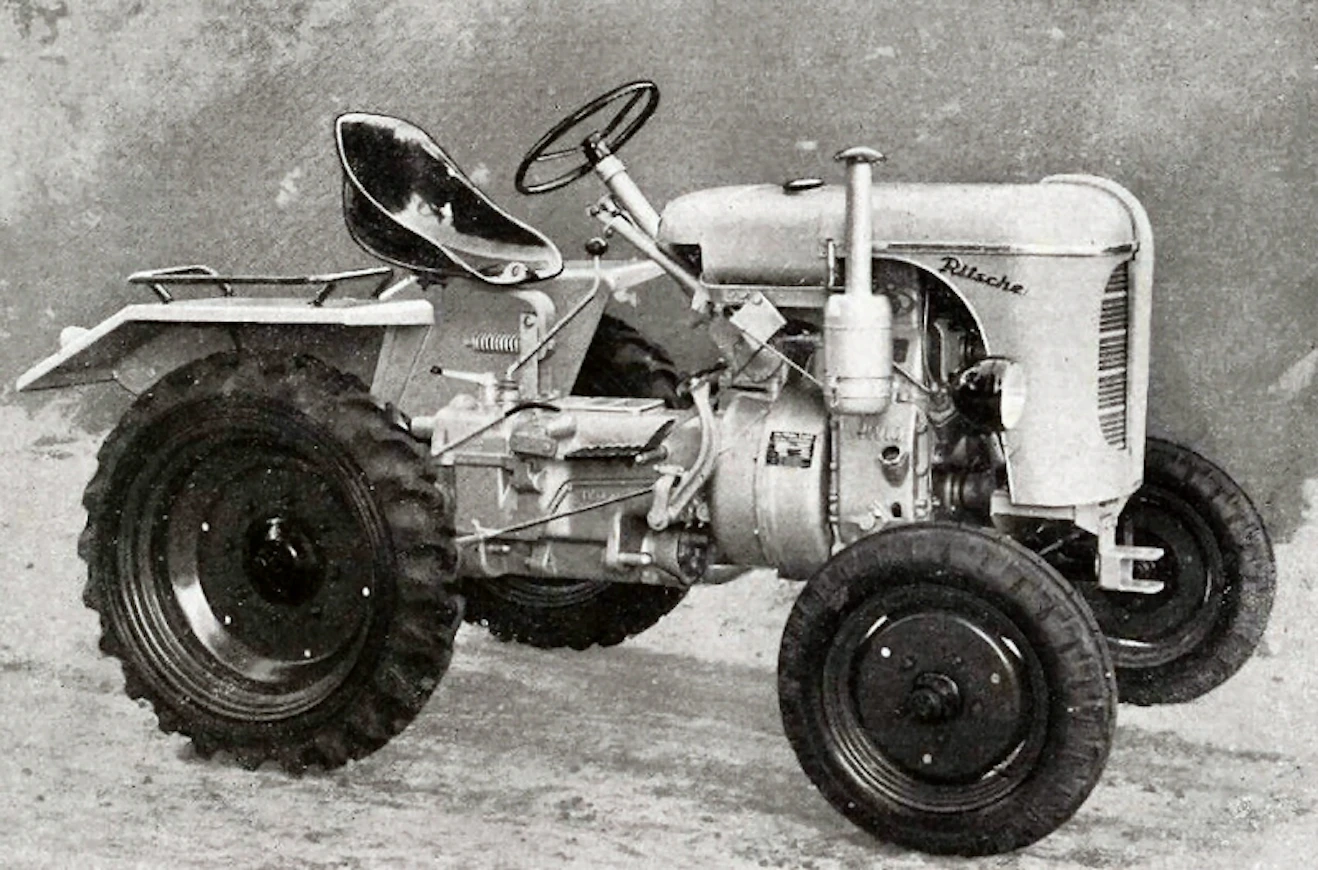

Ritscher 412-620

Manufacturer
Models
Ritscher 412, Ritscher 412 L, Ritscher 512, Ritscher 515/54, Ritscher 517, Ritscher 517, Ritscher 620
Years
1953-60
Info

Encouraged by the success of competitors, Ritscher returned as a manufacturer of the smallest class of tractors. Ritscher's own transmission was too heavy-duty for this class, so the powertrain was purchased from Bautz. The single-cylinder engine was, as usual, sourced from MWM. Both water-cooled and air-cooled versions were offered.

Initially, in 1953−54, production included the 12-horsepower, 4-speed 412. This was followed by the 10+2-speed 512, which offered small gears, and shortly after, the water-cooled 515/54. These used the same ZF transmission as Ritscher’s farm machinery carriers.

The longest-lasting small model was the air-cooled 517 equipped with a Güldner engine, produced from 1955 to 1959. It could also be fitted with 32” rear wheels. At the end of 1957, the hood design was updated to resemble that of the new larger models. In 1959, the 517 was replaced by the new 620 model. Both the 517 and 620 featured independent front wheel suspension.

The last small tractors were the 613, 614, and 615 produced from 1957 to 1960, which were purchased almost complete from Güldner. The total production of these amounted to 50 units.

Technical data
ModelRitscher 412Ritscher 412 LRitscher 512Ritscher 515/54Ritscher 517Ritscher 517Ritscher 620
Options
Imported to FinlandNoNoNoNoNoNoNo
Years1953-541953-5419541954-551955-561956-591959-60
First year sold1953195319541954195519561959
Last year sold1954195419541955195619591960
Engine modelMWM KD 12 EMWM AKD 12 EMWM AKD 12 EMWM KDW 415 EGüldner 2 LDGüldner 2 LDGüldner 2 LD
Cyl/Turbo/Intercooler1111222
Displacement851 cm³905 cm³905 cm³1178 cm³1305 cm³1305 cm³1305 cm³
Bore x stroke95x120 mm98x120 mm98x120 mm100x150 mm85x115 mm85x115 mm85x115 mm
Rated power hp/rpm DIN12/200012/200012/200015/160017/200017/200020/2000
Rated power12121215171720
Rated speed2000200020001600200020002000
Gears4+14+110+210+210+26+16+1
Speeds in km/h4,4-18,34,4-18,31,1-20,01,1-20,00,9-20,21,5-20,01,5-20,0
PTO speeds540540578/ajo578/ajo590/ajo590590
Brakespaisuntaj.paisuntaj.paisuntaj.paisuntaj.paisuntaj.paisuntaj.paisuntaj.
Steeringmech.mech.mech.mech.mech.mech.mech.
Turning circle m 2WD5,565,566,06,06,06,06,0
Front tyres 2WD4.50-164.50-164.50-164.50-164.50-164.50-164.50-16
Rear tyres 2WD7-247-248-248-248-248-248-24
Weight 2WD(960) kg(960) kg(1000) kg(1150) kg(1080) kg(1080) kg(1080) kg
Height with cab(150) cm(150) cm(164) cm(164) cm(168) cm(168) cm(168) cm
Length (2WD/4WD)245 cm245 cm253 cm253 cm283 cm283 cm283 cm
Wheelbase (2WD/4WD)153 cm153 cm165 cm165 cm165 cm165 cm165 cm
Fuel tank30 l30 l22 l22 l22 l22 l22 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
