McCormick X7.620-X7.624 / Landini 7-200 – 7-240
Manufacturer
Models
McCormick X7.620, Landini 7-200, McCormick X7.621, Landini 7-210, McCormick X7.623, Landini 7-230, McCormick X7.624, Landini 7-240
Years
2019-
Info

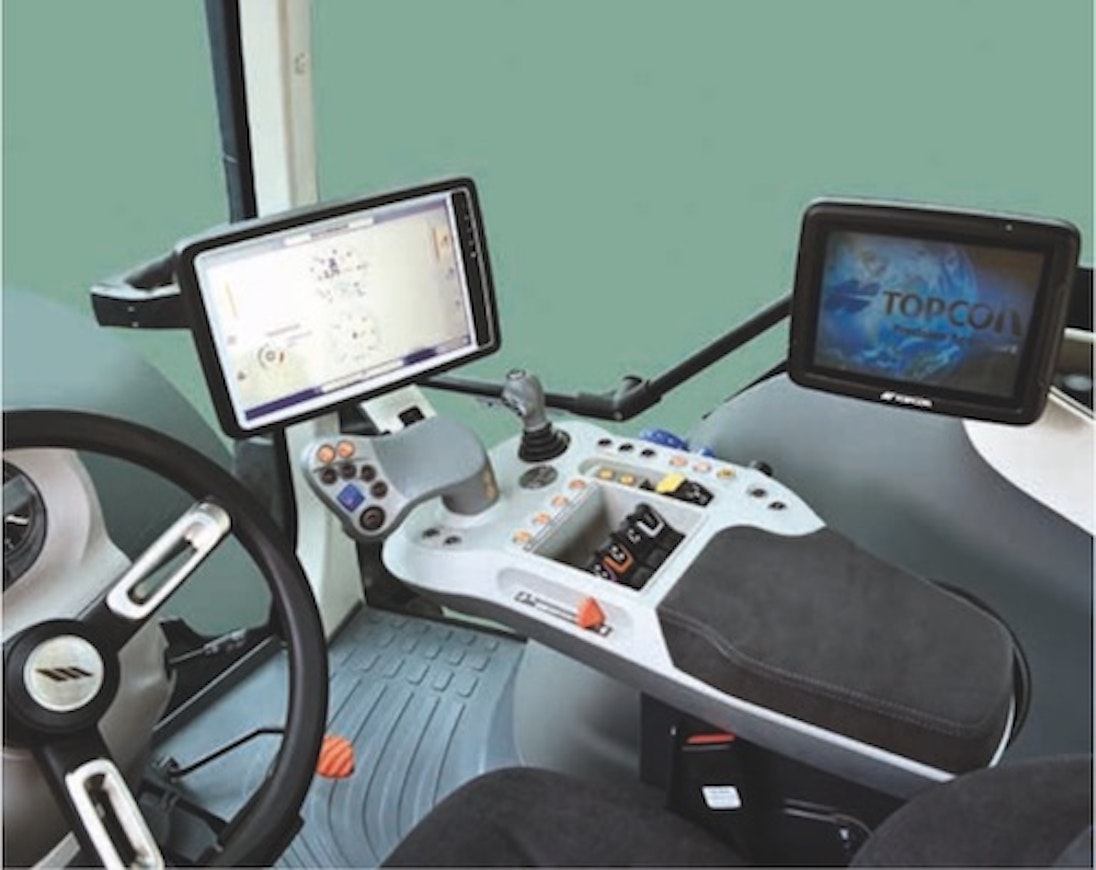

The 2020 six-cylinder McCormick X7s were equipped with Stage V–compliant FPT engines and new model designations. At the top of the range was the 240-horsepower X7.624. On the road and when using the PTO, there was an extra 10 hp. Unlike before, all models now came with the stepless VT-Drive transmission, which featured four speed ranges (3/12/21/50). With the basic P6-Drive gearbox, a creeper gearbox was now standard, and with the six-speed supercreeper there were a total of 54 forward + 27 reverse gears. 40 km/h was reached at 1,550 rpm and 50 km/h at 1,690 rpm. The hydraulics now featured a 160 liter pump. The cab received a redesigned armrest and an entirely new roof section. Up to 20 LED work lights were available, and the cab could be fitted with semi-active suspension. The declared sound level was 70 dB.
These models joined the Landini lineup at the beginning of 2020.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | McCormick X7.620 | Landini 7-200 | McCormick X7.621 | Landini 7-210 | McCormick X7.623 | Landini 7-230 | McCormick X7.624 | Landini 7-240 |
|---|---|---|---|---|---|---|---|---|
| Options | ||||||||
| Imported to Finland | No | No | No | No | No | No | No | No |
| Years | 2019- | 2019- | 2019- | 2019- | 2019- | 2019- | 2019- | 2019- |
| First year sold | 2019 | 2019 | 2019 | 2019 | 2019 | 2019 | 2019 | 2019 |
| Engine model | NEF 67 | NEF 67 | NEF 67 | NEF 67 | NEF 67 | NEF 67 | NEF 67 | NEF 67 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power hp/rpm ISO | 175/2200 | 175/2200 | 194/2200 | 194/2200 | 205/2200 | 205/2200 | 219/2200 | 219/2200 |
| Rated power | - | - | - | - | - | - | - | - |
| Rated speed | - | - | - | - | - | - | - | - |
| Max power hp/rpm ISO | 180(190)/1900 | 180(190)/1900 | 200(210)/1900 | 200(210)/1900 | 215(225)/1900 | 215(225)/1900 | 230(240)/1900 | 230(240)/1900 |
| Max power | - | - | - | - | - | - | - | - |
| Max speed | - | - | - | - | - | - | - | - |
| Torque Nm/rpm ISO | 756(778)/1400 | 756(778)/1400 | 840(860)/1400 | 840(860)/1400 | 904(921)/1400 | 904(921)/1400 | 966(983)/1400 | 966(983)/1400 |
| Gears | 54+27/stepless | 54+27/stepless | 54+27/stepless | 54+27/stepless | 54+27/stepless | 54+27/stepless | stepless | stepless |
| Synchronized gears | 54+27/stepless | 54+27/stepless | 54+27/stepless | 54+27/stepless | 54+27/stepless | 54+27/stepless | stepless | stepless |
| Powershift gears | 6-step/stepless | 6-step/stepless | 6-step/stepless | 6-step/stepless | 6-step/stepless | 6-step/stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,4/0,04-50 | 0,4/0,04-50 | 0,4/0,04-50 | 0,4/0,04-50 | 0,4/0,04-50 | 0,4/0,04-50 | 0,04-50 | 0,04-50 |
| Max. speed | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h |
| Hydr. flow l/min | 123 (160) l/min | 123 (160) l/min | 123 (160) l/min | 123 (160) l/min | 123 (160) l/min | 123 (160) l/min | 123 (160) l/min | 123 (160) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 9300 kg | 9300 kg | 9300 kg | 9300 kg | 9300 kg | 9300 kg | 9300 kg | 9300 kg |
| PTO speeds | 540/750/1000/ 1400 | 540/750/1000/ 1400 | 540/750/1000/ 1400 | 540/750/1000/ 1400 | 540/750/1000/ 1400 | 540/750/1000/ 1400 | 540/750/1000/ 1400 | 540/750/1000/ 1400 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 |
| Front tyres 4WD | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 |
| Rear tyres 4WD | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 |
| Weight 4WD | 8000 kg | 8000 kg | 8000/8300 kg | 8000/8300 kg | 8000/8300 kg | 8000/8300 kg | 8000/8300 kg | 8000/8300 kg |
| Height with cab | 304 cm | 304 cm | 304 cm | 304 cm | 304 cm | 304 cm | 304 cm | 304 cm |
| Length (2WD/4WD) | 526 cm | 526 cm | 526 cm | 526 cm | 526 cm | 526 cm | 526 cm | 526 cm |
| Wheelbase (2WD/4WD) | 282 cm | 282 cm | 282 cm | 282 cm | 282 cm | 282 cm | 282 cm | 282 cm |
| Fuel tank | 320+AB52 l | 320+AB52 l | 320/350+AB52 l | 320/350+AB52 l | 320/350+AB52 l | 320/350+AB52 l | 320/350+AB52 l | 320/350+AB52 l |
| Cab noise level | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x |
| Creeper gear | x | x | x | x | x | x | x | x |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
