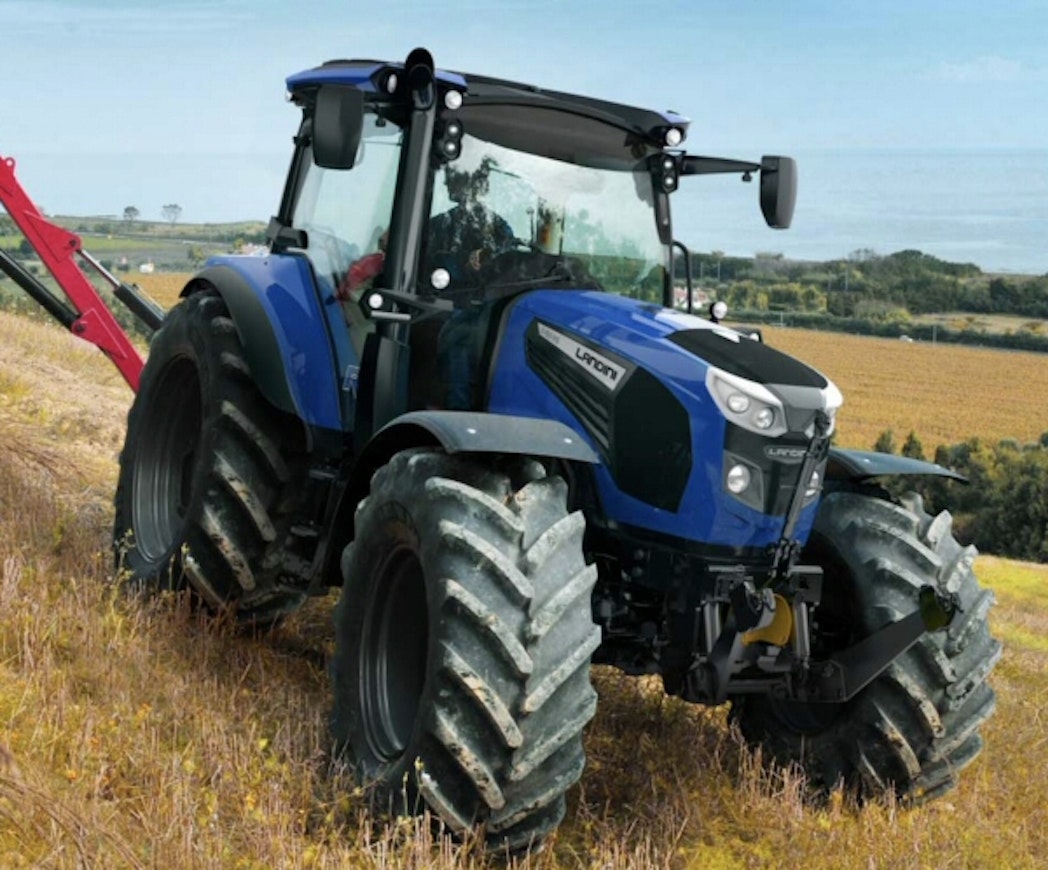

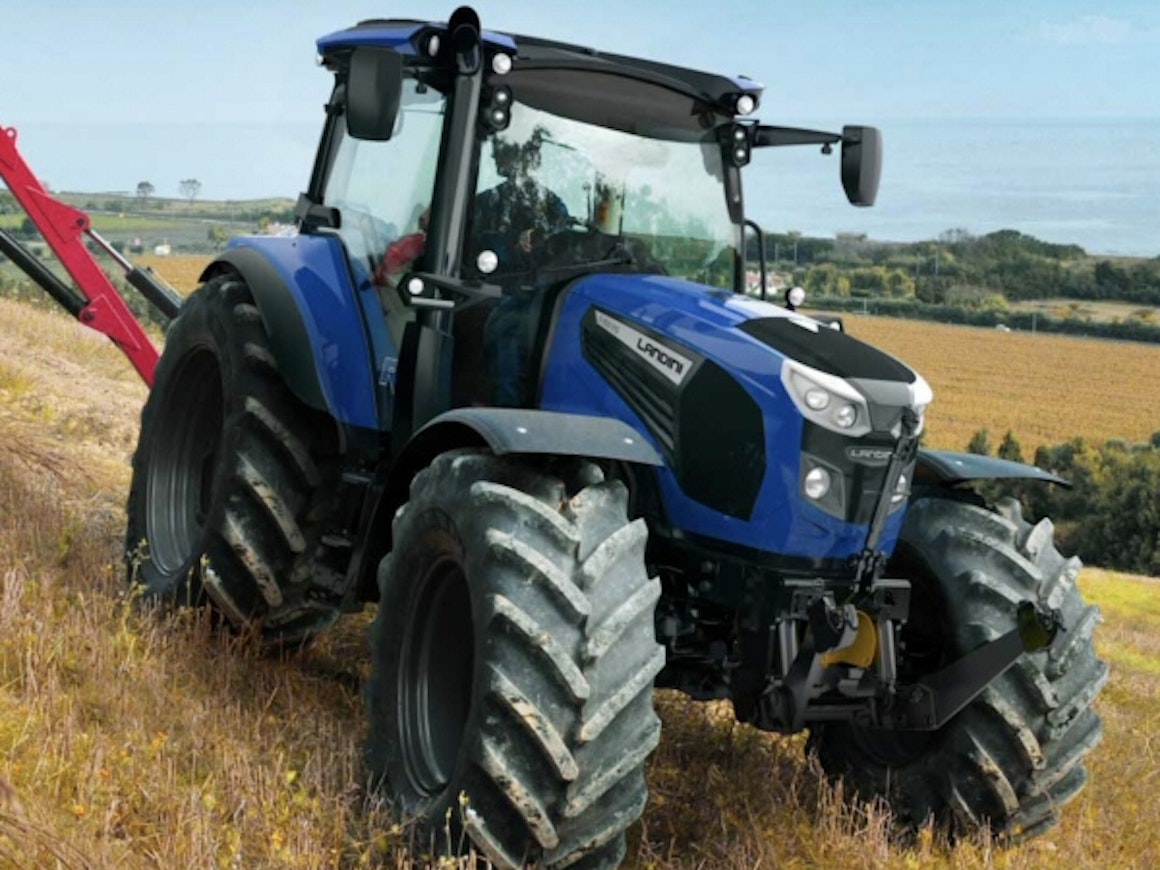

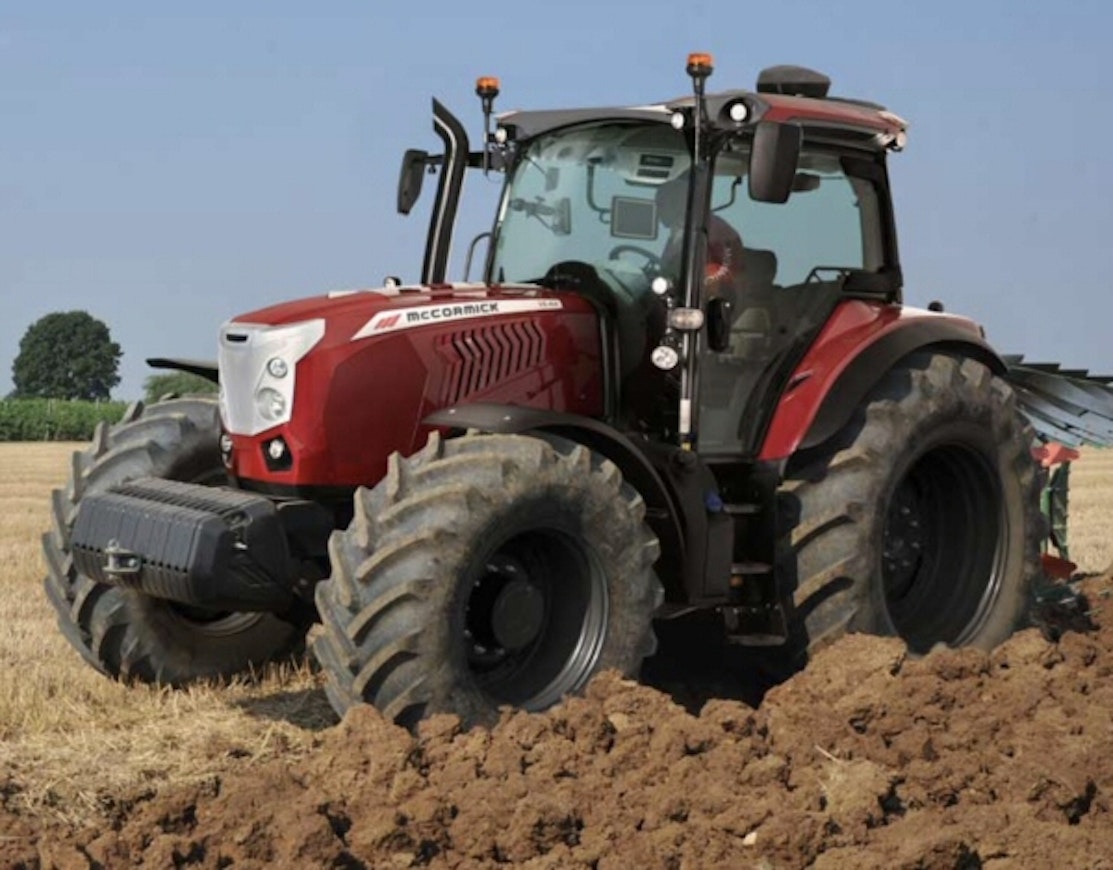

McCormick X6.413-X6.415 / Landini 6-135 RS – 6-155 RS
The McCormick X6.4 series (Landini 6 RS), introduced for the year 2022, shed the last traces of its predecessor’s Case IH roots. The engine was the same 4.5-liter FPT as before, now compliant with Stage V standards. Maximum power was achieved at 1800 rpm. The transmission now featured a 6-speed quick shift. At McCormick, it was named P6-Drive, and at Landini, Robo-Six. With the optional equipment, a top speed of 50 km/h was reached at 1859 rpm.

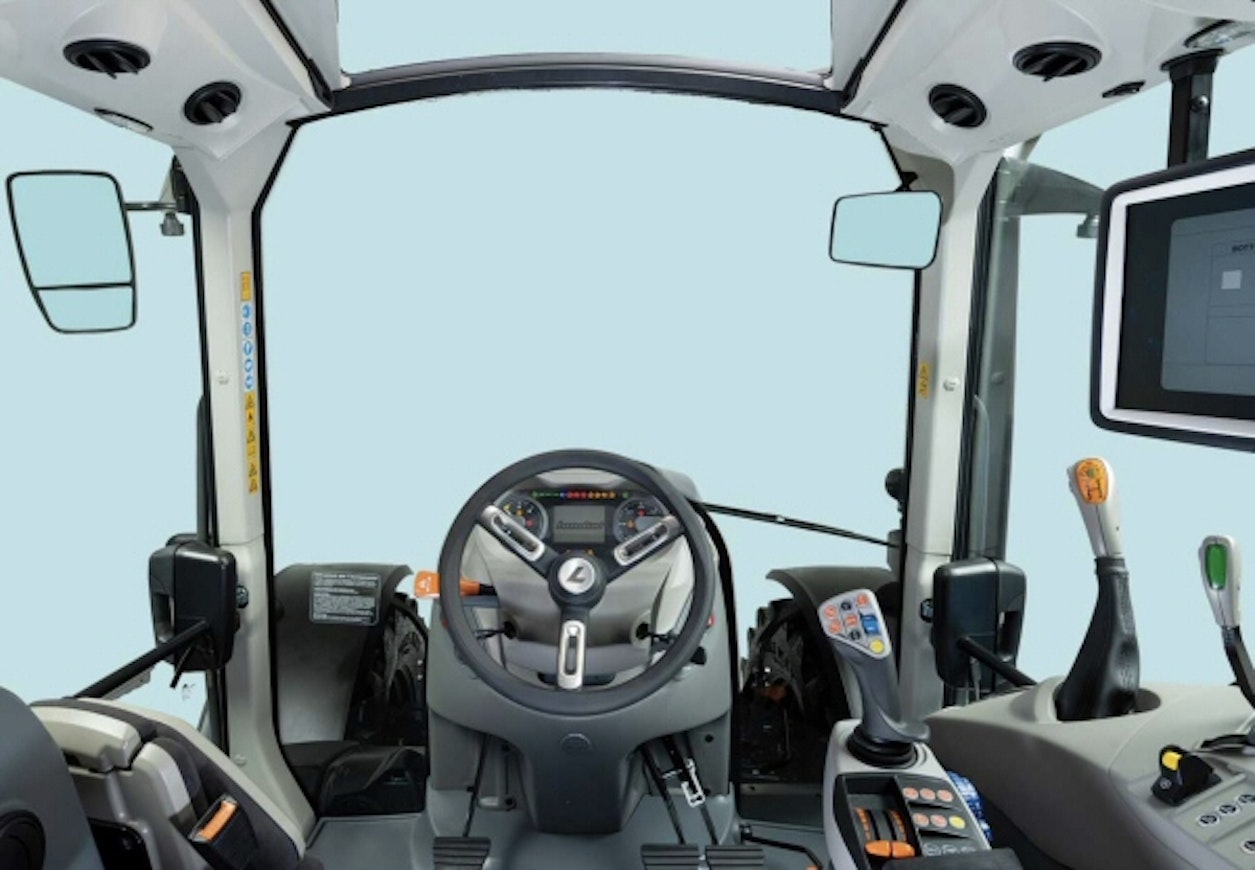

The lifting capacity was 7.2 tons, and unlike its predecessor, the lifting device was designed for category 3. The hydraulics featured a closed system, and valves were available both mechanically and electrically, with up to 5 blocks at the rear and two in the middle. The basic equipment was overall sparse, but optional extras included mechanical front axle (Carraro) and cab suspensions, as well as a 12” touchscreen. The X6.4/6 RS was chosen as the Utility tractor of the year 2023.
This is an automated translation. Please report any issues in the translation.
| Model | McCormick X6.413 | Landini 6-135 RS | McCormick X6.414 | Landini 6-145 RS | McCormick X6.415 | Landini 6-155 RS |
|---|---|---|---|---|---|---|
| Options | ||||||
| Imported to Finland | No | No | No | No | No | No |
| Years | 2021- | 2021- | 2021- | 2021- | 2021- | 2021- |
| First year sold | 2021 | 2021 | 2021 | 2021 | 2021 | 2021 |
| Engine model | FPT NEF 45 | FPT NEF 45 | FPT NEF 45 | FPT NEF 45 | FPT NEF 45 | FPT NEF 45 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 4485 cm³ | 4485 cm³ | 4485 cm³ | 4485 cm³ | 4485 cm³ | 4485 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Max power hp/rpm ISO | 125(135)/1800 | 125(135)/1800 | 135(146)/1800 | 135(146)/1800 | 145(155)/1800 | 145(155)/1800 |
| Max power | - | - | - | - | - | - |
| Max speed | - | - | - | - | - | - |
| Torque Nm/rpm ISO | 520(551)/1400 | 520(551)/1400 | 551(610)/1400 | 551(610)/1400 | 600(630)/1400 | 600(630)/1400 |
| Gears | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Synchronized gears | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Powershift gears | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,4-50 | 2,4-50 | 2,4-50 | 2,4-50 | 2,4-50 | 2,4-50 |
| Max. speed | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h |
| Hydr. flow l/min | 80 (100) l/min | 80 (100) l/min | 80 (100) l/min | 80 (100) l/min | 80 (100) l/min | 80 (100) l/min |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7200 kg | 7200 kg | 7200 kg | 7200 kg | 7200 kg | 7200 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 4WD | 480/65R28 | 480/65R28 | 480/65R28 | 480/65R28 | 480/65R28 | 480/65R28 |
| Rear tyres 4WD | 600/65R38 | 600/65R38 | 600/65R38 | 600/65R38 | 600/65R38 | 600/65R38 |
| Weight 4WD | 5500 kg | 5500 kg | 5500 kg | 5500 kg | 5500 kg | 5500 kg |
| Wheelbase (2WD/4WD) | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm |
| Fuel tank | 220+AB23 l | 220+AB23 l | 220+AB23 l | 220+AB23 l | 220+AB23 l | 220+AB23 l |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air suspension seat | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
