McCormick X50.20m-X50.40m / Landini 5.090D-5.110D

14McCormickX50m
14McCormickX50Mohjaamo
14Landini5D
14Landini5Dohjaamo
14McCormickX50m
14McCormickX50Mohjaamo
14Landini5D
14Landini5Dohjaamo
Manufacturer
McCormick
Models
McCormick X50.20, Landini 5.090D, McCormick X50.30, Landini 5.100D, McCormick X50.40, Landini 5.110D
Years
2012-2015
Info

Here is the translation to English:

The McCormick C-Max was succeeded in 2012 by the X50m. The engines were the same 3.4-liter four-cylinder Perkins as in the more expensive X50 models. The transmission was a 24+12 mechanical with a splitter and shuttle. The clutch was an 11-inch (X50.20m) or 12-inch and the PTO engagement was mechanical. The differential locks were engaged hydraulically, and the front axle had oil-immersed disc brakes. The lifting mechanism was mechanical.

Alongside the standard models were HC models, which featured 9.5R48 tires both in the front and rear and a ground clearance of 68 cm.

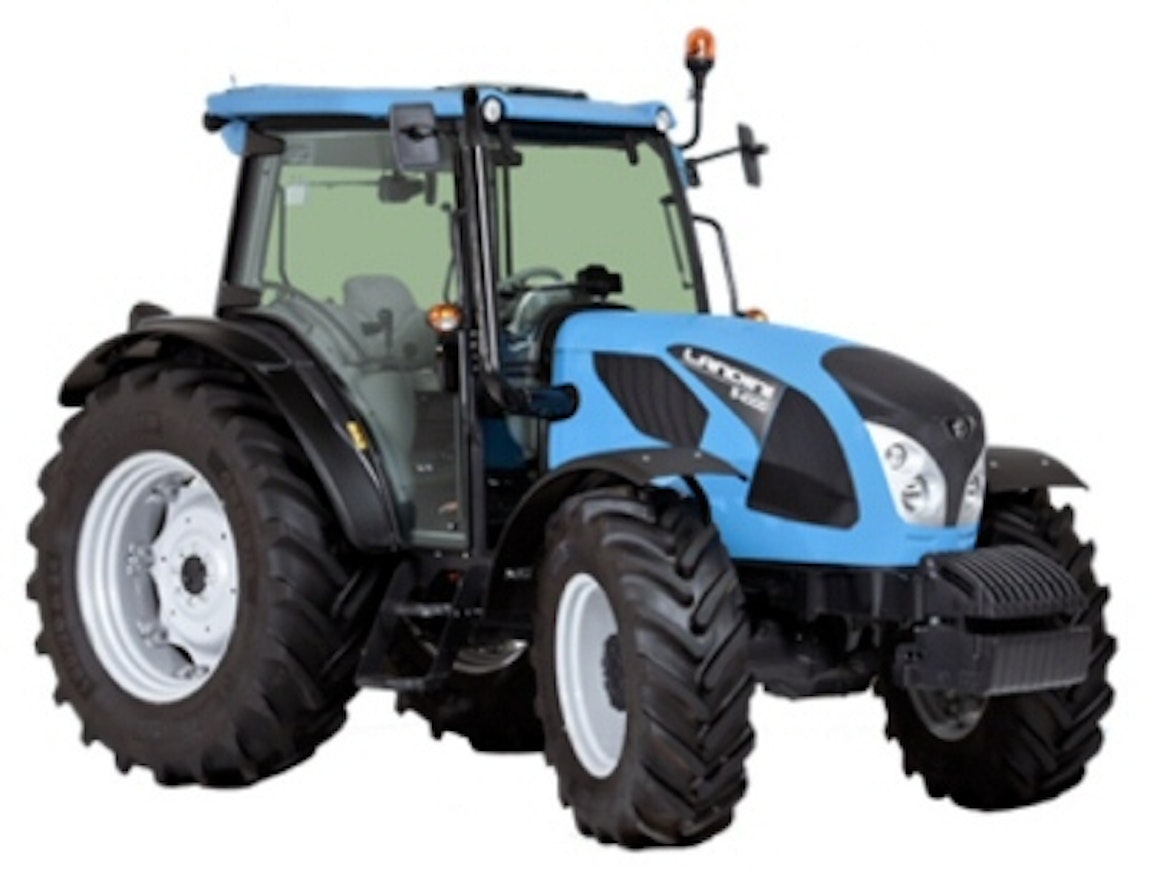

In Landini’s lineup, the same tractor series was called the 5D.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMcCormick X50.20Landini 5.090DMcCormick X50.30Landini 5.100DMcCormick X50.40Landini 5.110D
Options
Imported to FinlandYesYesYesYesYesYes
Years2012-152012-152012-152012-152012-152012-15
First year sold201220122012201220122012
Last year sold201520152015201520152015
Engine model854E-E34TA854E-E34TA854E-E34TA854E-E34TA854E-E34TA854E-E34TA
Cyl/Turbo/Intercooler4TA4TA4TA4TA4TA4TA
Displacement3400 cm³3400 cm³3400 cm³3400 cm³3400 cm³3400 cm³
Bore x stroke99×110 mm99×110 mm99×110 mm99×110 mm99×110 mm99×110 mm
Rated power hp/rpm ISO85/220085/220095/220095/2200102/2200102/2200
Rated power------
Rated speed------
Torque Nm/rpm ISO354/1400354/1400395/1400395/1400420/1400420/1400
Gears24+1224+1224+1224+1224+1224+12
Synchronized gears24+1224+1224+1224+1224+1224+12
Powershift gearsmech.mech.mech.mech.mech.mech.
Reversermech.mech.mech.mech.mech.mech.
Speeds in km/h2,0-402,0-402,0-402,0-402,0-402,0-40
Hydr. flow l/min52 l/min52 l/min52 l/min52 l/min52 l/min52 l/min
Hydraulic pressure180 bar180 bar180 bar180 bar180 bar180 bar
Lift controlsmech.mech.mech.mech.mech.mech.
Lift capacity4350 kg4350 kg4350 kg4350 kg4350 kg4350 kg
PTO speeds540/750540/750540/750540/750540/750540/750
Brakeswet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.28.28.28.28.28.2
Front tyres 4WD12.4-2412.4-2412.4-2412.4-2412.4-2412.4-24
Rear tyres 4WD18.4-3018.4-3018.4-3018.4-3018.4-3018.4-30
Weight 4WD3480 kg3480 kg3480 kg3480 kg3480 kg3480 kg
Height with cab249 cm249 cm249 cm249 cm249 cm249 cm
Length (2WD/4WD)414 cm414 cm414 cm414 cm414 cm414 cm
Wheelbase (2WD/4WD)234/232 cm234/232 cm234/232 cm234/232 cm234/232 cm234/232 cm
Fuel tank102 l102 l102 l102 l102 l102 l
Solid cabxxxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogs
Creeper gearopt.opt.opt.opt.opt.opt.
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
