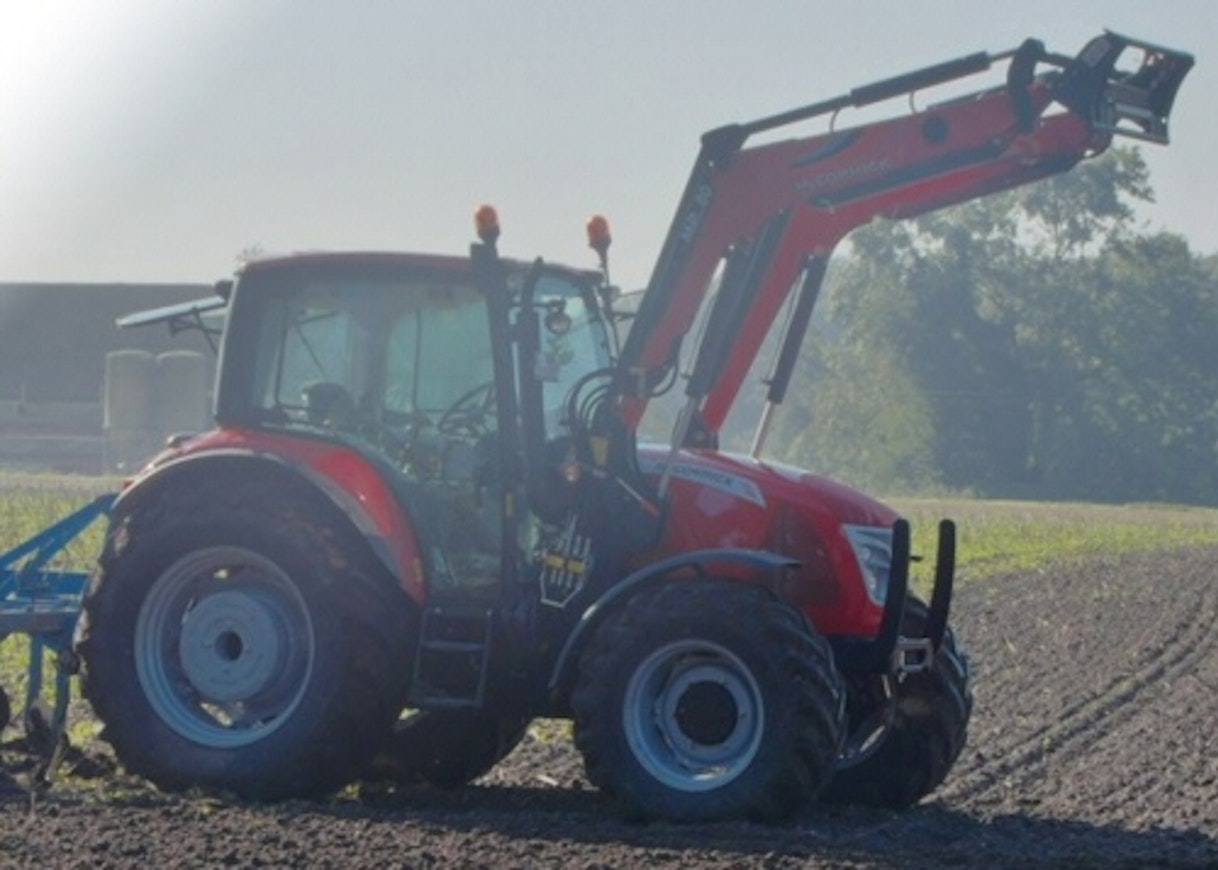

McCormick X5.20-X5.50 / Landini 5-090H – 5-115H
Manufacturer
Models
McCormick X5.20, Landini 5-090H, McCormick X5.30, Landini 5-100H, McCormick X5.40, Landini 5-110H, McCormick X5.50, Landini 5-115H
Years
2015-
Info
Here is the translation of your text into English:
At the beginning of 2015, the X50 range was replaced by the X5. The most significant change was a new, more spacious cab. The hydraulic output was increased to 63 liters. The fuel tank was also larger than before. The engines were still 3.4-liter Perkins models. The Power Shuttle versions featured a power boost function and a 3-step powershift.

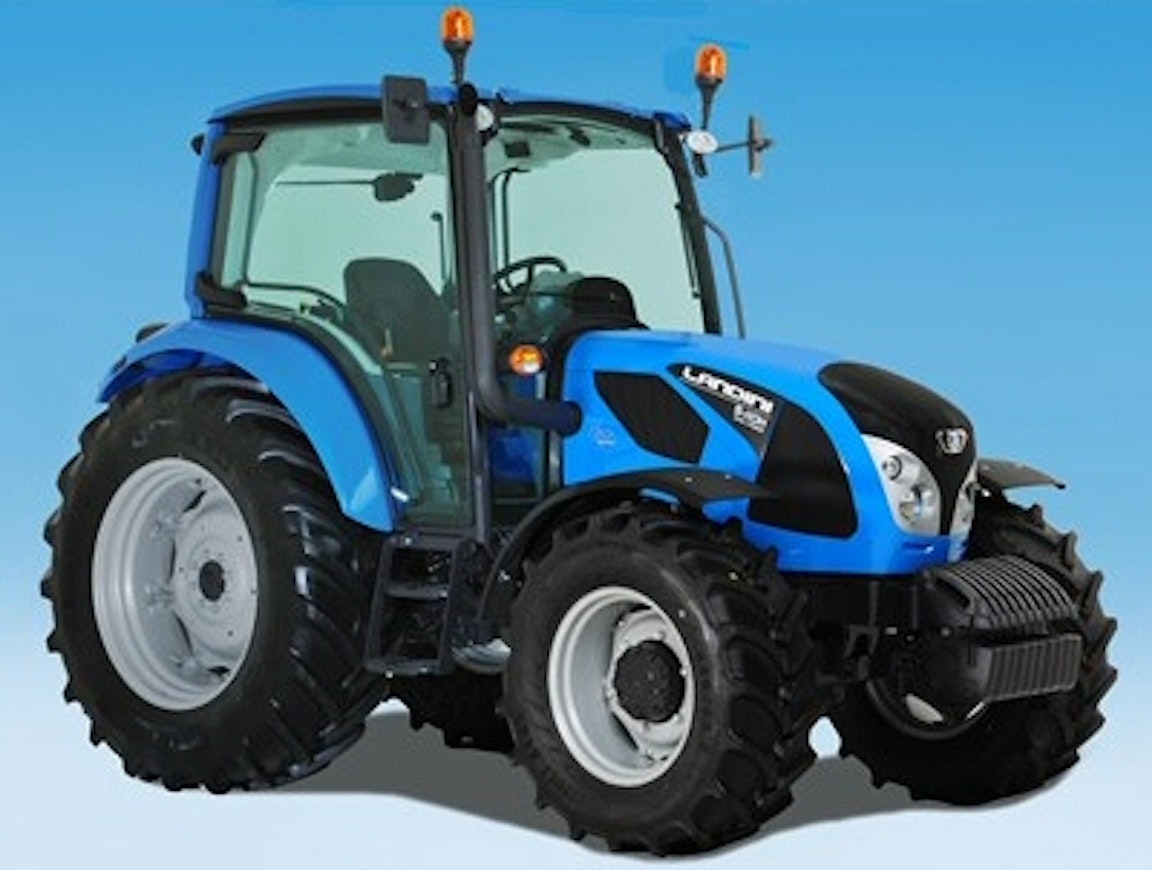

In the Landini range, the model designation remained as 5H after the changes.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | McCormick X5.20 | Landini 5-090H | McCormick X5.30 | Landini 5-100H | McCormick X5.40 | Landini 5-110H | McCormick X5.50 | Landini 5-115H |
|---|---|---|---|---|---|---|---|---|
| Options | ||||||||
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2015- | 2015- | 2015- | 2015- | 2015- | 2015- | 2015- | 2015- |
| First year sold | 2015 | 2015 | 2015 | 2015 | 2015 | 2015 | 2015 | 2015 |
| Engine model | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA |
| Cyl/Turbo/Intercooler | 4TA | 4TA | 4TA | 4TA | 4TA | 4TA | 4TA | 4TA |
| Displacement | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ |
| Bore x stroke | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm |
| Rated power hp/rpm ISO | 85/2200 | 85/2200 | 95/2200 | 95/2200 | 102/2200 | 102/2200 | 113/2200 | 113/2200 |
| Rated power | - | - | - | - | - | - | - | - |
| Rated speed | - | - | - | - | - | - | - | - |
| Max power hp/rpm ISO | 88,5/- | 88,5/- | 102/- | 102/- | 113/- | 113/- | - | - |
| Max power | - | - | - | - | - | - | - | - |
| Torque Nm/rpm ISO | 354(395)/1400 | 354(395)/1400 | 395(420)/1400 | 395(420)/1400 | 420(450)/1400 | 420(450)/1400 | 450/1400 | 450/1400 |
| Gears | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 |
| Synchronized gears | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 |
| Powershift gears | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Reverser | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Speeds in km/h | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 |
| Hydr. flow l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min | 63 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4750 kg | 4750 kg | 4750 kg | 4750 kg | 4750 kg | 4750 kg | 4750 kg | 4750 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 |
| Front tyres 4WD | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 |
| Rear tyres 4WD | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 |
| Weight 4WD | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg |
| Height with cab | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm |
| Length (2WD/4WD) | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm |
| Wheelbase (2WD/4WD) | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm |
| Fuel tank | 120 l | 120 l | 120 l | 120 l | 120 l | 120 l | 120 l | 120 l |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air suspension seat | -/x | -/x | -/x | -/x | -/x | -/x | -/x | -/x |
| Air conditioning | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
