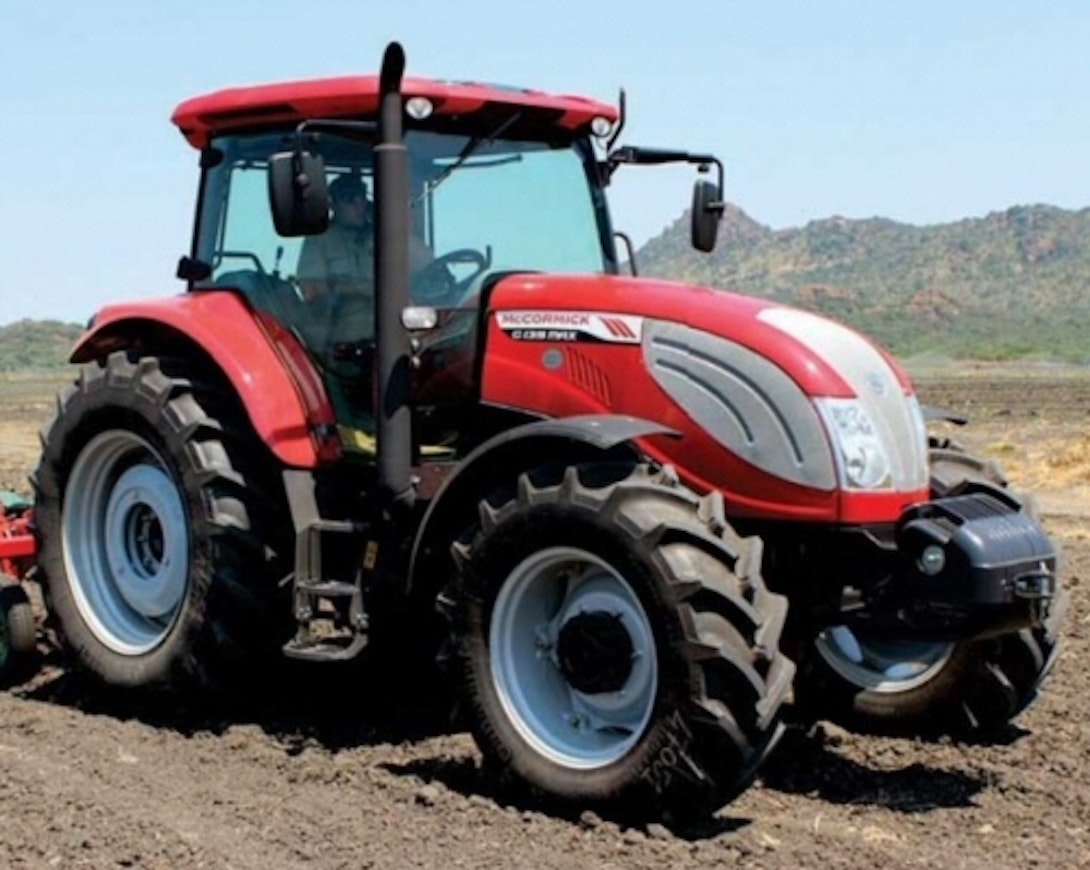

McCormick G-Max 125-165 (T3)
McCormick G-Max is the same tractor as the Landini Landpower. The G-Max is mainly sold in countries where the requirement level for a 6-cylinder tractor is lower than what the McCormick MTX offers, as well as in some countries where Argo focuses solely on selling McCormick. There is also a simplified version of the G-Max equipped with a rollover protective structure for developing countries. The engine was the same BetaPower as in the MTX. The basic transmission was 18+18, and with crawler gears, the number doubled. Later, a 3-range quick shift and a hydraulic shuttle were introduced. The lifting capacity was 7 tons, and the lifting device was controlled mechanically. The differential locks were engaged hydraulically.
The G-Max was replaced by the X6 in 2014. However, production for markets satisfied with Tier 3 emissions standards continued. The G-Max was also part of HS-Tarvike’s sales program in Finland.
This is an automated translation. Please report any issues in the translation.
| Model | McCormick G-Max 125 (T3) | McCormick G-Max 135 (T3) | McCormick G-Max 145 (T3) | McCormick G-Max 165 (T3) |
|---|---|---|---|---|
| Options | ||||
| Manufacturer name | McCormick | McCormick | McCormick | McCormick |
| Imported to Finland | Yes | No | No | Yes |
| Years | 2009- | 2009- | 2009- | 2009- |
| First year sold | 2009 | 2009 | 2009 | 2009 |
| Engine model | BetaPower | BetaPower | BetaPower | BetaPower |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power hp/rpm ISO | 117/2200 | 133/2200 | 141/2200 | 157/2200 |
| Rated power | - | - | - | - |
| Rated speed | - | - | - | - |
| Torque Nm/rpm ISO | 515/1250 | 590/1250 | 625/1250 | 691/1250 |
| Gears | 18+18/54+18 | 18+18/54+18 | 18+18/54+18 | 18+18/54+18 |
| Synchronized gears | 18+18/54+18 | 18+18/54+18 | 18+18/54+18 | 18+18/54+18 |
| Powershift gears | -/3-step | -/3-step | -/3-step | -/3-step |
| Reverser | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 67.7 l/min | 67.7 l/min | 67.7 l/min | 67.7 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 7000 kg | 7000 kg | 7000 kg | 7000 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.7 | 10.7 | 10.7 | 10.7 |
| Front tyres 4WD | 380/70R28 | 420/70R28 | 480/65R28 | 480/65R28 |
| Rear tyres 4WD | 480/70R38 | 520/70R38 | 580/70R38 | 600/65R38 |
| Weight 4WD | 5800 kg | 5800 kg | 5950 kg | 6250 kg |
| Height with cab | 278 cm | 278 cm | 278 cm | 278 cm |
| Length (2WD/4WD) | 515 cm | 515 cm | 515 cm | 515 cm |
| Wheelbase (2WD/4WD) | 280 cm | 280 cm | 280 cm | 280 cm |
| Fuel tank | 260 l | 260 l | 260 l | 260 l |
| Solid cab | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air conditioning | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. |
