McCormick CX90-110 (T3)
Manufacturer
Models
McCormick CX90 (T3), McCormick CX100 (T3), McCormick CX110 (T3)
Years
2008-11
Info

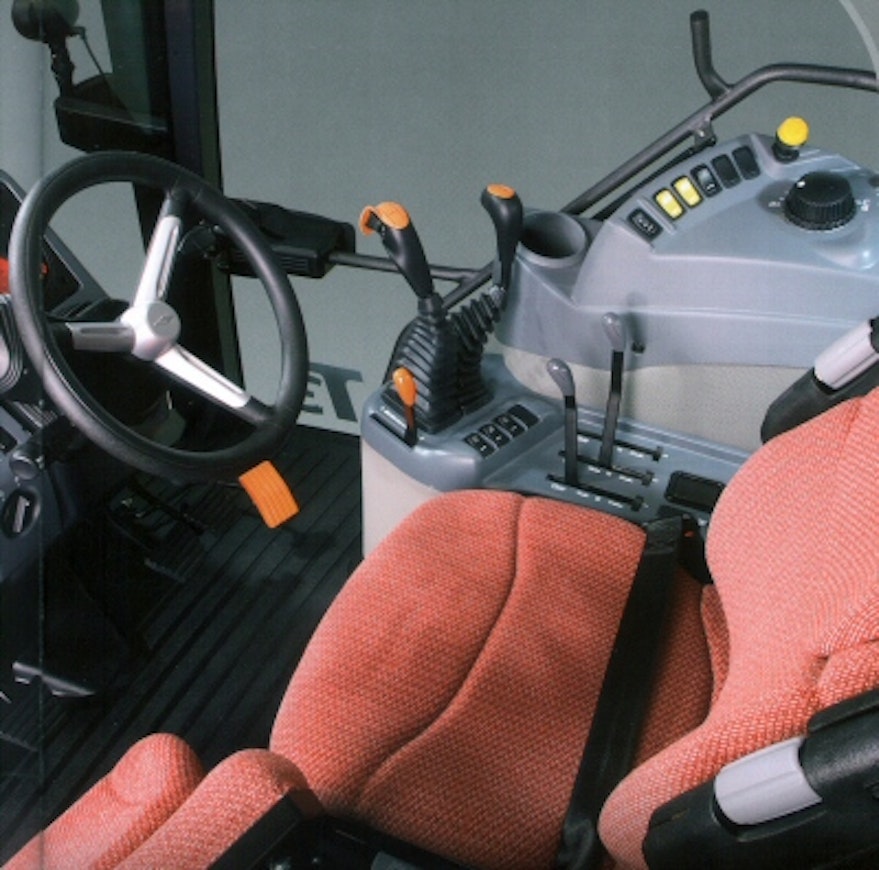

At the end of 2008, the CX received a new four-post cab, with the old cab LP version still available as an option. There were three models remaining, all equipped with 4.4-liter Perkins engines. Lifting capacity had been increased from 4100 to 4450 kilograms, and the electric lift device was still standard. The brakes had been changed to more effective 2-disc brakes. The CX100 was also now built on a longer wheelbase.

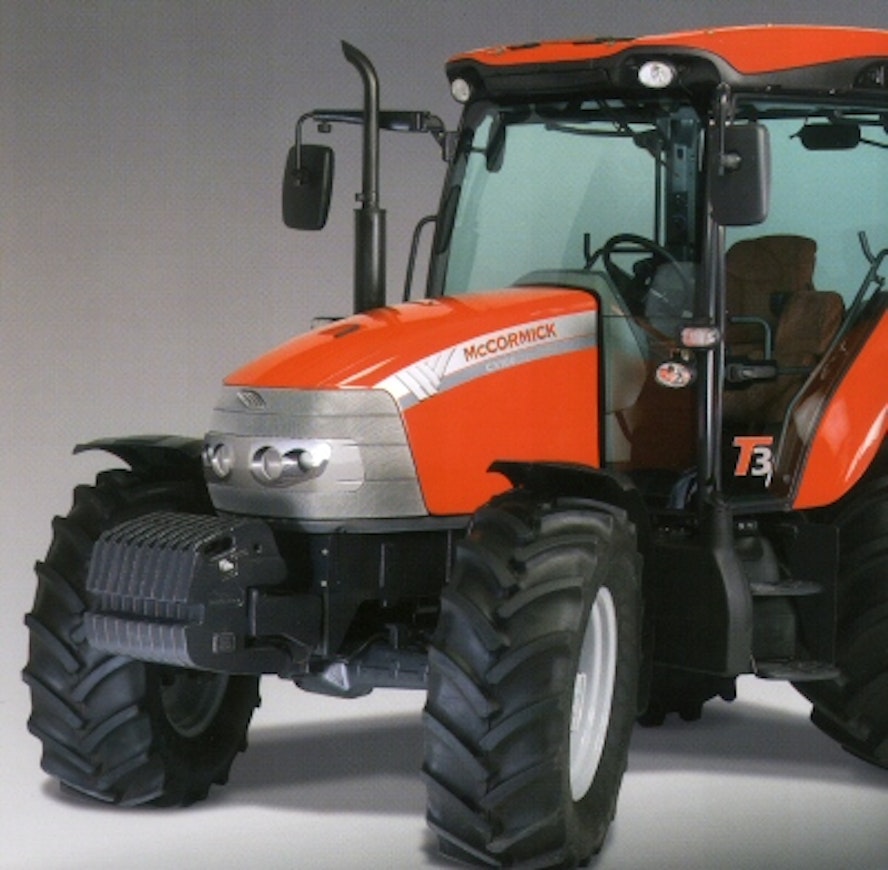

The 2011 model year CX featured a redesigned front end similar to the MC models.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | McCormick CX90 (T3) | McCormick CX100 (T3) | McCormick CX110 (T3) |
|---|---|---|---|
| Options | |||
| Manufacturer name | McCormick | McCormick | McCormick |
| Imported to Finland | No | No | No |
| Years | 2008-11 | 2008-11 | 2008-11 |
| First year sold | 2008 | 2008 | 2008 |
| Last year sold | 2011 | 2011 | 2011 |
| Engine model | 1104D-44T | 1104D-44TA | 1104D-44TA |
| Cyl/Turbo/Intercooler | 4T | 4TI | 4TI |
| Displacement | 4400 cm³ | 4400 cm³ | 4400 cm³ |
| Bore x stroke | 105×127 mm | 105×127 mm | 105×127 mm |
| Rated power hp/rpm ISO | 83/2200 | 92,5/2200 | 102/2200 |
| Rated power | - | - | - |
| Rated speed | - | - | - |
| Torque Nm/rpm ISO | 345/1400 | 384/1400 | 412/1400 |
| Gears | 16+8/24+24 | 16+8/24+24 | 16+8/24+24 |
| Synchronized gears | 16+8/24+24 | 16+8/24+24 | 16+8/24+24 |
| Powershift gears | hydr./3-step | hydr./3-step | hydr./3-step |
| Reverser | mech./hydr. | mech./hydr. | mech./hydr. |
| Speeds in km/h | 2,1-39,6 | 2,1-39,6 | 2,1-39,6 |
| Hydr. flow l/min | 60 l/min | 60 l/min | 60 l/min |
| Hydraulic pressure | 183 bar | 183 bar | 183 bar |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 2960/38754100 kg | 4450 kg | 4450 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.96 | 8.96 | 8.96 |
| Front tyres 4WD | 320/85R24 | 320/85R24 | 320/85R24 |
| Rear tyres 4WD | 420/85R34 | 420/85R34 | 420/85R34 |
| Weight 4WD | 3840 kg | 4240 kg | 4240 kg |
| Height with cab | 274 (254) cm | 274 (254) cm | 274 (254) cm |
| Length (2WD/4WD) | 423 cm | 432 cm | 432 cm |
| Wheelbase (2WD/4WD) | 236 cm | 245 cm | 245 cm |
| Fuel tank | 155 l | 155 l | 155 l |
| Cab noise level | 73 dB | 73 dB | 73 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
