Hürlimann H-360 – H-470

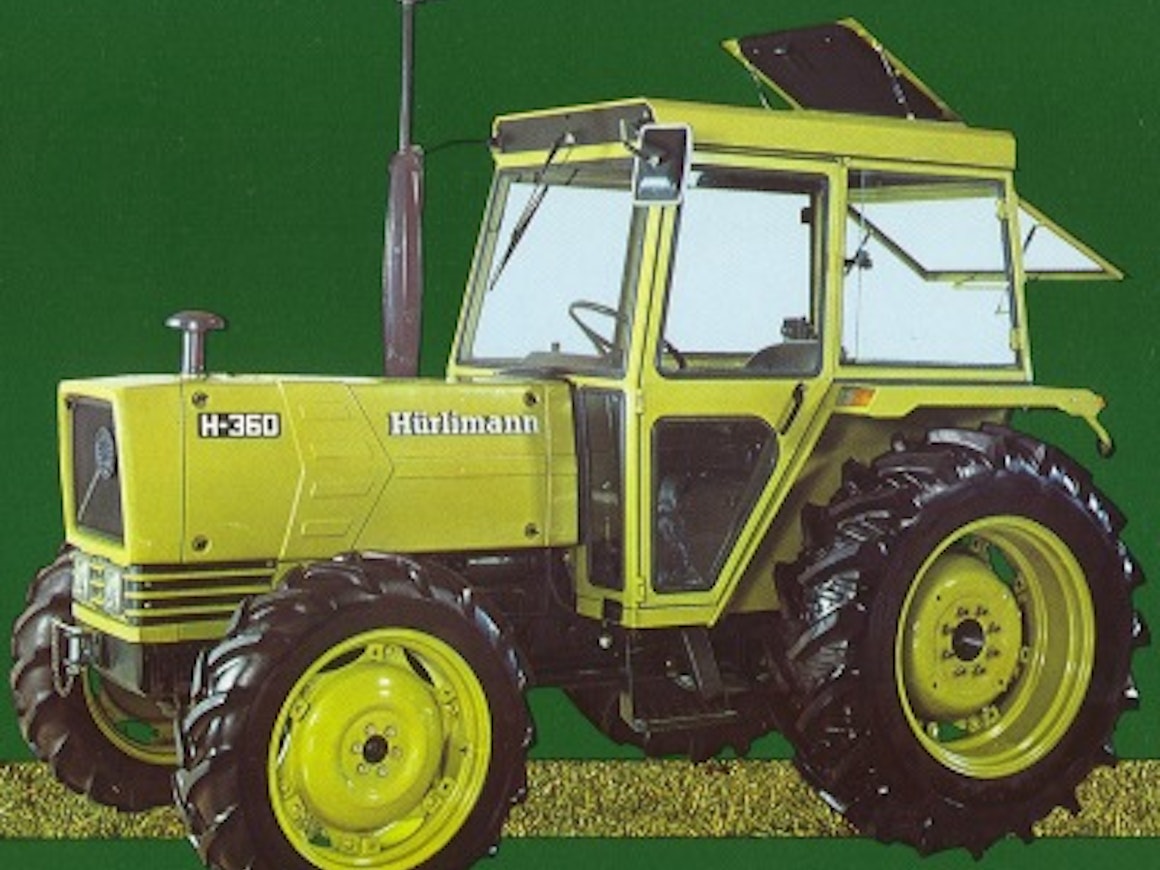

80Hurlimann360
Manufacturer
Models
Hürlimann H-360, Hürlimann H-470
Years
1979-83
Info

In 1979, Hürlimann celebrated its 50th anniversary, and the event was marked by renewing the entire lineup and changing the color of the products from red to light green. The engines were also from an entirely new series. The development of the lineup had begun before the Swiss factory was acquired by Same in 1977, so there were still few technical similarities. However, the front axles of the four-wheel-drive models were manufactured by Same.

The smallest model, the H-360, had a 3.4-liter 3-cylinder engine, and the H-470 was the smallest model equipped with a 4.6-liter four-cylinder engine. The transmission was fully synchronized with 12+3 speeds. In these models, the cab was an optional accessory, but the floor was flat. Power take-off engagement was quite rare technology in this size category.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelHürlimann H-360Hürlimann H-470
Options
Manufacturer nameHürlimannHürlimann
Imported to FinlandNoNo
Years1979-831979-83
First year sold19791979
Last year sold19831983
Engine modelH1103/5H1104/6
Cyl/Turbo/Intercooler34
Displacement3420 cm³4560 cm³
Bore x stroke110×120 mm110×120 mm
Rated power hp/rpm DIN62/230075/2300
Rated power6275
Rated speed23002300
Torque Nm/rpm DIN229/1250265/1200
Gears12+312+3
Synchronized gears12+312+3
Speeds in km/h1,1-24,31,2-25,9
Hydr. flow l/min-31 l/min
Lift controlsmech.mech.
Lift capacity2410 kg2410 kg
PTO speeds540/1000/ajo540/1000/ajo
Brakesdry discdry disc
Steeringhydrost.hydrost.
Front tyres 2WD7.50-167.50-16
Front tyres 4WD9.5-2411.2-24
Rear tyres 2WD14.9-3013.6-36
Rear tyres 4WD14.9-3016.9-30
Weight 2WD(2340) kg(2750) kg
Weight 4WD(2690) kg(3070) kg
Length (2WD/4WD)363 cm386 cm
Wheelbase (2WD/4WD)213 cm231/232 cm
Fuel tank60 l60 l
Cab noise level-84 dB
Creeper gearopt.opt.
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
