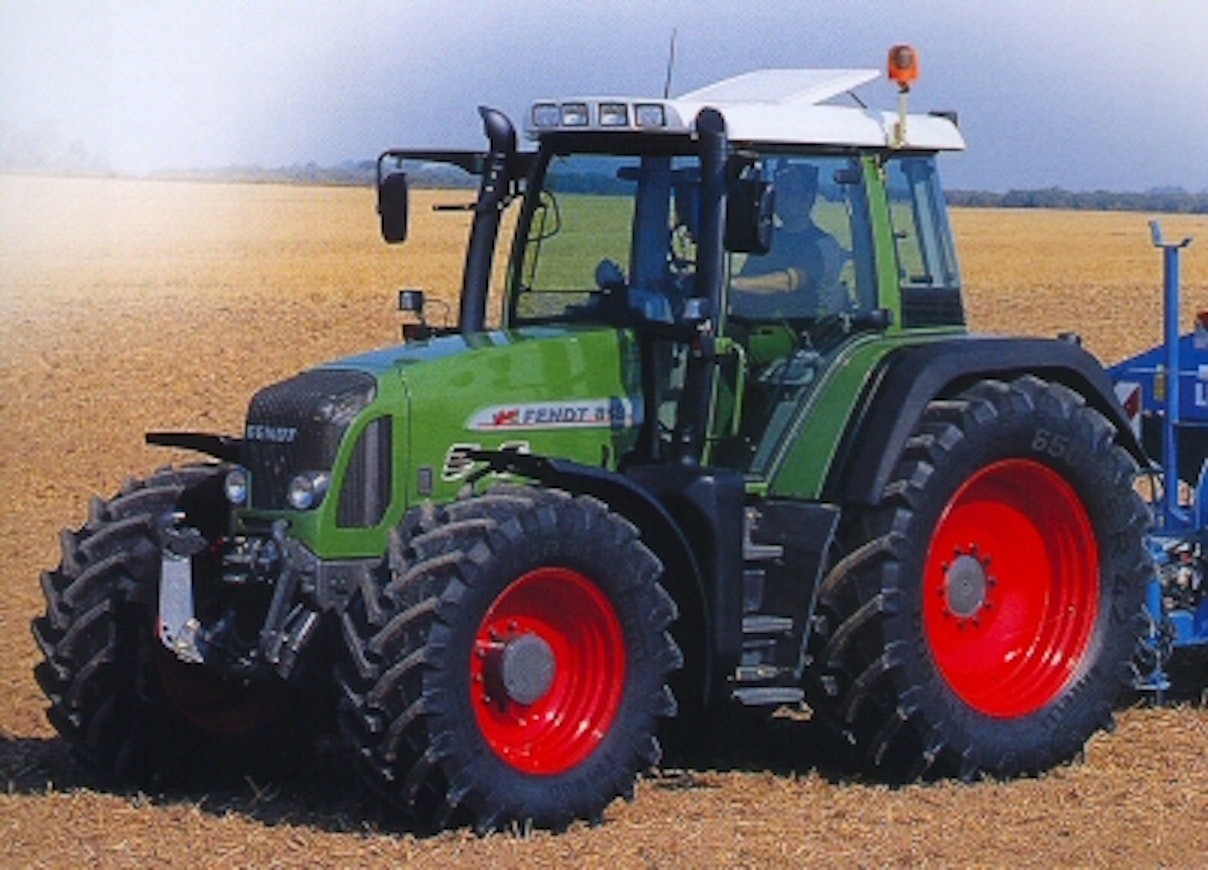

Fendt 815-818 Vario
Introduced in the fall of 2002, the 800 Vario fit smoothly between the 700 and 900 series. Its equipment was more comprehensive than that of the 700 series. The most important innovation was the TMS system. The accelerator pedal could be chosen either as a traditional accelerator or as a speed pedal, where the electronics adjusted the engine speed and transmission ratio according to the load situation. The engines were electronically controlled 5.7-liter Deutz units equipped with 4-valve technology. Compared to the 700 series, the turbocharger and intercooler were larger. The transmission and axles were more robust. Compared to earlier models, a direction change switch was added to the seat armrest. The Varioterminal had a color display, and the versatile headland automation Variotronic TI was standard. The cab was air-suspended.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt 815 Vario | Fendt 817 Vario | Fendt 818 Vario |
|---|---|---|---|
| Options | |||
| Manufacturer name | Fendt | Fendt | Fendt |
| Imported to Finland | Yes | Yes | Yes |
| Years | 2002-06 | 2002-06 | 2002-06 |
| First year sold | 2002 | 2002 | 2002 |
| Last year sold | 2006 | 2006 | 2006 |
| Engine model | Deutz BF6M2013C | Deutz BF6M2013C | Deutz BF6M2013C |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI |
| Displacement | 5700 cm³ | 5700 cm³ | 5700 cm³ |
| Bore x stroke | 98×126 mm | 98×126 mm | 98×126 mm |
| Rated power hp/rpm DIN | 150/2100 | 165/2100 | 180/2100 |
| Rated power | 150 | 165 | 180 |
| Rated speed | 2100 | 2100 | 2100 |
| Max power hp/rpm DIN | 168/1800 | 180/1800 | 195/1800 |
| Max power | 168 | 180 | 195 |
| Max speed | 1800 | 1800 | 1800 |
| Rated power hp/rpm ISO | 165/2100 | 174/2100 | 189/2100 |
| Max power hp/rpm ISO | 175/1800 | 185/1800 | 200/1800 |

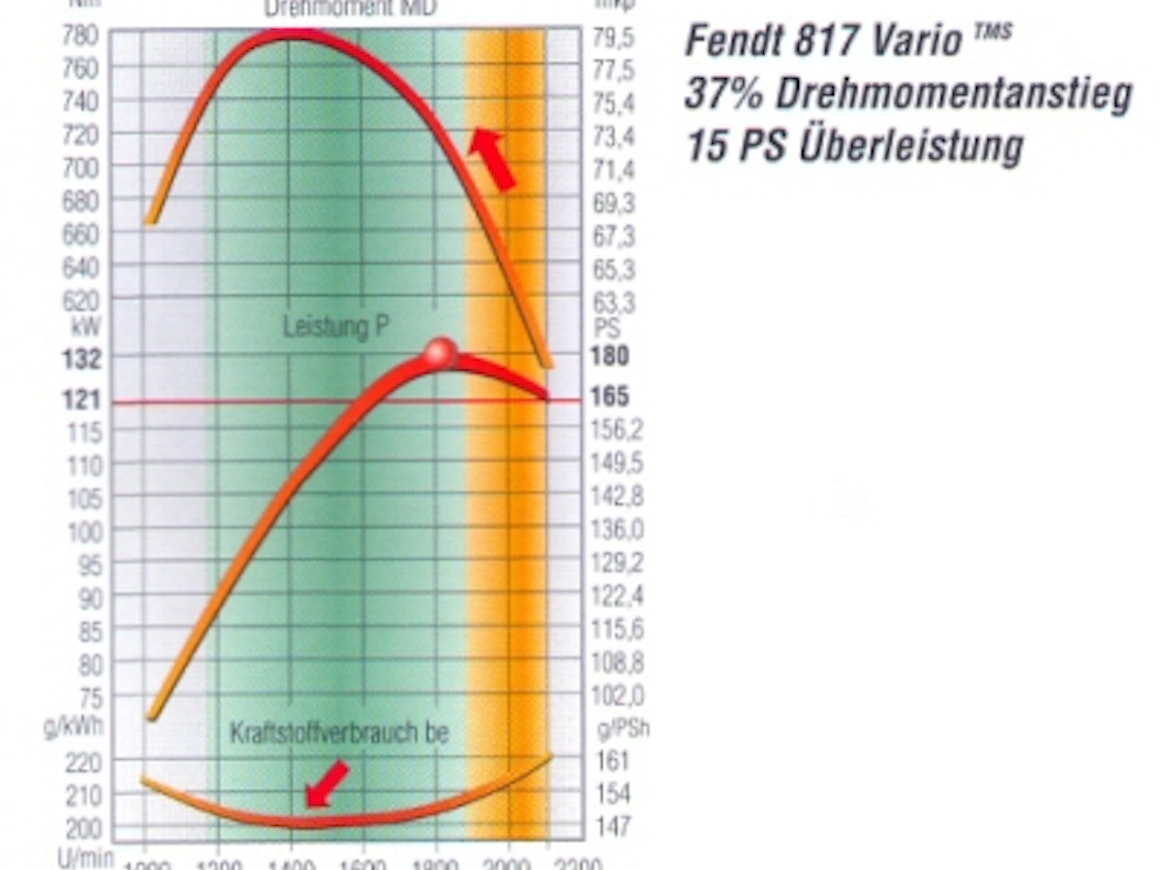

| Torque Nm/rpm DIN | 730/1450 | 780/1450 | 847/1450 |
| Gears | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,02-50 | 0,02-50 | 0,02-50 |
| Max. speed | 40/50 km/h | 40/50 km/h | 40/50 km/h |
| Hydr. flow l/min | 110 l/min | 110 l/min | 110 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 9255 kg | 9255 kg | 9255 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.2 | 11.2 | 11.2 |
| Front tyres 4WD | 480/70R30 | 480/70R30 | 540/65R30 |
| Rear tyres 4WD | 580/70R42 | 580/70R42 | 650/65R42 |
| Weight 4WD | 6650 kg | 6650 kg | 6800 kg |
| Height with cab | 302 cm | 302 cm | 302 cm |
| Length (2WD/4WD) | 470 cm | 470 cm | 470 cm |
| Wheelbase (2WD/4WD) | 272 cm | 272 cm | 272 cm |
| Fuel tank | 340 l | 340 l | 340 l |
| Cab noise level | 72 dB | 72 dB | 72 dB |
| Solid cab | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x |
| Air suspension seat | x | x | x |
| Air conditioning | x | x | x |
| Trip computer | x | x | x |
| Creeper gear | x | x | x |
