Siirry sivupalkkiinSiirry alaosaanFendt 1040-1052 Vario Gen4




Introduced in 2015, the 1000 Vario series was updated in autumn 2025 to the Gen4 generation. Earlier updates to the range had been minor apart from the FendtONE user interface introduced for 2021, and no major changes were made this time either. The MAN low-speed engines had received modifications to the pistons, crankshaft, and injectors so that the power and torque curves were broader than before. Improved fuel efficiency was also promised. In the most powerful model, the 1052 Vario, maximum output with boost now reached 550 hp. A new feature introduced for the more powerful models was the Fendt Adaptive Power function, which allows the operator to select the engine control maps of the smaller models when full power is not required for lighter work.

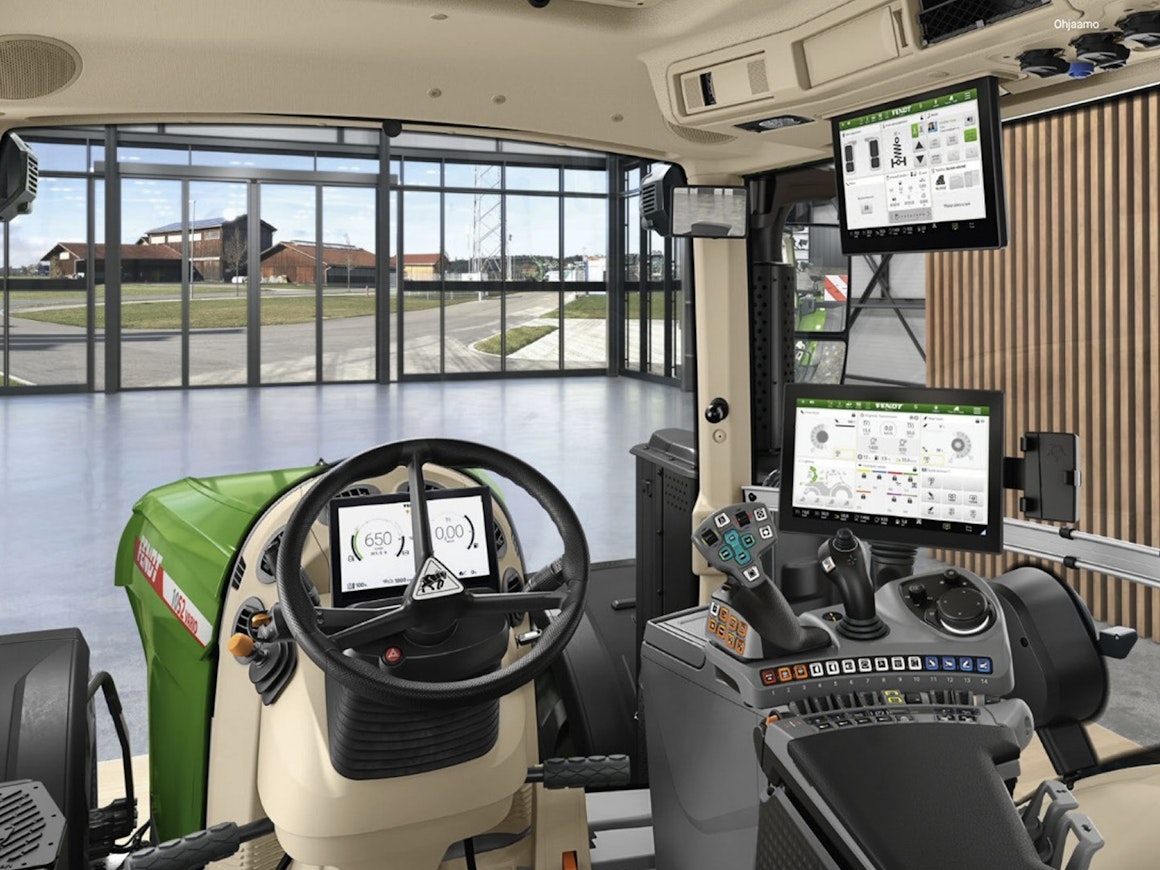

As in the 800 series, a highly configurable work light package was added to the options list, with its 120,500-lumen rating likely being the brightest yet seen on a tractor. Minor changes were made to the cab and interior. The drivetrain remained the VarioDrive TA400, which enabled variable distribution of drive between the front and rear axles depending on conditions. A top speed of 60 km/h was achieved at 1,450 rpm. Transmission oil changes were required every 4,000 hours and hydraulic oil every 2,000 hours. Hydraulic output, with two pumps, was 430 l/min.
| Model | Fendt 1040 Vario Gen4 | Fendt 1044 Vario Gen4 | Fendt 1048 Vario Gen4 | Fendt 1052 Vario Gen4 |
|---|---|---|---|---|
| Manufacturer name | Fendt | Fendt | Fendt | Fendt |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2025- | 2025- | 2025- | 2025- |
| Engine model | MAN D26 | MAN D26 | MAN D26 | MAN D26 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI |
| Displacement | 12419 cm³ | 12419 cm³ | 12419 cm³ | 12419 cm³ |
| Bore x stroke | 126×166 mm | 126×166 mm | 126×166 mm | 126×166 mm |
| Rated power | - | - | - | - |
| Max power | - | - | - | - |
| Torque | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,02-60 | 0,02-60 | 0,02-60 | 0,02-60 |
| Max. speed | 50/60 km/h | 50/60 km/h | 50/60 km/h | 50/60 km/h |
| Hydr. flow l/min | 210 (430) l/min | 220 (430) l/min | 220 (430) l/min | 220 (430) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 13180 kg | 13180 kg | 13180 kg | 13180 kg |
| PTO speeds | 1000/1000E | 1000/1000E | 1000/1000E | 1000/1000E |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 14,4 | 14,4 | 14,4 | 14,4 |
| Front tyres 4WD | 650/60R38 | 650/65R38 | 650/65R38 | 650/65R38 |
| Rear tyres 4WD | 750/70R44 | 750/75R46 | 750/75R46 | 750/75R46 |
| Weight 4WD | 14000 kg | 14000 kg | 14000 kg | 14000 kg |
| Height with cab | 355 cm | 355 cm | 355 cm | 355 cm |
| Length (2WD/4WD) | 635 cm | 635 cm | 635 cm | 635 cm |
| Wheelbase (2WD/4WD) | 330 cm | 330 cm | 330 cm | 330 cm |
| Fuel tank | 800+AB85 l | 740+AB79 l | 740+AB79 l | 740+AB79 l |
| Solid cab | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x |
| Air suspension seat | x | x | x | x |
| Air conditioning | x | x | x | x |
| Trip computer | x | x | x | x |
| Creeper gear | x | x | x | x |
