Siirry sivupalkkiinSiirry alaosaanDavid Brown / Case 1190-1390

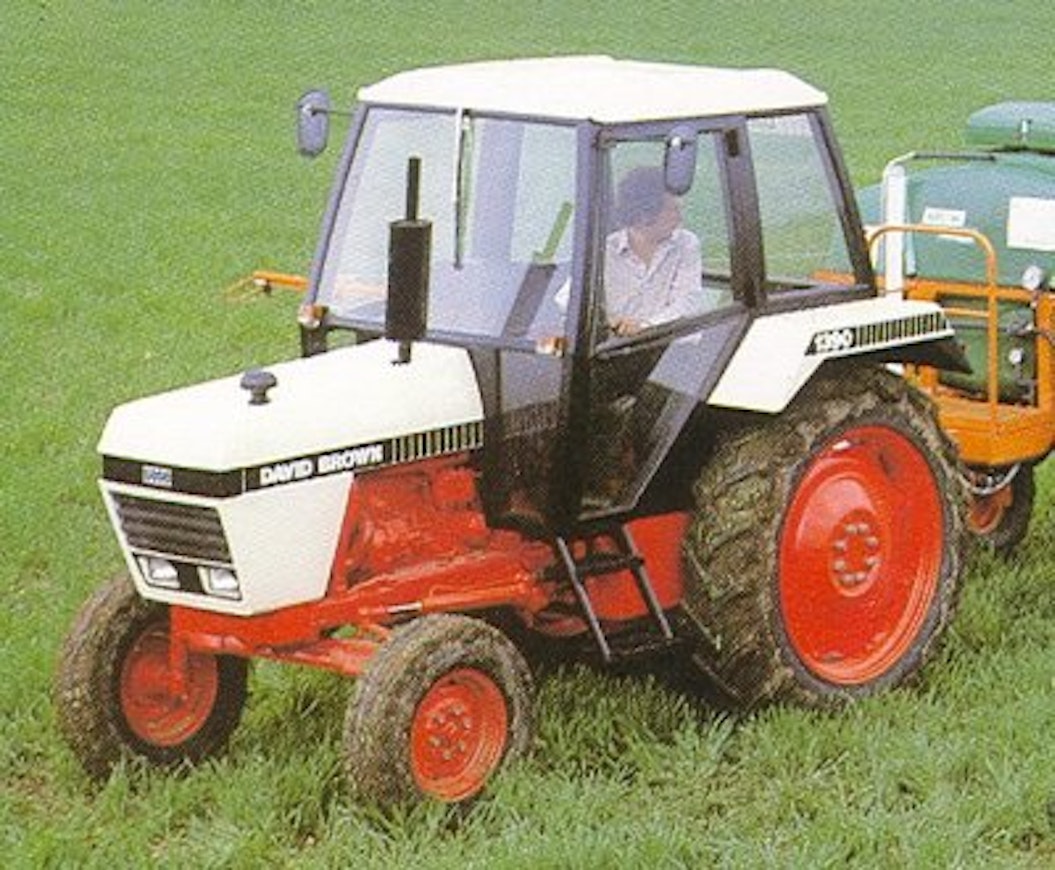

The stylish 90 series was introduced at the end of 1979. The 885 was replaced by the 1190, the 990 by the 1290, and the 996 by the slightly more powerful 1390. The smallest model in the series was rear-wheel drive, while the larger ones also had an all-wheel-drive model equipped with a Carraro front axle. The technical changes were less extensive than the still modern-looking exterior would suggest. The transmission was partially synchronized, and the hydraulic output and lifting capacity were modest. The use of Selectamatic hydraulics was simplified. The cab was still manufactured by Sekura but met the requirements of the 1980s. A larger fuel tank than before was placed under the cab on the left side. All models were equipped with dual clutches. Surprisingly, the 1190 had 12-inch clutch plates, while the 1290 and 1390 continued with 11-inch ones.
From 1983 onwards, the larger models’ well-known Hydra Shift transmission was also made available for the 1390, but only for the rear-wheel-drive model.
For the year 1983, the tractor brand also changed to Case in Europe.
This is an automated translation. Please report any issues in the translation.
| Model | David Brown 1190 | David Brown 1290 | David Brown 1290 | David Brown 1390 | David Brown 1390 Hydra Shift |
|---|---|---|---|---|---|
| Manufacturer name | David Brown | David Brown | David Brown | David Brown | David Brown |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1980-84 | 1980-81 | 1981-84 | 1980-84 | 1983-84 |
| Engine model | DB AD3/55 | DB AD4/49 | DB AD4/55 | DB AD4/55 | DB AD4/55 |
| Cyl/Turbo/Intercooler | 3 | 4 | 4 | 4 | 4 |
| Displacement | 2695 cm³ | 3195 cm³ | 3594 cm³ | 3594 cm³ | 3594 cm³ |
| Bore x stroke | 100×114,3 mm | 100×101,6 mm | 100×114,3 mm | 100×114,3 mm | 100×114,3 mm |
| Rated power | 48/2200 hp DIN/rpm | 58/2200 hp DIN/rpm | 58/2200 hp DIN/rpm | 67/2200 hp DIN/rpm | 67/2200 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Synchronized gears | 8 | 8 | 8 | 8 | hydr. plan. |
| Speeds in km/h | 1,6-28,7 | 1,6-24,0 | 1,6-24,0 | 1,8-25,6 | - |
| Max. speed | 29 km/h | 28.5 km/h | 28.5 km/h | 29.4 km/h | - |
| Hydr. flow l/min | 27.3 l/min | 27.3 l/min | 28 l/min | 33 l/min | 33 l/min |
| Hydraulic pressure | 176 bar | 176 bar | 176 bar | 176 bar | 176 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1540 kg | 1930 kg | 1930 kg | 2040 kg | 2040 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.5 | 7.2 | 7.2 | 7.2 | 7.2 |
| Front tyres 2WD | 7,50-16 | 7,50-16 | 7,50-16 | 7,50-16 | 7,50-16 |
| Rear tyres 2WD | 12,4-32 | 13,6-36 | 13,6-36 | 13,6-38 | 13,6-38 |
| Weight 2WD | 2380 kg | 2770 kg | 2770 kg | 2850 kg | 2850 kg |
| Height with cab | 238 cm | 250 cm | 250 cm | 253 cm | 253 cm |
| Length (2WD/4WD) | 340 cm | 363 cm | 363 cm | 363 cm | 363 cm |
| Wheelbase (2WD/4WD) | 195 cm | 210 cm | 210 cm | 210 cm | 210 cm |
| Fuel tank | 100 l | 100 l | 100 l | 100 l | 100 l |
| Cab noise level | 83 dB | 83.5 dB | 83.5 dB | 84.5 dB | 84.5 dB |
| Solid cab | x | x | x | x | x |
| Front tyres 4WD | - | 11.2-24 | 11.2-24 | 12.4-24 | - |
| Rear tyres 4WD | - | 16.9-30 | 16.9-30 | 16.9-34 | - |
| Weight 4WD | - | 3180 kg | 3340 kg | 3460 kg | - |
| Turning circle m 4WD | - | - | 9 | 9 | - |
| Diff. lock | - | - | friction lock | friction lock | - |
| Powershift gears | - | - | - | - | 4-step |
