Case acquired the French SFV Vierzon tractor manufacturer in 1958. Production in Vierzon initially continued with the old half-diesel models, and the tractors’ color changed from green to Case’s yellowish hue. The final models were the Super 204 and 403D, introduced in 1961.

At the 1962 SIMA show, Case unveiled the CF 250 and CF 350—models partly based on American technology and equipped with French 1.8-liter Indenor diesels. At the same time, the Vierzon plant began assembling the American models 530, 630, and 730.

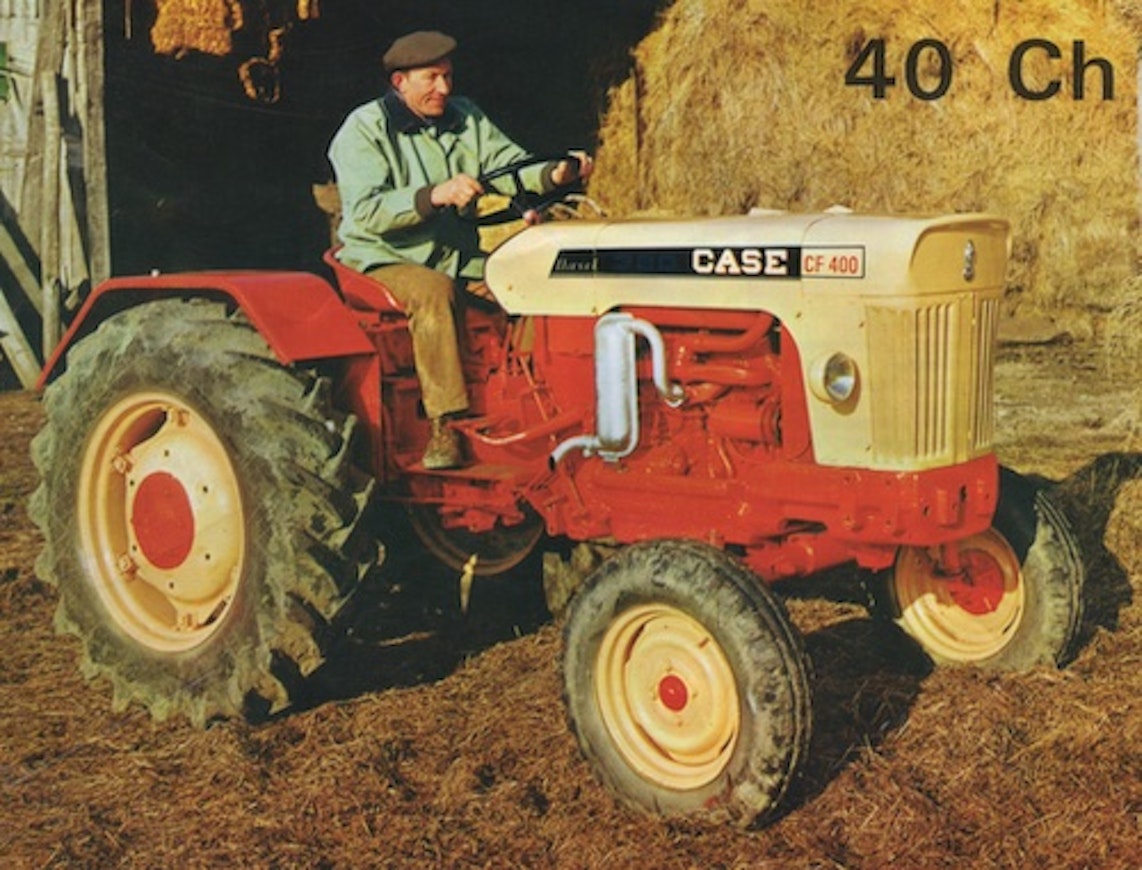

Both the CF 250 and CF 350 featured an 8+4 gearbox, a dual-clutch system, and a weight-transfer system. Each was also offered in a high-ground-clearance version (48 / 54 cm). In 1967, Case introduced a further developed version of the CF 350, the CF 400.

This is an automated translation. Please report any issues in the translation.

Case CF250-CF400

More from this manufacturer

Case acquired the French SFV Vierzon tractor manufacturer in 1958. Production in Vierzon initially continued with the old half-diesel models, and the tractors’ color changed from green to Case’s yellowish hue. The final models were the Super 204 and 403D, introduced in 1961.
At the 1962 SIMA show, Case unveiled the CF 250 and CF 350—models partly based on American technology and equipped with French 1.8-liter Indenor diesels. At the same time, the Vierzon plant began assembling the American models 530, 630, and 730.
Both the CF 250 and CF 350 featured an 8+4 gearbox, a dual-clutch system, and a weight-transfer system. Each was also offered in a high-ground-clearance version (48 / 54 cm). In 1967, Case introduced a further developed version of the CF 350, the CF 400.
This is an automated translation. Please report any issues in the translation.

Case CF 250

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

Case CF 350

Case CF 400

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Case CF 250	Case CF 350	Case CF 400
Options
Manufacturer name	Case	Case	Case
Imported to Finland	No	No	No
Years	1962-	1962-	1967-
First year sold	1962	1962	1967
Engine model	XDP85	XDP85	XDP85
Cyl/Turbo/Intercooler	4	4	4
Displacement	1816 cm³	1816 cm³	1816 cm³
Bore x stroke	85×80 mm	85×80 mm	85×80 mm
Rated power hp/rpm DIN	25/2200	35/2500	40/2500
Rated power	25	35	40
Rated speed	2200	2500	2500
Gears	8+4	8+4	8+4
Speeds in km/h	1,2-20	1,2-20	1,2-20,5
Hydraulic pressure	175 bar	175 bar	175 bar
PTO speeds	540 (1000)	540 (1000)	540 (1000)
Brakes	drum brakes	drum brakes	drum brakes
Steering	mech.	mech.	mech.
Turning circle m 2WD	-	6	6
Front tyres 2WD	5.00-15	6.00-16	6.00-16
Rear tyres 2WD	11.2-28	12.4-28	12.4-28
Weight 2WD	1600 kg	1700 kg	1730 kg
Height with cab	(144) cm	(144) cm	(148) cm
Length (2WD/4WD)	300 cm	300 cm	324 cm
Wheelbase (2WD/4WD)	175 cm	185 cm	185 cm
Fuel tank	50 l	50 l	50 l
