Case / Case IH 1494-1694

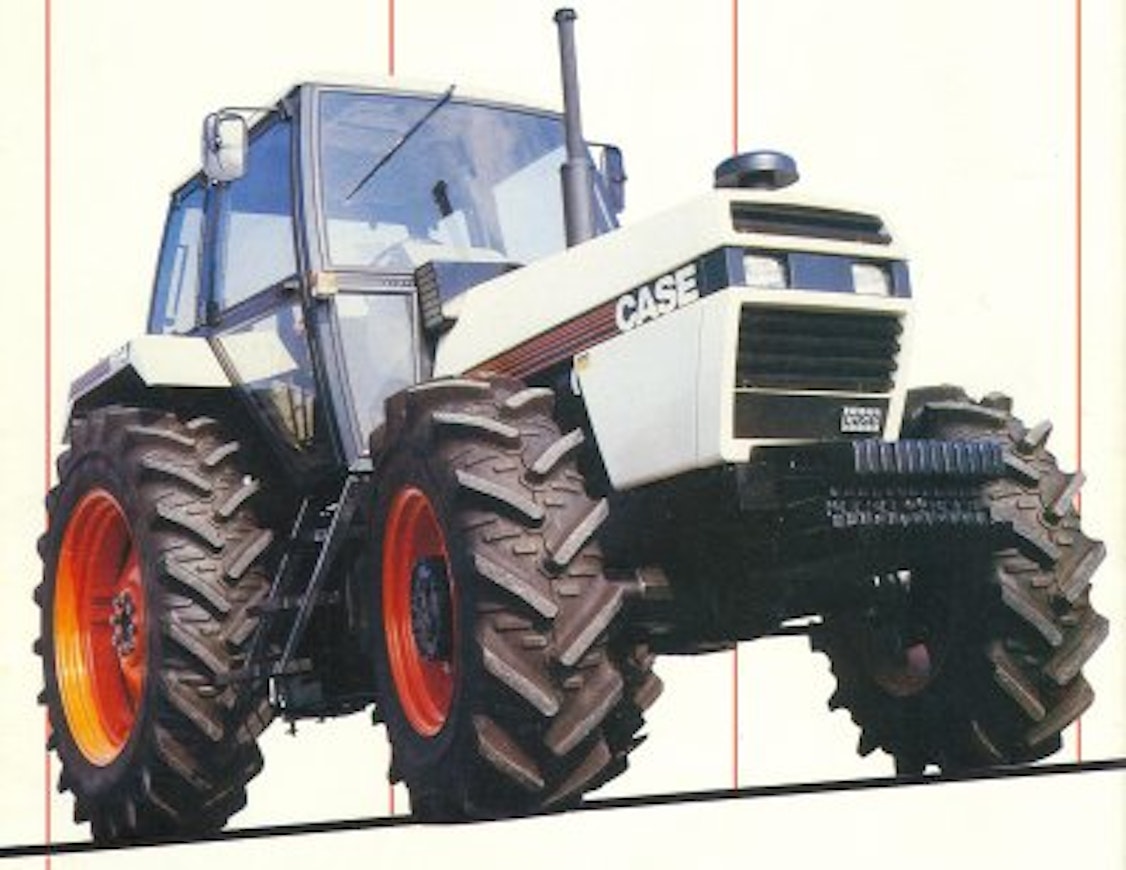

84Case1694

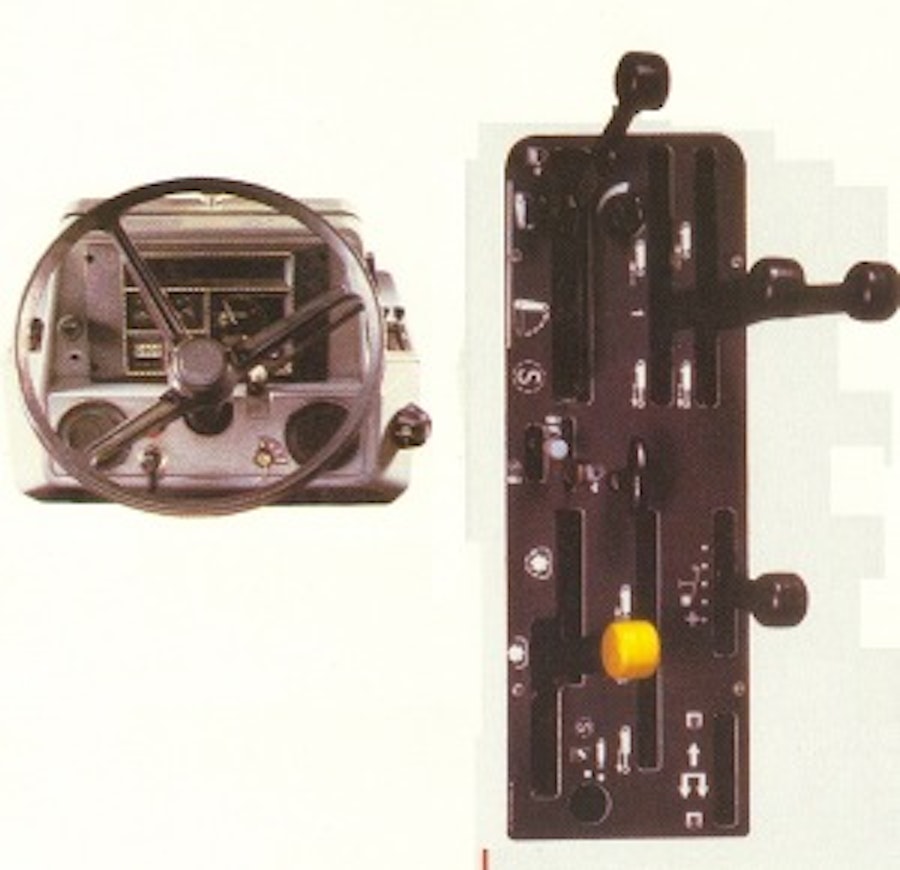

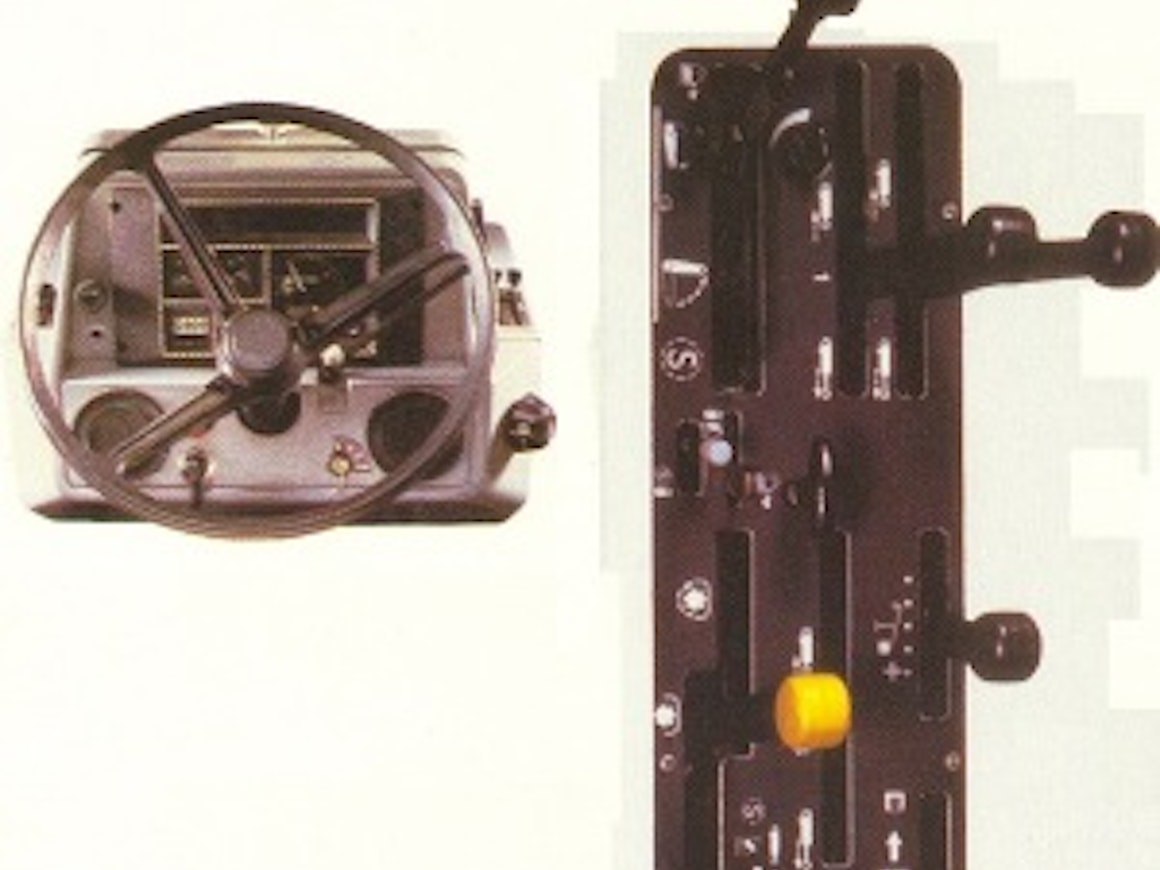

85Case1694ohjaamo
84Case1694
85Case1694ohjaamo
Manufacturer
Models
Case 1494, Case 1494 Hydra Shift, Case 1494 Hydra Shift, Case 1594, Case 1594 Hydra Shift, Case 1694 Hydra Shift
Years
1984-88
Info

In the revised 94 series, the Hydra Shift transmission was available for the first time in all-wheel drive models. The power of the 1694 was increased, and a new naturally aspirated 6-cylinder 1594 model was introduced. Both the 1594 and 1694 featured draft sensing. Otherwise, the updates to the 94 series mainly involved minor improvements to the cab. The steering pump was more powerful, and the steering valve was placed outside the cab. The cab's air intake was moved to the side of the hood, and the fuel filler cap was relocated to the front of the cab. An air conditioning unit was now available as a factory-installed option, as was a creeper gearbox. A dual hydraulic pump was standard equipment in some versions.

At the end of 1984, Tenneco, the owner of Case, acquired International Harvester's agricultural machinery production. The first effects on the tractors were seen at the end of 1985 when the colors of both brands changed to red and black, and the brand name became Case International. The smallest models were dropped from the 94 series, leaving only the 1394–1694. All tractors imported to Finland were equipped with the HS transmission. In the autumn of 1986, the transmission gearing was spaced out by 10% to increase road speed.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelCase 1494Case 1494 Hydra ShiftCase 1494 Hydra ShiftCase 1594Case 1594 Hydra ShiftCase 1694 Hydra Shift
Manufacturer nameCaseCaseCaseCaseCaseCase
Imported to FinlandYesYesYesYesYesYes
Years1984-861984-861986-881984-861984-881984-88
Engine modelAD4/55TAD4/55TAD4/55TAD6/55AD6/55AD6/55T
Cyl/Turbo/Intercooler4T4T4T666T
Displacement3594 cm³3594 cm³3594 cm³5392 cm³5392 cm³5392 cm³
Bore x stroke100×114,3 mm100×114,3 mm100×114,3 mm100×114,3 mm100×114,3 mm100×114,3 mm
Rated power83/2200 hp DIN/rpm83/2200 hp DIN/rpm83/2200 hp DIN/rpm97/2325 hp DIN/rpm97/2325 hp DIN/rpm112/2350 hp DIN/rpm
Torque------
Gears12+412+412+412+412+412+4
Synchronized gears8hydr. plan.hydr. plan.8hydr. plan.hydr. plan.
Speeds in km/h2,1-29,91,9-29,61,9-29,62,2-302,2-27,62,2-27,6
Max. speed 33 km/h33 km/h33 km/h35.4 km/h30.2 km/h30 km/h
Hydr. flow l/min65 l/min33 l/min33 l/min76 l/min41,5/76 l/min41,5/76 l/min
Hydraulic pressure176 bar176 bar176 bar176 bar176 bar176 bar
Lift controlsmech.mech.mech.mech.mech.mech.
Lift capacity2970 kg2970 kg2970 kg3630 kg3630 kg3630 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD7.87.8--8.5-
Turning circle m 4WD9.59.59.510.910.911.4
Front tyres 2WD10,00-1610,00-16--10,00-16-
Front tyres 4WD12.4-2413.6-2413.6-2414.9-2414.9-2413.6-28
Rear tyres 2WD16,9-3416,9-34--16,9-38-
Rear tyres 4WD16.9-3416.9-3416.9-3416.9-3816.9-3816.9-38
Weight 2WD3370 kg3450 kg--4000 kg-
Weight 4WD3635 kg3715 kg3940 kg4255 kg4350 kg4350 kg
Height with cab259 cm259 cm264 cm269 cm269 cm269 cm
Length (2WD/4WD)384 cm384 cm384 cm420 cm420 cm420 cm
Wheelbase (2WD/4WD)224 cm224 cm224 cm254 cm254 cm254 cm
Fuel tank136 l136 l136 l136 l136 l136 l
Cab noise level84 dB84 dB82 dB83 dB83 dB83 dB
Solid cabxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Powershift gears-4-step4-step-4-step4-step
