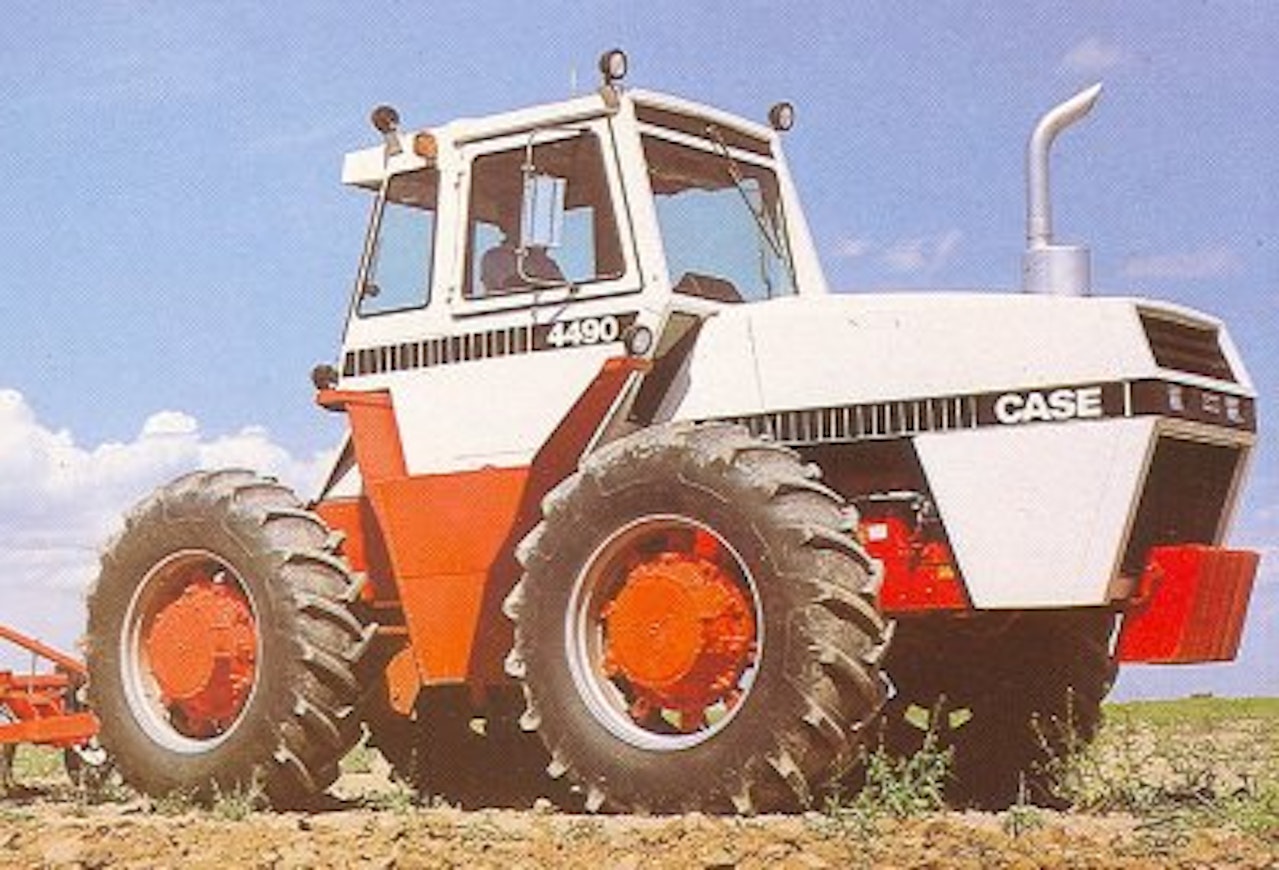

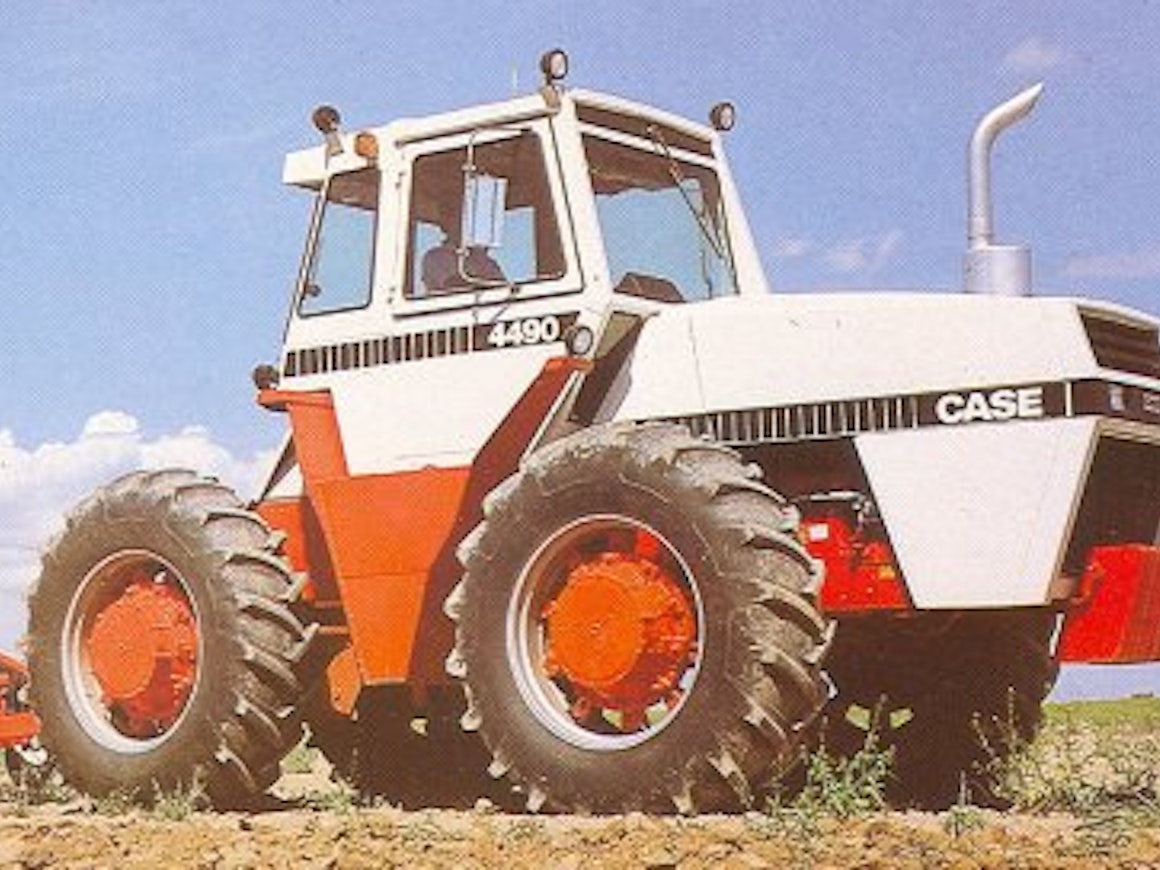

Four-wheel drive models 4490 (194 hp), 4690 (233 hp), and 4890 (273 hp) equipped with four-wheel steering from the 90 series were introduced for the year 1980. Unlike most of their competitors, the Cases were not frame-steered but featured automatically coordinated four-wheel steering. This solution was justified by, among other things, better maneuverability and greater stability on slopes.

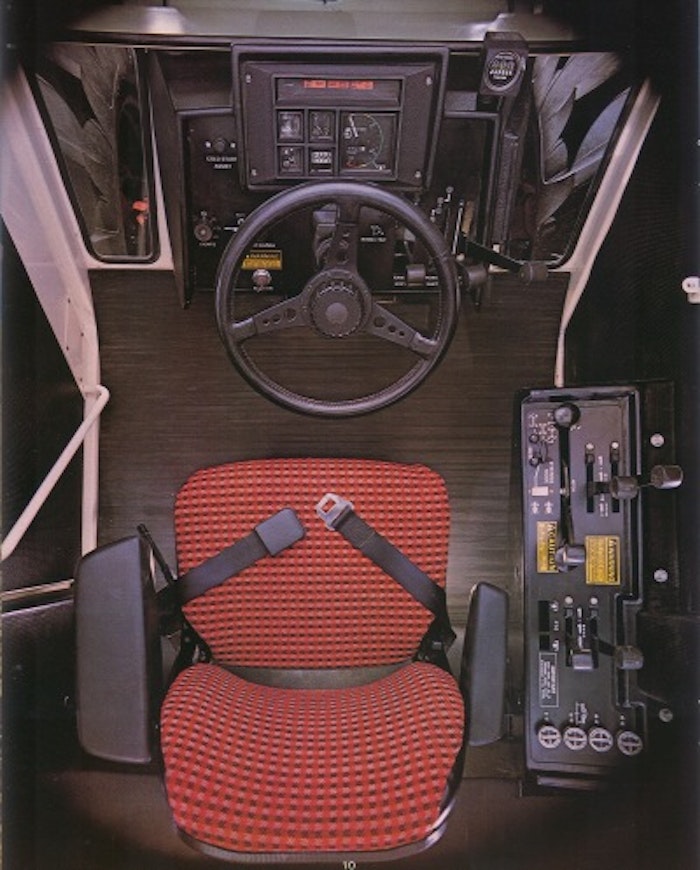

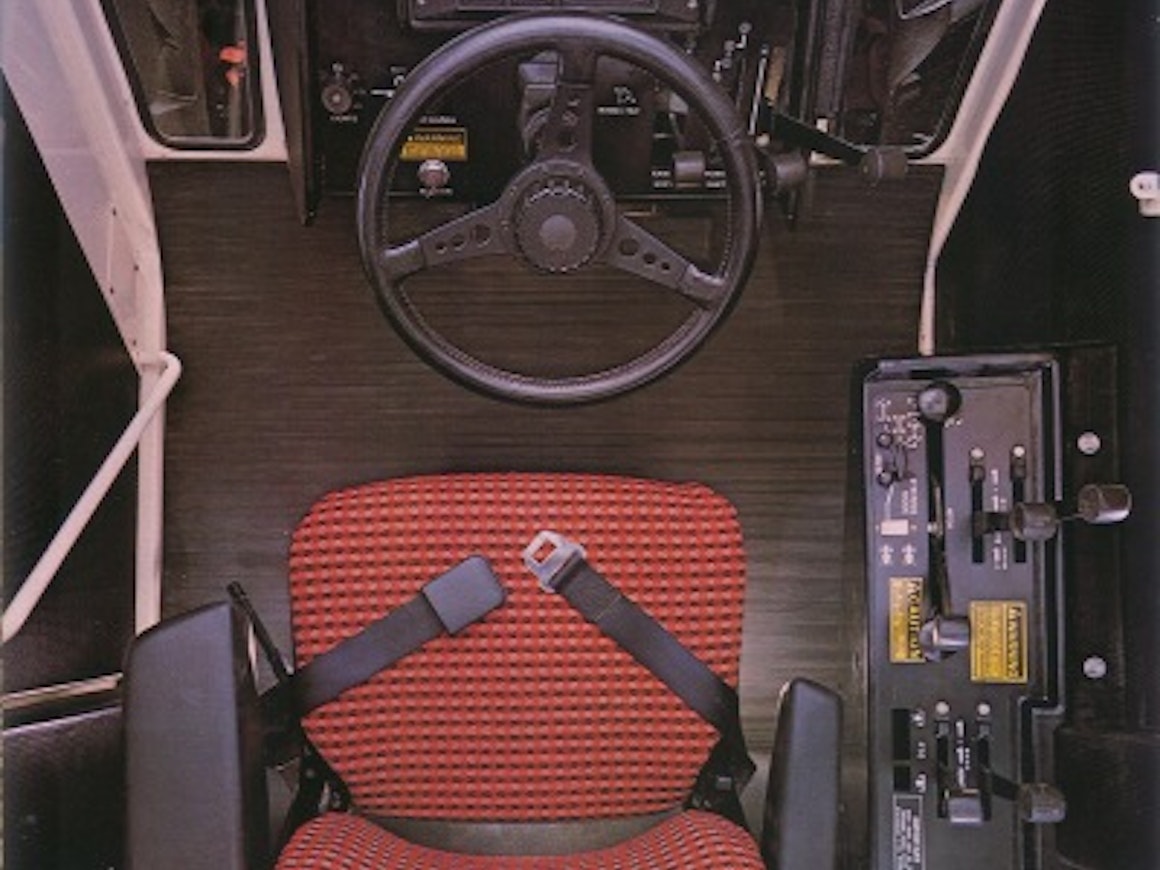

The engines were the same as in the preceding models. The two smaller models had Case’s 8.3-liter engine, and the largest one had Scania’s 11-liter engine. The updated Con Trol hydraulics were equipped with single-lever control.
This is an automated translation. Please report any issues in the translation.

Four-wheel drive models 4490 (194 hp), 4690 (233 hp), and 4890 (273 hp) equipped with four-wheel steering from the 90 series were introduced for the year 1980. Unlike most of their competitors, the Cases were not frame-steered but featured automatically coordinated four-wheel steering. This solution was justified by, among other things, better maneuverability and greater stability on slopes.

The engines were the same as in the preceding models. The two smaller models had Case’s 8.3-liter engine, and the largest one had Scania’s 11-liter engine. The updated Con Trol hydraulics were equipped with single-lever control.

This is an automated translation. Please report any issues in the translation.

Case 4490

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

Case 4890

Case 4490-4890

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Case 4490	Case 4890
Options
Manufacturer name	Case	Case
Imported to Finland	No	No
Years	1979-84	1979-84
First year sold	1979	1979
Last year sold	1984	1984
Engine model	504 BDT	Scania 11L
Cyl/Turbo/Intercooler	6T	6T
Displacement	8259 cm³	11020 cm³
Bore x stroke	117,5×127 mm	127×145 mm
Rated power hp/rpm DIN	210/2200	300/2200
Rated power	210	300
Rated speed	2200	2200
Torque Nm/rpm DIN	-	660/1400
Gears	12+4	12+4
Synchronized gears	12+4	12+4
Powershift gears	3-step	3-step
Speeds in km/h	3,2-28,0	3,2-28,0
Hydr. flow l/min	117/167 l/min	117/167 l/min
Lift controls	mech.	mech.
Lift capacity	4990 kg	5780 kg
PTO speeds	1000	1000
Brakes	dry disc	dry disc
Steering	hydrost.	hydrost.
Turning circle m 4WD	8.84	9.56
Front tyres 4WD	18.4-34	23.1-30
Rear tyres 4WD	18.4-34	23.1-30
Weight 4WD	9450 kg	11680 kg
Length (2WD/4WD)	589 cm	617 cm
Wheelbase (2WD/4WD)	259 cm	279 cm
Fuel tank	484.5 l	568 l
Cab noise level	77.5 dB	78 dB
Solid cab	x	x
Air conditioning	x	x
