Siirry sivupalkkiinSiirry alaosaanClaas Arion 510-640






Here is the translation to English:

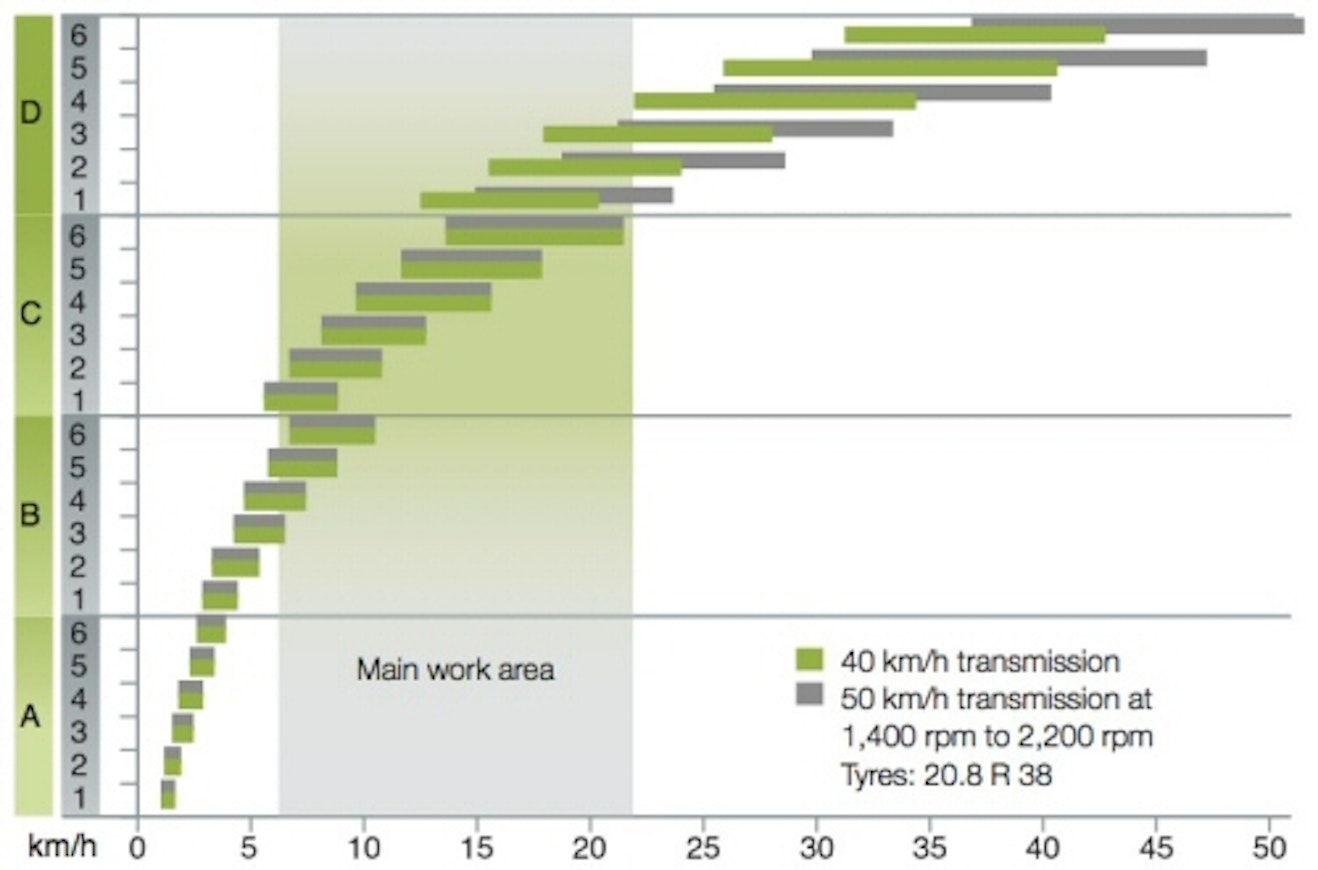

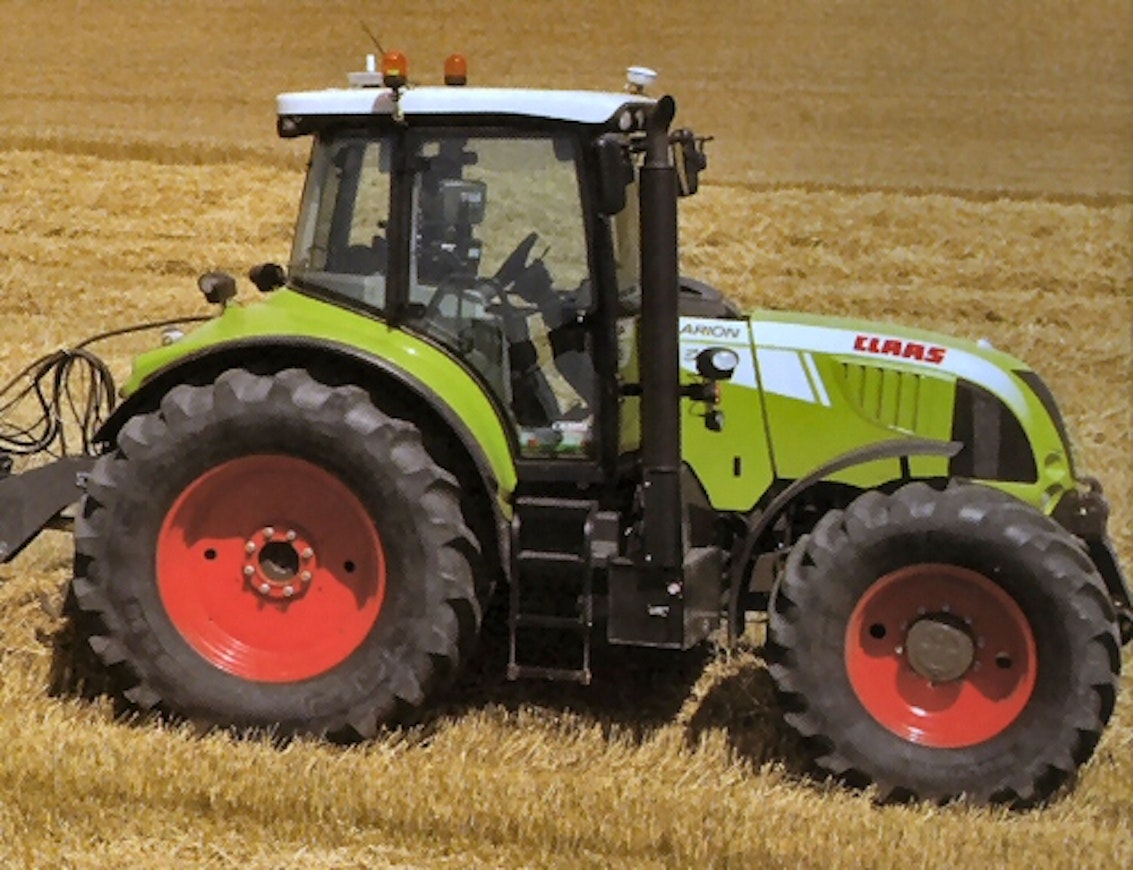

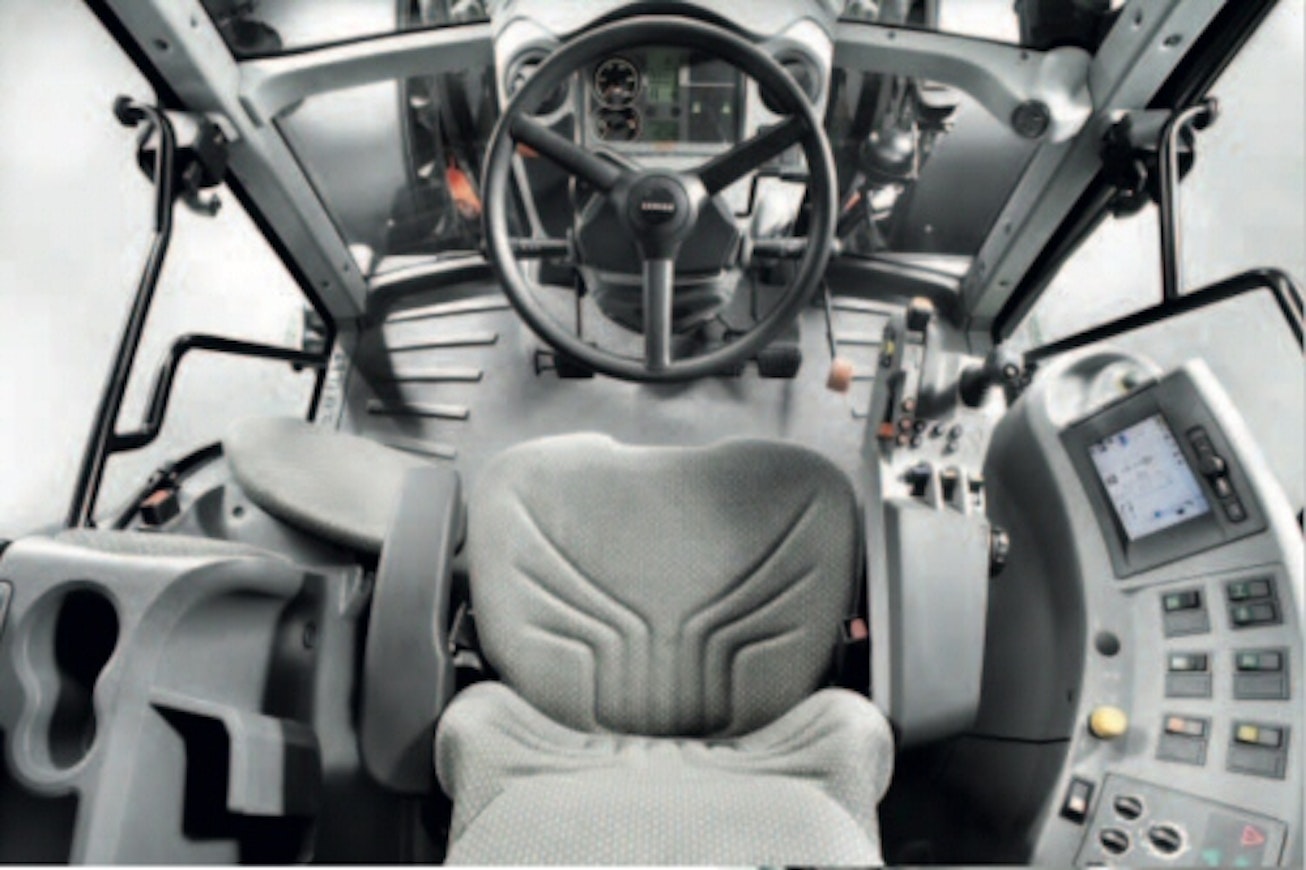

The Ares 500 and 600 series were replaced by the new Arion models in autumn 2007. The engines were still Deere’s 4.5- and 6.8-liter units. The engines featured four-valve technology, common rail injection, variable turbochargers, and exhaust gas recirculation. The Arion 540 and 640 had a power boost feature in transmission ranges C and D (over 8 km/h), or when using hydraulics or the power take-off. The transmission was the Gima Hexashift, which is the same six-step powershift with electronic range selection as the MF's Dyna-6. Options included a 40 km/h maximum speed at reduced revs or a 50 km/h top speed. The four-cylinder models had an open hydraulic system with a 60 l/min pump. For an extra charge, a closed system (110 l/min) was available, which was standard on the six-cylinder models. The cab came standard with conventional coil suspension. Other standard features included a trip computer, automatic four-wheel drive and differential lock control, and air conditioning. Compared to the Ares model, the cab had a redesigned instrument panel and control armrest. The reported noise level was 74 dB.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Arion 510 | Claas Arion 520 | Claas Arion 530 | Claas Arion 540 | Claas Arion 610 | Claas Arion 620 | Claas Arion 630 | Claas Arion 640 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Claas | Claas | Claas | Claas | Claas | Claas | Claas | Claas |
| Imported to Finland | No | No | No | No | No | No | No | No |
| Years | 2007-12 | 2007-12 | 2007-12 | 2007-12 | 2007-12 | 2007-12 | 2007-12 | 2007-12 |
| Engine model | DPS 4045 HRT 80A T3 | DPS 4045 HRT 80B T3 | DPS 4045 HRT 80C T3 | DPS 4045 HRT 81A T3 | DPS 6068 HRT 83D T3 | DPS 6068 HRT 83C T3 | DPS 6068 HRT 83B T3 | DPS 6068 HRT 83A T3 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 4525 cm³ | 4525 cm³ | 4525 cm³ | 4525 cm³ | 6788 cm³ | 6788 cm³ | 6788 cm³ | 6788 cm³ |
| Bore x stroke | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm |
| Rated power | 105/2200 hp DIN/rpm | 115/2200 hp DIN/rpm | 125/2200 hp DIN/rpm | 130/2200 hp DIN/rpm | 115/2200 hp DIN/rpm | 130/2200 hp DIN/rpm | 140/2200 hp DIN/rpm | 150/2200 hp DIN/rpm |
| Max power | 112/2000 hp DIN/rpm | 122/2000 hp DIN/rpm | 128/2000 hp DIN/rpm | 135/2000 hp DIN/rpm | 125/2000 hp DIN/rpm | 135/2000 hp DIN/rpm | 150/2000 hp DIN/rpm | 155/2000 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Synchronized gears | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Powershift gears | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 1,6-40 | 1,6-40/50 | 1,6-40/50 | 1,6-40/50 | 1,6-40/50 | 1,7-40/50 | 1,5-40/50 | 1,6-40/50 |
| Max. speed | 40 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h |
| Hydr. flow l/min | 60 (110) l/min | 60 (110) l/min | 60 (110) l/min | 60 (110) l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 6500 kg | 6500 kg | 6500 kg | 6500 kg | 6500 kg | 6500 kg | 6900 kg | 8000 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.8 | 9 | 9 | 9 | 9.6 | 9.8 | 9.8 | 9.8 |
| Front tyres 4WD | 13.6R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 16.9R28 | 16.9R28 | 16.9R28 |
| Rear tyres 4WD | 16.9R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 20.8R38 | 20.8R38 | 20.8R38 |
| Weight 4WD | 4380 kg | 5470 kg | 5470 kg | 5470 kg | 5720 kg | 5950 kg | 6220 kg | 6260 kg |
| Height with cab | 301 cm | 301 cm | 301 cm | 301 cm | 301 cm | 306 cm | 306 cm | 306 cm |
| Length (2WD/4WD) | 442 cm | 442 cm | 442 cm | 442 cm | 468 cm | 473 cm | 473 cm | 473 cm |
| Wheelbase (2WD/4WD) | 256 cm | 256 cm | 256 cm | 256 cm | 282 cm | 282 cm | 282 cm | 282 cm |
| Fuel tank | 250 l | 250 l | 250 l | 250 l | 330 l | 330 l | 330 l | 330 l |
| Cab noise level | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x |
| Trip computer | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
