Dronningborg D 8900 Jumbo – D 9000 Jumbo / Case IH Dania D 8900 – D 9000

91CaseIH9000ohjaamo
91CaseIH9000
91Daniavision
91CaseIH9000ohjaamo
91CaseIH9000
91Daniavision
Manufacturer
Models
Dronningborg D 8900 Jumbo, Dronningborg D 9000 Jumbo
Years
1987-92
Info

The 6-drum D 9000 Jumbo was introduced in 1987 and was the largest drum threshing combine of its time. The threshing drum width was 168 cm and, unlike other Dronningborg models, the diameter was 60 cm. The 7.4-liter Valmet engine had a power output of either 220 or 240 hp. Working widths ranged from 556 to 677 cm, and the Jumbo could also be equipped with an extended Power Flow header using a belt conveyor.

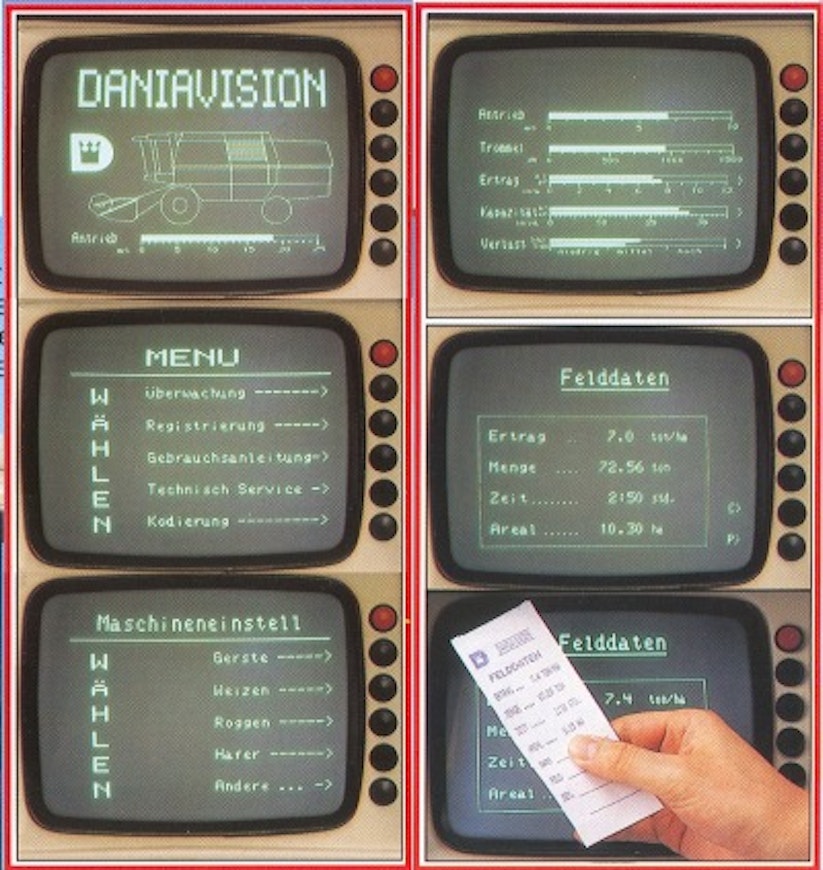

In addition to the Unicontrol functions of the smaller models, the Jumbo featured the Daniavision computer, which provided information on work performance and yield, and included fault diagnostics and an electronic user manual that, for example, guided and recorded daily/50-hour/100-hour/annual maintenance tasks and stored settings saved for different crop types.

In 1990, a smaller 5-drum Jumbo, the D 8900, was introduced alongside it. It was mainly based on the core technology of the 8000 series combines. The threshing drum diameter on the 8900 was also 60 cm, but the width was only 140 cm.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelDronningborg D 8900 JumboDronningborg D 9000 Jumbo
Imported to FinlandYesYes
Years1990-921987-92
EngineValmetValmet
Engine type612 DSL612 DSJL
Displacement7400 cm³7400 cm³
Cyl/turbo6T6TI
Power200 hp DIN240 hp DIN
Fuel tank400 l400 l
Transmissionhydr.hydr.
Gears33
Speed min-max.0-25,5 km/h0-26,0 km/h
Cutting width495 cm556 cm
Cutting width, alternative556 cm616, 677 cm
Reel diameter100 cm100 cm
Header length44 (89) cm44 (89) cm
Threshing cyl. diameter60 cm60 cm
Threshing cyl. width140 cm168 cm
Number of straw walkers56
Area of walkers613 dm²740 dm²
Lenght of walkers438 cm440 cm
Straw shieve260 dm²295 dm²
Bottom shieve190 dm²235 dm²
Total screening area450530
Overall lenght996 cm1005 cm
Overall width547 cm608 cm
Width without header339 cm374 cm
Height with cabin384 cm400 cm
Weight with cabin11200 kg12900 kg
Grain tank60 hl74 hl
Unl. height430 cm430 cm
Tyres front (Finland)28L2630.5-32
Tyres front, alternative23.1-2677×44-32
Tyres rear (Finland)400/55-225500/60-22.5
Tyres rear, alternative12.5/80-18600/50-22.5
Reel forward/backw. adjustmenthydr.hydr.
Reel speed adjustmenthydr.hydr.
Threshing cyl. speed adjustmentelec.elec.
Bottom sieveadj.adj.
Brakeswet discwet disc
Reverserxx
Air conditioningxx
Heatingxx
Floating cutting platformxx
Autom. control of cutting heightxx
Type of cutting platform floatinggas dampergas damper
Alternative hp-220 hp
