Dronningborg D 7000 – D 7800 / Case IH Dania D 7200 – D 7500

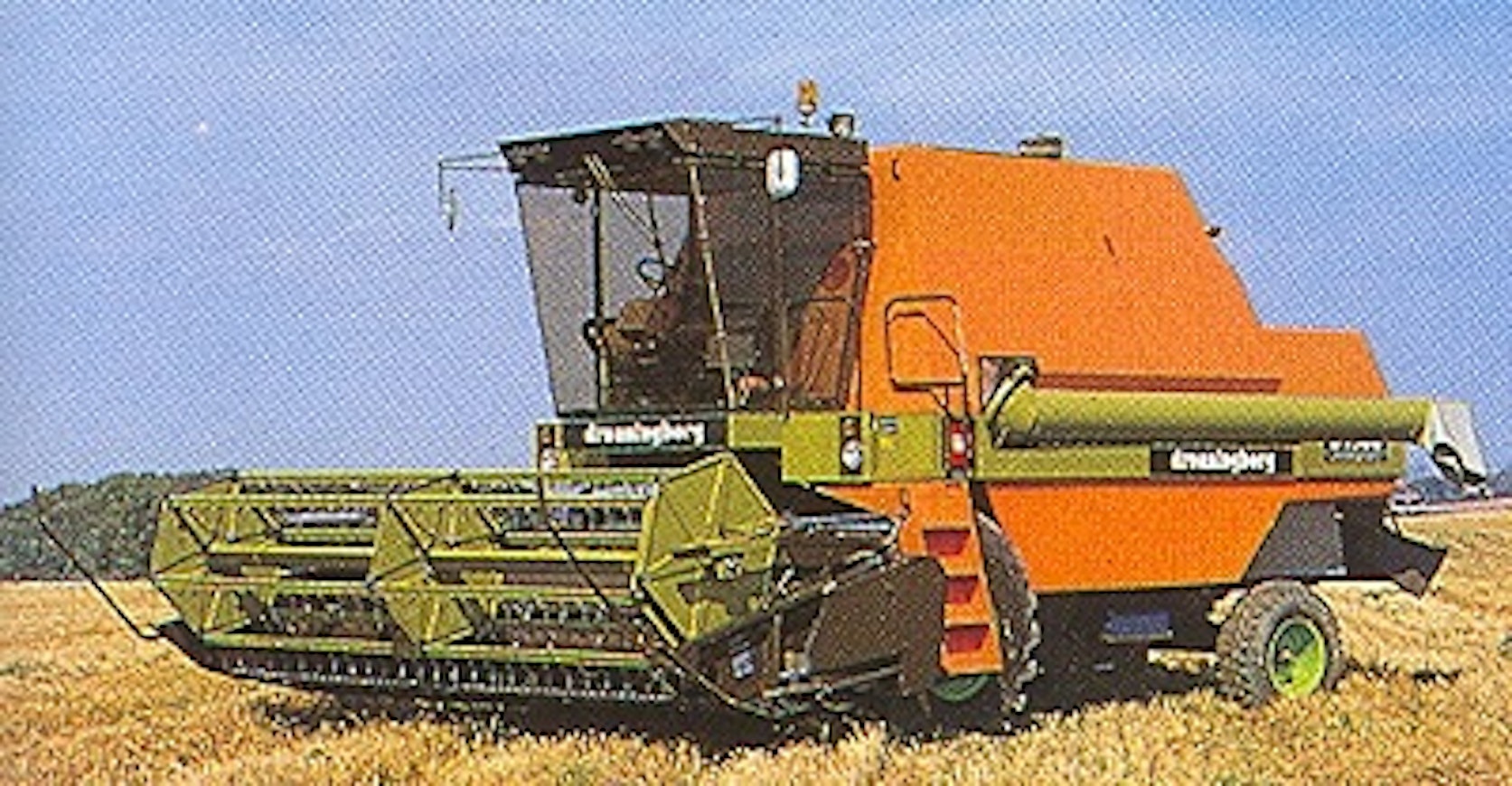

85Dronningborg7500

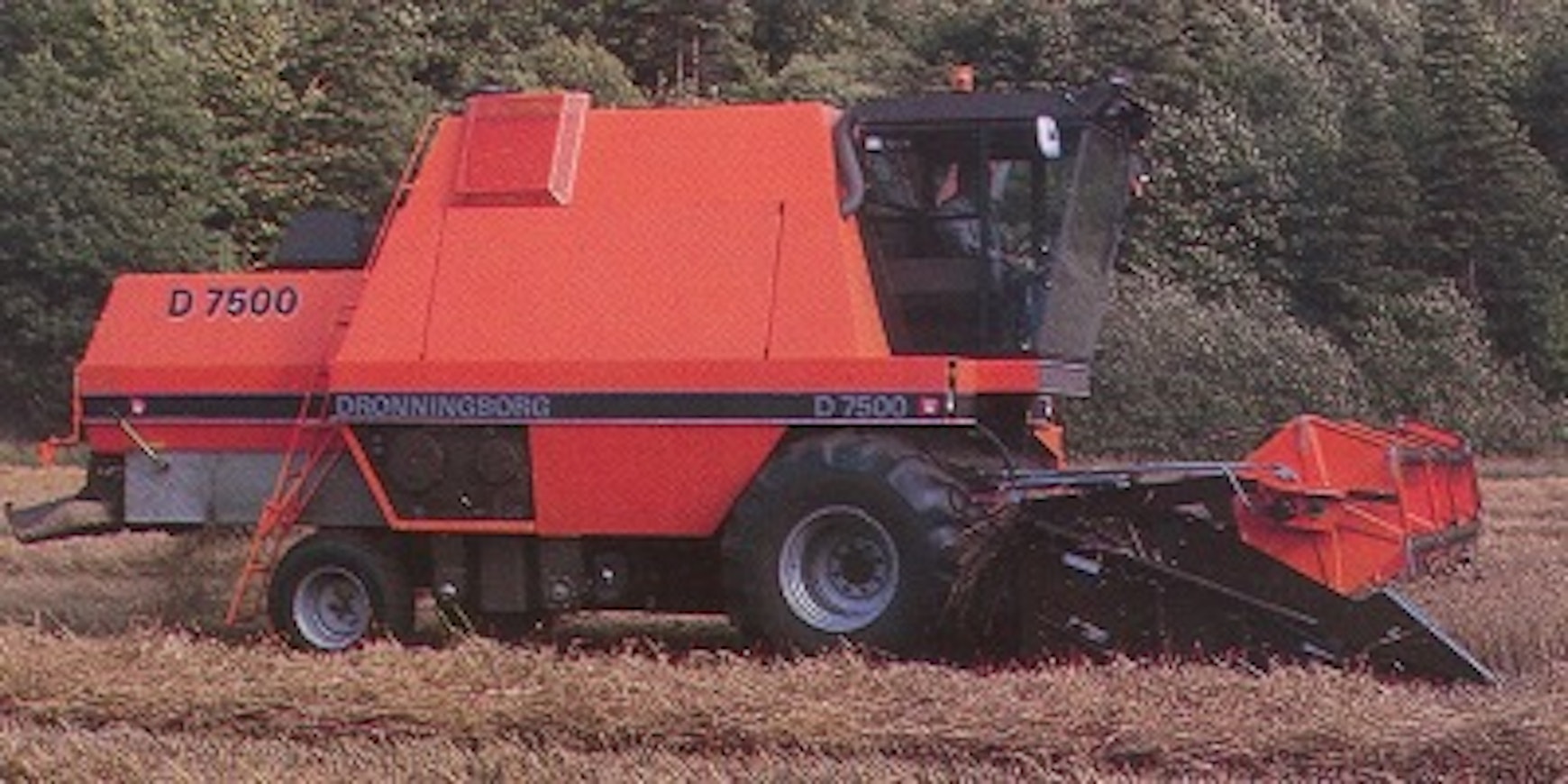

90Dronningborg7500

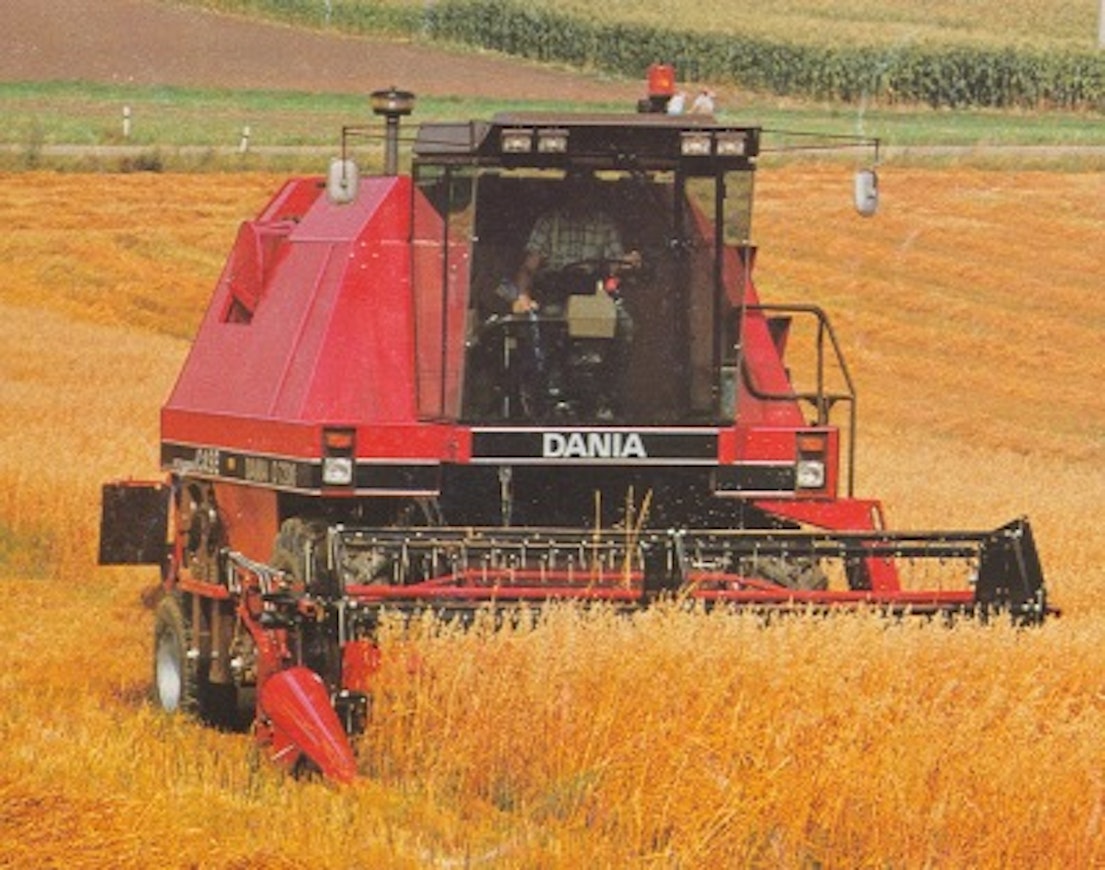

89CaseIH7200

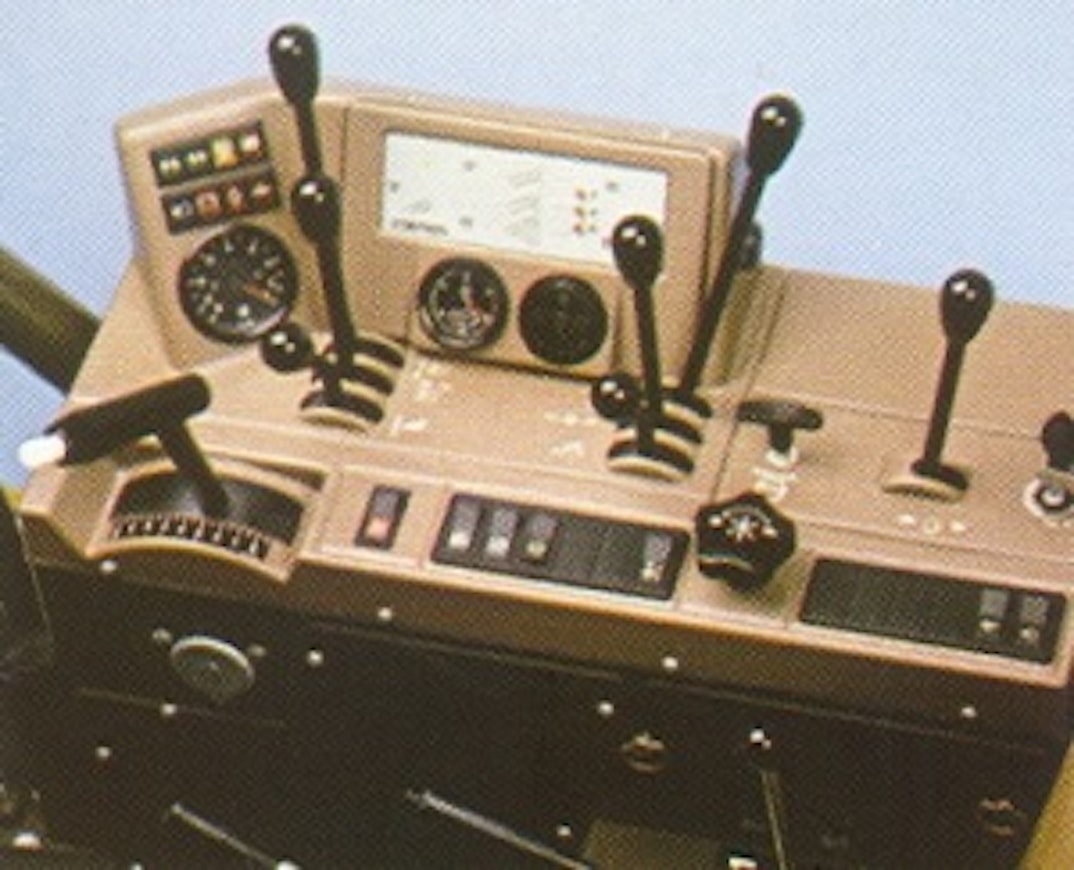

89CaseIH7200ohjaamo
85Dronningborg7500
90Dronningborg7500
89CaseIH7200
89CaseIH7200ohjaamo
Manufacturer
Models
Dronningborg D 7000, Dronningborg D 7000 S, Dronningborg D 7200, Dronningborg D 7500, Dronningborg D 7500, Dronningborg D 7800
Years
1980-92
Info

The Dronningborg D 7000, introduced in 1980, had a 12-14 foot cutting platform and a 105-120 hp engine. Considering these specifications, its threshing system was quite robust. The threshing cylinder width was 140 cm. The threshing system featured a replaceable cylindrical sieve and a fan-based after-cleaning mechanism that cleaned the grain before it reached the grain tank. Like other new Dronningborg models, the cab was positioned on the combine's centerline. Unlike the smaller models, the sieves were adjustable and the unloading auger joint was sealed. The speed of the threshing cylinder was hydraulically controlled.

As an optional accessory, a Power Flow cutting platform was available, which included a belt conveyor between the blade and the feed auger, improving feed consistency and making it easier to harvest tall crops. The electronic monitoring systems were more comprehensive than those on smaller models, and additionally, the D-Control system—later named Unicontrol—was available as an option. This was the most versatile combine computer of its time. The Unicontrol system displayed, among other things, the harvested surface area, threshing time, instantaneous driving speed, rotational speeds of eight axles, as well as alarms for rotational speeds and fluid levels and temperatures of the engine and hydraulics. Furthermore, the system could be expanded with a loss meter and a threshing power/yield meter.

In 1984, Dronningborg introduced new models under both the MF (Massey Ferguson) brand and its own name. The D 7200 and D 7500 models were equipped with Valmet engines—unlike the MF models—and featured larger concaves and grain tanks compared to the D 7000. In 1990, the D 7800 was introduced, and the D 7500 also grew in size, including its concaves and sieves. These models had hydrostatic transmissions, available in both two- and three-speed versions. Starting in 1987, combines were also sold in some countries under the Case IH brand. In 1990, the color of the Dronningborg models changed to a more reddish tone. From 1992 onwards, combines were produced solely under the MF brand, and the Dronningborg brand went into history.

Among the Dronningborg models imported to Finland, the D 7200 was the most popular and came standard with reverse rotation and an electric clutch for the threshing mechanism. Most of the combines also featured Unicontrol, which was a standard feature on the more powerful D 7500.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelDronningborg D 7000Dronningborg D 7000 SDronningborg D 7200Dronningborg D 7500Dronningborg D 7500Dronningborg D 7800
Imported to FinlandNoNoYesYesYesNo
Years1980-901980-901984-921984-901990-921990-92
EnginePerkinsPerkinsValmetValmetValmetValmet
Engine typeA6.354.4A6.354.4611 DL611 DSL620 DSL620 DSL
Displacement5797 cm³5797 cm³6600 cm³6600 cm³6600 cm³6600 cm³
Cyl/turbo66T6T6T6T6T
Power105 hp DIN120 hp DIN130 hp DIN148/154 hp DIN150 hp DIN150 hp DIN
Fuel tank200 l250 l200/280 l280 l350 l400 l
Transmissionhydr.hydr.hydr.hydr.hydr.hydr.
Gears222/32/333
Speed min-max.0-20 km/h0-20 km/h0-20 km/h0-20 km/h0-24,7 km/h0-24,7 km/h
Cutting width372 cm372 cm372 cm434 cm433 cm433 cm
Cutting width, alternative434 cm434 cm434 cm495 cm494 cm494 cm
Reel diameter100 cm100 cm100 cm100 cm100 cm100 cm
Header length44 (89) cm44 (89) cm44 (89) cm44 (89) cm44 (89) cm44 (89) cm
Threshing cyl. diameter45 cm45 cm45 cm45 cm45 cm45 cm
Threshing cyl. width140 cm140 cm140 cm140 cm140 cm140 cm
Number of straw walkers555555
Area of walkers520 dm²520 dm²540 dm²540 dm²613 dm²613 dm²
Lenght of walkers370 cm370 cm386 cm386 cm438 cm438 cm
Straw shieve180 dm²180 dm²180 dm²209 dm²260 dm²260 dm²
Bottom shieve140 dm²140 dm²140 dm²161 dm²190 dm²190 dm²
Total screening area320320320370450450
Overall lenght917 cm917 cm917 cm917 cm996 cm1078 cm
Overall width427 cm427 cm427 cm486 cm486 cm486 cm
Width without header300 cm300 cm300 cm320 cm320 cm320 cm
Height without cabin303 cm303 cm----
Height with cabin353 cm353 cm390 cm380 cm395 cm395 cm
Weight without cabin6674 kg7154 kg8160 kg8630 kg--
Weight with cabin6918 kg7398 kg8400 kg8870 kg10300 kg10300 kg
Grain tank34 hl34 hl42 hl52 hl52 hl52 hl
Unl. height318 cm341 cm370 cm370 cm370 cm370 cm
Tyres front (Finland)18.4-2623.1-2623.1R2628L-2628L-2628L-26
Tyres rear (Finland)11.5/80-1512.5/80-1812.5/80-18400/50-22.5400/50-22.5400/50-22.5
Reel forward/backw. adjustmenthydr.hydr.hydr.hydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.hydr.hydr.hydr.
Threshing cyl. speed adjustmentadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabin
Bottom sieveadj.adj.adj.adj.adj.adj.
Brakesmech. drummech. drummech. drumwet discwet discwet disc
Heatingxxxxxx
Floating cutting platformxxxxxx
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas dampergas damper
Tyres front, alternative--18.4-3023.1-2623.1-2623.1-26
Alternative hp---Perkins T6.354.4CC hp--
Tyres rear, alternative---12.5/80-1812.5/80-1812.5/80-18
Reverser---xxx
Air conditioning-----x
