Siirry sivupalkkiinSiirry alaosaanDronningborg D 3000 – D 4500 / Case IH Dania D 3000 – D 4500

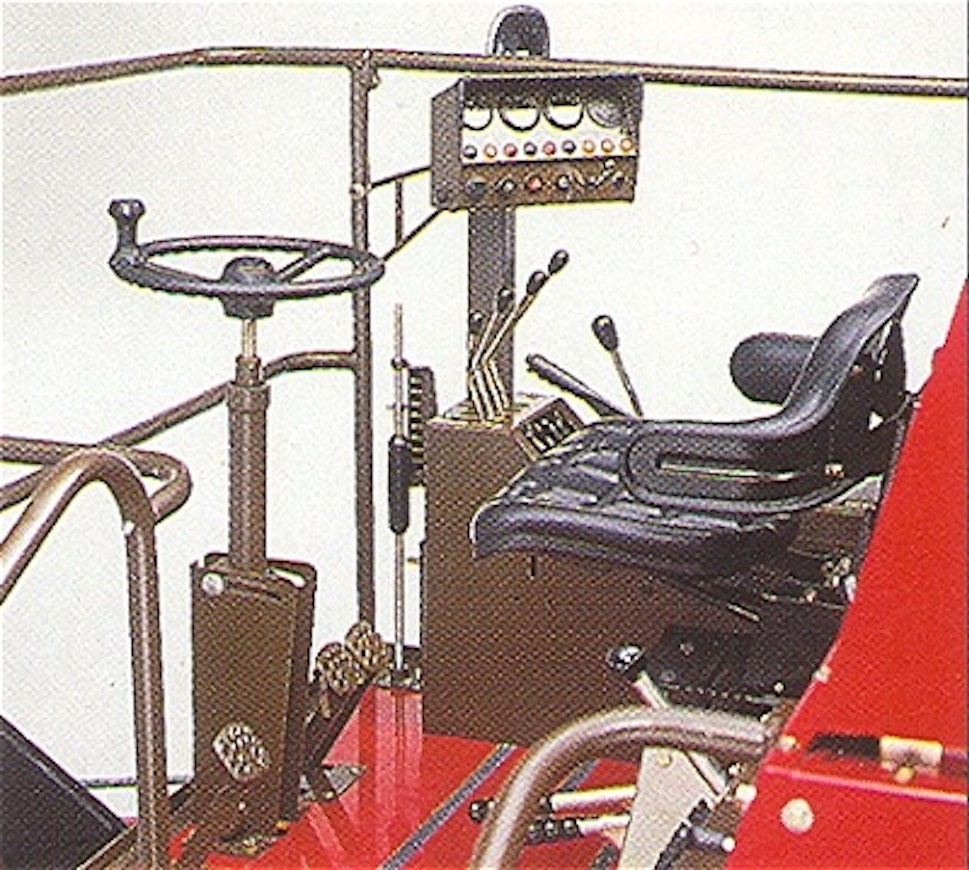

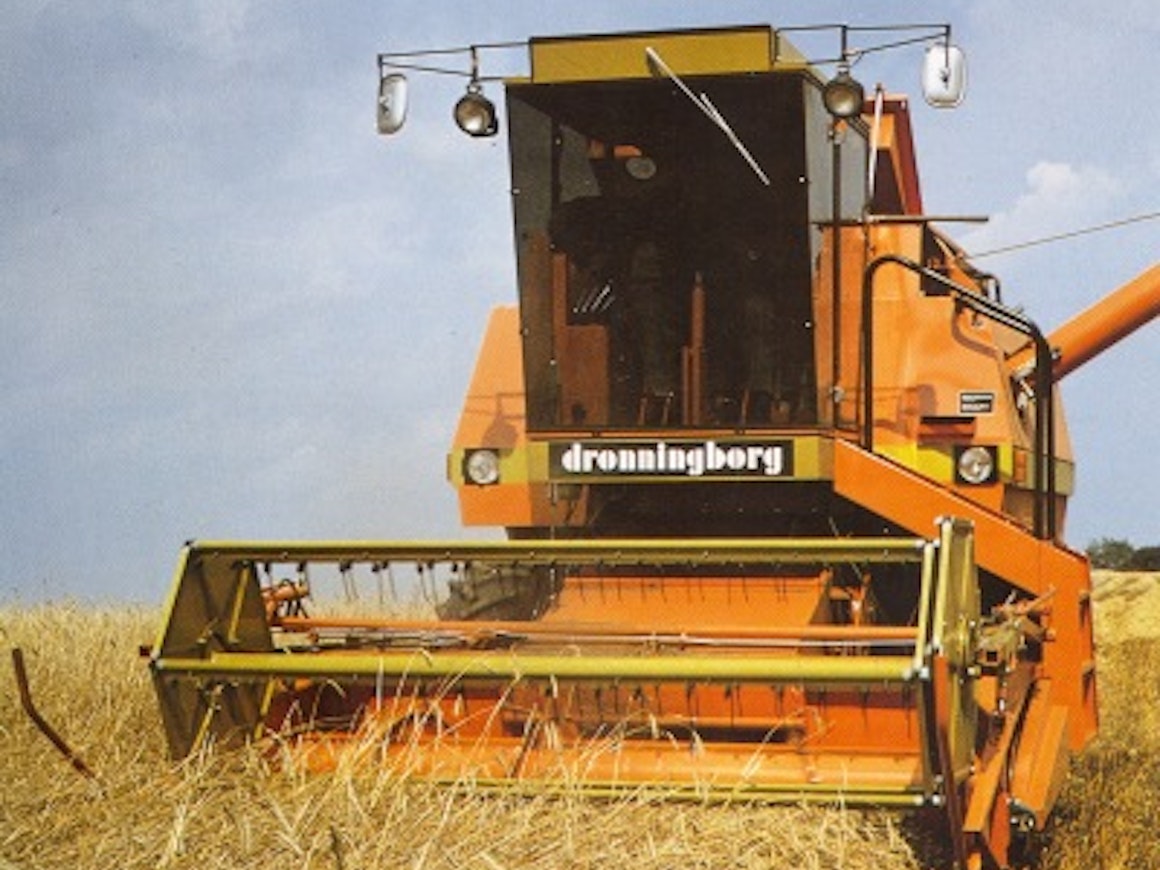

In 1979, entirely new models, the D 3000 and D 4000, were introduced in the 9-12 foot size category. Compared to the previous mid-range models, the threshing bars and sieves were shorter, especially the 2.7-meter threshing bars of the D 3000, which were short. The D 4000 and the D 3000 S model introduced a couple of years later featured a hydrostatic drive system. The operator's seat had been moved to the centerline of the machine, but the hinge structure of the unloading auger was still open, and the auger's rotation was manually operated. The grain lifter drum was hydraulically driven, similar to Dronningborg’s design. The grain sieve was fixed or adjustable as an optional accessory, and the seed sieves were interchangeable. The combine harvester was equipped with an after-cleaning drum.

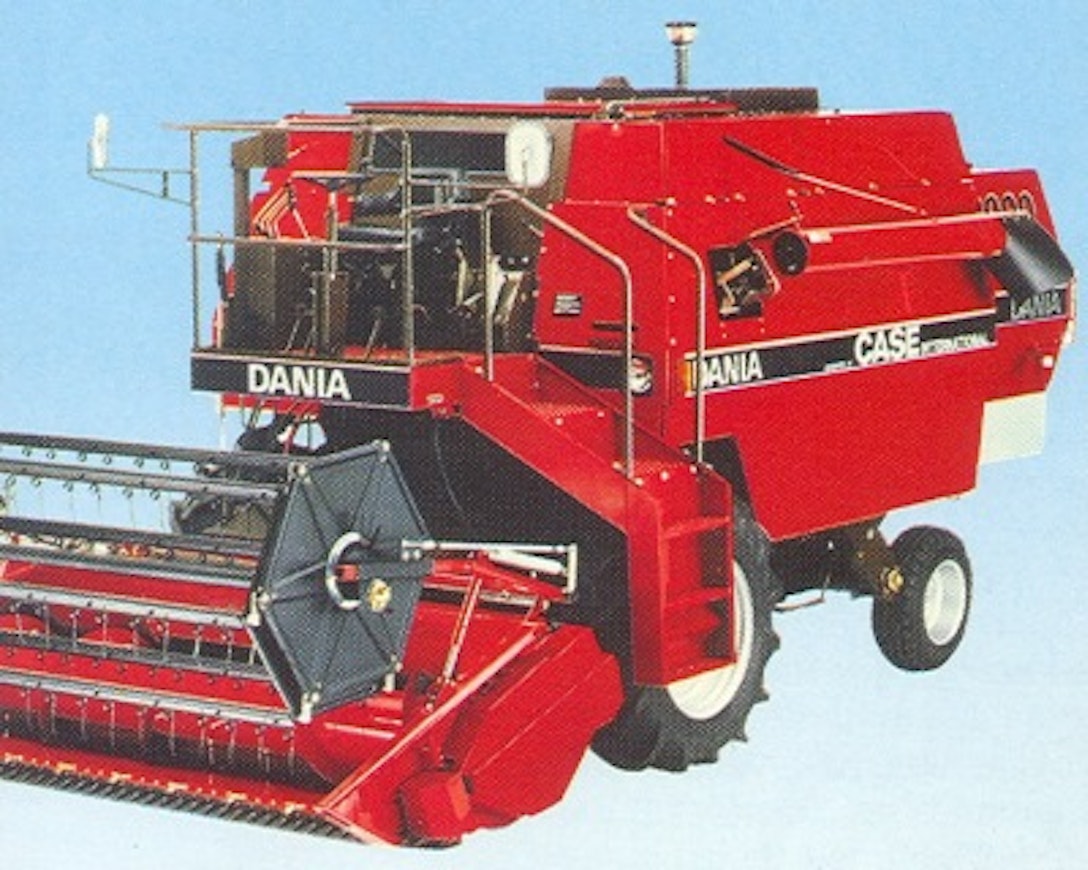

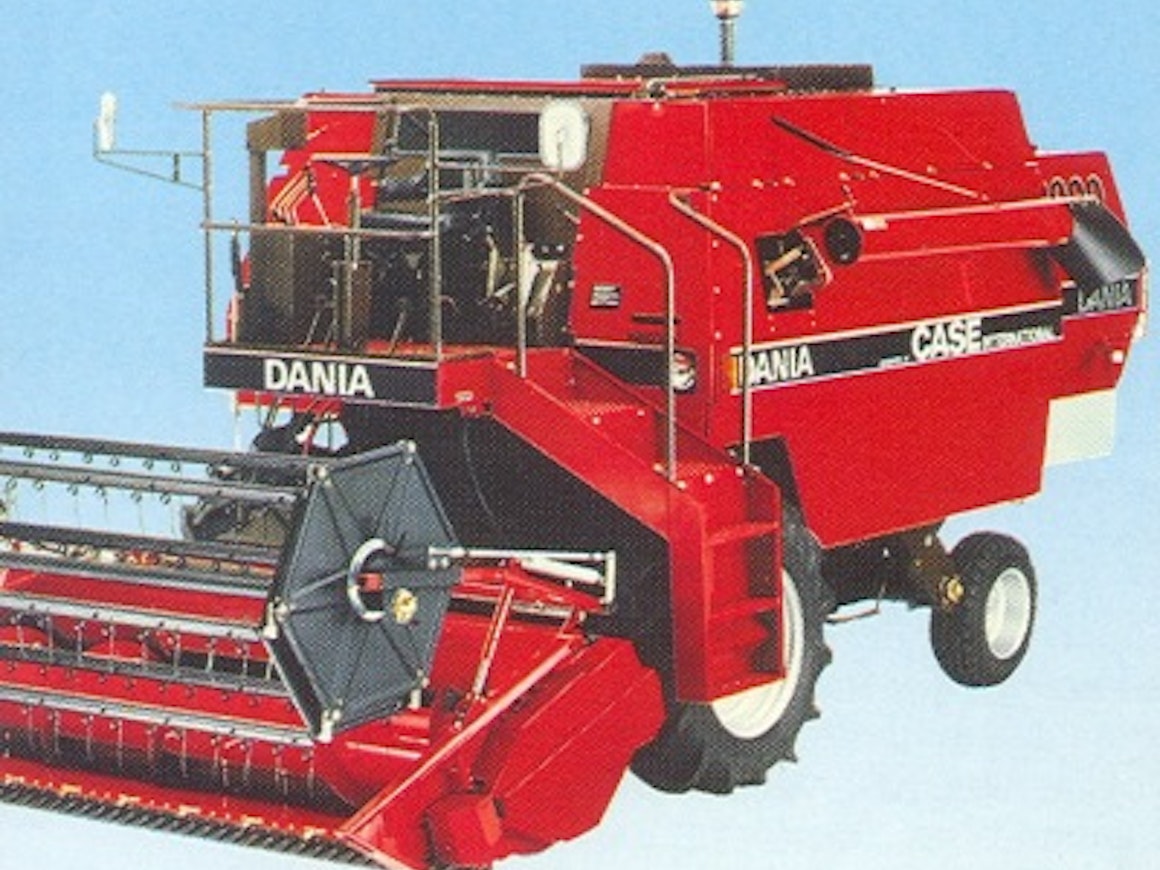

Later on, the Perkins engines were replaced with Valmet machines. MF did not manufacture combines this small, but in 1987, Dronningborg made a deal with Case IH, and the D 3000 and D 4500 were sold, for example in Germany and France, under the Case IH Dania brand. Earlier, at least in the Netherlands, the Dania brand had been used for Dronningborg, which was the name of the group owning Dronningborg and, among others, Kongskilde.
At the top of the small model range, in 1985, came the D 4500, which differed from the D 4000 by having a larger sieve and a bigger grain tank. The seed sieve was adjustable, and the unloading pipe could be hydraulically rotated, but remained open. Later, the D 4500 was also available with a 6-cylinder engine.
This is an automated translation. Please report any issues in the translation.
| Model | Dronningborg D 3000 | Dronningborg D 3000 | Dronningborg D 3000 | Dronningborg D 3000 S | Dronningborg D 4000 | Dronningborg D 4000 | Dronningborg D 4000 S | Dronningborg D 4500 |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | Yes | No | No | No | Yes | Yes |
| Years | 1979-? | ?-88 | 1988-90 | 1981-? | 1979-? | ?-85 | 1981-90 | 1985-90 |
| Engine | Perkins | Valmet | Valmet | Perkins | Perkins | Valmet | Valmet | Valmet |
| Engine type | 4.236 | 311 D | 311 DSL | 4.236 | - | 411 DL | 411 DL | 411 DSL |
| Displacement | 3860 cm³ | 3300 cm³ | 3300 cm³ | 3860 cm³ | - | 4400 cm³ | 4400 cm³ | 4400 cm³ |
| Cyl/turbo | 4 | 3 | 3T | 4 | 4 | 4T | 4T | 4T |
| Power | 66 hp DIN | 66 hp DIN | 75 hp DIN | 74 hp DIN | 82 hp DIN | 85 hp DIN | 95 hp DIN | 101 hp DIN |
| Fuel tank | 100 l | 140 l | 140 l | 150 l | 150 l | 140 l | 140 l | 180 l |
| Transmission | mech. | mech. | mech. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,2-22 km/h | 1,2-22 km/h | 1,2-22 km/h | 0-22 km/h | 0-22 km/h | 0-22 km/h | 0-22 km/h | 0-22 km/h |
| Cutting width | 280 cm | 280 cm | 280 cm | 280 cm | 326 cm | 326 cm | 372 cm | 372 cm |
| Reel diameter | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm |
| Header length | 46 cm | 46 cm | 46 cm | 46 cm | 46 cm | 46 cm | 46 cm | 46 cm |
| Threshing cyl. diameter | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm |
| Threshing cyl. width | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Area of walkers | 300 dm² | 320 dm² | 320 dm² | 300 dm² | 420 dm² | 420 dm² | 420/430 dm² | 430 dm² |
| Lenght of walkers | 270 cm | 286 cm | 286 cm | 270 cm | 373 cm | 373 cm | 373/383 cm | 383 cm |
| Straw shieve | 130 dm² | 140 dm² | 140 dm² | 130 dm² | 130 dm² | 130 dm² | 130/140 dm² | 157 dm² |
| Bottom shieve | 100 dm² | 100 dm² | 100 dm² | 100 dm² | 100 dm² | 100 dm² | 100 dm² | 132 dm² |
| Total screening area | 230 | 240 | 240 | 230 | 230 | 230 | 230/240 | 290 |
| Overall lenght | 716 cm | 716 cm | 716 cm | 716 cm | 835 cm | 835 cm | 835 cm | 930 cm |
| Overall width | 330 cm | 330 cm | 330 cm | 328 cm | 372 cm | 372 cm | 418 cm | 418 cm |
| Width without header | 283 cm | 283 cm | 283 cm | 283 cm | 295 cm | 295 cm | 295 cm | 295 cm |
| Height without cabin | 323 cm | 323 cm | 323 cm | 323 cm | 317 cm | 317 cm | 317 cm | - |
| Height with cabin | 333 cm | 333 cm | 333 cm | 333 cm | 344 cm | 344 cm | 344 cm | 346 cm |
| Weight without cabin | 5020 kg | - | - | 5170 kg | 5830 kg | 5830 kg | 5990 kg | - |
| Weight with cabin | 5260 kg | 5480 kg | 5480 kg | 5410 kg | 6070 kg | 6070 kg | 6230 kg | 6430 kg |
| Grain tank | 20 hl | 20 hl | 20 hl | 20 hl | 26 hl | 26 hl | 26 hl | 32 hl |
| Unl. height | 300 cm | 300 cm | 300 cm | 300 cm | 337 cm | 337 cm | 337 cm | 337 cm |
| Tyres front (Finland) | 14.9-26 | 14.9-26 | 14.9-26 | 16.9-26 | 16.9-26 | 16.9-26 | 18.4-26 | 18.4-26 |
| Tyres front, alternative | 16.9-26 | 16.9-26 | 16.9-26 | - | 18.4-26 | 18.4-26 | - | 18.4-30 |
| Tyres rear (Finland) | 10.0/75-15 | 10.0/75-15 | 10.0/75-15 | 10.0/75-15 | 11.5/80-15 | 11.5/80-15 | 11.5/80-15 | 11.5/80-15 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | converter | converter | converter | converter | converter | converter | converter | converter |
| Bottom sieve | convertible | convertible | convertible | convertible | convertible | convertible | convertible | adj. |
| Brakes | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc |
| Heating | x | x | x | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Cutting width, alternative | - | 326 cm | 326 cm | 326 cm | 372 cm | 372 cm | 326 cm | 326 cm |
| Tyres rear, alternative | - | - | - | - | 10.0/75-15 | 10.0/75-16 | 10.0/75-15 | 14.0/65-16 |
| Alternative hp | - | - | - | - | - | - | - | 101/6 syl. hp |
