Siirry sivupalkkiinSiirry alaosaanDronningborg D 8000 – D 8700 / Case IH Dania D 8500






Manufacturer
Models

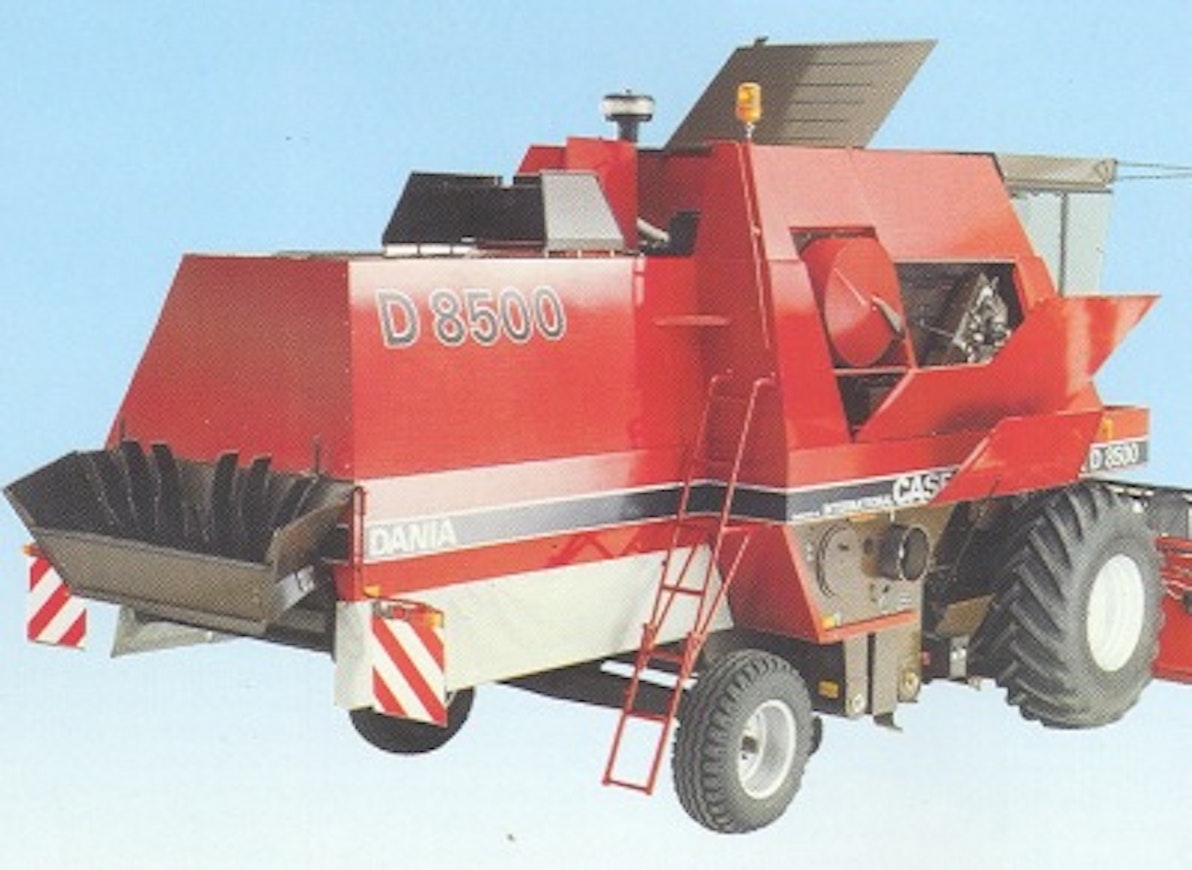

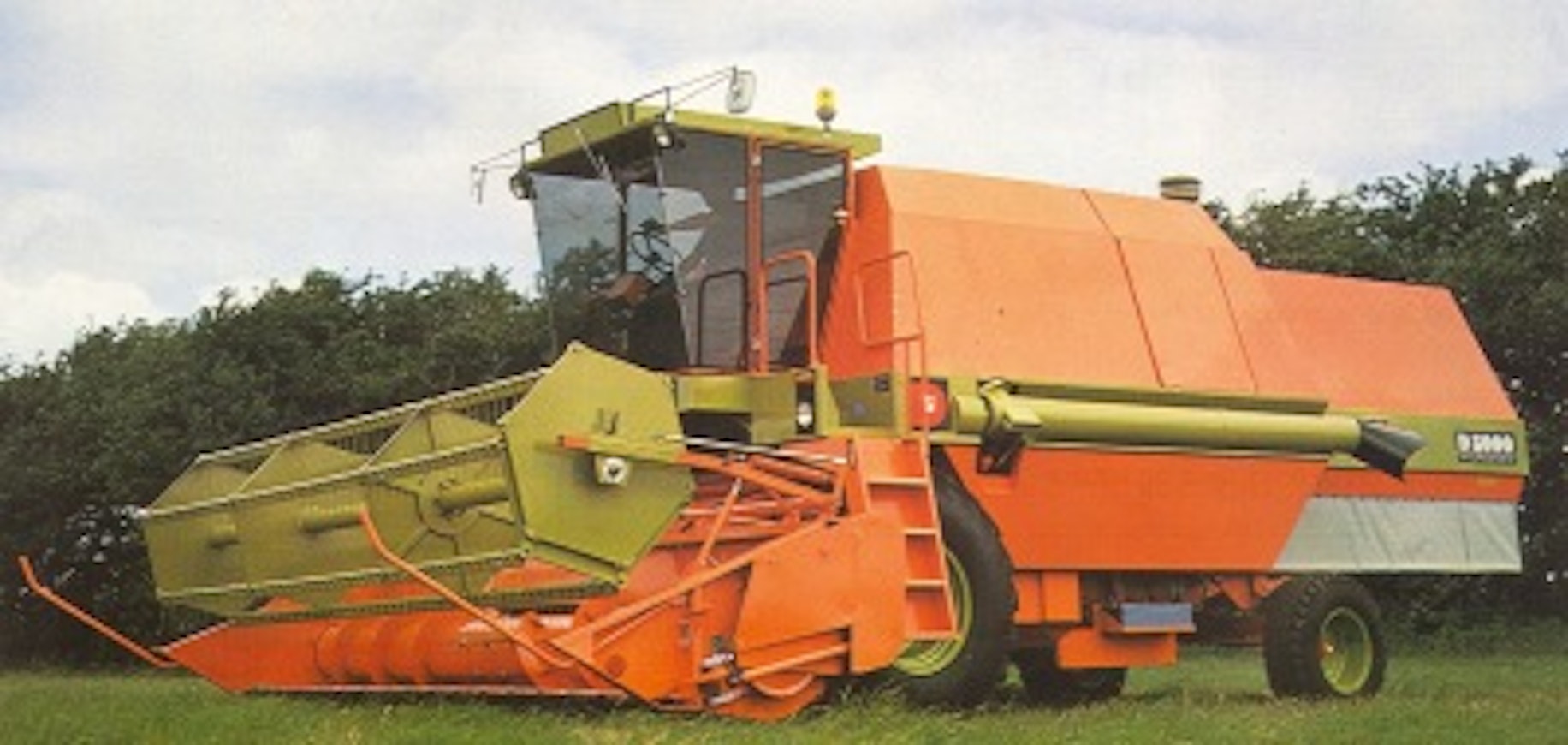

Dronningborg D 8000, Dronningborg D 8000 S, Dronningborg D 8500
Years
1979-92
Info
The Dronningborg D 8000 model had only minor differences compared to the D 7000 model introduced at the same time: a more powerful engine, a larger sieve, and longer coulters. In the mid-1980s, the D 8000 was replaced by the D 7200 and D 7500 models, which had roughly similar technical specifications, as well as the more powerful D 8500, which featured a larger sieve, a 170 hp Valmet engine (as opposed to the comparable MF 31), and the Unicontrol monitoring system as standard equipment. Early 1990s models included the D 8400 and D 8700. Production under the Dronningborg name ended in 1992.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Dronningborg D 8000 | Dronningborg D 8000 S | Dronningborg D 8500 |
|---|---|---|---|
| Imported to Finland | No | No | No |
| Years | 1979-83 | 1981-85 | 1985-92 |
| Engine | Perkins | Perkins | Valmet |
| Engine type | T6.354.4 | T6.354.4CC | 611 DSL |
| Displacement | 5797 cm³ | 5797 cm³ | 6600 cm³ |
| Cyl/turbo | 6T | 6T | 6T |
| Power | 136 hp DIN | 153 hp DIN | 170 hp DIN |
| Fuel tank | 250 l | 280 l | 280 l |
| Transmission | hydr. | hydr. | hydr. |
| Gears | 2 | 2 | 2 |
| Speed min-max. | 0-22 km/h | 0-20 km/h | 0-20 km/h |
| Cutting width | 495 cm | 495 cm | 495 cm |
| Cutting width, alternative | 556, 434 cm | 556, 434 cm | 556, 434 cm |
| Reel diameter | 100 cm | 100 cm | 100 cm |
| Header length | 44 cm | 44 cm | 44 cm |
| Threshing cyl. diameter | 45 cm | 45 cm | 45 cm |
| Threshing cyl. width | 140 cm | 140 cm | 140 cm |
| Number of straw walkers | 5 | 5 | 5 |
| Area of walkers | 610 dm² | 630 dm² | 630 dm² |
| Lenght of walkers | 436 cm | 436 cm | 436 cm |
| Straw shieve | 206 dm² | 206 dm² | 232 dm² |
| Bottom shieve | 164 dm² | 164 dm² | 178 dm² |
| Total screening area | 370 | 370 | 410 |
| Overall lenght | 984 cm | 984 cm | 1034 cm |
| Overall width | 547 cm | 547 cm | 547 cm |
| Width without header | 320 cm | 320 cm | 320 cm |
| Height with cabin | 372 cm | 372 cm | 390 cm |
| Weight with cabin | 8000 kg | 8535 kg | 9360 kg |
| Grain tank | 42 hl | 52 hl | 52 hl |
| Unl. height | 313/341 cm | 370 cm | 370 cm |
| Tyres front (Finland) | 23.1-26 | 23.1-26 | 23.1-26 |
| Tyres rear (Finland) | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. |
| Brakes | mech. | mech. | wet disc |
| Reverser | x | x | x |
| Heating | x | x | x |
| Floating cutting platform | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper |
| Alternative hp | - | - | Perkins T6.354.4CC hp |
| Tyres front, alternative | - | - | 28L26 |
| Air conditioning | - | - | x |
