Dronningborg D 3600 – D 4500 / Case IH Dania D 4500

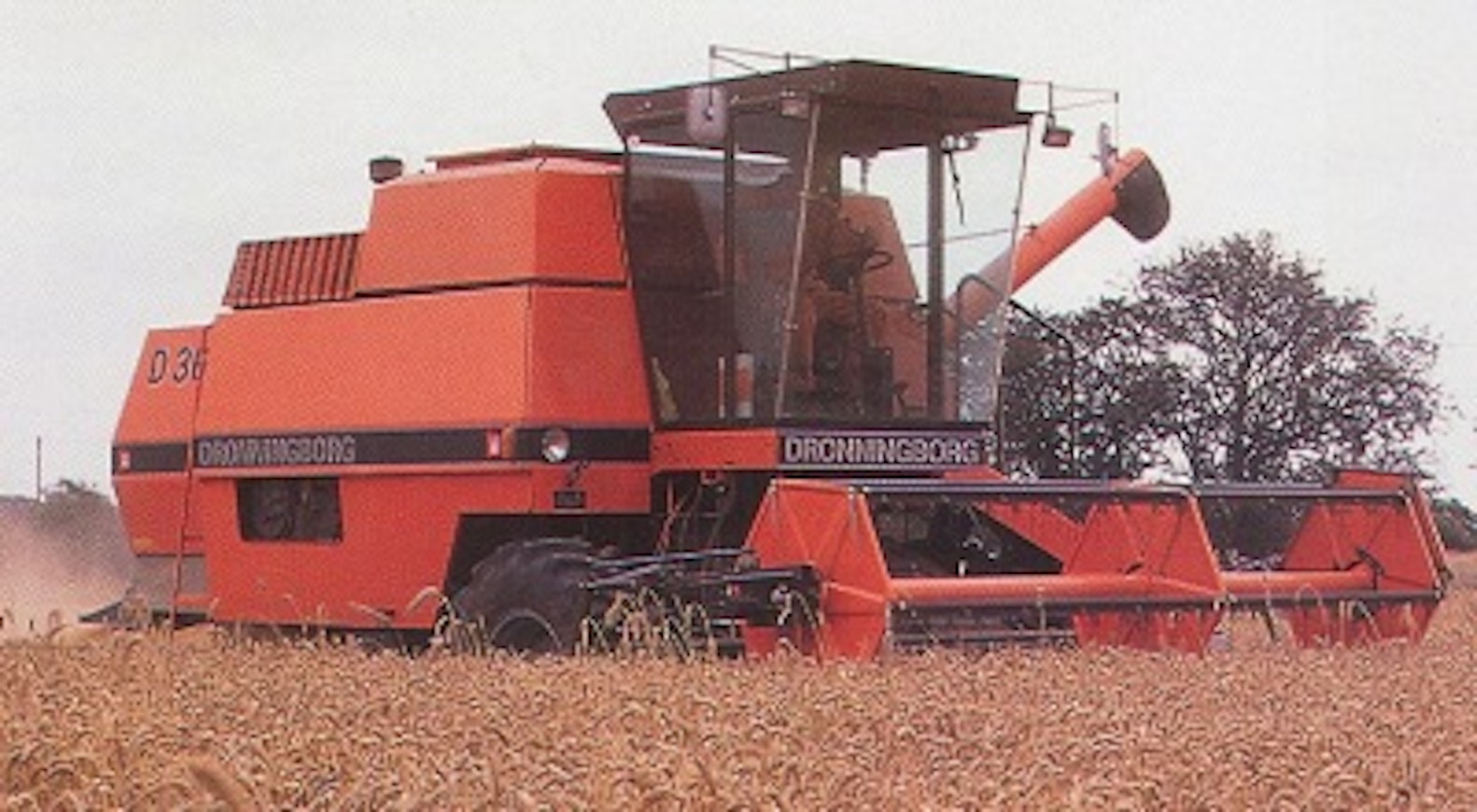

90Dronningborg3600

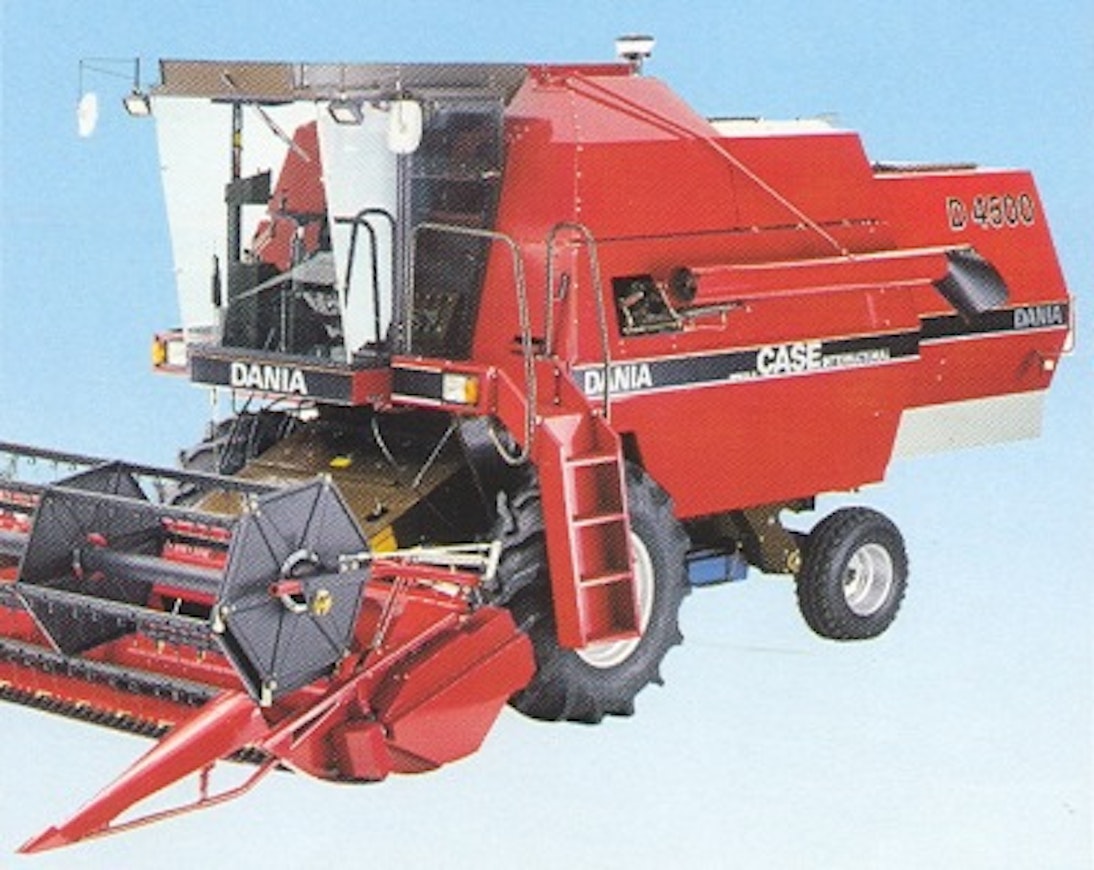

90CaseIH4500
90Dronningborg3600
90CaseIH4500
Manufacturer
Models
Dronningborg D 3600, Dronningborg D 3800, Dronningborg D 4500
Years
1990-94
Info

In 1990 Dronningborg updated its models, and at the same time they began importing them into Finland. The D 3000 became the D 3600 and the D 3000 S became the D 3800. The most important difference was a larger grain tank. The color changed to a darker orange and the decorative stripes to black. The D 3600 was equipped with a mechanical drivetrain and a 3-cylinder engine, while the D 3800 had a hydrostatic drive and a 4-cylinder engine. In some countries these models were also sold in Massey Ferguson colors under the model designation 21 and 21 H.

The D 4500 had previously been available with either a 4- or 6-cylinder engine; now it was always fitted with a 6-cylinder engine. The equivalent combine in the MF lineup was the MF 24.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelDronningborg D 3600Dronningborg D 3800Dronningborg D 4500
Imported to FinlandYesYesYes
Years1990-941990-941990-94
EngineValmetValmetPerkins
Engine type311 DSL411 DL6.354.4
Displacement3300 cm³4400 cm³5797 cm³
Cyl/turbo3T4T6
Power75 hp DIN85 hp DIN106 hp DIN
Fuel tank140 l140 l180 l
Transmissionmech.hydr.hydr.
Gears333
Speed min-max.1,4-23 km/h0-22 km/h0-22 km/h
Cutting width280 cm280 cm372 cm
Cutting width, alternative326 cm326 cm326 cm
Reel diameter100 cm100 cm100 cm
Header length46 cm46 cm46 cm
Threshing cyl. diameter45 cm45 cm45 cm
Threshing cyl. width112 cm112 cm112 cm
Number of straw walkers444
Area of walkers320 dm²320 dm²430 dm²
Lenght of walkers286 cm286 cm383 cm
Straw shieve140 dm²140 dm²157 dm²
Bottom shieve100 dm²100 dm²132 dm²
Total screening area240240290
Overall lenght733 cm733 cm980 cm
Overall width328 cm328 cm418 cm
Width without header295 cm295 cm295 cm
Height without cabin297 cm297 cm-
Height with cabin333 cm333 cm345 cm
Weight without cabin5360 kg5360 kg6560 kg
Weight with cabin5600 kg5600 kg6800 kg
Grain tank26 hl26 hl32 hl
Unl. height300 cm300 cm337 cm
Tyres front (Finland)18.4-2618.4-2618.4-30
Tyres front, alternative16.9-2616.9-2618.4-26
Tyres rear (Finland)11.5/80-1511.5/80-1514.0-16
Tyres rear, alternative10.0/75-1510.0/75-1511.5/80-15
Reel forward/backw. adjustmenthydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.
Threshing cyl. speed adjustmentconverterconverterconverter
Bottom sieveconvertibleconvertibleadj.
Brakesmech. discmech. discmech. disc
Heatingxxx
Type of cutting platform floatinggas dampergas dampergas damper
