Siirry sivupalkkiinSiirry alaosaanDronningborg D-880 – D-1800

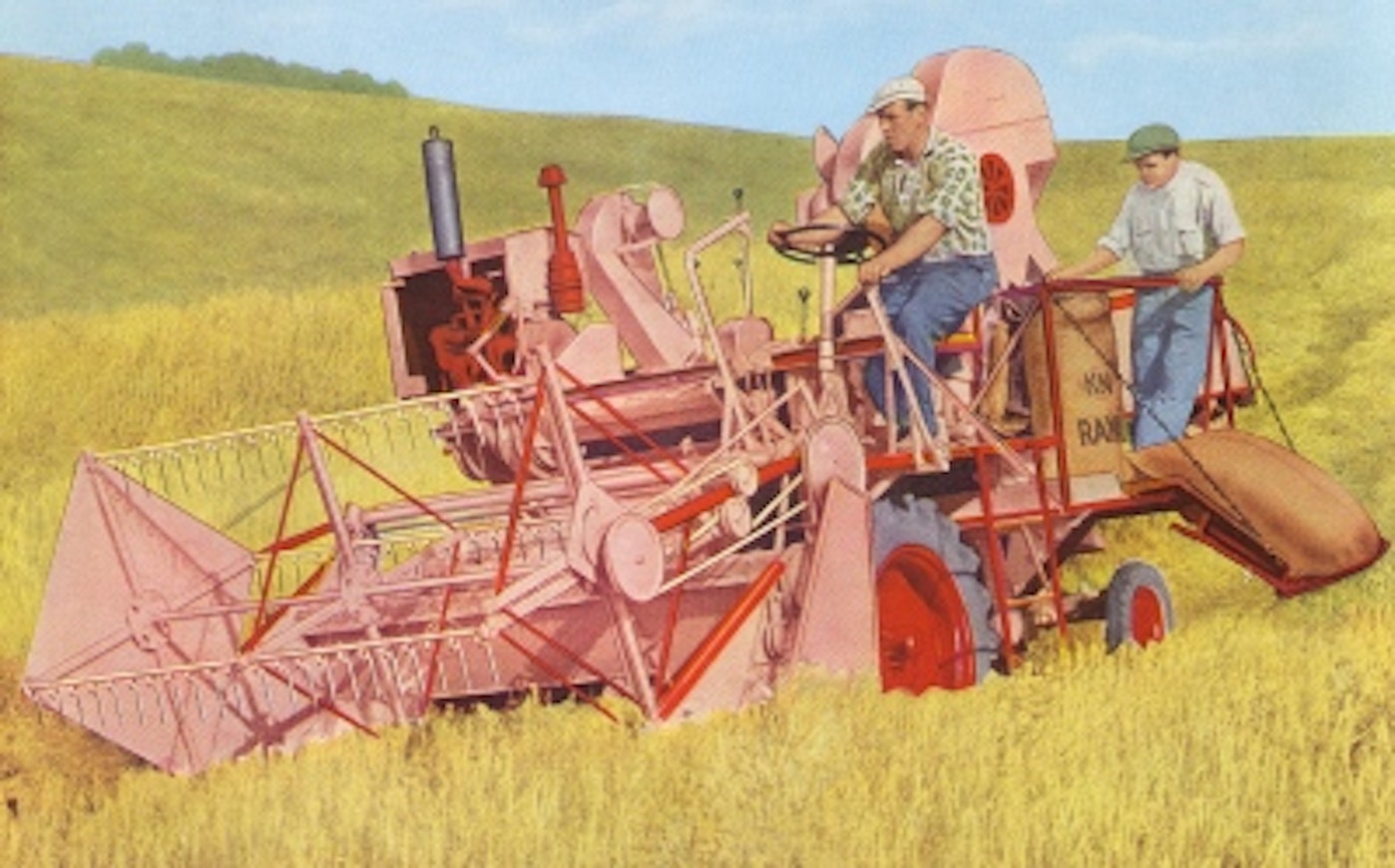

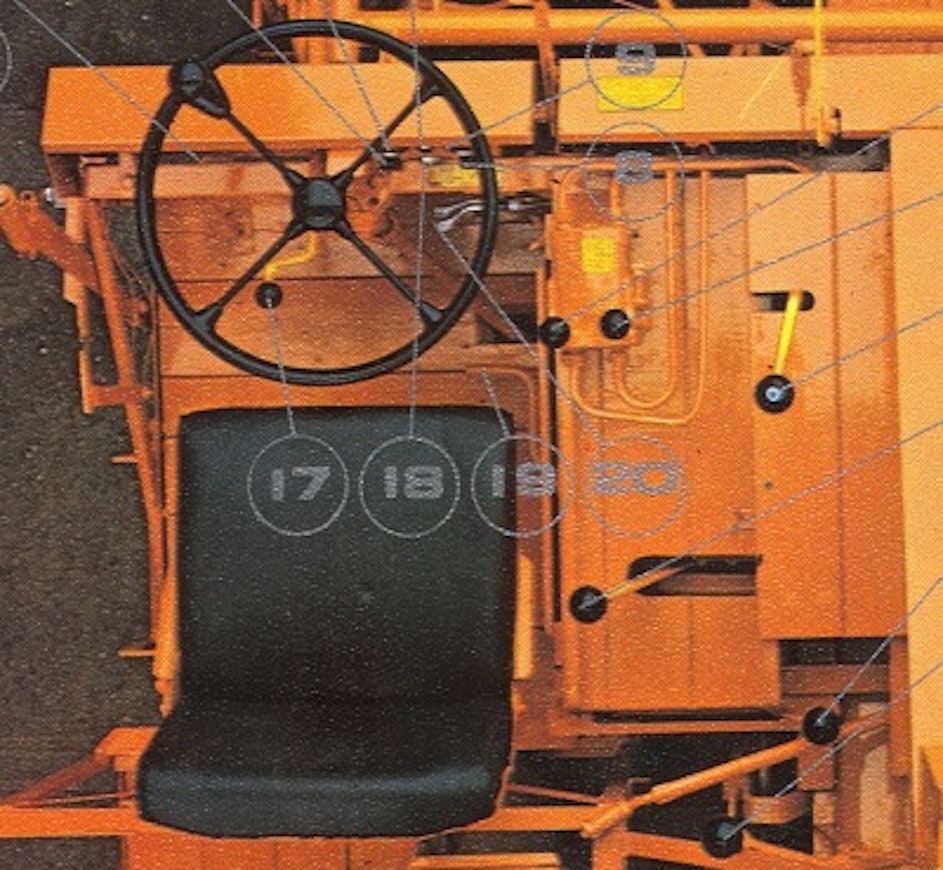

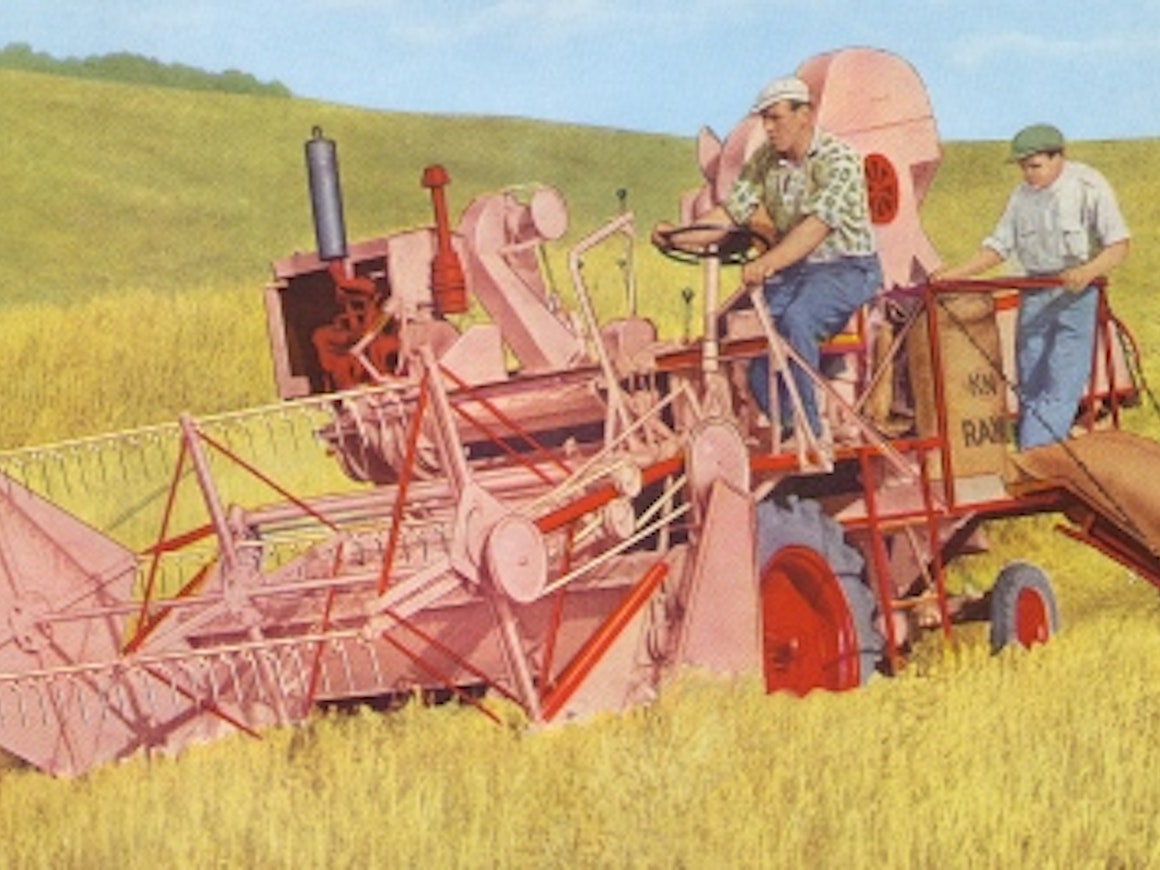

The first combine harvester from Dronningborg was the D-900, introduced in 1959. It remained in production for nearly 20 years and was almost until the end the most popular combine harvester in Denmark. The D-880 was a simplified version of the D-900. It featured, among other things, manual mechanical adjustment of the cutter bar height using a lever. The D-880/900 was somewhat unusual in its dimensions: the threshing drum width was 112 cm, which was very narrow compared to the 229 cm cutting width. It had 5 threshing bars (straw walkers), but they were quite short. The overall length of the combine was comparable to the smallest combines on the market. Initially, the engine was either a Leyland 50 hp gasoline engine or a 1.8-liter Perkins 4.107 (44 hp), later replaced by a 2.5-liter Perkins 4.154. There were only two gears, and the driving direction was changed with a directional reverser. The speed and length adjustments for the unloading auger were controlled from the cab. The first picture shows the 1961 model, and the latter ones the 1971 model, which featured newer paintwork.
Larger Dronningborg models had to wait until 1965, when the 10-foot D-1500 was introduced. The only feature inherited from the smaller model was the width of the threshing mechanism. The threshing drum diameter was 15 cm larger, and the straw walkers were 125 cm longer. The engine was a 78-horsepower Perkins 4.236. The bigger sibling of the D-1500, the D-1800, was introduced in 1968. It featured a 105-horsepower 6-cylinder engine and either 12-foot or 10-foot cutting widths. Later, these models were combined into the D-1600, which had a lower-powered 6-cylinder engine, longer straw walkers, but a smaller sieve and smaller threshing drum diameter.
In 1969, the mid-range model D-1200 was introduced, featuring a 70-horsepower engine and a 265 cm cutting width. The threshing drum was the same as in the smaller model, but the threshing mechanism was almost as long as in the larger models. All these Dronningborg models had a sack-loading platform alongside the grain tank. From the D-1200 onwards, hydraulic rotation and reverse rotation of the unloading auger, a differential lock, and electrical rotation speed indicators (for example, on elevators) were standard features.
This is an automated translation. Please report any issues in the translation.
| Model | Dronningborg D-880 | Dronningborg D-900 | Dronningborg D-1200 | Dronningborg D-1500 | Dronningborg D-1600 | Dronningborg D-1800 |
|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No |
| Years | 1959-? | 1959-76 | 1969-76 | 1965-73 | 1973-76 | 1968-72 |
| Engine | Perkins | Perkins | Perkins | Perkins | Perkins | Perkins |
| Engine type | 4.107 | 4.154 | 4.236 | 4.236 | 6.354 | 6.354 |
| Displacement | 1760 cm³ | 2524 cm³ | 3860 cm³ | 3860 cm³ | 5797 cm³ | 5797 cm³ |
| Cyl/turbo | 4 | 4 | 4 | 4 | 6 | 6 |
| Power | 46 hp DIN | 56 hp DIN | 70 hp DIN | 78 hp DIN | 100 SAE hp DIN | 105 hp DIN |
| Fuel tank | 55 l | 80 l | 160 l | 160 l | 160 l | 160 l |
| Transmission | mech. | mech. | mech. | mech. | mech. | mech. |
| Gears | 2 | 2 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,8-18 km/h | 1,8-18 km/h | 1,2-20 km/h | 1,2-20 km/h | 1,2-20 km/h | 1,2-20 km/h |
| Cutting width | 229 cm | 229 cm | 265 cm | 312 cm | 367 cm | 372 cm |
| Cutting width, alternative | 250 cm | 250 cm | - | - | - | 312 cm |
| Threshing cyl. diameter | 43 cm | 43 cm | 43.5 cm | 58 cm | 43 cm | 58 cm |
| Threshing cyl. width | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm |
| Number of straw walkers | 5 | 5 | 4 | 4 | 4 | 4 |
| Area of walkers | 235 dm² | 259 dm² | 348 dm² | 397 dm² | 420 dm² | 397 dm² |
| Lenght of walkers | 210 cm | 230 cm | 310 cm | 355 cm | 380 cm | 355 cm |
| Straw shieve | 83 dm² | 83 dm² | 117 dm² | 173 dm² | 126 dm² | 173 dm² |
| Bottom shieve | 83 dm² | 83 dm² | 96 dm² | 117 dm² | 104 dm² | 117 dm² |
| Total screening area | 182 | 182 | 213 | 290 | 230 | 290 |
| Overall lenght | 600 cm | 641 cm | 710 cm | 760 cm | 760 cm | 760 cm |
| Overall width | 300 cm | 304 cm | 306 cm | 360 cm | 411 cm | 411 cm |
| Height without cabin | 300 cm | 301 cm | 300 cm | 300 cm | 300 cm | 300 cm |
| Weight without cabin | 2800 kg | 3250 kg | 4450 kg | 5000 kg | 5000 kg | 5700 kg |
| Grain tank | (14) hl | 14 hl | 21 hl | 24 hl | 22 hl | 24 hl |
| Tyres front (Finland) | 11.2/10-28 | 14.9/13-24 | 14.9-24 | 14.9-26 | 16.9-26 | 18.4-26 |
| Tyres rear (Finland) | 5.00-16 | 8.50-12 | 8.50-12 | 10.00-12 | 11.00-12 | 11.00-12 |
| Reel speed adjustment | mech. | mech. steering | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | converter | converter | converter | converter | converter | converter |
| Bottom sieve | convertible | convertible | convertible | convertible | convertible | convertible |
| Brakes | drum brakes | drum brakes | mech. disc | mech. disc | mech. disc | mech. disc |
| Type of cutting platform floating | spring | spring | - | gas damper | gas damper | gas damper |
| Alternative hp | - | 50 hp | - | - | - | - |
| Unl. height | - | 260 cm | 294 cm | 300 cm | 300 cm | 300 cm |
| Reel forward/backw. adjustment | - | mech. steering | hydr. | hydr. | hydr. | hydr. |
| Reverser | - | - | x | x | x | x |
| Width without header | - | - | - | 296 cm | 306 cm | 306 cm |
| Tyres front, alternative | - | - | - | 18.4-26 | - | - |
| Tyres rear, alternative | - | - | - | 11.00-12 | - | - |
