Siirry sivupalkkiinSiirry alaosaanFahr M 600 – M 1002

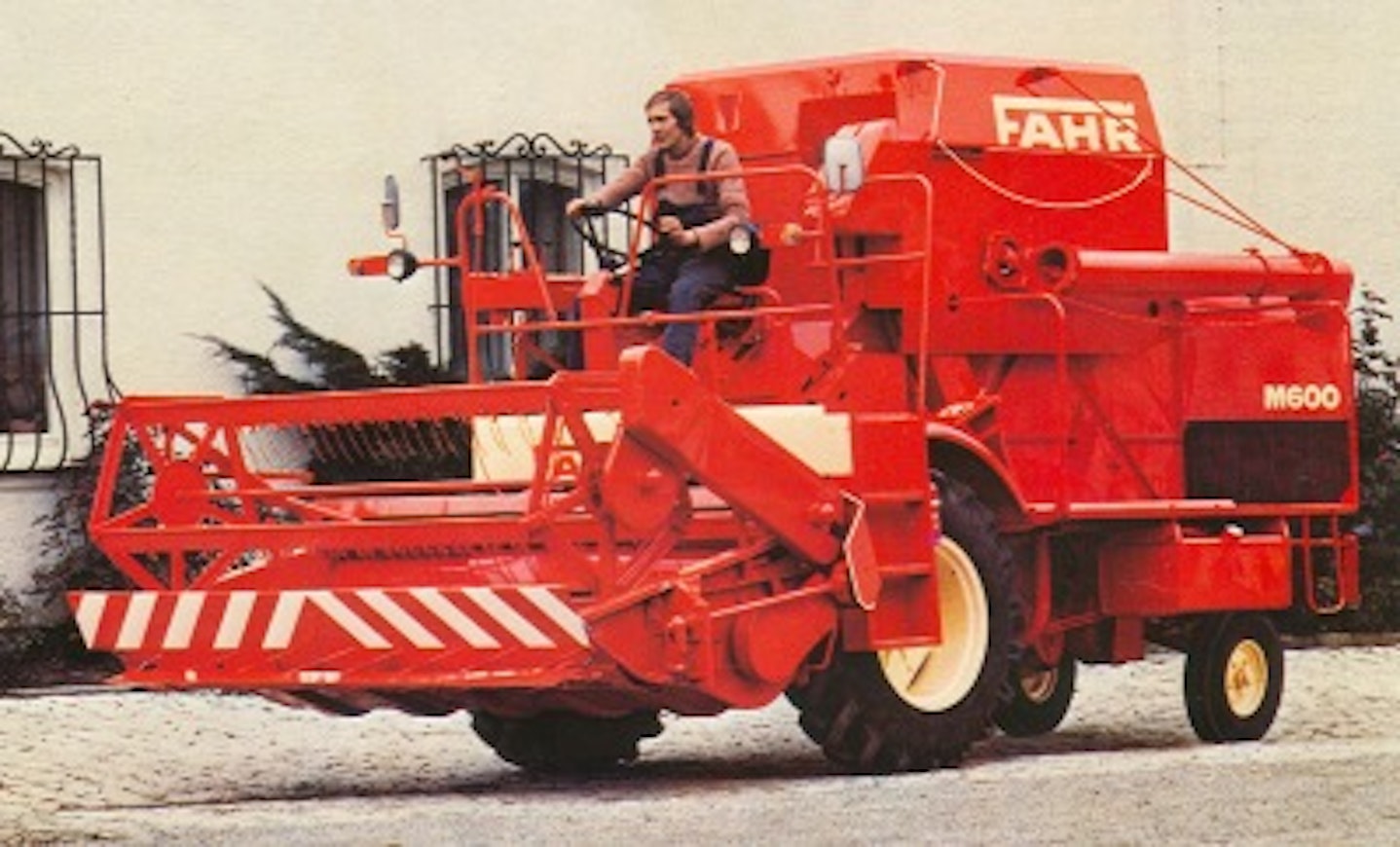

About Fahr's new models: The M 600 was developed with minor improvements from the M 66 model. The M 750 was largely based on the previous M 66 S model. In the new M 600 S model, on the other hand, there were no longer longer threshing bars. In the smaller Fahr machines, the engine was located longitudinally on the right side of the threshing mechanism.

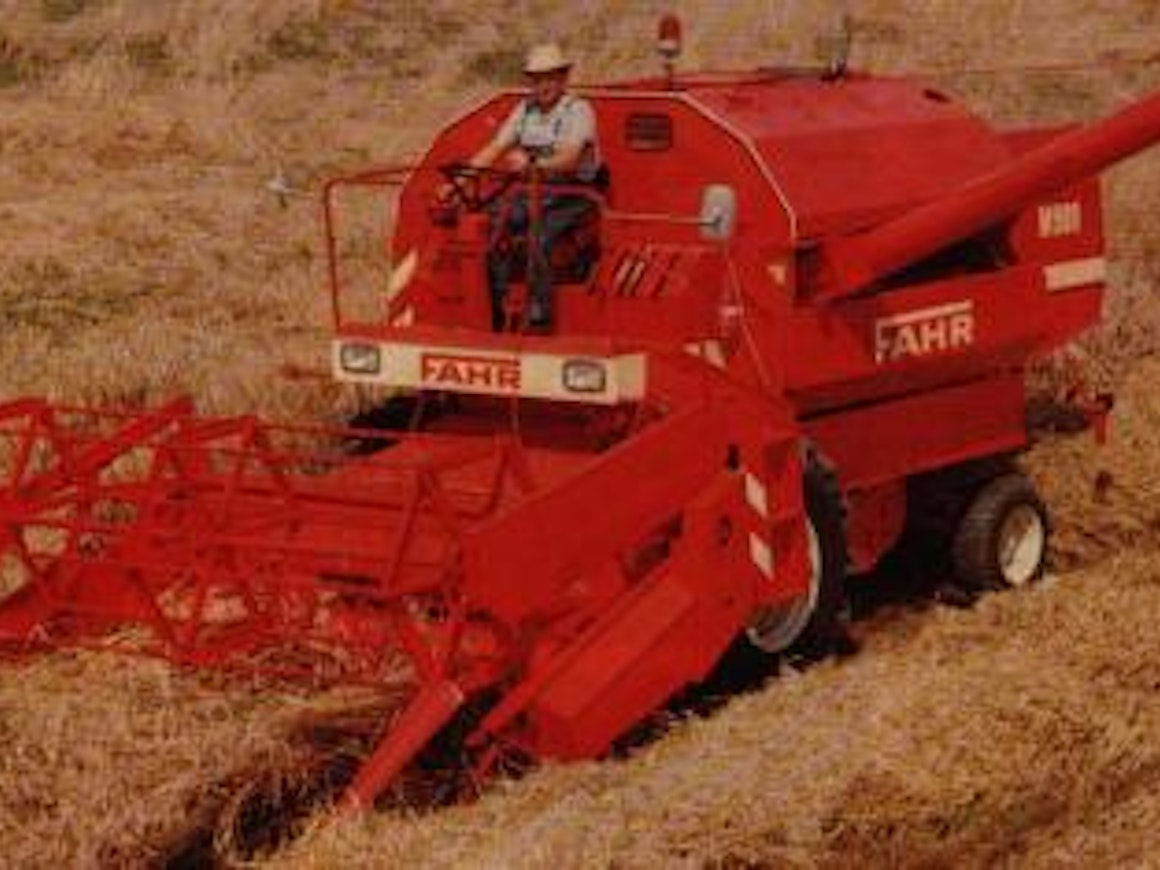

The M 900 was clearly a different combine than its predecessor, the M 88. The M 900 was, in fact, still a developed version of the Rubin model from the Köla factory, which became part of Deutz ownership alongside Fahr, and which was introduced in 1968. In Finland, Fahr’s market share was largest in the under 3-meter size category, namely the M 600 – 750 models. Large Fahr machines were not imported to Finland because Keskon also sold Clayson.
This is an automated translation. Please report any issues in the translation.
| Model | Fahr M 600 | Fahr M 600 S | Fahr M 750 | Fahr M 900 | Fahr M 1002 |
|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | No |
| Years | 1973-79 | 1973-74 | 1972-79 | 1972-78 | 1976-78 |
| Engine | Deutz | Deutz | Deutz | Deutz | Deutz |
| Engine type | F3L 912 | F3L 912 | F4L 912 | F4L 912 | F5L 912 |
| Displacement | 2826 cm³ | 2826 cm³ | 3768 cm³ | 3768 cm³ | 4710 cm³ |
| Cyl/turbo | 3 | 3 | 4 | 4 | 5 |
| Power | 56 (60 SAE) hp DIN | 60 (64 SAE) hp DIN | 64 (74 SAE) hp DIN | 83 SAE hp DIN | 90 hp DIN |
| Fuel tank | 100 l | 100 l | 100 l | 140 l | 140 l |
| Transmission | mech. | mech. | mech. | mech. | mech. |
| Gears | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,4-19,0 km/h | 1,6-20,0 km/h | 1,6-20,0 km/h | 1,1-19,0 km/h | 1,1-20,0 km/h |
| Cutting width | 240 cm | 266 cm | 266 cm | 295 cm | 295 cm |
| Reel diameter | 90 cm | 90 cm | 90 cm | 110 cm | 110 cm |
| Header length | 46.5 cm | 46.5 cm | 46.5 cm | 46.5 cm | 46.5 cm |
| Threshing cyl. diameter | 46 cm | 46 cm | 46 cm | 56 cm | 56 cm |
| Threshing cyl. width | 85 cm | 85 cm | 85 cm | 103 cm | 103 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 |
| Area of walkers | 235 dm² | 235 dm² | 280 dm² | 357 dm² | 357 dm² |
| Lenght of walkers | 275 cm | 275 cm | 330 cm | 345 cm | 345 cm |
| Straw shieve | 75 dm² | 75 dm² | 75 dm² | 100 dm² | 100 dm² |
| Bottom shieve | 85 dm² | 85 dm² | 85 dm² | 100 dm² | 100 dm² |
| Total screening area | 217 | 217 | 217 | 266 | 266 |
| Overall lenght | 734 cm | 734 cm | 784 cm | 864 cm | 864 cm |
| Overall width | 295 cm | 317 cm | 317 cm | 340 cm | 340 cm |
| Width without header | 286 cm | - | 300 cm | - | - |
| Height without cabin | 280 cm | 280 cm | 295 cm | 340 cm | 340 cm |
| Weight without cabin | 3400 kg | 3600 kg | 4150 kg | 4700 kg | 4670 kg |
| Grain tank | 15 hl | 15 hl | 19 hl | 23 hl | 23 hl |
| Tyres front (Finland) | 14.9-24 | 14.9-26 | 14.9-24 | 18.4-26 | 18.4-26 |
| Tyres front, alternative | 14.9-26 | - | 16.9-26 | 14.9-26 | - |
| Tyres rear (Finland) | 10.0-15 | 10.0-15 | 10.0-15 | 10.0-15 | 10.0-15 |
| Reel forward/backw. adjustment | mech. | mech. | mech. | mech. | mech. |
| Reel speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Threshing cyl. speed adjustment | chain wheels | chain wheels | chain wheels | adj, in cabin | adj, in cabin |
| Bottom sieve | convertible | convertible | convertible | convertible | convertible |
| Brakes | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper |
| Tyres rear, alternative | - | - | 11.5-15 | 8.50-12 | - |
| Alternative hp | - | - | - | 74 SAE hp | - |
| Cutting width, alternative | - | - | - | 266, 360 cm | 266, 360 cm |
