Deutz-Fahr M 2385 – M 2780

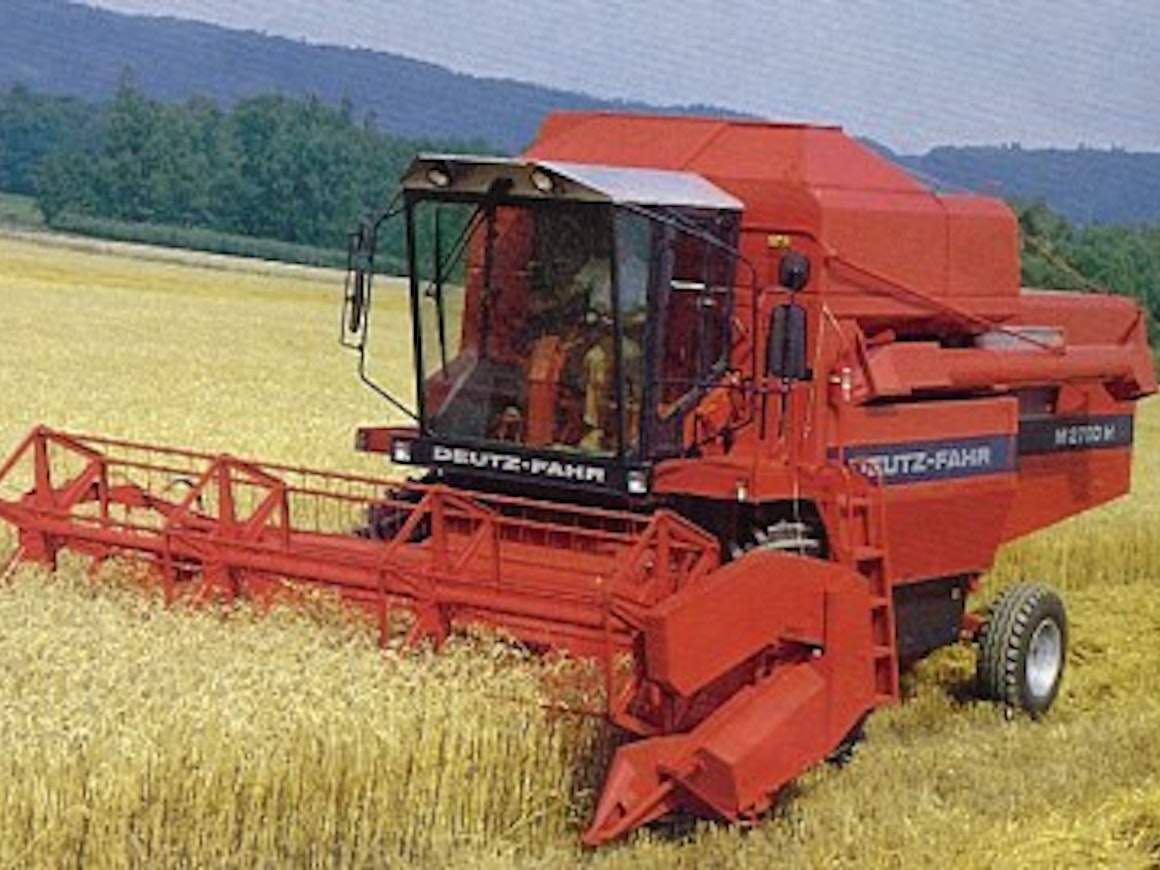

83FahrM2780
Manufacturer
Models
Deutz-Fahr M 2385, Deutz-Fahr M 2480, Deutz-Fahr M 2580, Deutz-Fahr M 2680, Deutz-Fahr M 2685, Deutz-Fahr M 2780, Deutz-Fahr M 2780 H
Years
1979-88
Info

The large Deutz combines were updated starting from the middle of the model range. The selection expanded, but no combine as large as the old M 1600 was produced anymore. The most powerful model had only 160 hp, although the larger M 36 series followed somewhat later. However, the grain tanks and threshers were much bigger than in the previous models. The Commander Cab cabin was advanced for its time. As standard equipment, there was an electronic monitoring system without a threshing loss measurement. The M 2385, M 2580, and M 2680 were available in green from this series. Large Deutz-Fahre machines were never brought to Finland because Kesko offered Clayson machines to buyers of larger combines.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelDeutz-Fahr M 2385Deutz-Fahr M 2480Deutz-Fahr M 2580Deutz-Fahr M 2680Deutz-Fahr M 2685Deutz-Fahr M 2780Deutz-Fahr M 2780 H
Imported to FinlandNoNoNoNoNoNoNo
Years1982-881979-861979-881979-881980-861983-861981-86
EngineDeutzDeutzDeutzDeutzDeutzDeutzDeutz
Engine typeF6L 912F6L 912F6L 913F6L 913BF6L 913BF6L 913BF6L 913
Displacement5652 cm³5652 cm³6128 cm³6128 cm³6128 cm³6128 cm³6128 cm³
Cyl/turbo66666T6T6T
Power103 hp DIN104 hp DIN121 hp DIN121 hp DIN145 hp DIN160 hp DIN160 hp DIN
Alternative hpF5L 912 hp---160 hp--
Fuel tank190 l320 l320 l320 l320 l320 l320 l
Transmissionmech.mech.mech.mech.mech.mech.hydr.
Gears3333333
Speed min-max.1,3-20,0 km/h1,3-20,0 km/h1,3-20,0 km/h1,3-20,0 km/h1,3-20,0 km/h1,3-20,0 km/h0-20,0 km/h
Cutting width360 cm360 cm360 cm360 cm420 cm420 cm420 cm
Cutting width, alternative300-420 cm300-420 cm300-420 cm300-420 cm300-480 cm300-480 cm300-480 cm
Reel diameter110 cm110 cm110 cm110 cm110 cm110 cm110 cm
Threshing cyl. diameter56.5 cm56.5 cm56.5 cm60 cm60 cm60 cm60 cm
Threshing cyl. width103 cm128.5 cm128.5 cm128.5 cm128.5 cm128.5 cm128.5 cm
Number of straw walkers4555555
Area of walkers403 dm²482 dm²482 dm²482 dm²482 dm²578 dm²578 dm²
Total screening area304378378378378378378
Overall lenght870 cm844 cm844 cm844 cm844 cm920 cm920 cm
Width without header291 cm300 cm300 cm300 cm300 cm300 cm300 cm
Height without cabin343 cm355 cm355 cm355 cm355 cm--
Height with cabin343 cm355 cm355 cm355 cm355 cm372 cm372 cm
Weight without cabin6030 kg------
Weight with cabin6255 kg-7295 kg7695 kg7760 kg8100 kg8100 kg
Grain tank32 hl42 hl42 hl42 hl42 hl50 hl50 hl
Tyres front (Finland)18.4-3018.4-3018.4-3018.4-3018.4-3018.4-3018.4-30
Tyres front, alternative23.1-2623.1-2623.1-2623.1-2623.1-2628.1-2628.1-26
Tyres rear (Finland)11.5/80-1511.5/80-1511.5/80-1511.5/80-1511.5/80-1511.5/80-1511.5/80-15
Reel forward/backw. adjustmentmech.mech.mech.hydr.hydr.hydr.hydr.
Reel speed adjustmentelec.elec.elec.elec.elec.elec.elec.
Threshing cyl. speed adjustmentadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabin
Bottom sieveconvertibleconvertibleconvertibleconvertibleconvertibleconvertibleconvertible
Brakeswet discwet discwet discwet discwet discwet discwet disc
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas dampergas dampergas damper
Lenght of walkers-374 cm374 cm374 cm374 cm448 cm448 cm
Reverser-xxxxxx
Tyres rear, alternative--12.5/80-1812.5/80-1812.5/80-1812.5/80-1812.5/80-18
Air conditioning---xxxx
