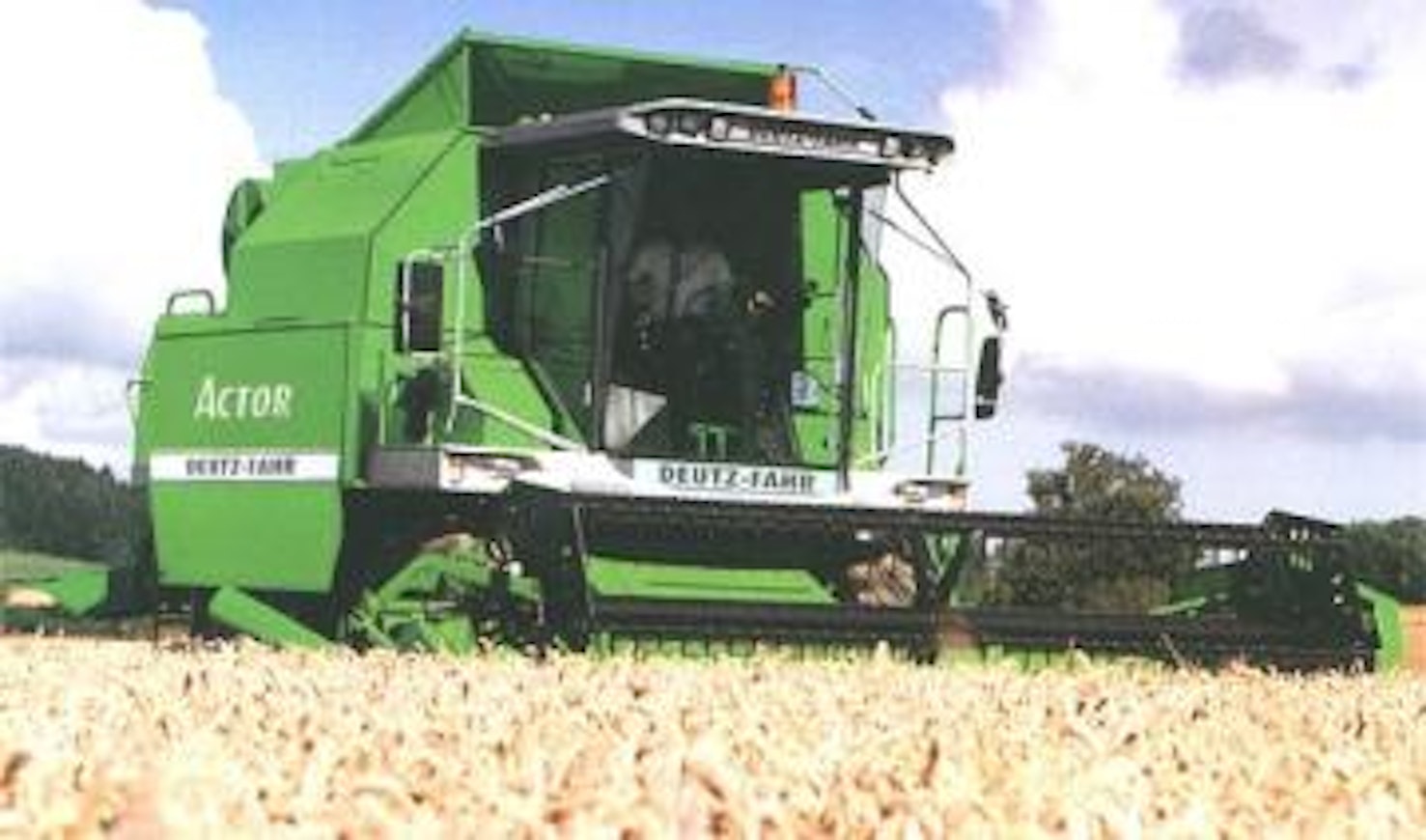

Actor and Ectron were successors to the earlier Powerliner and Starliner. The improvements were mainly limited to better equipment. The cockpit was similar to the CommanderCab II found in Topliners.

This is an automated translation. Please report any issues in the translation.

Deutz-Fahr Actor 5510

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

Deutz-Fahr Actor 5520 H

Deutz-Fahr Ectron 5530 H

Deutz-Fahr Actor/Ectron

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Deutz-Fahr Actor 5510	Deutz-Fahr Actor 5520 H	Deutz-Fahr Ectron 5530 H
Imported to Finland	No	No	No
Years	1999-2001	1999-2000	1999-2003
Engine	Deutz	Deutz	Deutz
Engine type	BF6L912	BF6L912	BF6L913
Displacement	5880 cm³	5880 cm³	6128 cm³
Cyl/turbo	6 T	6 T	6 T
Power	116 hp DIN	150 hp DIN	170 hp DIN
Fuel tank	300 l	300 l	300 l
Transmission	mech.	hydr.	hydr.
Gears	3	3	3
Speed min-max.	1,5-25 km/h	0-25 km/h	0-20 km/h
Cutting width	420 cm	420 cm	420 cm
Cutting width, alternative	360, 480 cm	360, 480 cm	300-540 cm
Reel diameter	110 cm	110 cm	110 cm
Threshing cyl. diameter	60 cm	60 cm	60 cm
Threshing cyl. width	111 cm	111 cm	127 cm
Number of straw walkers	5	5	5
Area of walkers	422 dm²	422 dm²	525 dm²
Lenght of walkers	378 cm	378 cm	397 cm
Straw shieve	203 dm²	203 dm²	213 dm²
Bottom shieve	172 dm²	172 dm²	165 dm²
Total screening area	375	375	384
Overall lenght	945 cm	945 cm	980 cm
Overall width	395 cm	395 cm	-
Width without header	298 cm	298 cm	319 cm
Height with cabin	363 cm	363 cm	365 cm
Weight with cabin	7680 kg	7730 kg	9055 kg
Weight without header	6760 kg	6810 kg	7775 kg
Grain tank	46 hl	46 hl	52 hl
Unl. height	345 cm	345 cm	375 cm
Tyres front (Finland)	18.4-30	18.4-30	650/75R32
Tyres front, alternative	23.1-26	23.1-26	23.1-26
Tyres rear (Finland)	11.5-15	11.5-15	12.5-18
Tyres rear, alternative	16/70-20	16/70-20	16/70-20
Reel forward/backw. adjustment	elec.	elec.	hydr.
Reel speed adjustment	elec.	hydr.	hydr.
Threshing cyl. speed adjustment	elec.	elec.	elec.
Bottom sieve	adj.	adj.	adj.
Brakes	wet disc	wet disc	wet disc
Type of cutting platform floating	gas damper	gas damper	gas damper
Reverser	-	x	x
Air conditioning	-	-	x
